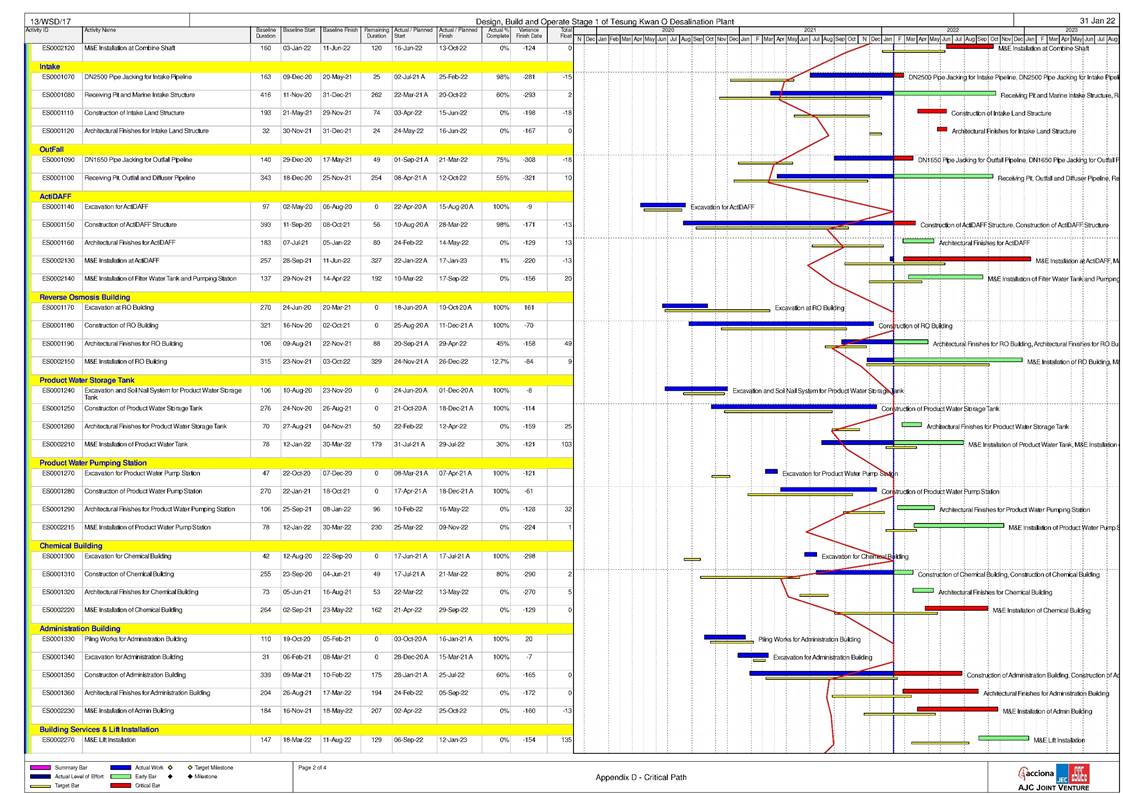

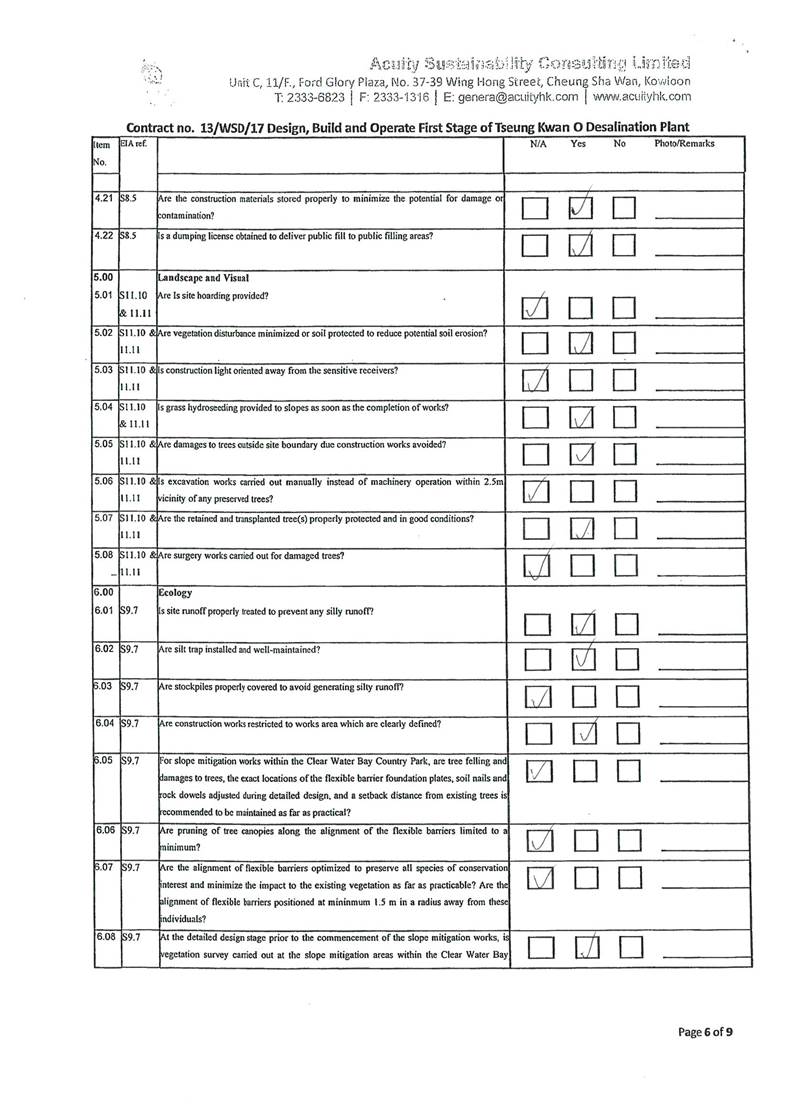

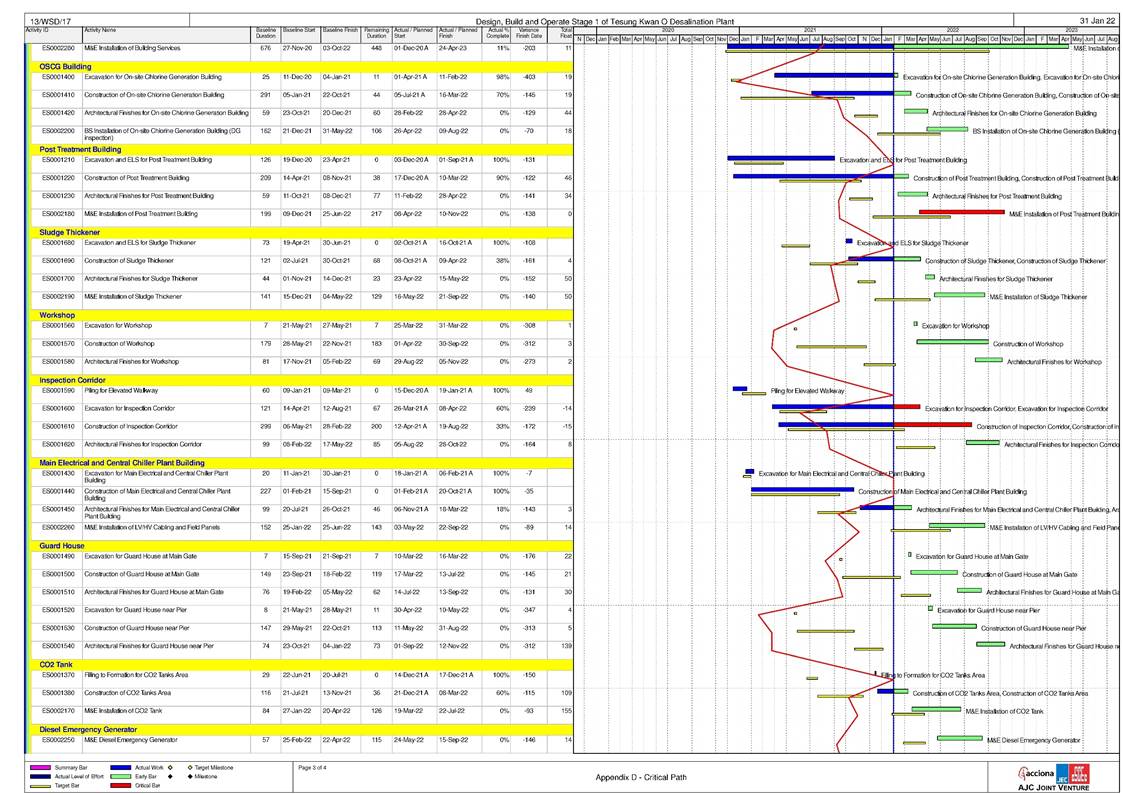

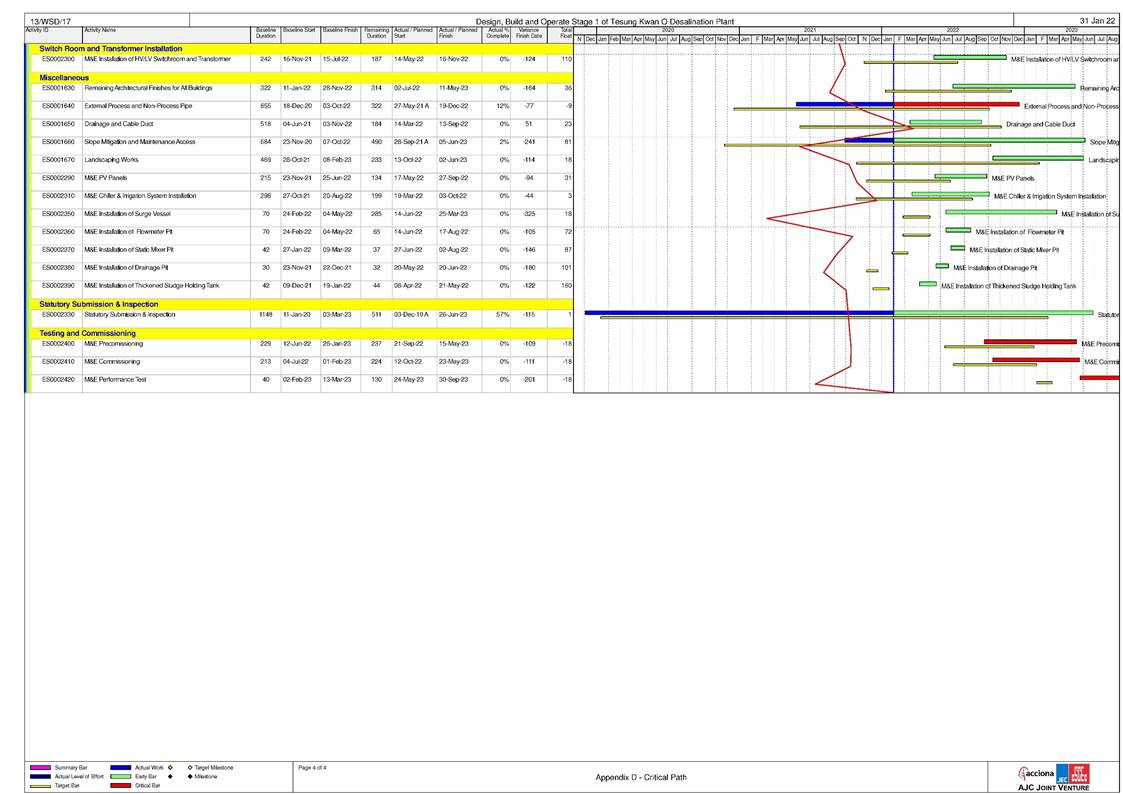

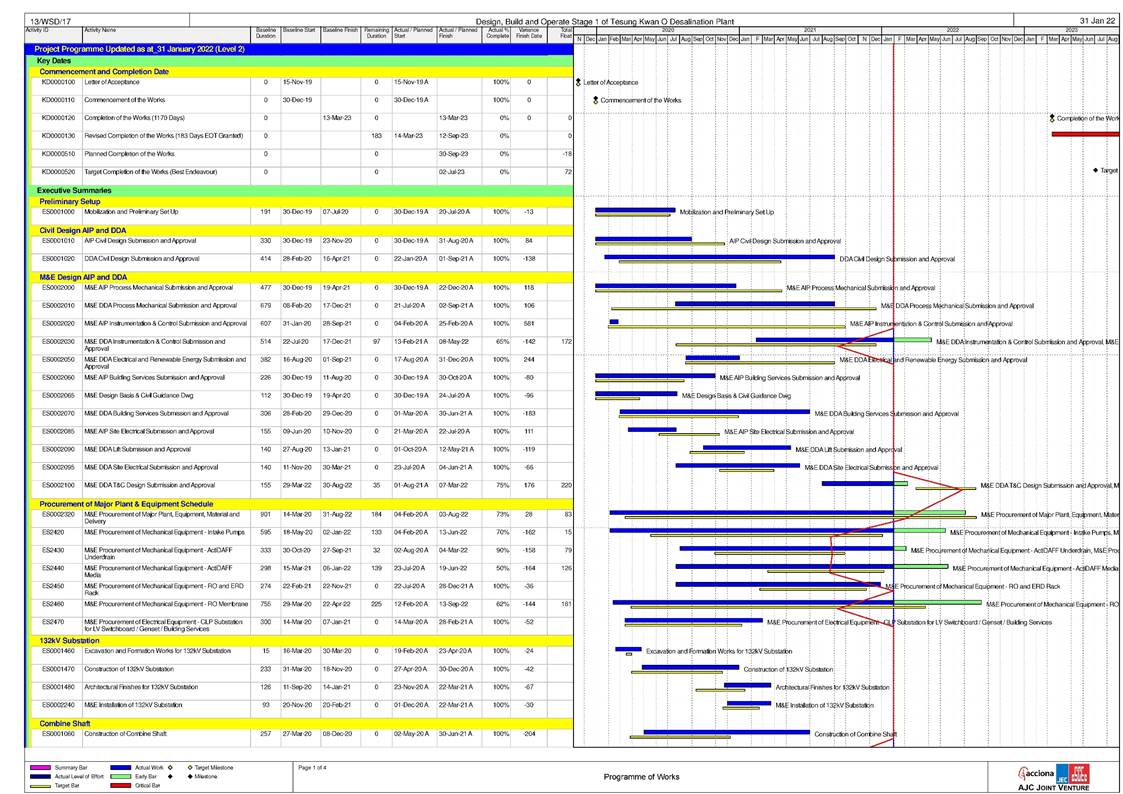

Appendix A Master Programme

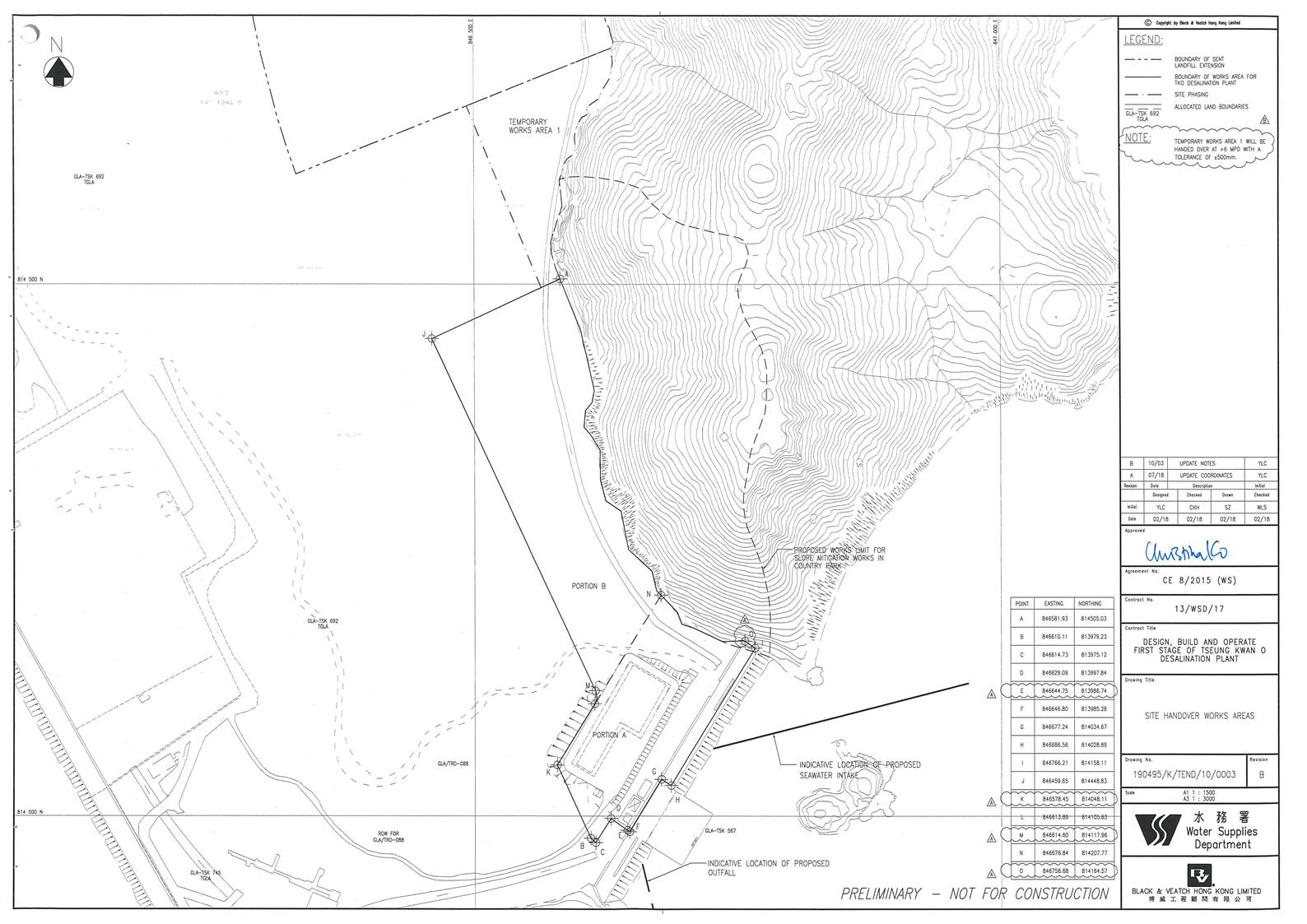

Appendix B Overview of Desalination Plant in Tseung Kwan O
Appendix C Summary of Implementation Status of Environmental Mitigation

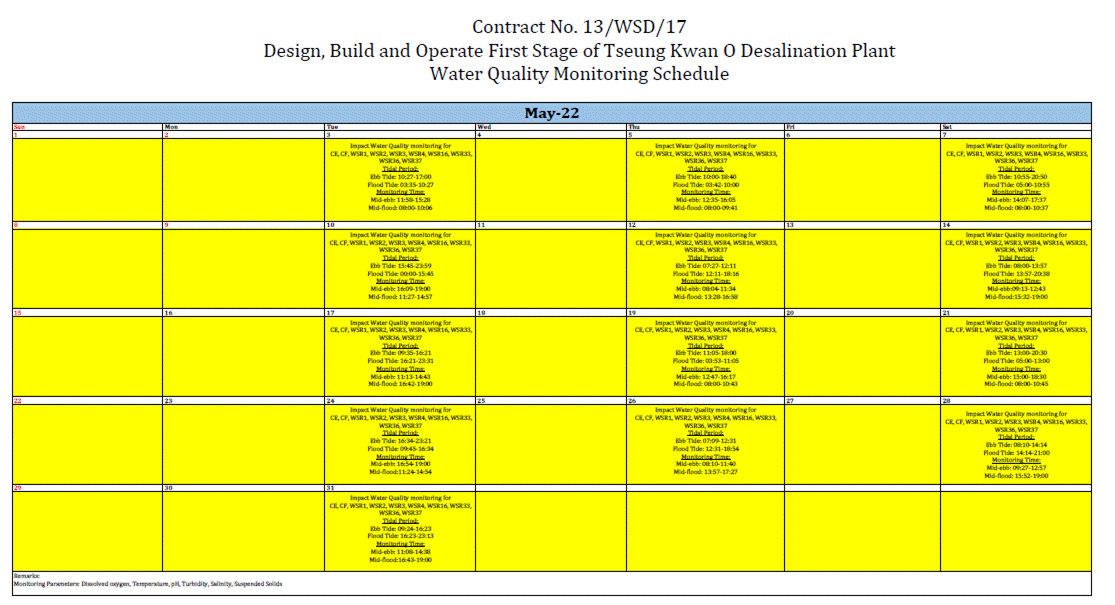

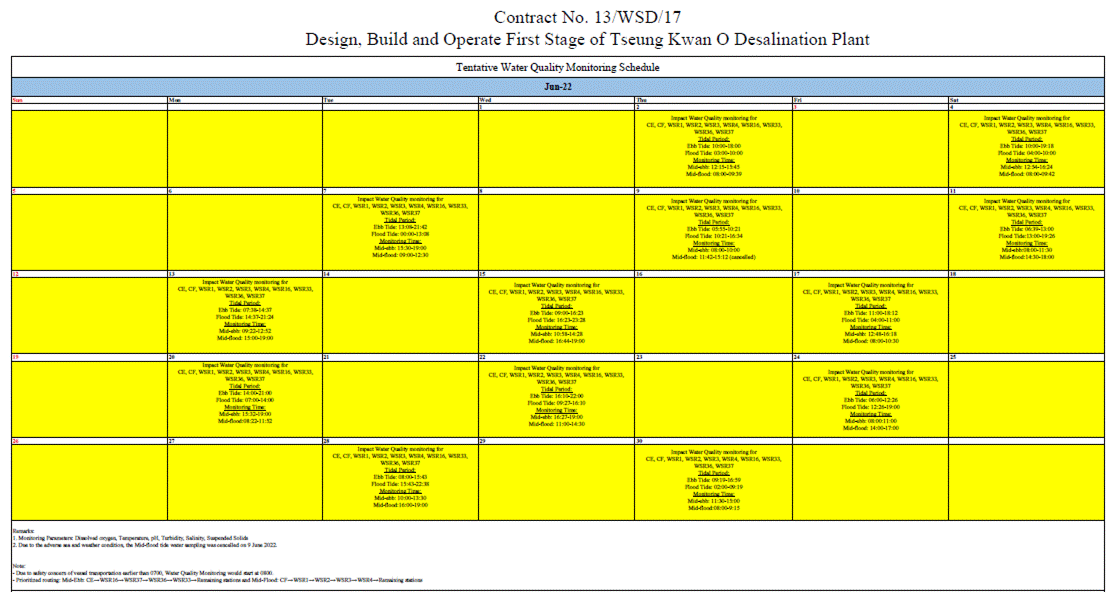

Appendix D Impact Monitoring Schedule of the Reporting Month
Appendix E Event/Action Plan for Noise Exceedance
Appendix F Noise Monitoring Equipment Calibration Certificate (Blank)
Appendix G Event/Action Plan for Water Quality Exceedance
Appendix H Waste Flow Table

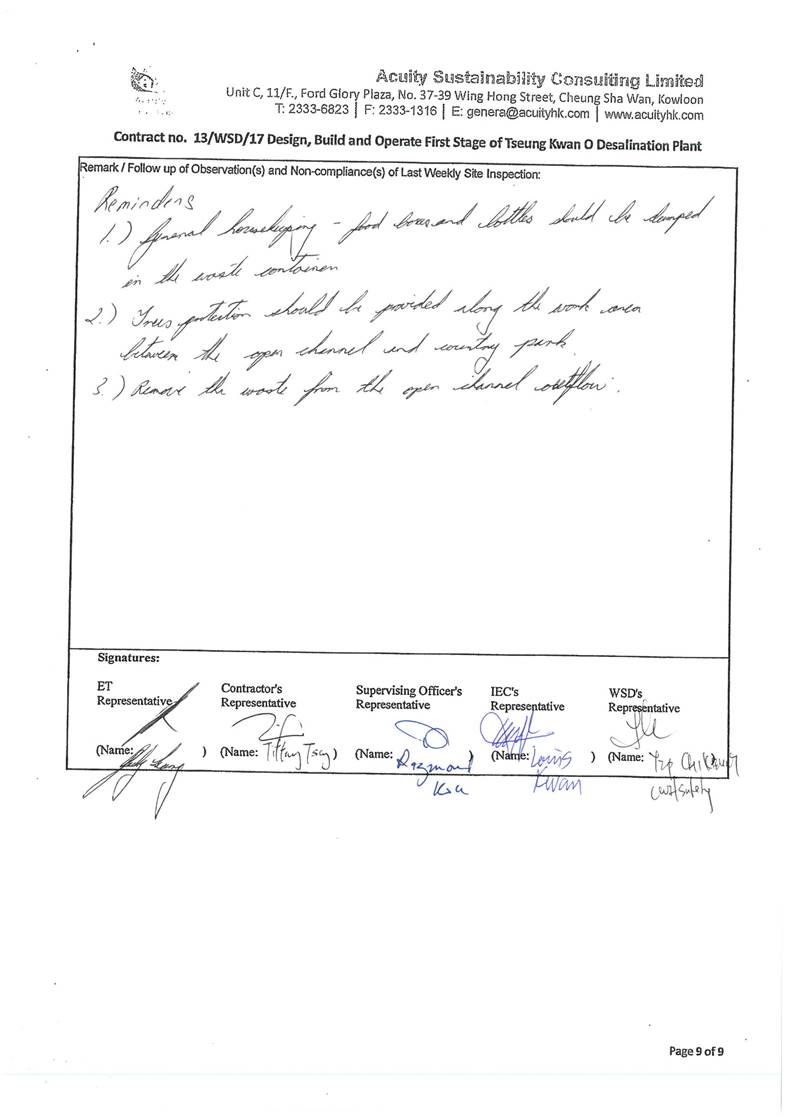

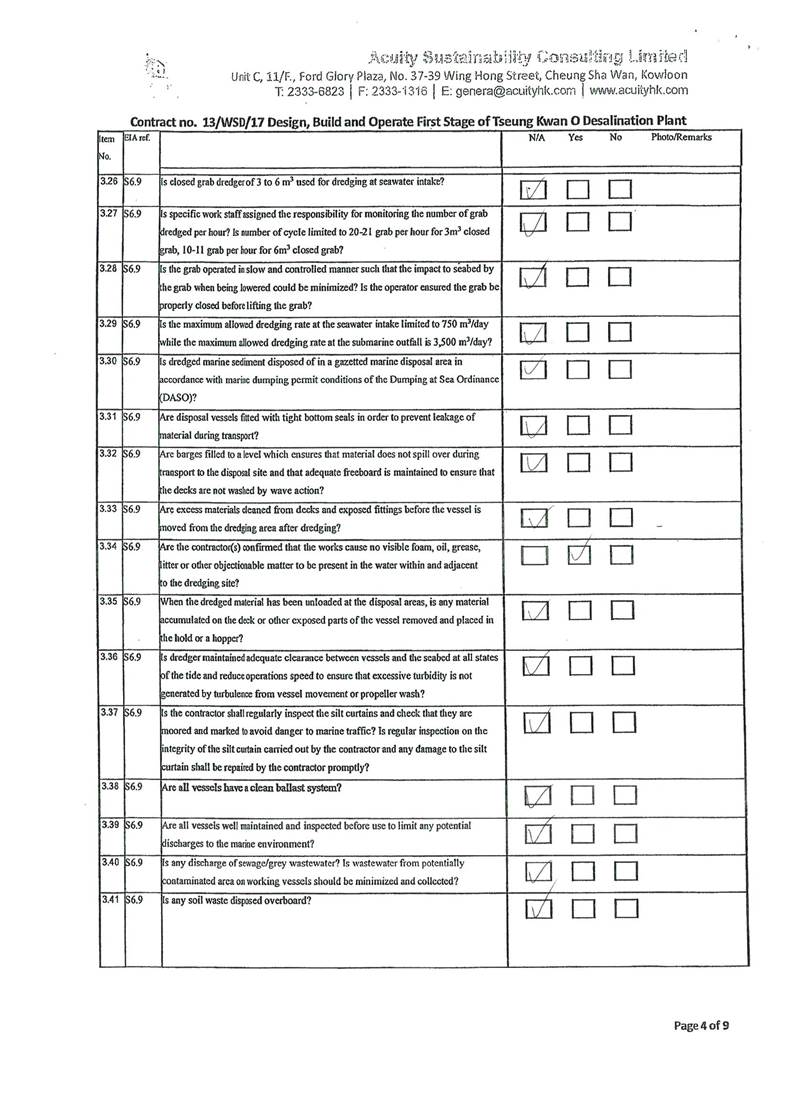

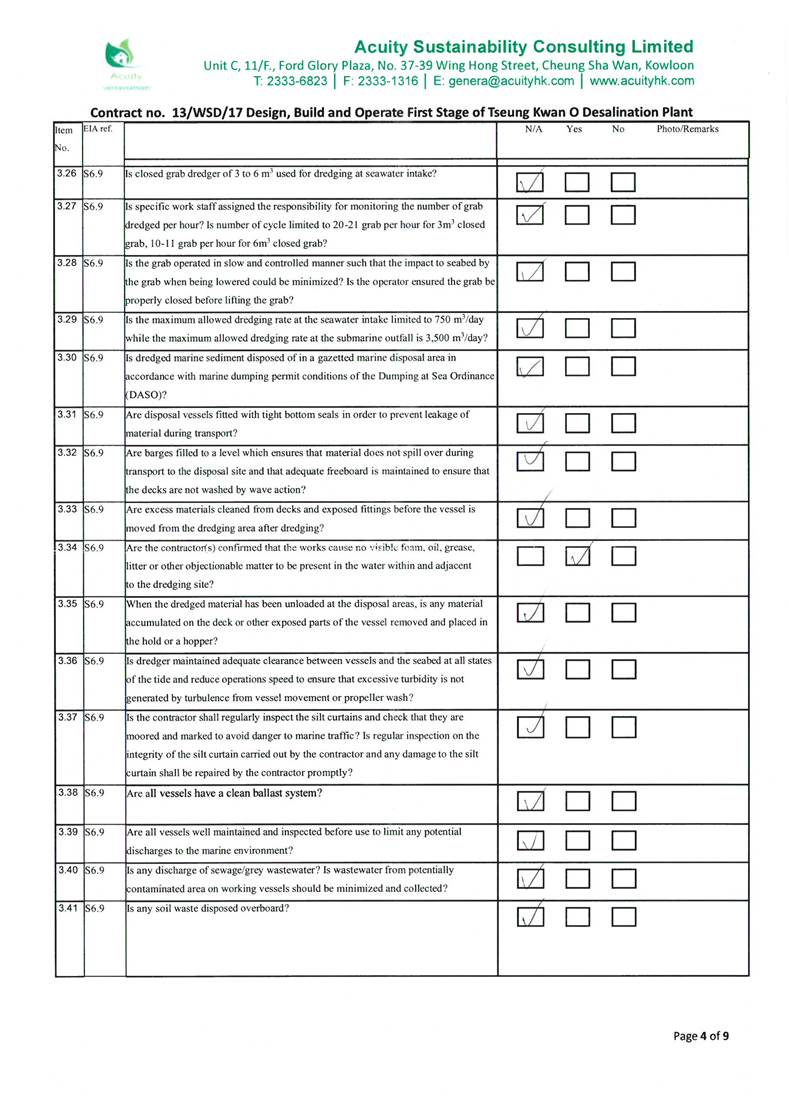

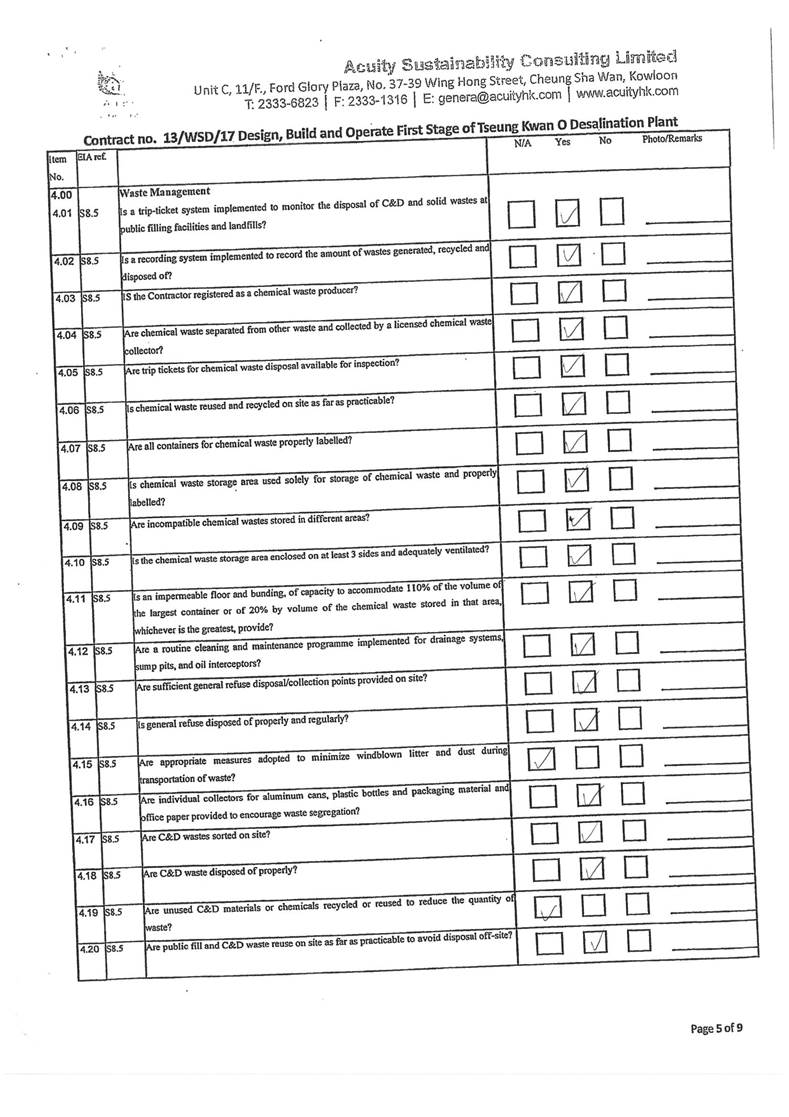

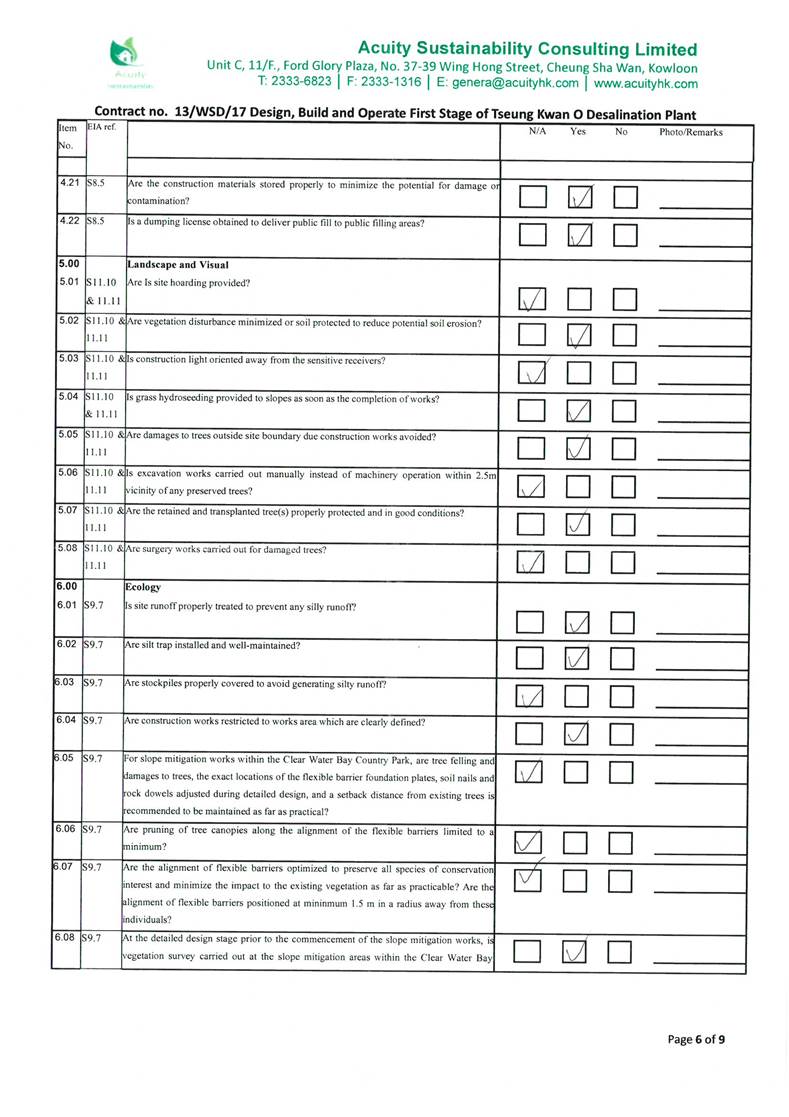

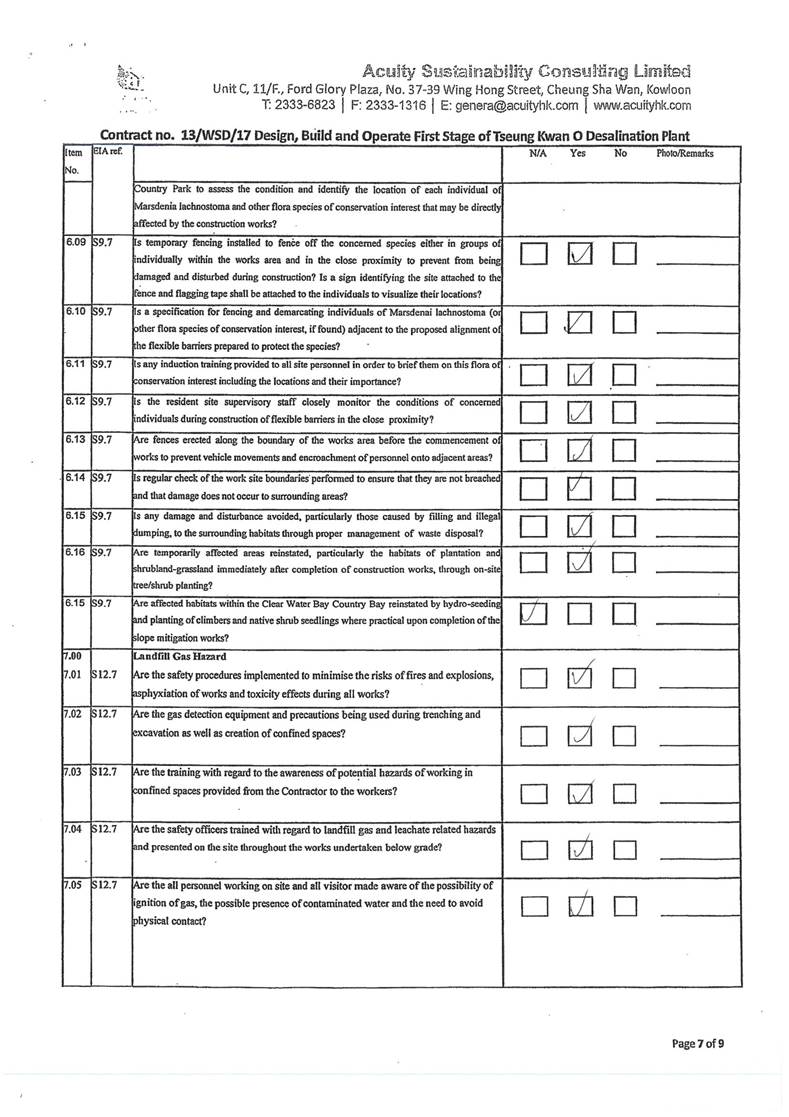

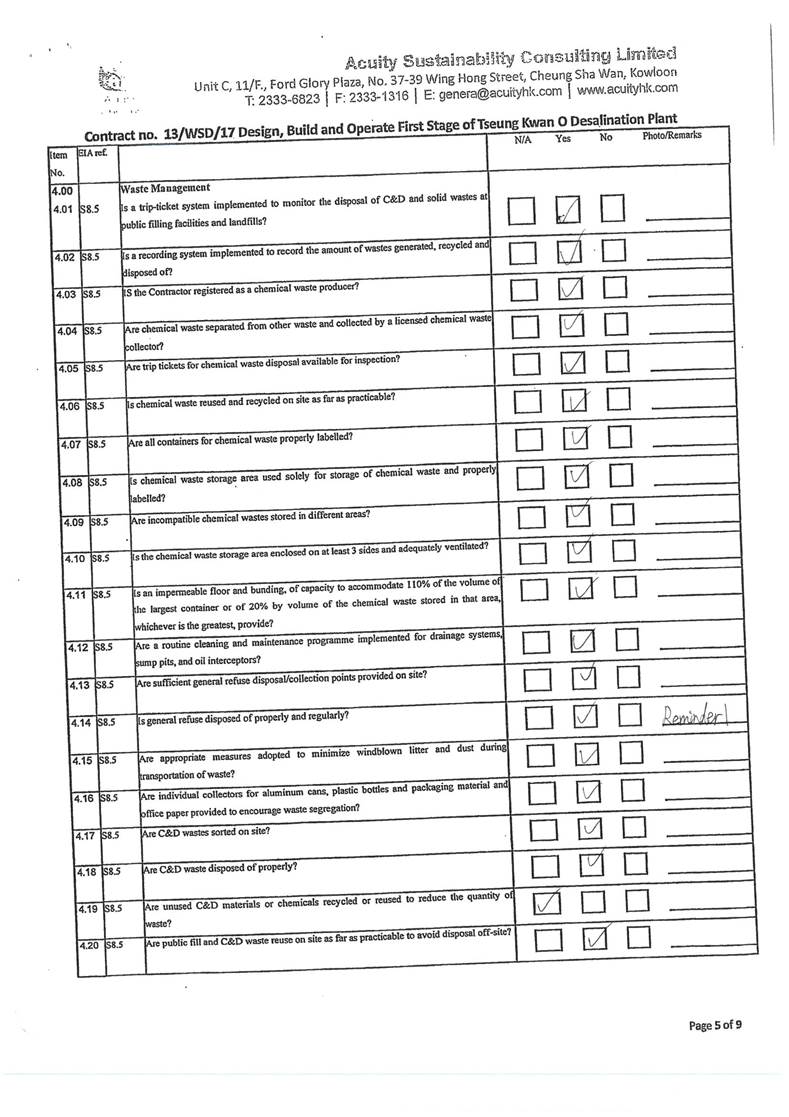

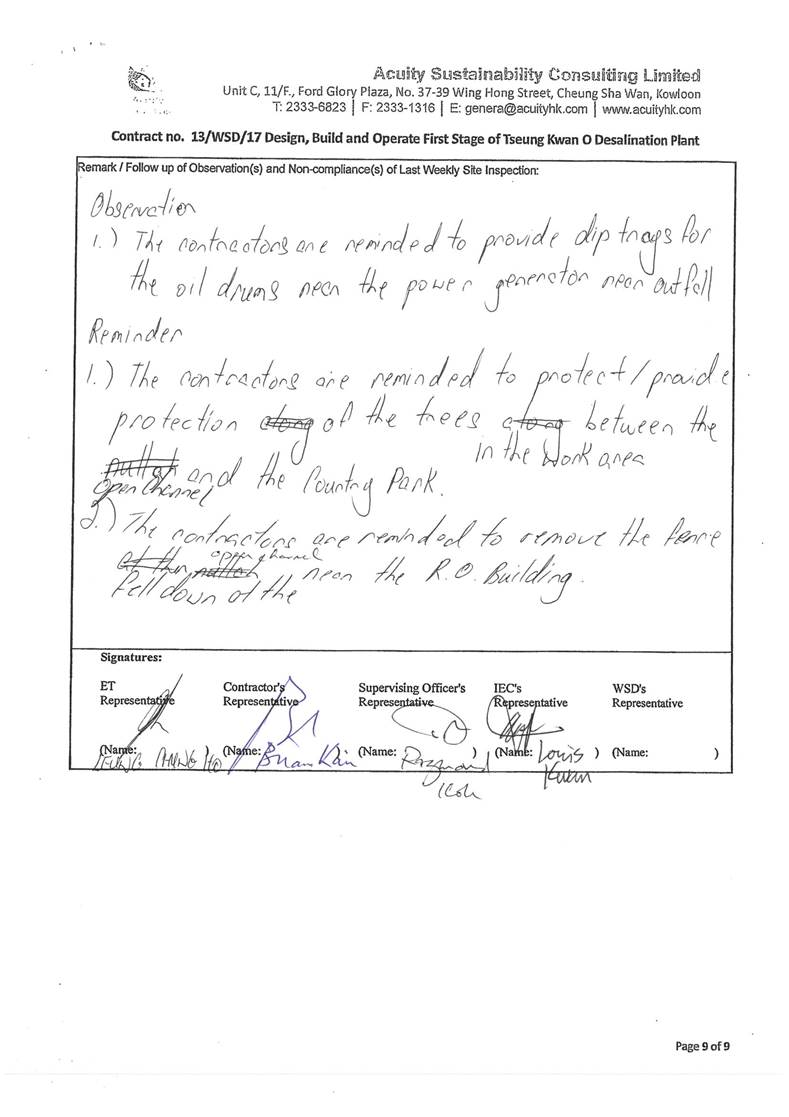

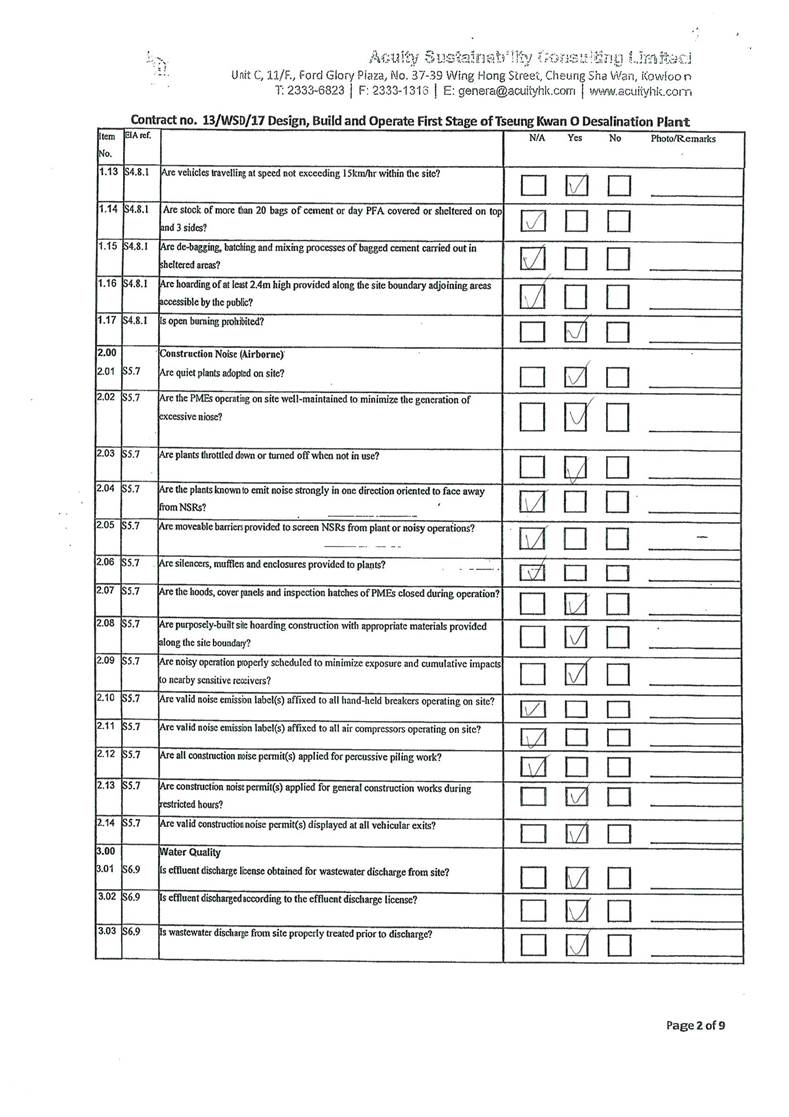

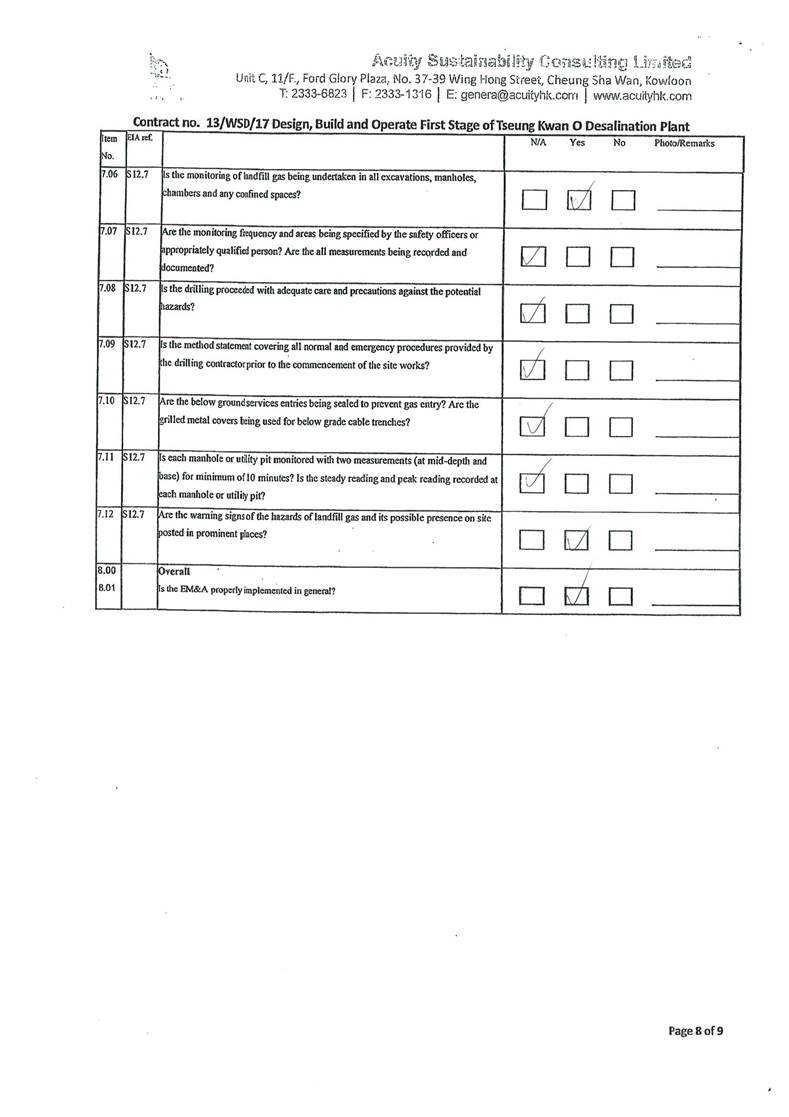

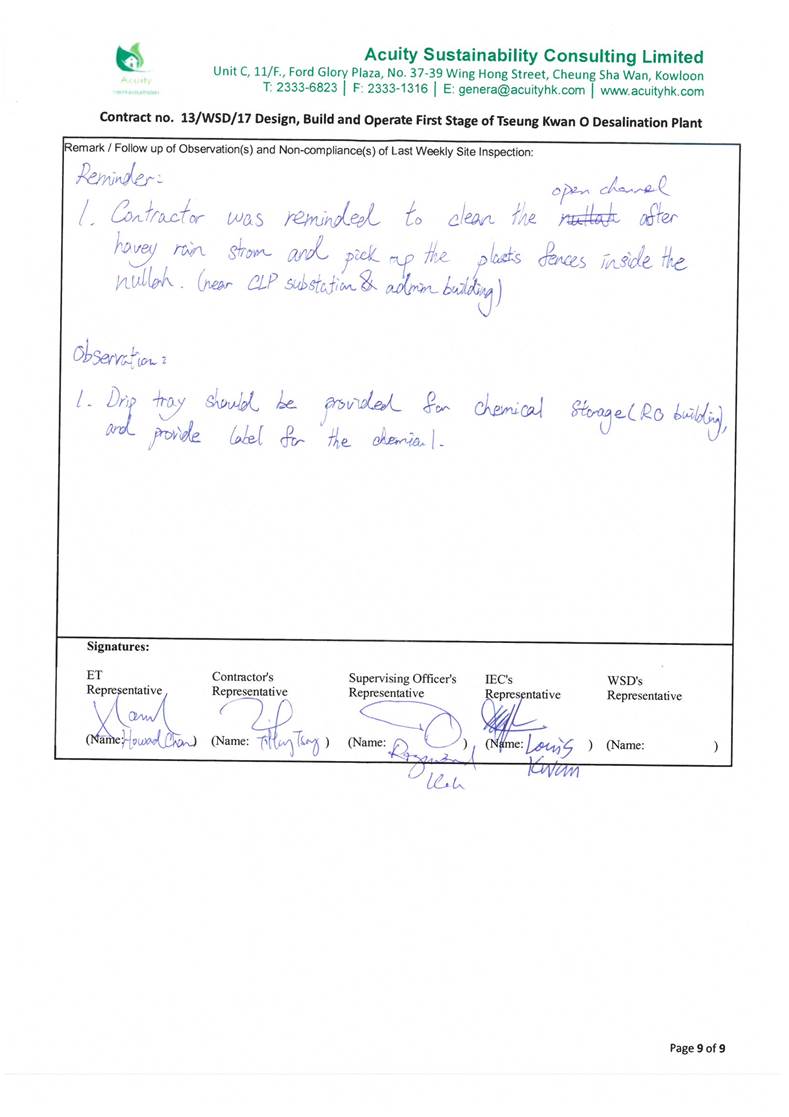

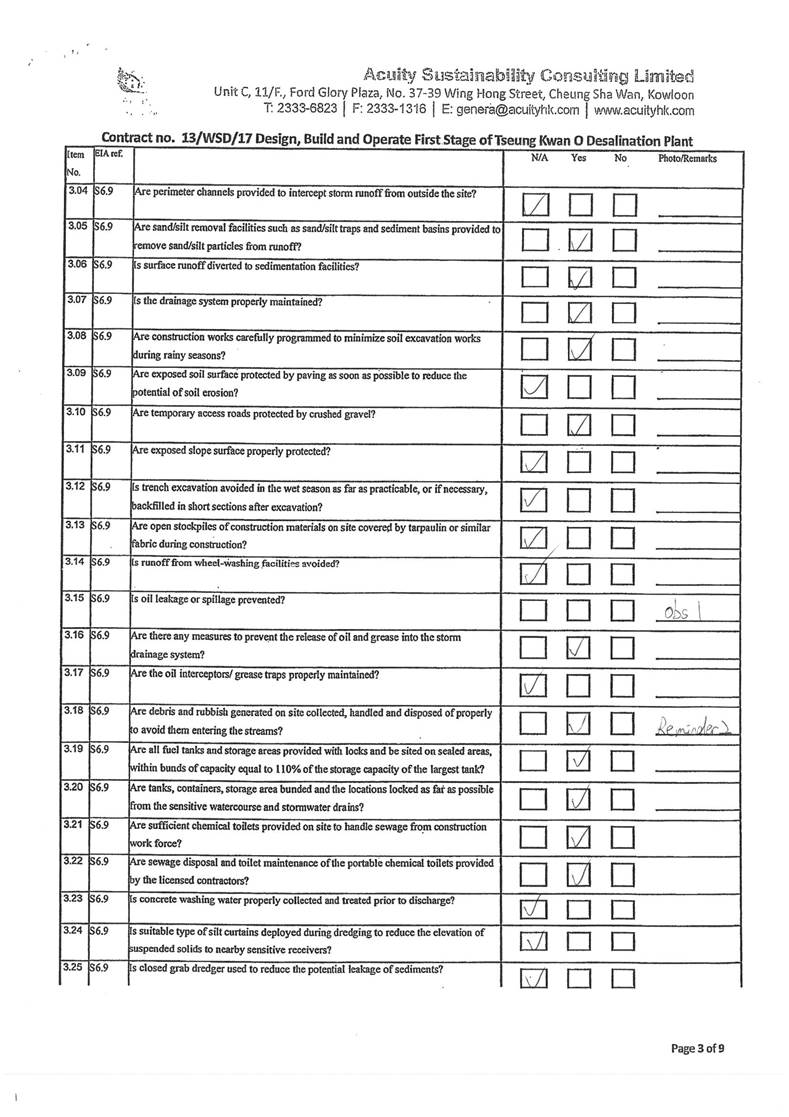

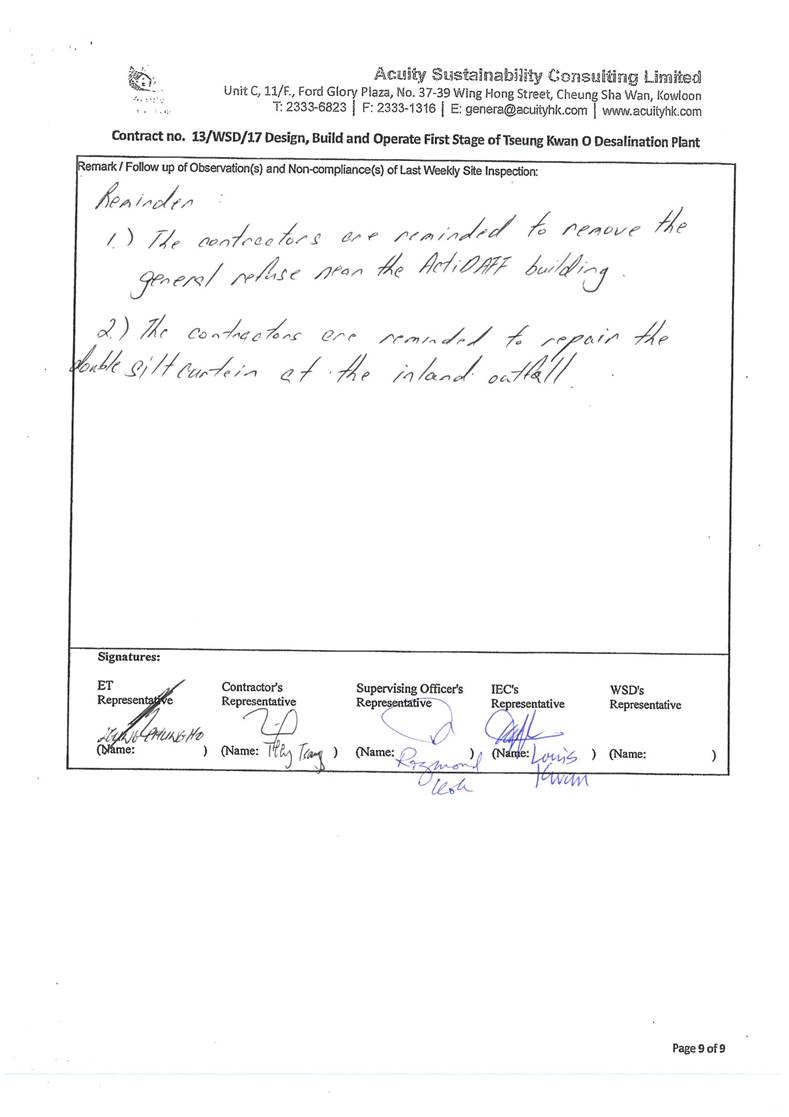

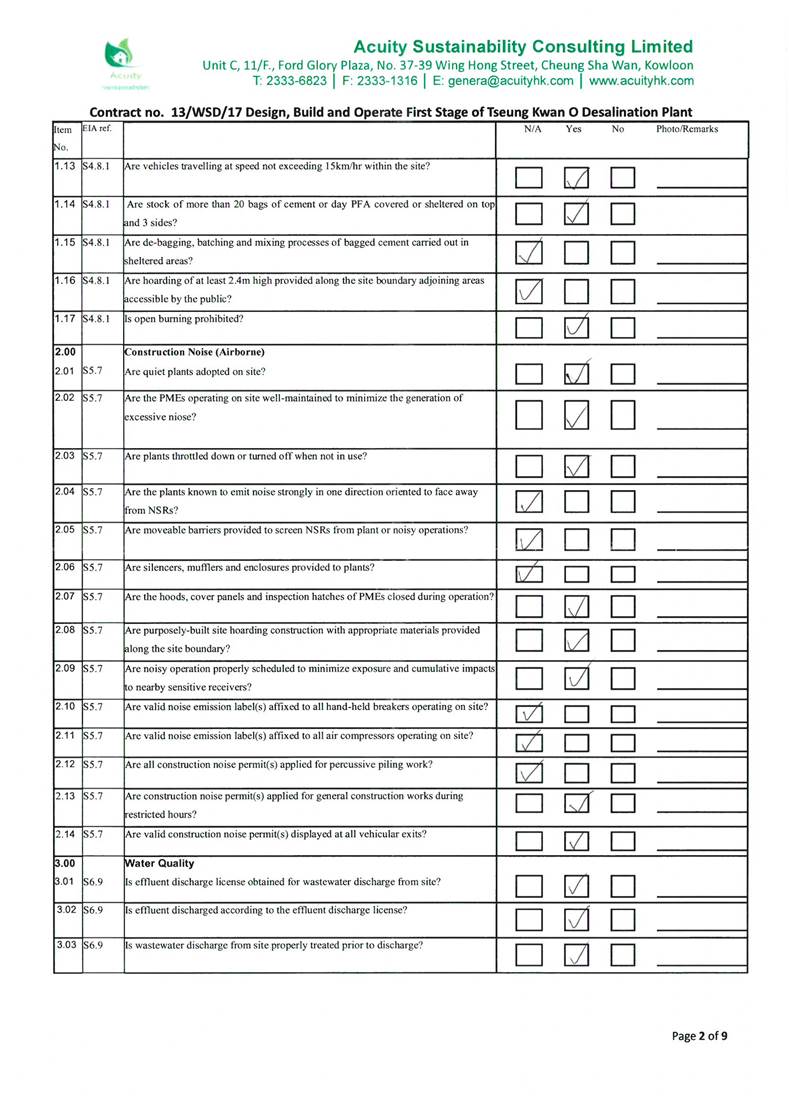

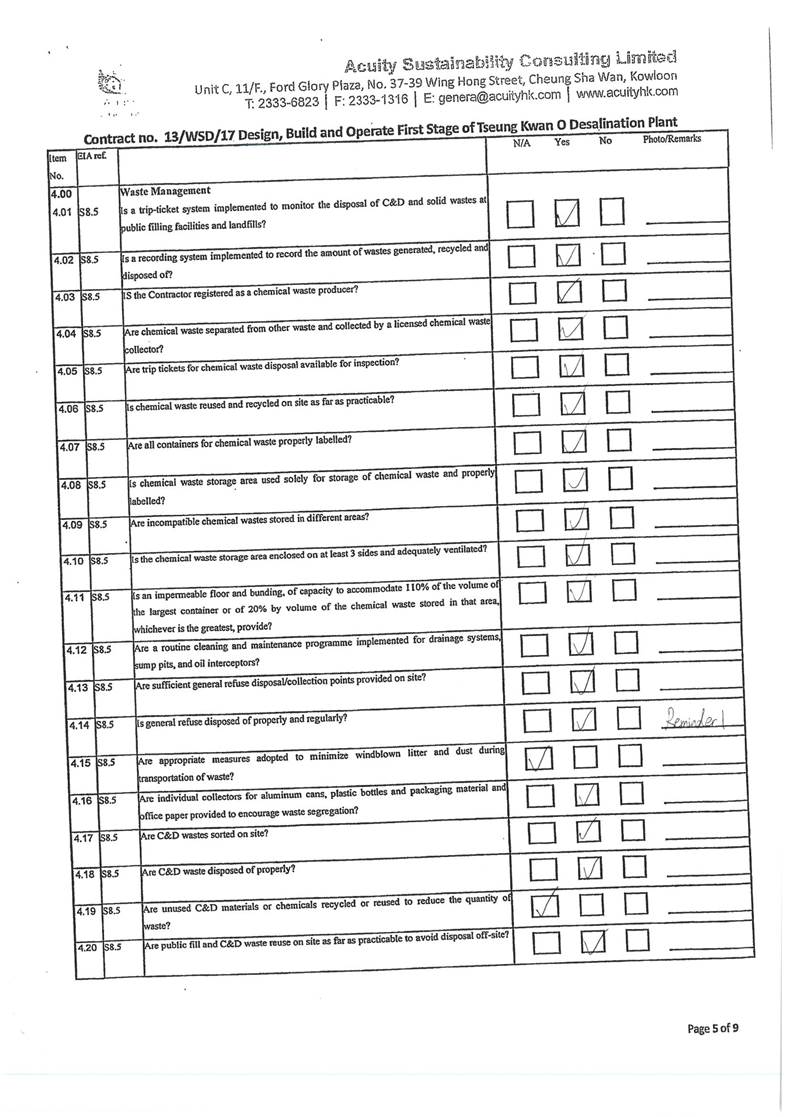

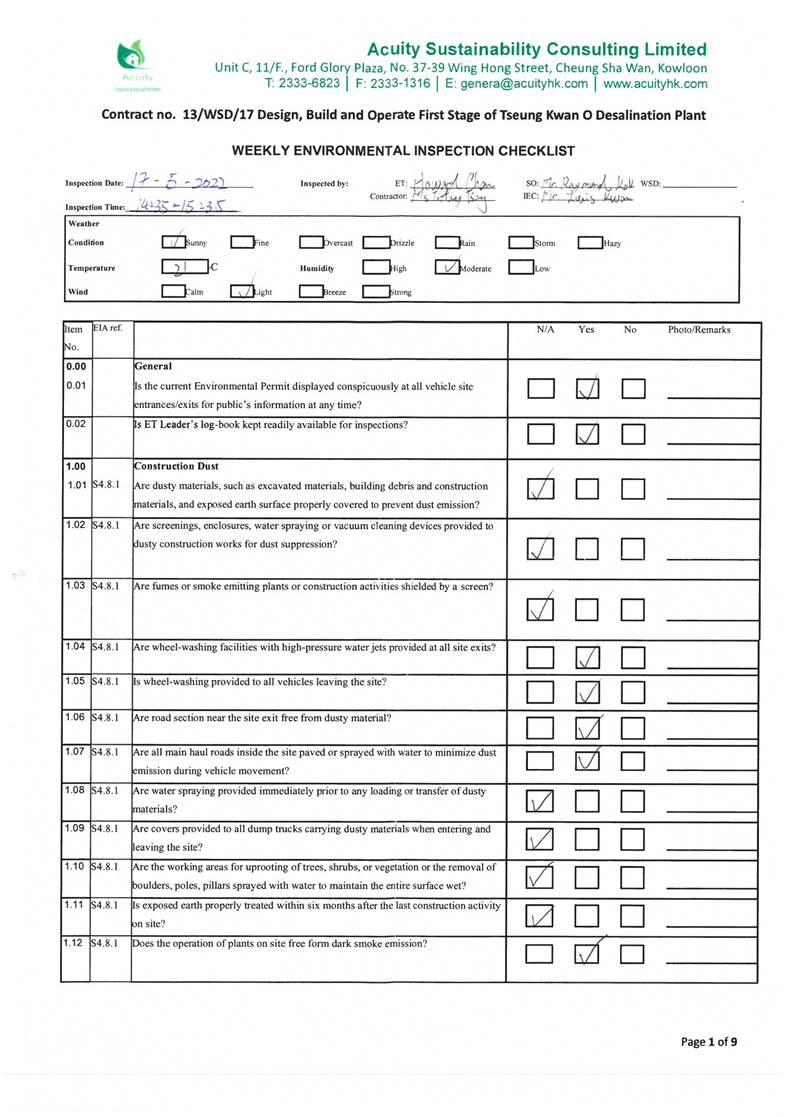

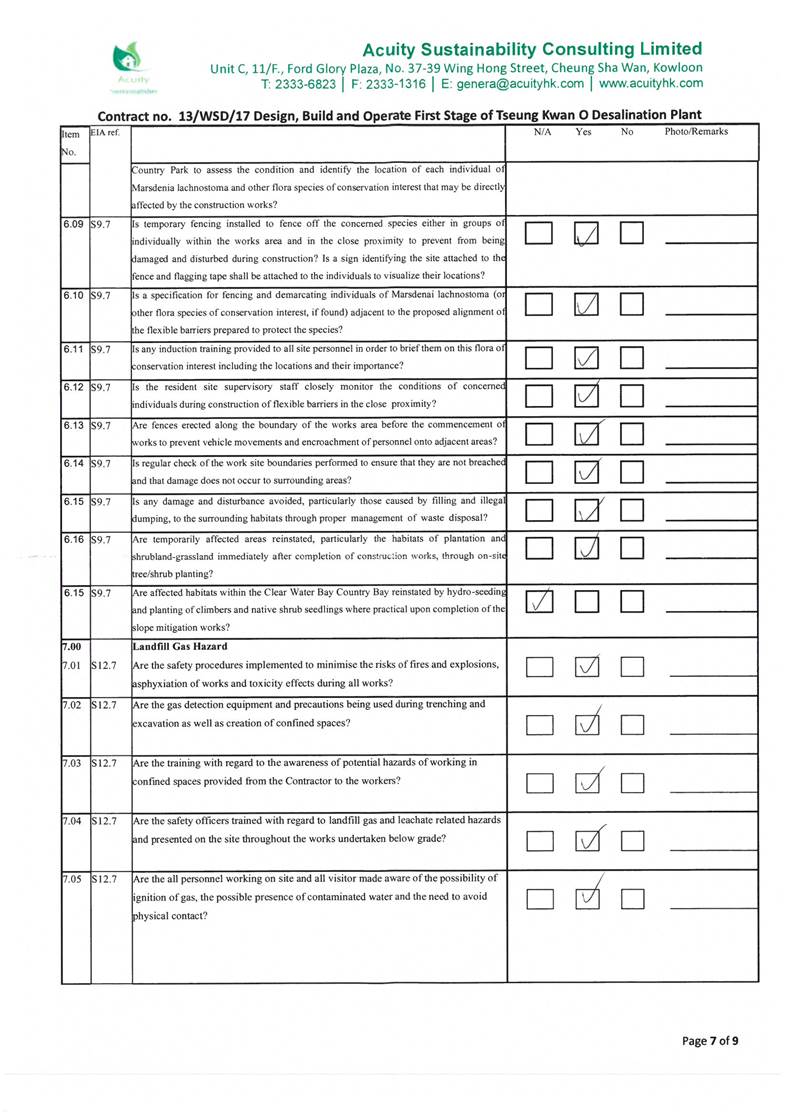

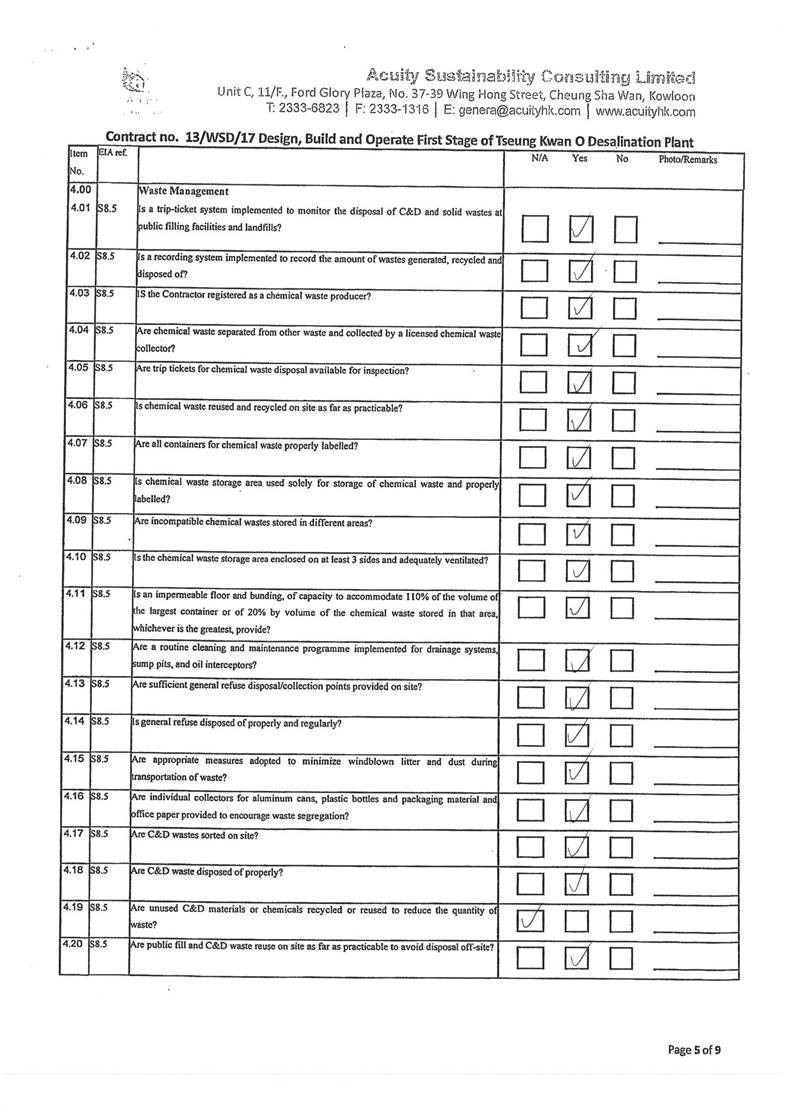

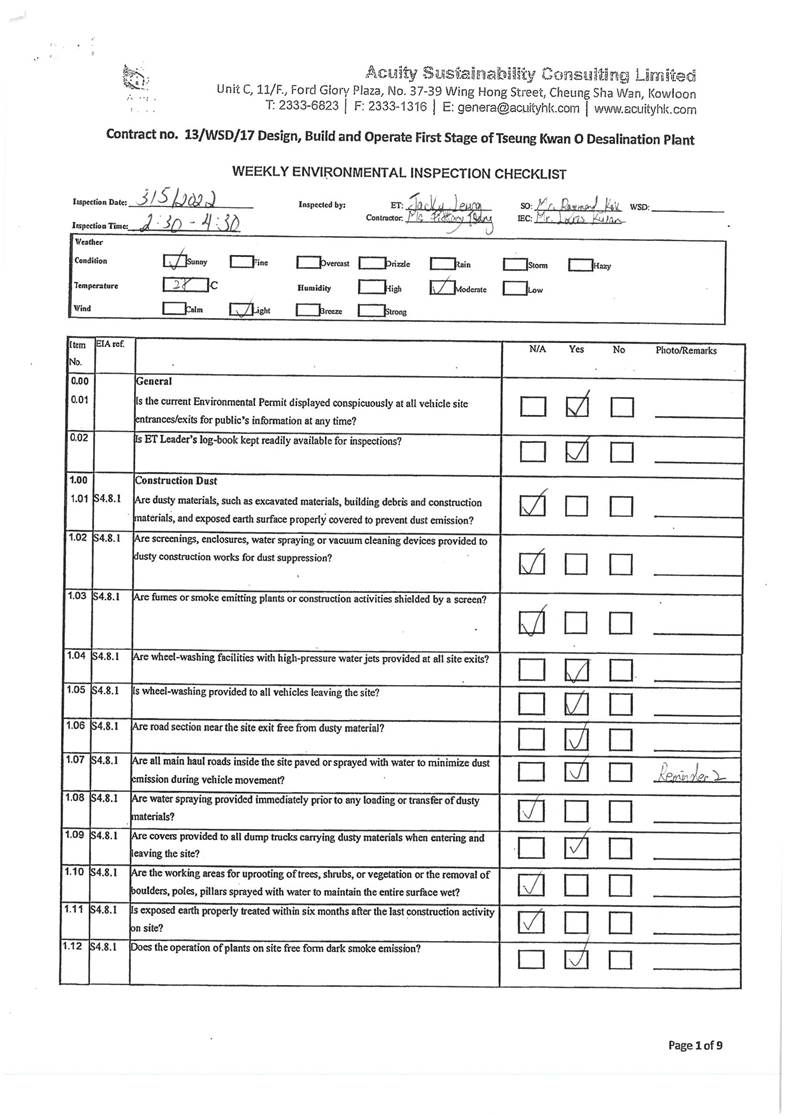

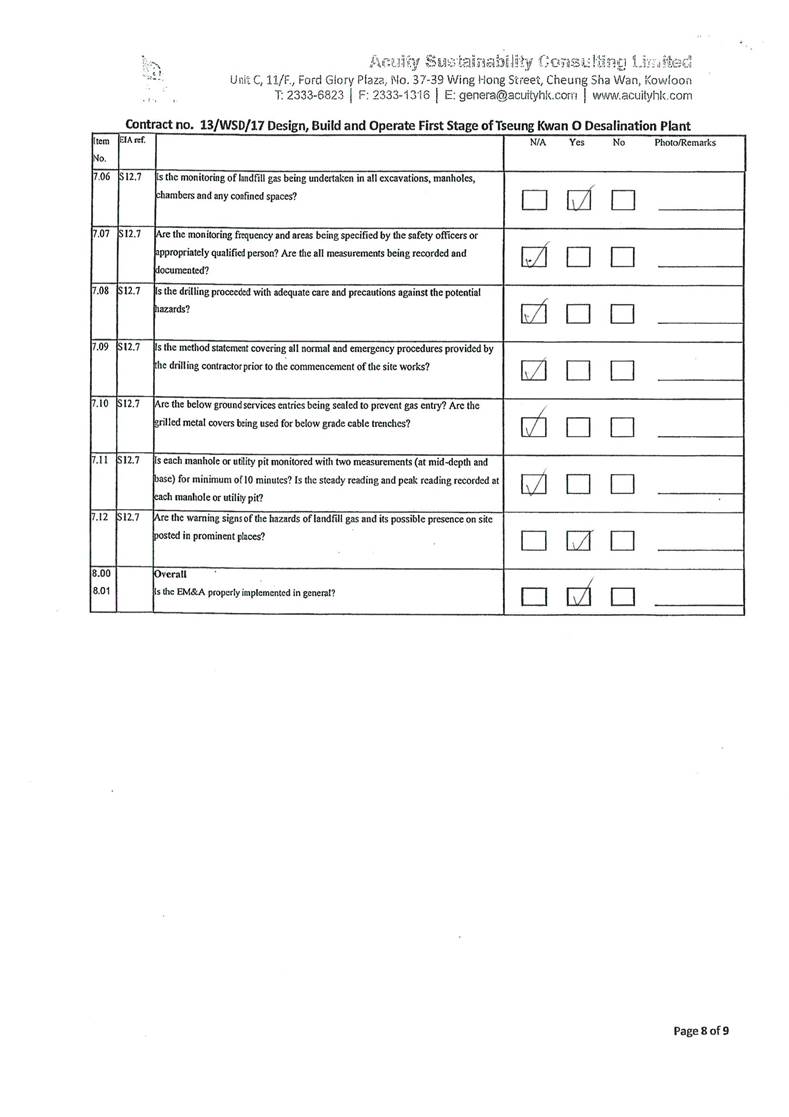

Appendix I Site Inspection Proforma
Appendix J Complaint Log
Appendix K Impact Monitoring Schedule of Next Reporting Month
Appendix L Water Quality and Landfill Gas Monitoring Data
Appendix M HOKLAS Laboratory Certificate
Appendix N Water Quality and Landfill Gas Equipment Calibration Certificate
Appendix O Exceedance Report(s)
INTRODUCTION
A1. The Project, Design, Build and Operate First Stage of Tseung Kwan O Desalination Plant (TKODP), is a Designated Project under the Environmental Impact Assessment Ordinance (Cap. 499) (EIAO) and is currently governed by a Further Environmental Permit (EP No. FEP - 01/503/2015/A) for the construction and operation of the Contract.
A2. In accordance with the Environmental Monitoring and Audit (EM&A) Manual for the Contract, EM&A works for marine water quality, noise, waste management and ecology should be carried out by Environmental Team (ET), Acuity Sustainability Consulting Limited (ASCL), during the construction phase of the Contract.
A3. This is the 27th Monthly EM&A Report, prepared by ASCL, for the Contract summarizing the monitoring results and audit findings of the EM&A programme at and around Tseung Kwan O Area 137 (TKO 137) during the reporting period from 1 May 2022 to 31 May 2022.
A4. The EM&A programme for this contract has covered environmental monitoring on construction noise level at selected NSRs and Contractor¡¦s environmental performance auditing in the aspects of construction dust, construction noise, water quality, waste management, Landscape and Visual and Ecology.
SUMMARY OF MAIN WORKS UNDERTAKEN & KEY MITIGATION MEASURES IMPLEMENTED
A5. Key activities carried out in this reporting period for the Contract included the followings:
- Land Survey;
- Construction of manholes no.15 and no.16 adjacent to ActiDAFF and RO;
- Construction of manholes no.2, no.3 and no.4 adjacent to ActiDAFF;
- Construction of 132kV adjacent to underground utilities
- Construction of manholes no.6 and no.7 Glass Reinforced Plastic (GRP) pipe installation;
- Construction of underground utility adjacent to 132kV Substation;
- Construction of solar panel supports at roof of ActiDAFF;
- Construction of Reverse Osmosis (RO) Building - staircases and internal finishing;
- Construction of sludge thickener, Post Treatment Building (PTB);
- Construction of On-Site Chlorine Generation Building (OSCG Bldg) and CO2 Tank area;
- Internal finishing work at Product Water Storage Tank (PWST), Main Electrical & Central Chiller Plant Building;
- Manhole construction and GRP pipe installation;
- Construction of 1/F to 2/F walls and columns of Administration Building;
- Construction of footings F5 and F6 of inspection corridor;
- Construction of parapet of Chemical Building;
- Construction of common wall of Combined Shaft;
- Outfall Shaft - Dewatering;
- Intake shaft - Retrieval of DN 2500 TBM under water;
- Intake tunnel - Demobilize the pipe jacking system and grouting works commence;
- Construction of combined shaft and pump room;
- Slope works - Scaffolding erection for rock mapping and tree survey;
- Open Channel - Trench Excavation and structure installation;
- E&M works - ActiDAFF - scaffolding, installation of E&M piping;
- E&M works - Reverse Osmosis (RO) Building - Fire services installation;
- E&M works - CO2 Tank area - installation of silos; and
- E&M works - Chiller Building - Installation of chillers
A6. The major environmental impacts brought by the above construction works include:
- Construction dust and noise generation from marine construction works, excavation works, construction works, rock cutting works and pipe piling driving works
- Waste generation from the construction activities
- Impact on water quality from marine construction works and inland construction works
A7. The key environmental mitigation measures implemented for the Contract in this reporting period associated with the above construction works include:
- Dust suppression by regular wetting and water spraying for construction works;
- Reduction of noise from equipment and machinery on-site and regular inspection to machinery and plants/vehicles on-site to ensure proper functioning;
- Sorting and storage of general refuse and construction waste; and
- Deployment of temporary silt curtain in the area where marine construction works were conducted and deployment of water sedimentation tanks for treatment of wastewater at inland and marine areas before discharge.
SUMMARY OF EXCEEDANCE
& INVESTIGATION & FOLLOW-UP
A8. No noise monitoring was conducted during the reporting period since there are no Contract -related construction activities undertaken within a radius of 300m from the monitoring locations. No exceedance of the Action Level was recorded during the reporting period.
A9. The EM&A works for water quality were conducted during the reporting period in accordance with the EM&A Manual.
A10. Nineteen (19) of the general water quality monitoring results of suspended solids (SS) obtained had exceeded the Action Level. Six (6) of the general water quality monitoring results of SS obtained during the reporting period had exceeded the Limit Level.
A11. Details of the exceedance are presented in Appendix O.
A12. Investigation on the reason of exceedance has been carried out, where the exceedances of SS on 3, 5, 7, 12, 14, 21, 26, 28 and 31 May 2022 were concluded to be unrelated to the Contract as detailed in the Incident Reports on Action Level or Limit Level Non- compliance along with supporting materials in Appendix O.
A13. It was concluded that all exceedances recorded in the reporting month were unrelated to the Contract.
A14. In this reporting period, 44 times of landfill gas monitoring was conducted at Wan Po Road (Ch1+360 - Ch1+513).
A15. No exceedance of action and limit levels of methane, oxygen and carbon dioxide was recorded in the reporting month.

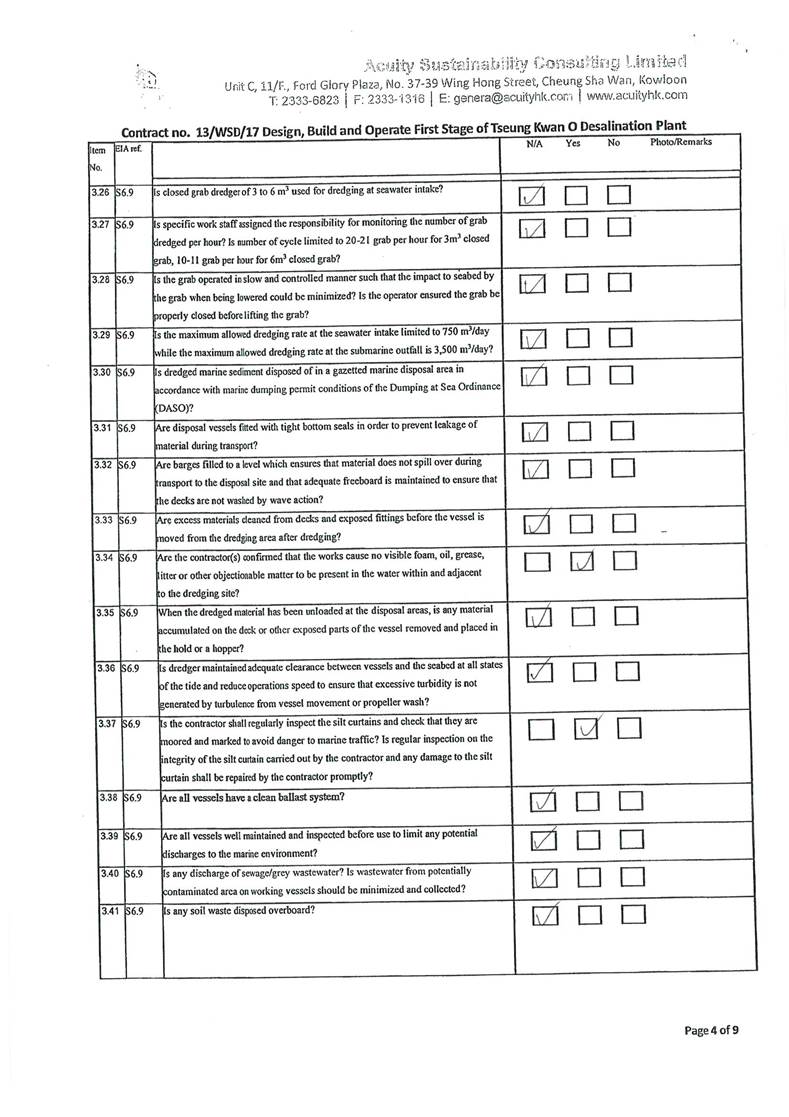

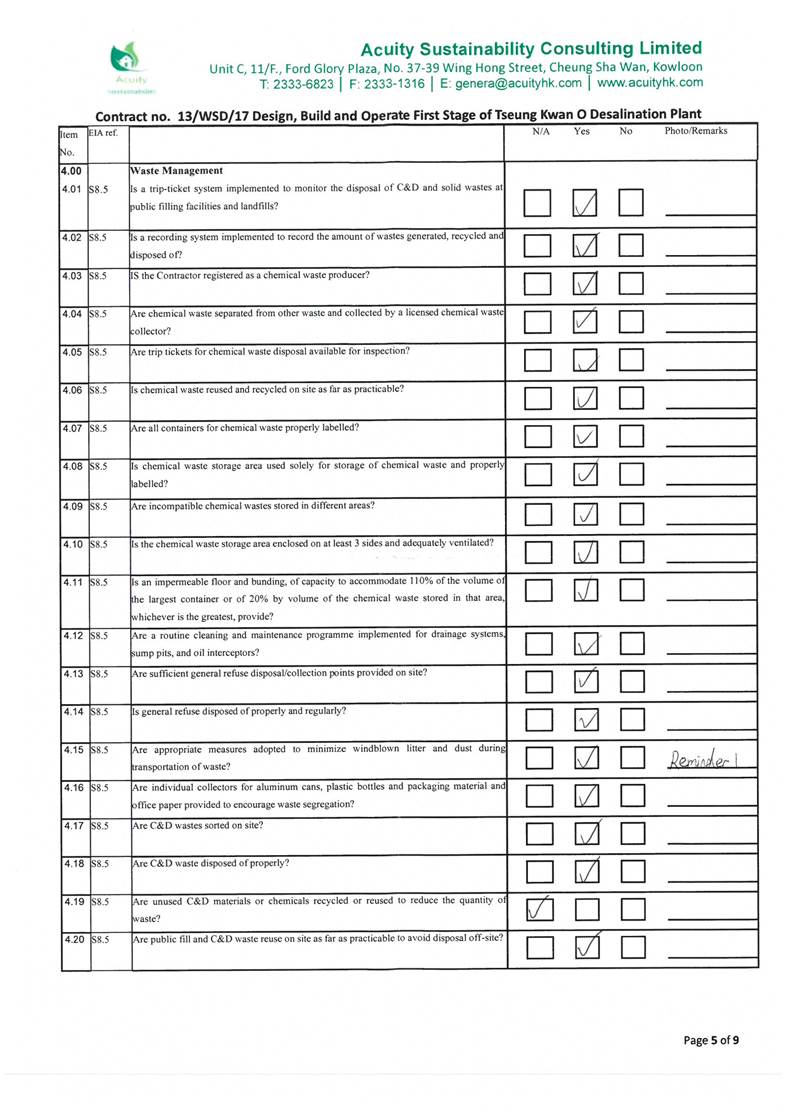

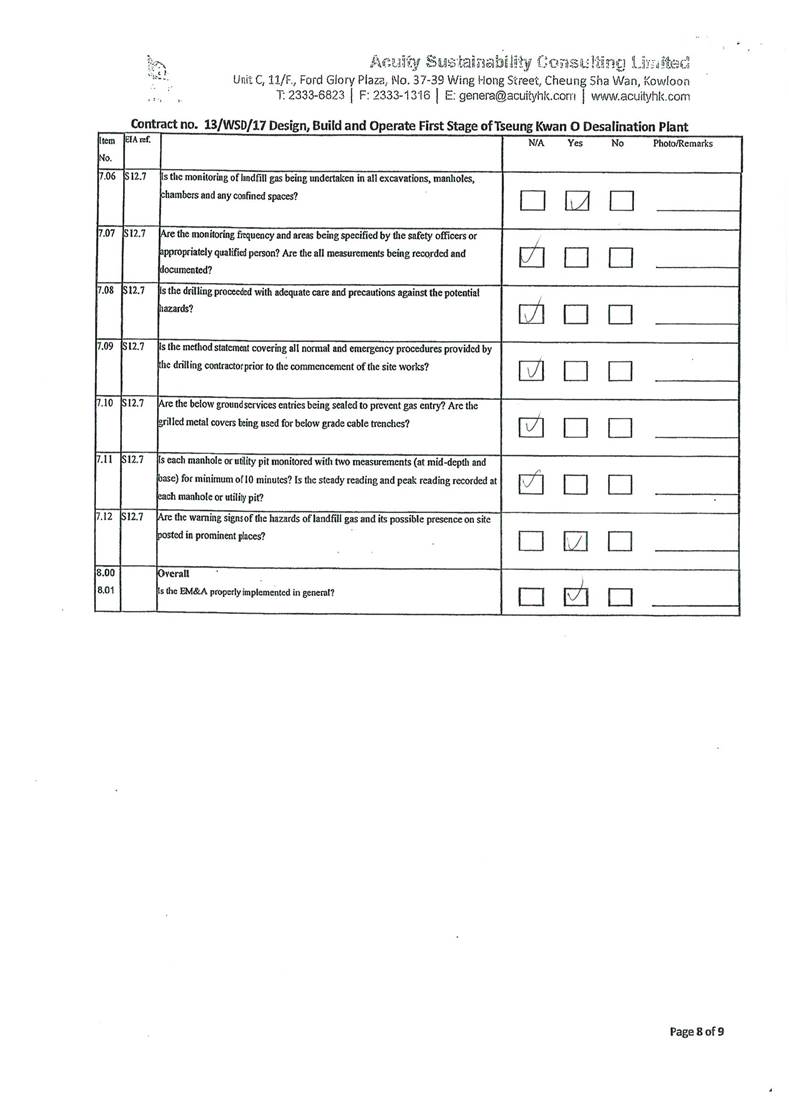

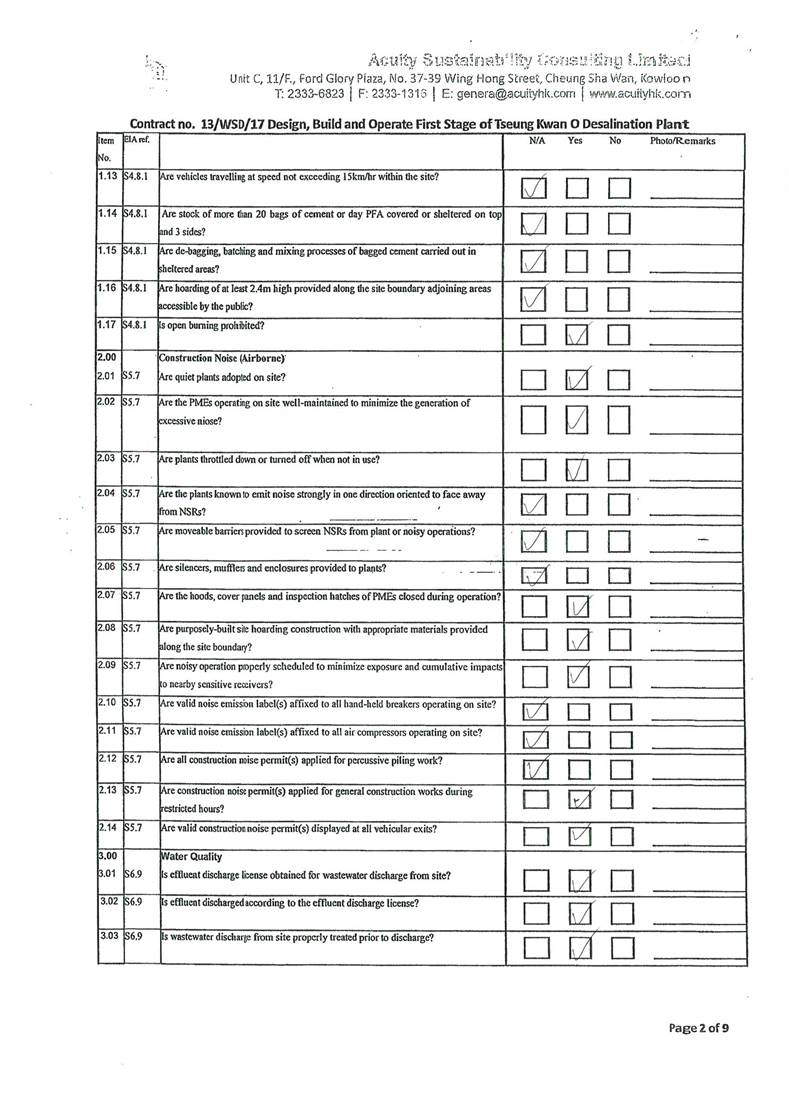

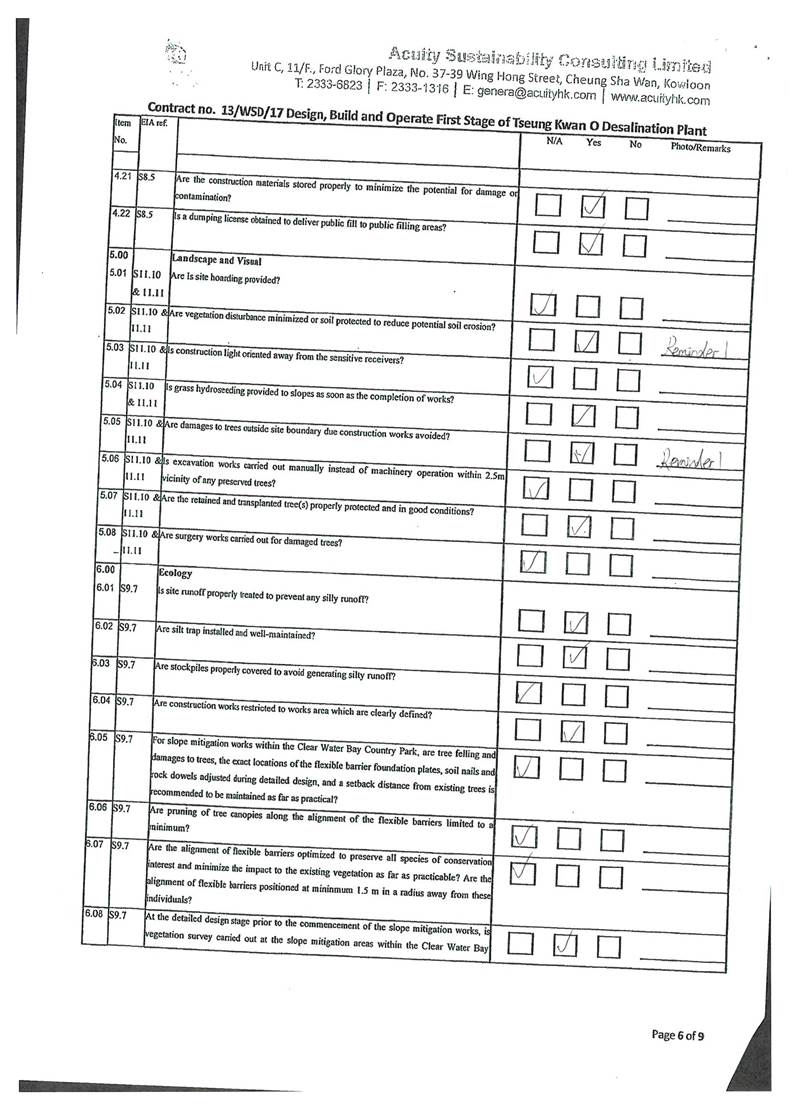

A16. Joint site inspections of the construction work by ET and IEC were carried out on 3, 10, 17, 24 and 31 May 2022 to audit the mitigation measures implementation status. Observations and recommendations were recorded in the site inspection checklists and provided to the contractors together with the appropriate follow-up actions where necessary.
COMPLAINT HANDLING AND PROSECUTION
A17. No environmental complaint was received during the reporting period.
A18. Neither notification of summons nor prosecution was received for the Contract.
REPORTING CHANGE
A19. There was no change to be reported that may affect the on-going EM&A programme.
SUMMARY OF UPCOMING KEY ISSUES AND KEY MITIGATION MEASURES
A20. Key activities anticipated in the next reporting period for the Contract will include the followings:
- Construction of 132kV adjacent to underground utilities;
- Construction of Reverse Osmosis (RO) Building - staircases and internal finishing;
- Construction of sludge thickener, Post Treatment Building (PTB);
- Construction of On-Site Chlorine Generation Building (OSCG Bldg) and CO2 Tank area;
- Internal finishing work at Product Water Storage Tank (PWST), Main Electrical & Central Chiller Plant Building;
- Manhole construction and Glass Reinforced Plastic (GRP) pipe installation;
- Construction of 2/F and 3/F walls and columns of Administration Building;
- Installation of curtain wall supports of Administration Building;
- Construction of footings and columns of FT‐5, FT‐6, FT‐7 and FT‐8 of inspection corridor;
- Construction of Stair Tower of inspection corridor;
- Construction of side tanks no.2, 3 and 4 of ActiDAFF;
- Construction of manholes no.15 and no.16 adjacent to ActiDAFF and RO;
- Construction of manhole no.2, no.3 and no.4 adjacent to ActiDAFF;
- Construction of manholes no.6 and no.7 Glass Reinforced Plastic (GRP) pipe installation;
- Outfall Shaft - Dewatering;
- Intake shaft - retrieval of DN2500 TBM under water;
- Intake shaft - General cleaning for finial inspection;
- Outfall Tunnel - Demobilize the pipe jacking system and grouting;
- Construction of combined shaft and pump room;
- Slope works - Scaffolding erection for rock mapping and tree survey;
- Open Channel - Trench Excavation and structure installation;
- E&M works - ActiDAFF - scaffolding, installation of E&M piping;
- E&M works - RO- installation of fire services, steel pipe, GRP pipe;
- E&M works - CO2 tank area - installation of vaporizers;
- E&M works - Chiller Building - installation of chillers, electrical system;
- E&M works - Product water Building - installation of pluming, air duct and electoral system.
A21. The major environmental impacts brought by the above construction works will include:
- Construction dust and noise generation from pipe jacking works, excavation and construction works;
- Waste generation from construction activities; and
- Impact on water quality from marine construction works and inland construction works.
A22. The key environmental mitigation measures for the Contract in the coming reporting period associated with the above construction works will include:
- Reduction of noise from equipment and machinery on-site;
- Sorting and storage of general refuse and construction waste; and
- Deployment of temporary silt curtain in the area where marine construction works were conducted and deployment of water sedimentation tanks for treatment of wastewater at inland and marine areas before discharge.
BACKGROUND
1.1. The Acciona Agua, S.A. Trading, Jardine Engineering Corporation, Limited and China State Construction Engineering (Hong Kong) Limited as AJC Joint Venture (AJCJV) is contracted to carry out the Design, Build and Operate First Stage of Tseung Kwan O Desalination Plant (DPTKO) under Contract No. 13/WSD/17 (the Contract).
1.2. Acuity Sustainability Consulting Limited (ASCL) is commissioned by AJCJV to undertake the Environmental Team (ET) services as required and/or implied, both explicitly and implicitly, in the Environmental Permit (EP), Environmental Impact Assessment Report (EIA Report) (Register No. AEIAR-192/2015) and Environmental Monitoring and Audit Manual (EM&A Manual) for the Contract; and to carry out the Environmental Monitoring and Audit (EM&A) programme in fulfillment of the EIA Report¡¦s EM&A requirements and Contract No. 13/WSD/17 Specification requirements.
1.3. Pursuant to the Environmental Impact Assessment Ordinance (EIAO), the Director of Environmental Protection granted the Environmental Permit (No. EP-01/503/2015) and Variation of Environmental Permit (No. EP-01/503/2015/A) to Water Supplies Department (WSD); and granted the Further Environmental Permit (No. FEP- 01/503/2015/A) to AJCJV for the Contract.
THE REPORTING SCOPE
1.4. This is the 27th Monthly EM&A Report for the Contract which summarizes the key findings of the EM&A programme during the reporting period from 1 May to 31 May 2022.
CONTRACT ORGANIZATION
1.5. The Contract Organization structure for Construction Phase is presented in Figure 1.1.
1.6.

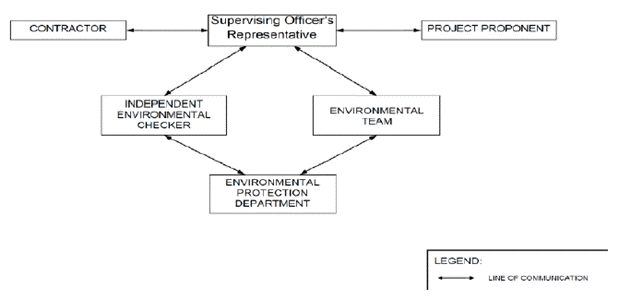

Figure 1.1 Contract Organization Chart
1.7. Contact details of the key personnel are presented in Table 1.1 below:
Table 1.1 Contact Details
of Key Personnel
Party |
Position |
Name |
Telephone no. |
Contract Proponent (Water Supplies Department) |
SE/CM2 |
Benny Lam |
2634-3573 |
Supervising Officer (Binnies Hong Kong Limited) |
Project Manager |
Christina Ko |
2608-7302 |
Chief Resident Engineer |
Roger Wu |
6343-1002 |
|
The Jardine Engineering Corporation, Limited, China State Construction Engineering (Hong Kong) Limited and Acciona Agua, S.A. Trading |
Project Manager |
Stephen Yeung |
2807-4665 |
Environmental Monitoring Manager |
Brian Kam |
9456-9541 |
|
Acuity Sustainability Consulting Limited |
Environmental Team Leader |
Jacky Leung |
2698-6833 |
ANewR Consulting Limited |
Independent Environmental Checker (IEC) |
Louis Kwan |
2618-2831 |
SUMMARY OF CONSTRUCTION WORKS
1.8. Details of the major construction activities undertaken in this reporting period are shown as below. The construction programme is presented in Appendix A.
1.9. Key activities carried out in this reporting period for the Contract included the followings:
- Land Survey;
- Construction of manholes no.15 and no.16 adjacent to ActiDAFF and RO;
- Construction of manholes no.2, no.3 and no.4 adjacent to ActiDAFF;
- Construction of 132kV adjacent to underground utilities
- Construction of manholes no.6 and no.7 Glass Reinforced Plastic (GRP) pipe installation;
- Construction of underground utility adjacent to 132kV Substation;
- Construction of solar panel supports at roof of ActiDAFF;
- Construction of Reverse Osmosis (RO) Building - staircases and internal finishing;
- Construction of sludge thickener, Post Treatment Building (PTB);
- Construction of On-Site Chlorine Generation Building (OSCG Bldg) and CO2 Tank area;
- Internal finishing work at Product Water Storage Tank (PWST), Main Electrical & Central Chiller Plant Building;
- Manhole construction and GRP pipe installation;
- Construction of 1/F to 2/F walls and columns of Administration Building;
- Construction of footings F5 and F6 of inspection corridor;
- Construction of parapet of Chemical Building;
- Construction of common wall of Combined Shaft;
- Outfall Shaft - Dewatering;
- Intake shaft - Retrieval of DN 2500 TBM under water;
- Intake tunnel - Demobilize the pipe jacking system and grouting works commence;
- Construction of combined shaft and pump room;
- Slope works - Scaffolding erection for rock mapping and tree survey;
- Open Channel - Trench Excavation and structure installation;
- E&M works - ActiDAFF - scaffolding, installation of E&M piping;
- E&M works - Reverse Osmosis (RO) Building - Fire services installation;
- E&M works - CO2 Tank area - installation of silos; and
- E&M works - Chiller Building - Installation of chillers
1.10. A summary of the valid permits, licences, and/or notifications on environmental protection for this Contract is presented in Table 1.2.
Table 1.2 Summary of the Status of Valid Environmental Licence,
Notification, Permit and Documentations
Permit/ Licenses/ Notification |
Reference |
Validity Period |
Environmental Permit |
FEP - 01/503/2015/A |
Throughout the Contract |
Notification of Construction Works under the Air Pollution Control (Construction Dust) Regulation (Form NA) |
Ref. No.: 451539 |
Throughout the Contract |
Billing Account for Disposal of Construction Waste |
7036276 |
Throughout the Contract |
Chemical Waste Producer Registration |
5213-839-A2987-01 |
Throughout the Contract |
Wastewater Discharge Licence (Land and Marine works) |
WT00035775-2020 |
23/08/2021 - 31/07/2025 |
Construction Noise Permit for general works, TBM at combined shaft and marine works |
GW-RE0337-22 |
01/05/2022 - 31/10/2022 |
1.11. The status for all environmental aspects is presented in Table 1.3.
Table 1.3 Summary of Status for Key Environmental Aspects under the EM&A
Manual
Parameters |
Status |
Water Quality |
|
Baseline Monitoring under EM&A Manual |
The baseline water quality monitoring was conducted between 12 May 2020 to 6 Jun 2020 |
Impact Monitoring |
On-going |
Noise |
|
Baseline Monitoring |
The baseline noise monitoring result has been reported in Baseline Monitoring Report and submitted to EPD under EP Condition 3.4 |
Impact Monitoring |
On-going |
Waste Management |
|
Mitigation Measures in Waste Management Plan |
On-going |
Landfill Gas |
|

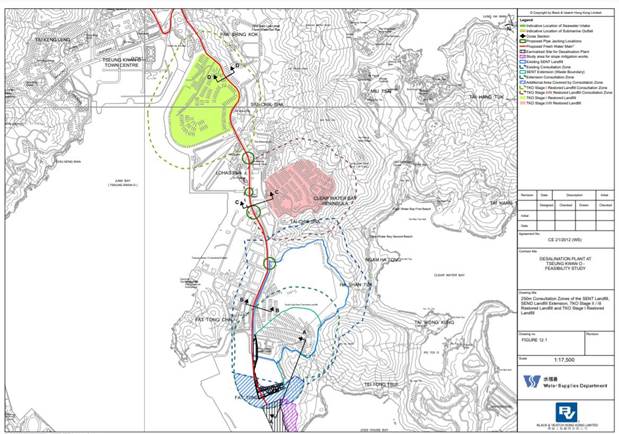

Regular Monitoring when Construction Works are within the 250m Consultation Zone |
In this reporting period, 44 times of landfill gas monitoring was conducted at Wan Po Road (Ch1+360 - Ch1+513). |
Environmental Audit |
|
Site Inspection covering Measures of Air Quality, Noise Impact, Water Quality, Waste, Ecological Quality, Fisheries, Landscape and Visual |
On-going |
1.12. Other than the EM&A work by ET, environmental briefings, trainings and regular environmental management meetings were conducted, in order to enhance environmental awareness and closely monitor the environmental performance of the contractors.
1.13. The EM&A programme has been implemented in accordance with the recommendations presented in the approved EIA Report and the EM&A Manual. A summary of implementation status of the environmental mitigation measures for the construction phase of the Contract during the reporting period is provided in Appendix C.
MONITORING REQUIREMENTS
2.1. To ensure no adverse noise impact, noise monitoring is recommended to be carried out within 300m radius from the nearby noise sensitive receivers (NSRs), during construction phase. The NSRs selected as monitoring station are (i) NSR4 - Creative Secondary School, (ii) NSR24 - PLK Laws Foundation College, and (iii) NSR31 - School of Continuing and Professional Studies - CUHK respectively.
2.2. In accordance with the EM&A Manual, baseline noise level at the noise monitoring stations were established as presented in the Baseline Monitoring Report. Impact noise monitoring will be conducted once per week in the form of 30-minutes measurements Leq, L10 and L90 levels recorded at each monitoring station between 0700 and 1900 on normal weekdays.
2.3. Referring to EM&A manual Section 4.1.2, the impact noise monitoring should be carried out at all the designated monitoring stations when there are contract-related construction activities undertaken within a radius of 300m from the monitoring stations.
2.4. No impact monitoring for noise impact was conducted in the reporting month due to the overly distant monitoring station from the works location, where they were farther than 1 km from the closest monitoring station NSR4 to the works location.
2.5. Impact noise monitoring will be conducted weekly in the reporting period between 0700- 1900 on normal weekdays. Construction works would follow stipulations of the valid Construction Noise Permits if works had to be conducted during restricted hours or public holidays.
2.6. Construction noise level were measured in terms of the A-weighted equivalent continuous sound pressure level (LAeq). Leq 30min was used as the monitoring parameter for the time period between 0700 and 1900 on normal weekdays. Table 2.1 summarizes the monitoring parameters, frequency and duration of the impact noise monitoring.
Table 2.1 Noise Monitoring Parameters, Time, Frequency
and Duration
Time |
Duration |
Interval |
Parameters |
Daytime: 0700-1900 |
Day time: 0700-1900 (during normal weekdays) |
Continuously in Leq 5min/Leq 30min (average of 6 consecutive Leq 5min) |
Leq 30min L10 30min & L90 30min |
MONITORING LOCATIONS
2.7. The monitoring locations were normally made at a point 1m from the exterior of the NSRs building façade and be at a position 1.2m above the ground. A correction of +3dB(A) should be made to the free-field measurements.
2.8. According to the environmental findings detailed in the EIA report and Baseline Monitoring Report, the designated locations for the construction noise monitoring are listed in Table 2.2 below.
Table 2.2 Noise Sensitive
Receivers
NSR ID |
Noise Sensitive Receivers |
Monitoring Location |
Position |
NSR 4 |
Creative Secondary School |
Roof Floor |
1 m from facade |
NSR 24 |
PLK Laws Foundation College |
Pedestrian Road
on Ground Floor |
Free-field |
NSR 31 |
School of
Continuing and Professional Studies - CUHK |
Roof Floor |
1 m from facade |
2.9.

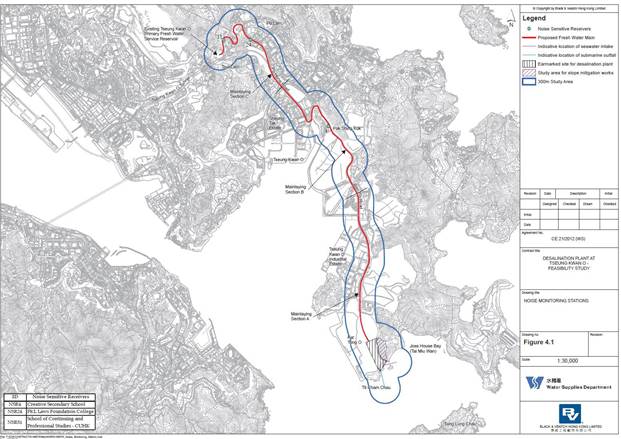

Three noise monitoring locations for impact monitoring at the nearby sensitive receivers are shown in Figure 2.1-2.3.
|

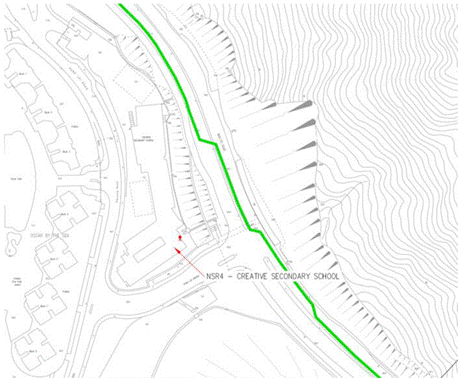

Figure 2.1 NSR4
Creative Secondary School |
|

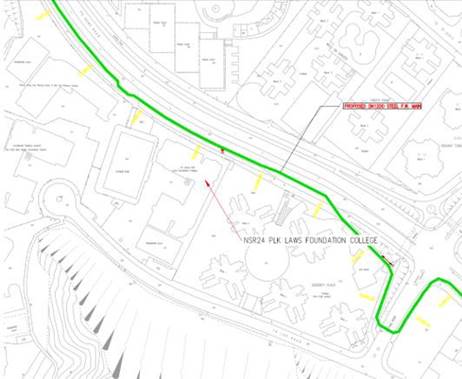

Figure 2.2
NSR24 PLK Laws
Foundation College |
|

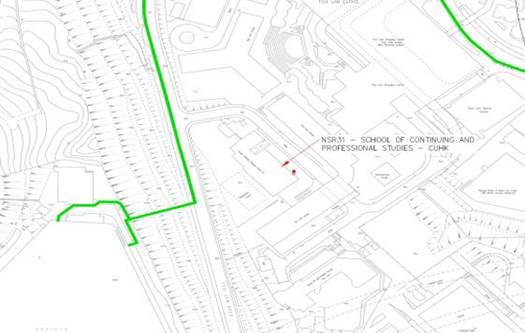

Figure 2.3 NSR31
School of Continuing and Professional Studies - CUHK |
IMPACT MONITORING METHODOLOGY
2.10. Integrated sound level meter was used for the noise monitoring. The meter was in compliance with the International Electrotechnical Commission Publications 651: 1979 (Type 1) and 804: 1985 (Type 1) specifications. Immediately prior to and following each noise measurement the accuracy of the sound level meter was checked using an acoustic calibrator generating a known sound pressure level at a known frequency. Measurements was accepted as valid only if the calibration levels before and after the noise measurements agree to within 1.0 dB(A). Calibration certificates of the instruments used to be shown at Appendix F are intentionally left blank since no impact monitoring equipment was used in the reporting month.
2.11. Noise measurements were not made in the presence of fog, rain, wind with a steady speed exceeding 5 m/s or wind with gusts exceeding 10 m/s. The wind speed shall be checked with a portable wind speed meter capable of measuring the wind speed in m/s.
ACTION AND LIMIT
LEVELS
2.12. The Action/Limit Levels are in line with the criteria of Practice Note for Professional Persons (ProPECC PN 2/93) ¡§Noise from Construction Activities - Non-statutory Controls¡¨ and Technical Memorandum on Environmental Impact Assessment Process issued by HKSAR Environmental Protection Department [¡§EPD¡¨] under the Environmental Impact Assessment Ordinance, Cap 499, S.16 are presented in Table 2.3.
Table 2.3 Action and Limit Levels
for Noise per EM&A Manual
Time Period |
Action |
Limit (dB(A)) |
0700-1900 on normal weekdays |
When one documented complaint is received from any one of the noise sensitive receivers |
- 70 dB(A) for school and - 65 dB(A) during examination period |
Note: Limits specified in the GW-TM
and IND-TM for construction and operation noise,
respectively.
2.13. If exceedances were found during noise monitoring, the actions in accordance with the Event and Action Plan shall be carried out according to Appendix E.
MONITORING RESULTS AND OBSERVATIONS
2.14. Referring to EM&A Manual Section 4.1.2, the impact noise monitoring should be carried out when there are Contract-related construction activities undertaken within a radius of 300m from the monitoring stations. No monitoring station was located within a radius of 300m of the Contract site as shown in Figure 2.4, no impact monitoring for noise impact was conducted in the reporting period.
Figure 2.4 Site Layout
Plan with Noise
Sensitive Receivers and Desalination Plant
3.1. In accordance with the recommendations of the EIA, water quality monitoring is required during dredging for the submarine pipelines and, during operation phase. In addition, baseline water quality monitoring will be required prior to the commencement of marine construction activities. The following Section provides details of the water quality monitoring to be undertaken by the Environmental Team (ET) to verify the distance of sediment and brine plume dispersion and to identify whether the potential exists for any indirect impacts to occur to ecological sensitive receivers. The water quality monitoring programme will be carried out to allow any deteriorating water quality to be readily detected and timely action taken to rectify the situation. The status and locations of water quality sensitive receivers and the marine works location may change after issuing this Document. If required, the ET in consultation with IEC will propose updated monitoring locations and seek approval from EPD.
3.2. Water quality monitoring for the Contract can be divided into the following stages:
- Dredging activities during construction phase;
- Discharge of effluent from main disinfection during construction phase;
- Operation phase - first year upon commissioning; and,
- Continuous monitoring of effluent quality.
WATER QUALITY PARAMETERS
3.3. The parameters that have been selected for measurement in situ and in the laboratory are those that were either determined in the EIA to be those with the most potential to be affected by the construction works or are a standard check on water quality conditions. Parameters to be measured in the impact monitoring are listed in Table 3.1.
Table 3.1 Parameters
measured in the Impact Marine Water Quality Monitoring
Parameters |
Unit |
Abbreviation |
In-situ measurements |
||
Dissolved oxygen |
mg/L |
DO |
Temperature |
oC |
- |
pH |
- |
- |
Turbidity |
NTU |
- |
Salinity |
0/00 |
- |
Total Residual Chlorine NOTE1 |
mg/L |
TRC |
Laboratory measurements |
||
Suspended Solids |
mg/L |
SS |
Iron-Soluble |
mg/L |
Fe |
Anti-scalant as Reactive Phosphorus |
mg/L |
PO4 as P- |
NOTE 1: Monitoring of Total Residual
Chlorine will be conducted
when cleaning and sterilization of the
new freshwater main is carried out.
3.4. In addition to the water quality parameters, other relevant data were also being measured and recorded in Water Quality Monitoring Logs, including the location of the sampling stations, water depth, time, weather conditions, sea conditions, tidal stage, current direction and velocity, special phenomena and work activities undertaken around the monitoring and works area that may influence the monitoring results.
MONITORING EQUIPMENT
3.5. For water quality monitoring, the following equipment were used:
Dissolved Oxygen and Temperature Measuring Equipment - The instrument was a portable, weatherproof dissolved oxygen measuring instrument complete with cable, sensor, comprehensive operation manuals, and was operable from a DC power source. It was capable of measuring: dissolved oxygen levels in the range of 0 - 20 mg/L and 0 - 200% saturation; and a temperature of 0 - 45 degrees Celsius. It has a membrane electrode with automatic temperature compensation complete with a cable of not less than 35 m in length. Sufficient stocks of spare electrodes and cables were available for replacement where necessary (e.g. YSI model 59 DO meter, YSI 5739 probe, YSI 5795A submersible stirrer with reel and cable or an approved similar instrument).
Turbidity Measurement Equipment - The instrument was a portable, weatherproof turbidity-measuring unit complete with cable, sensor and comprehensive operation manuals. The equipment was operated from a DC power source, it has a photoelectric sensor capable of measuring turbidity between 0 - 1000 NTU and complete with a cable with at least 35 m in length (for example Hach 2100P or an approved similar instrument).
Salinity Measurement Instrument - A portable salinometer capable of measuring salinity in the range of 0 - 40 ppt was provided for measuring salinity of the water at each monitoring location.
Water Depth Gauge - A portable, battery-operated echo sounder (for example Seafarer 700 or a similar approved instrument) was used for the determination of water depth at each designated monitoring station. This unit will preferably be affixed to the bottom of the work boat if the same vessel is to be used throughout the monitoring programme. The echo sounder was suitably calibrated.
Positioning Device - A Global Positioning System (GPS) was used during monitoring to allow accurate recording of the position of the monitoring vessel before taking measurements. The Differential GPS, or equivalent instrument, was suitably calibrated at appropriate checkpoint (e.g. Quarry Bay Survey Nail) to verify that the monitoring station is at the correct position before the water quality monitoring commence.
Water Sampling Equipment - A water sampler, consisting of a PVC or glass cylinder of not less than two litres, which can be effectively sealed with cups at both ends, was used (e.g. Kahlsico Water Sampler 13SWB203 or an approved similar instrument). The water sampler has a positive latching system to keep it open and prevent premature closure until released by a messenger when the sampler is at the selected water depth.
Total Residual Chlorine for Discharge of Sterilization Water - Total residual chlorine (TRC) shall be measured in-situ using a handheld colorimeter with its testing toolkits.
SAMPLING / TESTING PROTOCOLS
3.6. All in situ monitoring instruments were checked, calibrated and certified by a laboratory accredited under HOKLAS or any other international accreditation scheme before use, and subsequently re-calibrated at monthly intervals throughout the stages of the water quality monitoring. Responses of sensors and electrodes were checked with certified standard solutions before each use.
3.7. Table 3.2 summarizes the equipment used in the water quality monitoring program. The copies of the calibration certification of multi-parameter water quality system are shown in the Appendix N.
Table 3.2 Water Quality
Monitoring Equipment
Equipment |
Model &
Make |
Serial Number |
Calibration Expiry Date |
Qty. |
Water Sampler |
A 2-Litre transparent PVC cylinder with latex cups at both ends (Kahlsico Water Sampler 13SWB20) |
- |
- |
1 |
Multi- parameter Water Quality System |
HORIBA U-53 |
PPHNOMXY |
10 Aug 22 |
2 |
YSI ProDSS |
22C106561 |
19 Jul 22 |
3.8. On-site calibration of field equipment was follow the ¡§Guide to On-Site Test Methods for the Analysis of Waters¡¨, BS 1427: 2009. Sufficient stocks of spare parts were maintained for replacements when necessary. Backup monitoring equipment was made available so that monitoring can proceed uninterrupted even when equipment is under maintenance, calibration etc.
LABORATORY MEASUREMENT AND ANALYSIS
3.9. All laboratory works were carried out in a HOKLAS accredited laboratory. Sufficient volume of each water sample was collected at the monitoring stations for carrying out the laboratory analyses. Using chain of custody forms, collected water samples were transferred to a HOKLAS accredited laboratory for immediate processing. The determination work was start within the next working day after collection of the water samples. The laboratory measurements were provided to the client within 5 working days of the sampling event. Analytical methodology and sample preservation of other parameters were based on the latest edition of Standard Methods for the Examination of Waste and Wastewater published by APHA, AWWA and WPCF and methods by USEPA, or suitable method in accordance with requirements of HOKLAS or another internationally accredited scheme. The submitted information was including pre-treatment procedures, instrument use, Quality Assurance/Quality Control (QA/QC) details (such as blank, spike recovery, number of duplicate samples per-batch etc), detection limits and accuracy. The QA/QC details were in accordance with requirements of HOKLAS or another internationally accredited scheme.
3.10. Parameters for laboratory measurements, standard methods and detection limits are presented in Table 3.3.
Table 3.3 Laboratory measurements, standard methods and corresponding detection limits
of marine water quality monitoring
Parameters |
Standard Methods |
Detection Limit |
Reporting Limit |
Precision |
Dissolved oxygen (mg/L) |
Instrumental, CTD |
0.1 |
- |
+-25% |
Temperature (oC) |
Instrumental, CTD |
0.1 |
- |
+-25% |
pH |
Instrumental, CTD |
0.1 |
- |
+-25% |
Turbidity (NTU) |
Instrumental, CTD |
0.1 |
- |
+-25% |
Salinity (0/00) |
Instrumental, CTD |
0.1 |
- |
+-25% |
Suspended Solids (mg/L) |
APHA 23rd Ed 2540D |
1.0 |
2.5 |
+-17% |
Total Residual Chlorine (mg/L) |
APHA 21st Ed 4500 - ClG |
0.1 |
0.2 |
+-10% |
Iron-soluble |
USEPA 6010C |
0.2 |
0.2 |
+-25% |
Anti-scalant as Reactive phosphorus |
APHA 4500P: B&F |
0.01 |
0.01 |
+-25% |
3.11. If exceedances were found during water monitoring, the actions in accordance with the Event and Action Plan will be carried out according to Appendix G.
MONITORING LOCATION
3.12. The Impact water quality monitoring locations are in accordance with the EM&A Manual and detailed in Table 3.4 below. A schedule for water quality monitoring was prepared by the ET and approved by IEC and EPD prior to the commencement of the monitoring.
Table 3.4 Location
of Impact Water Quality Monitoring Stations
Station |
Easting |
Northing |
Description |
CE |
843550 |
815243 |
Upstream control station at ebb tide |
CF |
846843 |
810193 |
Upstream control station at flood tide |
WSR1 |
846864 |
812014 |
Ecological sensitive receiver at Tung Lung Chau |
WSR2 |
847645 |
812993 |
Fisheries sensitive receiver at Tung Lung Chau |
WSR3 |
848023 |
813262 |
Ecological sensitive receiver at Tung Lung Chau |
WSR4 |
847886 |
814154 |
Ecological sensitive receiver at Tai Miu Wan |
WSR16 |
845039 |
815287 |
Ecological sensitive receiver at Fat Tong Chau |
WSR33 |
847159 |
814488 |
Ecological sensitive receiver at Tai Miu Wan |
WSR36 |
846878 |
814081 |
Ecological sensitive receiver at Kwun Tsai |
WSR37 |
846655 |
813810 |
Ecological sensitive receiver at Tit Cham Chau |
NF1 |
846542 |
813614 |
Edge of mixing zone, ~ 200m west of outfall diffuser |
NF2 |
846942 |
813614 |
Edge of mixing zone, ~ 200m east of outfall diffuser |
NF3 |
846742 |
813414 |
Edge of mixing zone, ~ 200m south of outfall diffuser |
3.13. WSR1 to WSR37 were identified in accordance with Annex 14 of the EIAO-TM as well as Clause 3.4.4.2 of the Environmental Impact Assessment Study Brief for Desalination Plant at Tseung Kwan O (No. ESB-266/2013). WSR1 to WSR3 are sited near the Tung Lung Chau Fish Culture Zone; WSR16 and WSR36 are sited near the coral assemblages along the coastlines of Fat Tong Chau and Kwun Tsai respectively; WSR 4 and WSR33 are sited near the Coastal Protection Area and coral assemblages in waters of Tai Miu Wan; WSR37 is sited near the fisheries resource including spawning and nursery grounds at the coastal water of Tit Cham Chau.

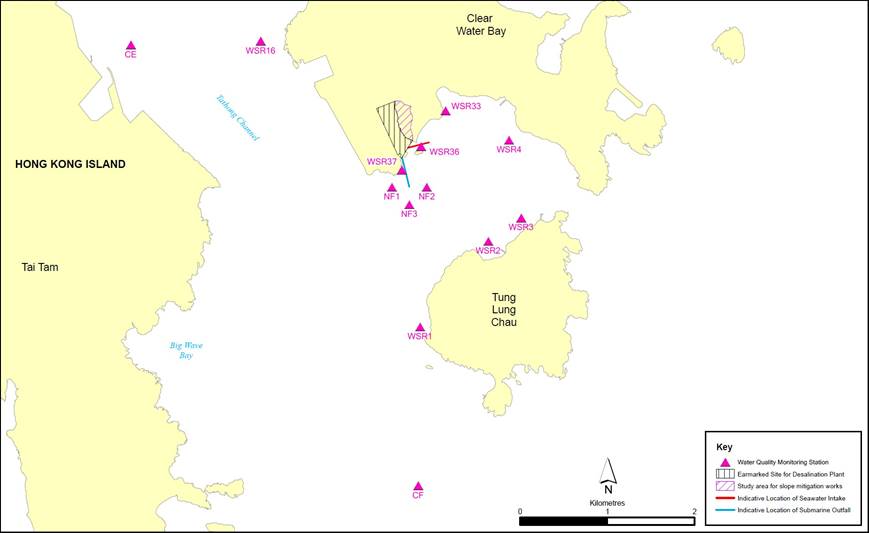

Figure 3.1 Impact water quality monitoring
locations under EM&A Manual
SAMPLING FREQUENCY
3.14. During periods when there are dredging works, impact monitoring was undertaken at the monitoring stations as shown in Figure 3.1 and Table 3.4 three days per week during the construction phase after the commencement of marine construction works and dredging activities. Monitoring at each station was undertaken at both mid-ebb and mid-flood tides on the same day. The tidal range selected for the impact monitoring was at least 0.5 m for both flood and ebb tides as far as practicable. The interval between two sets of monitoring was not less than 36 hours. The monitoring frequency would be increased in the case of exceedances of Action/Limit Levels if considered necessary by ET. Monitoring frequency would be maintained as far as practicable.
3.15. The monitoring location/position, time, water depth, water temperature, salinity, weather conditions, sea conditions, tidal stage, special phenomena and work underway at the marine works site were recorded.
SAMPLING DEPTHS & REPLICATION
3.16. For Impact monitoring, each station was sampled and measurements/ water samples was taken at three depths, 1 m below the sea surface, mid-depth and 1 m above the seabed. For stations that are less than 3 m in depth, only the mid depth sample was taken. For stations that are less than 6 m in depth, only the surface and seabed sample were taken. For in situ measurements, duplicate readings were made at each water depth at each station. Duplicate water samples were collected at each water depth at each station. All water quality monitoring results were summarized in Appendix L.
ACTION AND LIMIT
LEVELS
3.17. The Action and Limit Levels have been set based on the derivation criteria specified in the EM&A Manual. The Action/Limit Levels have been derived and are presented in Table 3.5.
MONITORING PROGRAMME
3.18. The ET of the Contract had conducted the baseline water monitoring between 12 May 2020 to 6 Jun 2020 at the thirteen designated monitoring stations and the six designated monitoring at waters near TKO in accordance with the EM&A Manual and Contract Specification respectively. The baseline monitoring results was presented in Baseline Water Quality Monitoring Report separately.
3.19. The commencement of marine construction and dredging activities for the Contract have been conducted in March and April 2021 respectively.
Table 3.5 Derived Action
and Limit Levels
for Water Quality
Parameters |
Action |
Limit |
Construction Phase Impact
Monitoring |
||
DO in mg/L |
Surface and Middle |
Surface and Middle |
|
7.30 mg L-1 |
4 mg L-1 |
|
Bottom |
Bottom |
|
7.31 mg L-1 |
2 mg L-1 |
|
Tung Lung Chau Fish Culture Zone |
Tung Lung Chau Fish Culture Zone |
|
5.1 mgL-1 or level at control station |
5.0 mgL-1 or level at control station |
|
(whichever the lower) |
(whichever the lower) |
SS in mg/L |
5.00 mg L-1 or 20% exceedance of |
6.00 mg L-1 or 30% exceedance of |
(Depth-averaged) |
value at any impact station |
value at any impact station |
|
compared with corresponding data |
compared with corresponding data |
|
from control station |
from control station |
Turbidity in NTU |
2.41 NTU or 20% exceedance of |
2.84 NTU or 30% exceedance of |
(Depth-averaged) |
value at any impact station |
value at any impact station |
|
compared with corresponding data |
compared with corresponding data |
|
from control station |
from control station |
First-year Operation Phase
Monitoring iv |
||
DO in mg/L |
Surface and Middle |
Surface and Middle |
|
7.30 mg L-1 |
4 mg L-1 |
|
Bottom |
Bottom |
|
7.31 mg L-1 |
2 mg L-1 |
|
Tung Lung Chau Fish Culture Zone |
Tung Lung Chau Fish Culture Zone |
|
5.1 mgL-1 or level at control station |
5.0 mgL-1 or level at control station |
|
(whichever the lower) |
(whichever the lower) |
SS in mg/L |
5.00 mg L-1 or 20% exceedance of |
6.00 mg L-1 or 30% exceedance of |
(Depth-averaged) |
valueat any impact station |
value at any impact station |
|
compared with corresponding data |
compared with corresponding data |
|
from control station |
from control station |
Turbidity in NTU (Depth-averaged) |
2.41 NTU or 20% exceedance of value at any impact station compared with corresponding data from control station |
2.84 NTU or 30% exceedance of value at any impact station compared with corresponding data from control station |
Salinity in PSU (Depth-averaged) |
34.28 PSU or 9% exceedance of value at any impact station compared with corresponding data from control station |
34.60 PSU or 10% exceedance of value at any impact station compared with corresponding data from control station |
Iron in mg/L (Depth-averaged) |
0.3 mgL-1 |
0.3 mgL-1 |
Notes:
i.
"Depth-averaged" is calculated by taking the arithmetic means of reading
of all three depths.
ii.
For DO, non-compliance of the water quality limits occurs when monitoring result is lower than the limits.
iii.
For Turbidity, SS, iron and Salinity, non-compliance of the water quality limits
occurs when monitoring result is higher
than the limits.
iv.
For the Action and Limit Levels adopted during
First-year Operation Phase Monitoring, further review would be made according to the EM&A Manual during
Operation Phase.
MONITORING RESULTS AND OBSERVATIONS
3.20. General water quality monitoring at the ten monitoring stations (CE, CF, WSR1, WSR2, WSR3, WSR4, WSR16, WSR33, WSR36 and WSR37) were conducted on 3, 5, 7, 10, 12, 14, 17, 19, 21, 24, 26, 28 and 31 May 2022.
3.21. Nineteen (19) of the general water quality monitoring results of suspended solids (SS) obtained had exceeded the Action Level. Six (6) of the general water quality monitoring results of SS obtained during the reporting period had exceeded the Limit Level. Details of the exceedance are presented in Appendix O.
3.22. Investigation on the reason of exceedance has been carried out, where the exceedances of SS on 3, 5, 7, 12, 14, 21, 26, 28 and 31 May 2022 were concluded to be unrelated to the Contract as detailed in the Incident Reports on Action Level or Limit Level Non- compliance along with supporting materials in Appendix O.
3.23. Monitoring results of 6 key parameters: Salinity, DO, turbidity, SS, pH and temperature in this reporting, are summarized in Table 3.6 and Table 3.7, and detailed results are presented in Appendix L.
Table 3.6 Summary of Impact Water
Quality Monitoring Results
(Mid-Flood)
Locations |
Parameters |
|||||||
Salinity (ppt) |
Dissolved Oxygen (mg/L) |
pH |
Turbidity (NTU) |
Suspended Solids (mg/L) |
Temp.(oC) |
|||
Surface & Middle |
Bottom |
|||||||
CE |
Avg. |
32.7 |
9.0 |
9.0 |
8.2 |
3.3 |
3.9 |
25.1 |
Min. |
31.1 |
8.1 |
8.1 |
7.9 |
2.6 |
2.5 |
21.5 |
|
Max. |
33.7 |
10.0 |
10.1 |
8.4 |
4.3 |
13.0 |
26.3 |
|
CF |
Avg. |
32.6 |
8.9 |
8.9 |
8.2 |
4.0 |
4.6 |
25.4 |
Min. |
31.2 |
8.0 |
8.0 |
8.1 |
3.4 |
2.5 |
23.8 |
|
Max. |
33.4 |
9.7 |
9.6 |
8.4 |
5.0 |
16.0 |
26.5 |
|
WSR1 |
Avg. |
32.7 |
9.0 |
9.0 |
8.2 |
2.7 |
4.0 |
25.4 |
Min. |
30.4 |
8.0 |
8.1 |
7.9 |
1.8 |
2.5 |
23.9 |
|
Max. |
33.8 |
9.7 |
9.6 |
8.5 |
4.1 |
14.0 |
26.5 |
|
WSR2 |
Avg. |
32.5 |
9.0 |
8.9 |
8.2 |
2.4 |
3.7 |
25.5 |
Min. |
30.3 |
8.1 |
8.2 |
8.0 |
1.8 |
2.5 |
24.3 |
|
Max. |
33.6 |
9.9 |
9.8 |
8.4 |
3.6 |
11.0 |
26.7 |
|
WSR3 |
Avg. |
32.6 |
8.9 |
8.9 |
8.2 |
2.7 |
4.7 |
25.5 |
Min. |
30.7 |
8.1 |
8.1 |
8.0 |
1.8 |
2.5 |
24.4 |
|
Max. |
33.6 |
9.7 |
9.8 |
8.4 |
4.3 |
24.0 |
26.3 |
|
WSR4 |
Avg. |
32.5 |
9.0 |
9.0 |
8.2 |
2.8 |
5.0 |
25.5 |
Min. |
30.8 |
8.3 |
8.3 |
8.1 |
1.9 |
2.5 |
24.2 |
|
Max. |
33.7 |
9.6 |
9.5 |
8.4 |
4.2 |
33.0 |
26.3 |
|
WSR16 |
Avg. |
32.7 |
8.9 |
8.9 |
8.2 |
2.9 |
3.9 |
25.5 |
Min. |
31.1 |
8.0 |
8.0 |
8.1 |
2.1 |
2.5 |
24.3 |
|
Max. |
33.6 |
9.9 |
9.9 |
8.3 |
4.2 |
12.0 |
26.8 |
|
WSR33 |
Avg. |
32.6 |
8.8 |
8.7 |
8.2 |
2.8 |
4.3 |
25.7 |
Min. |
30.7 |
8.1 |
8.2 |
8.0 |
2.0 |
2.5 |
24.4 |
|
Max. |
33.7 |
9.8 |
9.8 |
8.4 |
4.0 |
12.0 |
26.6 |
|
WSR36 |
Avg. |
32.4 |
9.0 |
9.0 |
8.2 |
2.8 |
4.8 |
25.4 |
Min. |
31.1 |
8.4 |
8.4 |
8.0 |
1.8 |
2.5 |
24.2 |
|
Max. |
33.2 |
9.8 |
9.8 |
8.4 |
3.8 |
13.0 |
26.4 |
|
WSR37 |
Avg. |
32.8 |
8.9 |
8.9 |
8.2 |
2.8 |
4.1 |
25.5 |
Min. |
30.6 |
8.1 |
8.1 |
8.0 |
1.8 |
2.5 |
24.0 |
|
Max. |
33.7 |
9.7 |
9.7 |
8.4 |
4.3 |
14.0 |
26.5 |
Notes:
i.
"Avg", ¡§Min¡¨ and ¡§Max¡¨ is the average,
minimum and maximum respectively of the data from measurements conducted under mid-flood and mid-ebb tides at three
water depths, except that of DO where the data for ¡§Surface & Middle¡¨ and ¡§Bottom¡¨ are calculated separately.
ii.
Measurement data of Suspending Solids
would be rounding
to 2.5mg/L if the value was less than 2.5mg/L
to facilitate data analysing.
Table 3.7 Summary of Impact Water Quality Monitoring Results (Mid-Ebb)
Locations |
Parameters |
|||||||
Salinity (ppt) |
Dissolved Oxygen (mg/L) |
pH |
Turbidity (NTU) |
Suspended Solids (mg/L) |
Temp.(oC) |
|||
Surface & Middle |
Bottom |
|||||||
CE |
Avg. |
32.6 |
8.8 |
8.8 |
8.2 |
4.0 |
4.6 |
25.4 |
Min. |
30.6 |
8.2 |
8.2 |
8.0 |
3.0 |
2.5 |
24.1 |
|
Max. |
33.4 |
9.6 |
9.3 |
8.3 |
5.0 |
14.0 |
26.3 |
|
CF |
Avg. |
32.6 |
9.0 |
9.0 |
8.2 |
3.4 |
5.5 |
25.4 |
Min. |
30.8 |
8.2 |
8.3 |
8.0 |
2.5 |
2.5 |
24.3 |
|
Max. |
34.1 |
10.1 |
9.9 |
8.4 |
4.5 |
17.0 |
26.6 |
|
WSR1 |
Avg. |
32.5 |
8.9 |
8.9 |
8.2 |
2.8 |
4.7 |
25.4 |
Min. |
30.4 |
8.2 |
8.3 |
8.0 |
1.8 |
2.5 |
23.9 |
|
Max. |
33.6 |
9.9 |
9.8 |
8.4 |
4.4 |
14.0 |
26.5 |
|
WSR2 |
Avg. |
32.6 |
8.8 |
8.7 |
8.2 |
2.4 |
4.3 |
25.5 |
Min. |
30.8 |
7.9 |
8.0 |
8.0 |
1.9 |
2.5 |
24.6 |
|
Max. |
34.3 |
9.5 |
9.3 |
8.3 |
3.9 |
17.0 |
26.2 |
|
WSR3 |
Avg. |
32.5 |
8.8 |
8.9 |
8.2 |
2.7 |
4.8 |
25.4 |
Min. |
30.6 |
8.2 |
8.1 |
8.0 |
1.6 |
2.5 |
23.8 |
|
Max. |
33.8 |
9.8 |
9.7 |
8.4 |
4.0 |
16.0 |
26.4 |
|
WSR4 |
Avg. |
32.5 |
9.0 |
8.9 |
8.2 |
2.8 |
4.4 |
25.5 |
Min. |
30.5 |
8.3 |
8.2 |
8.0 |
1.9 |
2.5 |
24.4 |
|
Max. |
33.9 |
10.0 |
9.8 |
8.4 |
4.0 |
14.0 |
26.4 |
|
WSR16 |
Avg. |
32.7 |
8.8 |
8.8 |
8.2 |
2.8 |
4.5 |
25.4 |
Min. |
30.5 |
8.0 |
8.1 |
8.0 |
2.0 |
2.5 |
24.2 |
|
Max. |
34.3 |
9.8 |
9.9 |
8.4 |
3.8 |
11.0 |
26.2 |
|
WSR33 |
Avg. |
32.5 |
8.7 |
8.7 |
8.2 |
2.7 |
4.8 |
25.5 |
Min. |
30.8 |
8.1 |
8.0 |
8.0 |
1.8 |
2.5 |
23.9 |
|
Max. |
33.7 |
9.7 |
9.6 |
8.4 |
4.1 |
30.0 |
26.6 |
|
WSR36 |
Avg. |
32.5 |
8.8 |
8.8 |
8.2 |
2.8 |
4.3 |
25.5 |
Min. |
30.2 |
8.0 |
8.1 |
8.0 |
1.7 |
2.5 |
24.4 |
|
Max. |
34.2 |
9.5 |
9.5 |
8.4 |
3.8 |
12.0 |
26.7 |
|
WSR37 |
Avg. |
32.5 |
8.8 |
8.8 |
8.2 |
2.8 |
4.7 |
25.4 |
Min. |
30.6 |
8.0 |
8.0 |
8.0 |
1.9 |
2.5 |
24.2 |
|
Max. |
33.8 |
9.8 |
9.7 |
8.3 |
3.7 |
11.0 |
26.3 |
Notes:
i.
"Avg", ¡§Min¡¨ and ¡§Max¡¨ is
the average, minimum and maximum respectively of the data from measurements
conducted under mid-flood and mid-ebb
tides at three water depths, except that of DO where the data for ¡§Surface
& Middle¡¨ and ¡§Bottom¡¨ are
calculated separately.
ii.
Measurement data of Suspending Solids
would be rounding
to 2.5mg/L if the value was less than 2.5mg/L
to facilitate data analysing.
4.1. The waste generated from this Contract includes inert construction and demolition (C&D) materials, and non-inert C&D materials. Non-inert C&D materials are made up of general refuse, vegetative wastes and recyclable wastes such as plastics and paper/cardboard packaging waste. Steel materials generated from the Contract are also grouped into non-inert C&D materials as the materials were not disposed of with other inert C&D materials. With reference to relevant handling records and trip tickets of this Contract, the quantities of different types of waste generated in the reporting month are summarized in Table 4.1. Details of cumulative waste management data are presented as a waste flow table in Appendix H.
Table 4.1 Quantities of Waste Generated from the Contract
during May 2022
Reporting Month |
Actual Quantities of Inert C&D Materials Generated Monthly |
Actual Quantities of C&D Wastes
Generated Monthly |
|||||||||
Total Quantity Generated |
Hard Rock and Large Broken Concrete |
Reused in the Contract |
Reused in other
Projects |
Disposed as Public Fill |
Imported Fill |
Metals |
Paper / cardboard packaging |
Plastics(1) |
Chemical Waste |
Others, e.g. general
refuse |
|
(in ,000kg) |
(in ,000kg) |
(in ,000kg) |
(in ,000kg) |
(in ,000kg) |
(in ,000kg) |
(in ,000kg) |
(in ,000kg) |
(in ,000kg) |
(in ,000kg) |
(in ,000kg) |
|
May 2022 |
6.300 |
0.000 |
0.000 |
0.000 |
6.300 |
0.000 |
0.000 |
0.000 |
0.000 |
0.000 |
71.350 |
Notes: (1) Plastics
refer to plastic
bottles / containers, plastic sheets / foam from packaging material
MONITORING REQUIREMENT
5.1. In accordance with Section 11 of the EM&A Manual, monitoring of landfill gas is required for construction works within the 250m Consultation Zone. Part of the desalination plant and the indicative area of natural slope mitigation works fall within the SENT Landfill Extension Consultation Zone; and part of the 1,200 mm diameter fresh water mains along Wan Po Road falls within the SENT Landfill and SENT Landfill Extension Consultation Zones, TKO Stage II/III Restored Landfill and TKO Stage I Restored Landfill Consultation Zones.
MONITORING LOCATION
5.2. Monitoring of oxygen, methane, carbon dioxide and barometric pressure would be performed for excavations at 1m depth or more within the consultation Zone.
5.3. During construction of works within the consultation zones, excavations of 1m depth or more was monitored:
- At the ground surface before excavation commences;
- Immediately before any worker enters the excavation;
- At the beginning of each working day for the entire period the excavation remains open; and
- Periodically through the working day whilst workers are in the excavation.
5.4. For excavations between 300mm and 1m deep, measurements were carried out:
- Directly after the excavation has been completed; and
- Periodically whilst the excavation remains open.
MONITORING PROGRAMME
5.5. Since part of the desalination plant (Wan Po Road and MIC compound/Basketball Court) and the indicative area of natural slope mitigation works fall within the SENT Landfill Extension Consultation Zone in this contract (Figure 5.1), landfill gas monitoring would be required for Wan Po Road and MIC compound/Basketball Court (Figure 5.2) if excavations were conducted at more than 300mm deep. Although SENT Landfill Extension has commenced operation since November 2021, no excavation works were conducted at MIC compound/Basketball Court. Hence no landfill gas monitoring would be scheduled for MIC compound/Basketball Court at the current stage.
MONITORING LOCATION
5.6. The area required to be monitored for landfill gas in the reporting period is shown in Figure 5.2.
Figure 5.1 Overview
of the SENT Extension Consultation Zone and the Contract Site Area
MONITORING PARAMETERS
5.7. LFG monitoring was carried out to identify any migration between the landfill and the Contract and to ensure the safety of the construction, operation and maintenance personnel working on-site, visitors and any other person within the Contract area.
5.8. The following parameters were monitored:
- Methane
- Oxygen
- Carbon Dioxide
- Barometric Pressure
5.9. Action and Limit Level are provided in Table 5.1.
Table 5.1 Action and Limit Level for Landfill
Gas Monitoring Equipment
Parameters |
Action Level |
Limit Level |
Oxygen (O2) |
<19% O2 |
<19% O2 |
Methane (CH4) |
>10% LEL |
>20% LEL |
Carbon Dioxide (CO2) |
>0.5% CO2 |
>1.5% CO2 |
MONITORING
EQUIPMENT
5.10. Landfill Gas monitoring was carried out using intrinsically-safe, portable multi-gas monitoring instruments. The gas monitoring equipment is:
• Complying with the Landfill Gas Hazard Assessment Guidance Note as intrinsically safe;
• Capable of continuous barometric pressure and gas pressure measurements;
• Normally operated in diffusion mode unless required for spot sampling, when it should be capable of operating by means of an aspirator or pump;
• Having low battery, fault and over range indication incorporated;
• Capable of storing monitoring data, and shall be capable of being downloaded directly;
• Measure in the following ranges:
methane |
0-100% LOWER EXPLOSION LIMIT (LEL) AND 0-100% V/V; |
oxygen |
0-25% V/V; |
carbon dioxide |
0-5% v/v; and |
barometric pressure |
mBar (absolute) |
• alarm (both audibly and visually) in the event that the concentrations of the following are exceeded:
methane |
>10% LEL; |
oxygen |
<19% |
carbon dioxide |
>0.5% by volume |
barometric pressure |
mBar (absolute) |
5.11. Monitoring Equipment used in the reporting period are summarized in Table 5.2. The Landfill Gas monitoring equipment calibration certificate is presented in Appendix N.
Table 5.2 Landfill Gas Monitoring Equipment
Equipment |
Brand and Model |
Calibration Expiry Date |
Portable Gas Detector |
PS500 - 254928 |
28 September 2022 |
Figure 5.2 Location Map for Landfill
Gas Monitoring at Wan Po
Road
MONITORING RESULTS AND OBSERVATIONS
5.12.
In this reporting period, 44
times of landfill gas monitoring was conducted during excavations at 1m depth
or more within the consultation zone and whenever workers entered the excavation on the day at Wan Po Road (Ch1+360 - Ch1+513). No exceedance
of action and limit levels for methane, oxygen and carbon dioxide
was recorded. Detail of landfill gas monitoring results are
presented in Appendix L
6.
SUMMARY OF EXCEEDANCE, COMPLAINTS, NOTIFICATION OF SUMMONS AND PROSECUTIONS

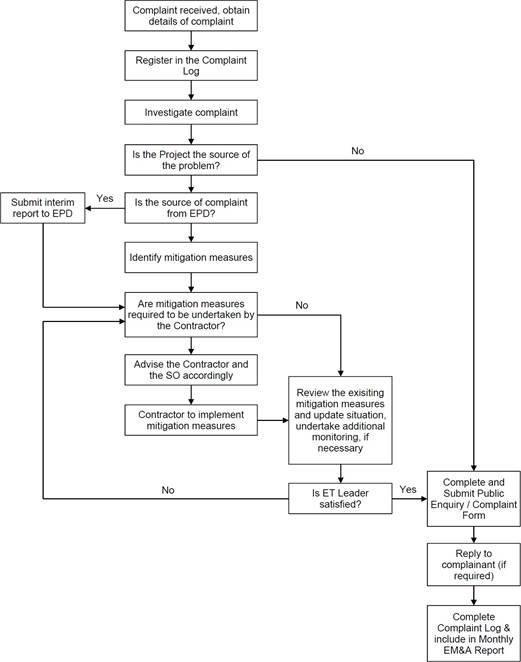

6.1. The Environmental Complaint Handling Procedure is shown in below Figure 6.1:
Figure 6.1 Environmental Complaint
Handling Procedures
6.2. No noise monitoring was conducted during the reporting period since there are no Contract-related construction activities undertaken within a radius of 300m from the monitoring locations.
6.3. General water quality monitoring at the ten monitoring stations (CE, CF, WSR1, WSR2, WSR3, WSR4, WSR16, WSR33, WSR36 and WSR37) were conducted on 3, 5, 7, 10, 12, 14, 17, 19, 21, 24, 26, 28 and 31 May 2022.
6.4. Nineteen (19) of the general water quality monitoring results of suspended solids (SS) obtained had exceeded the Action Level. Six (6) of the general water quality monitoring results of SS obtained during the reporting period had exceeded the Limit Level. Details of the exceedance are presented in Appendix O.
6.5. Investigation on the reason of exceedance has been carried out, where the exceedances of SS on 3, 5, 7, 12, 14, 21, 26, 28 and 31 May 2022 were concluded to be unrelated to the Contract as detailed in the Incident Reports on Action Level or Limit Level Non- compliance along with supporting materials in Appendix O.
6.6. In this reporting period, 44times of landfill gas monitoring was conducted at Wan Po Road (Ch1+360 - Ch1+513).
6.7. No exceedance of action and limit levels for methane, oxygen and carbon dioxide was recorded in the reporting month.
6.8. No environmental complaint was received in the reporting period.
6.9. No notification of summons and prosecution was received in the reporting period.
6.10. Statistics on complaints and regulatory compliance are summarized in Appendix J.

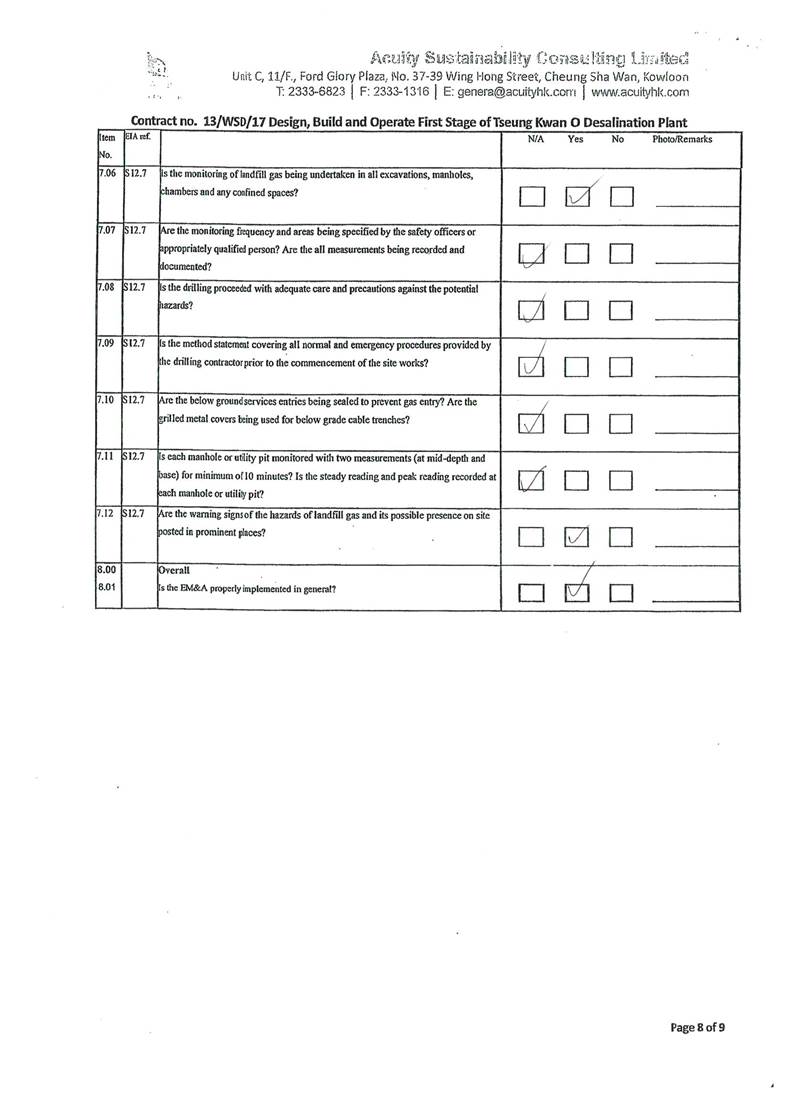

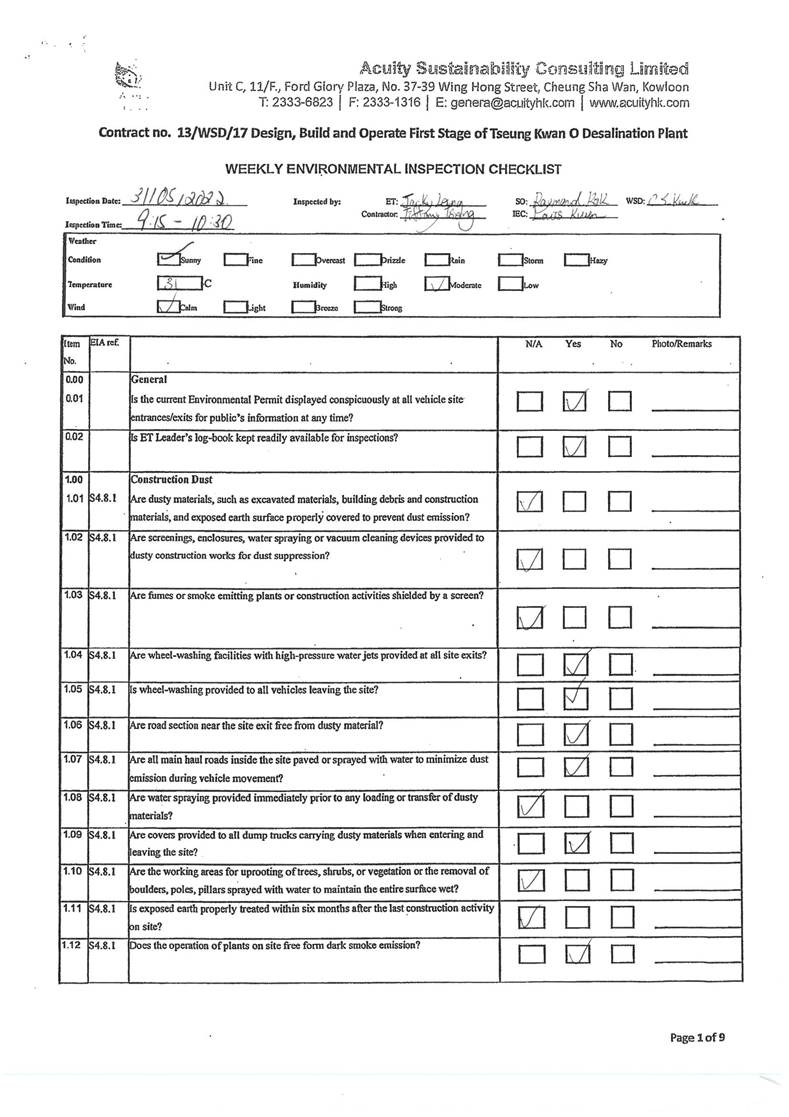

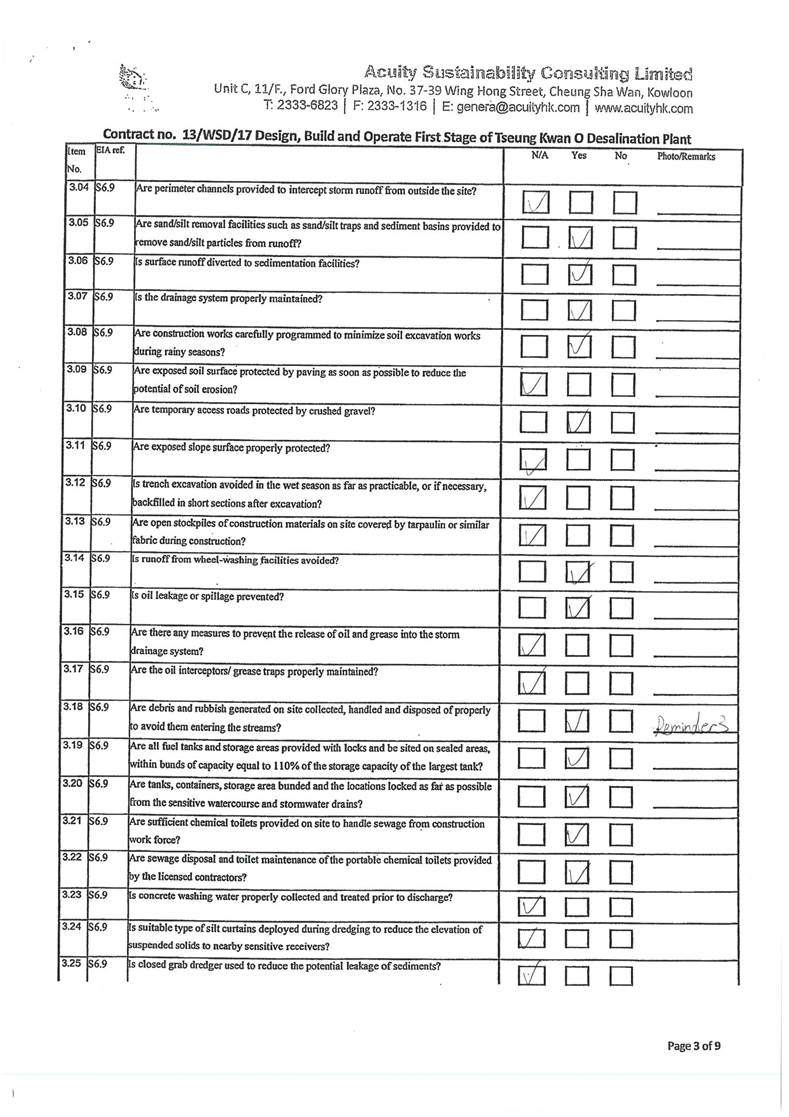

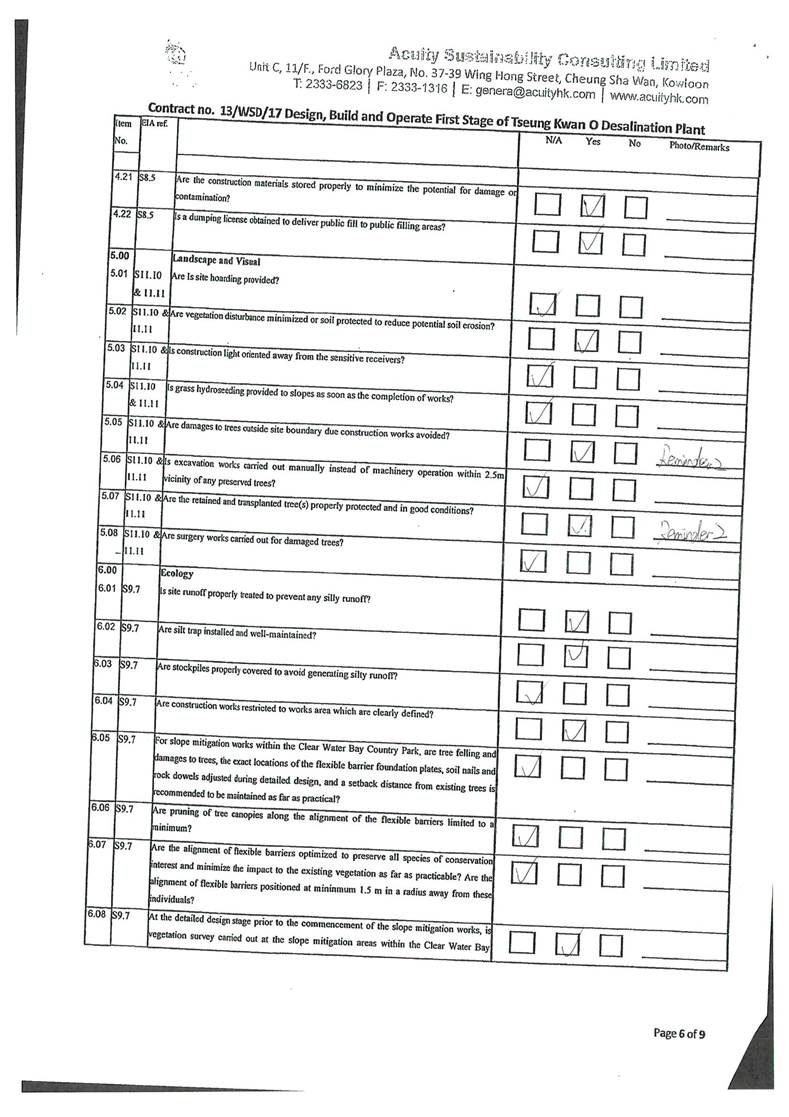

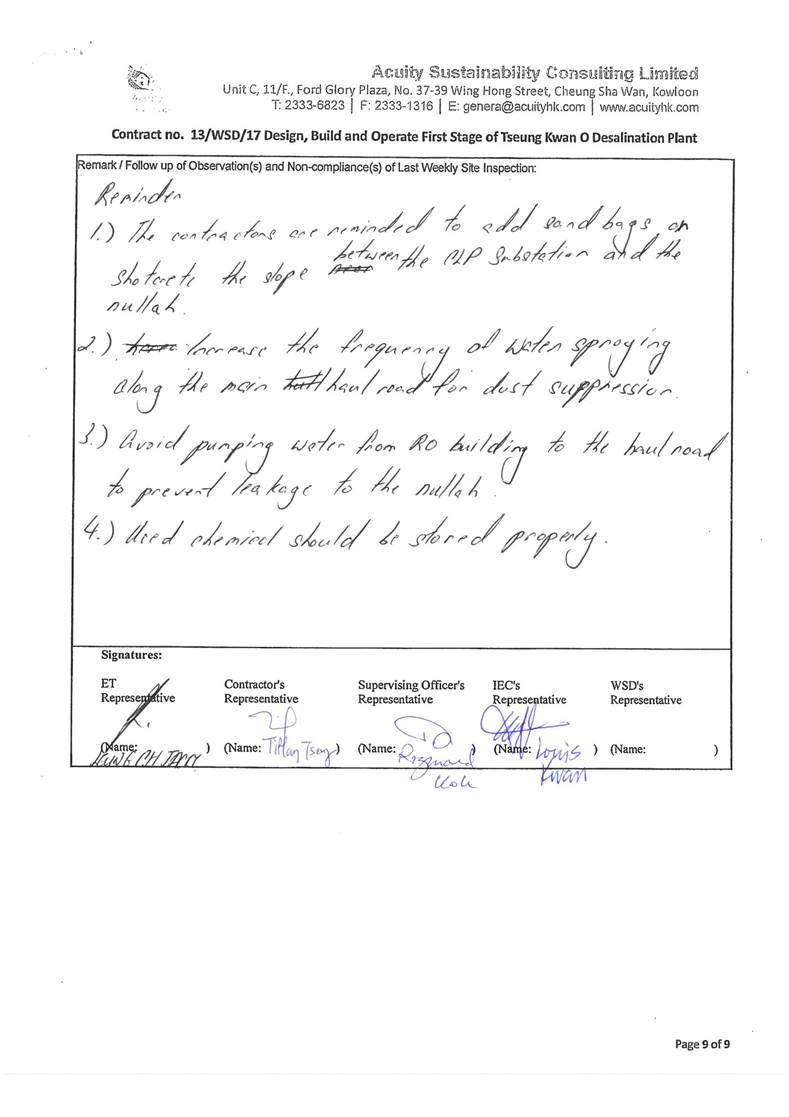

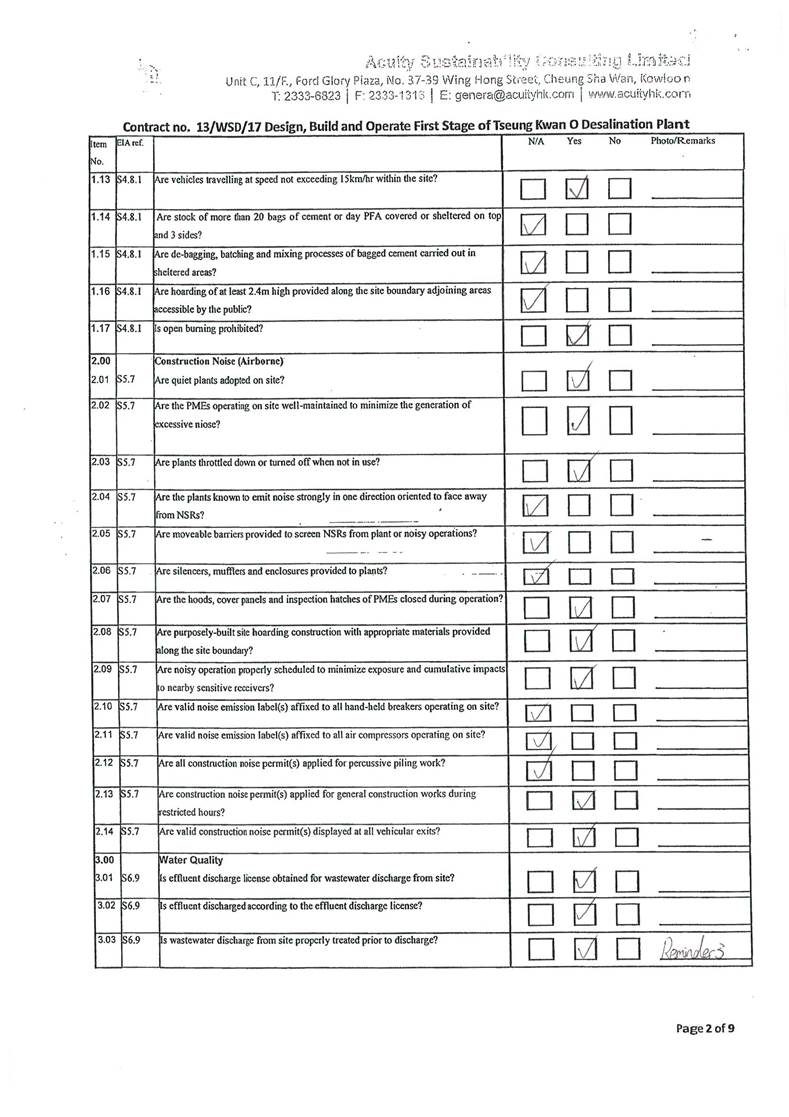

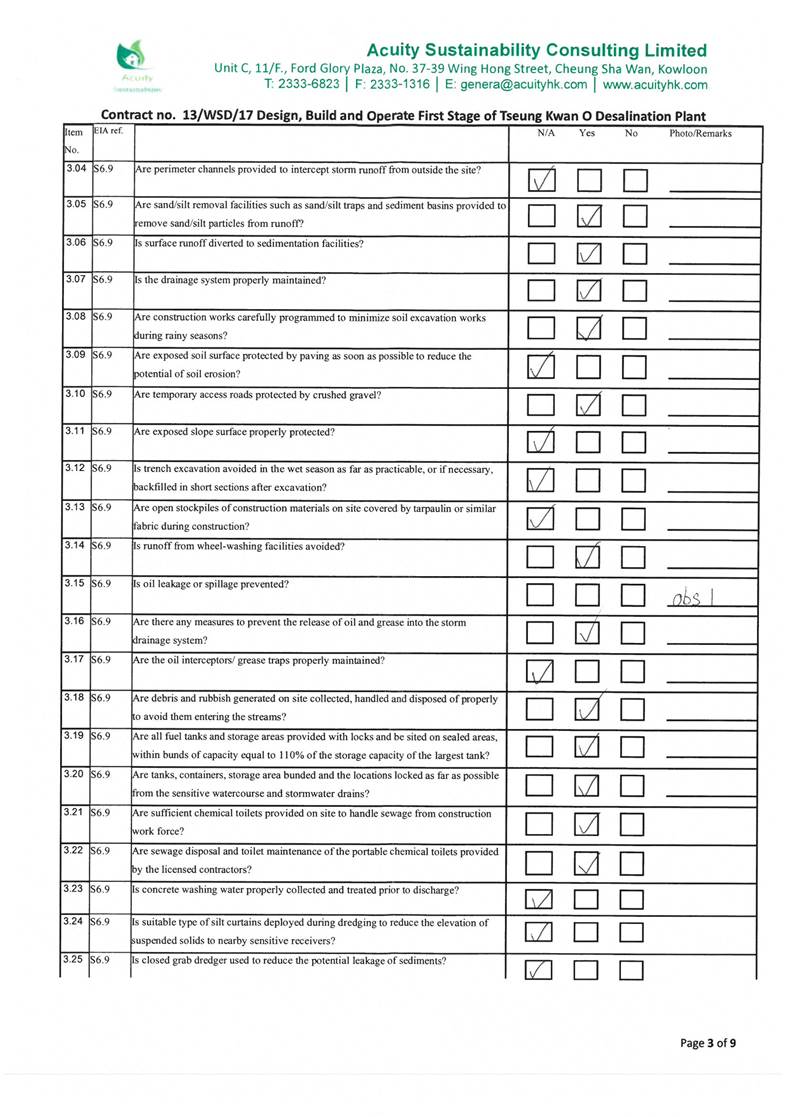

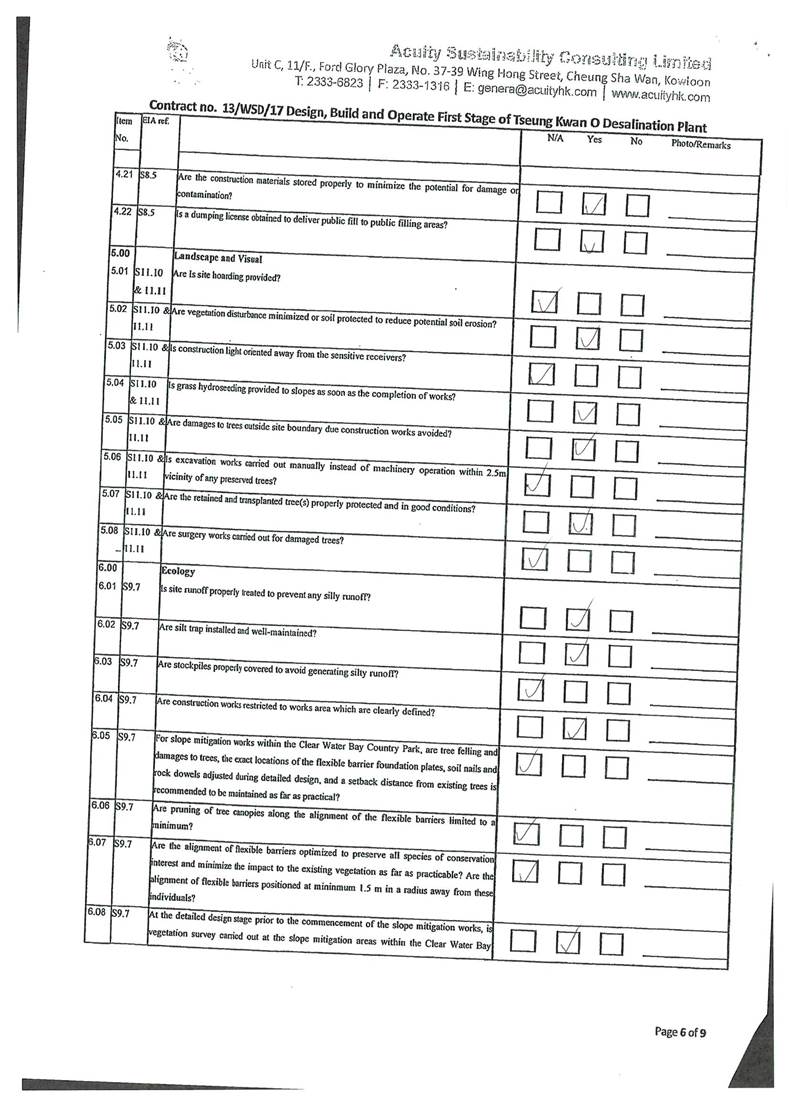

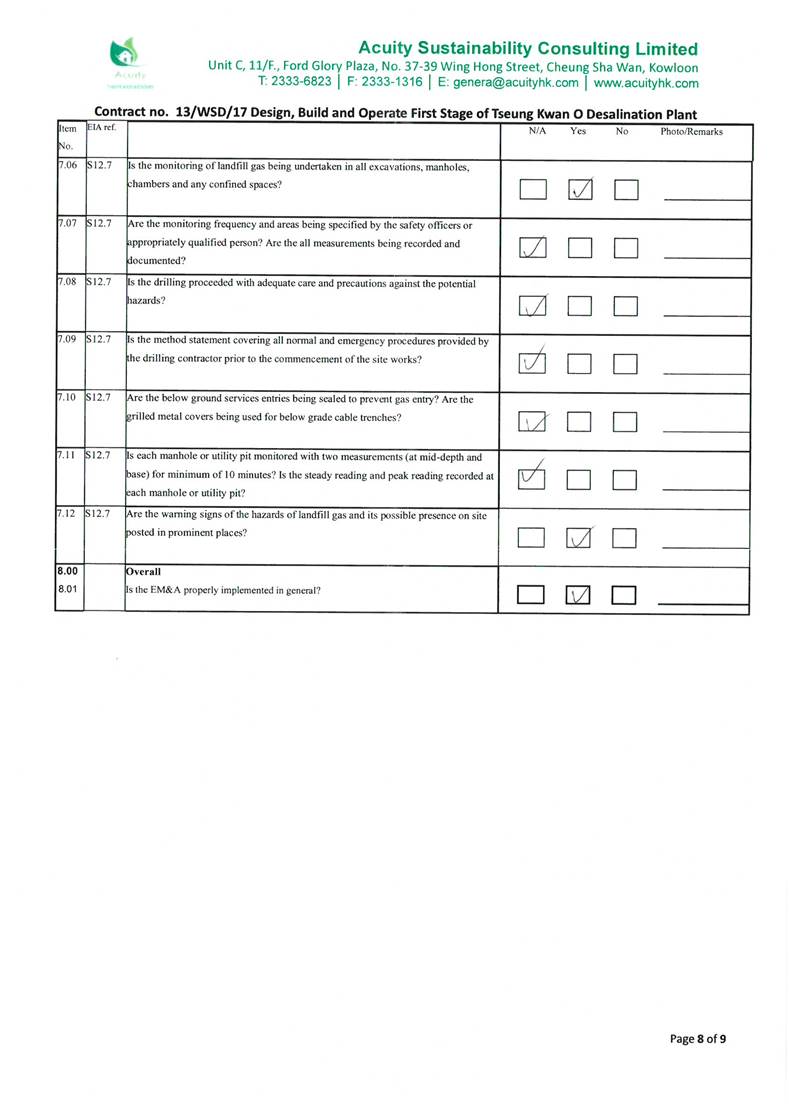

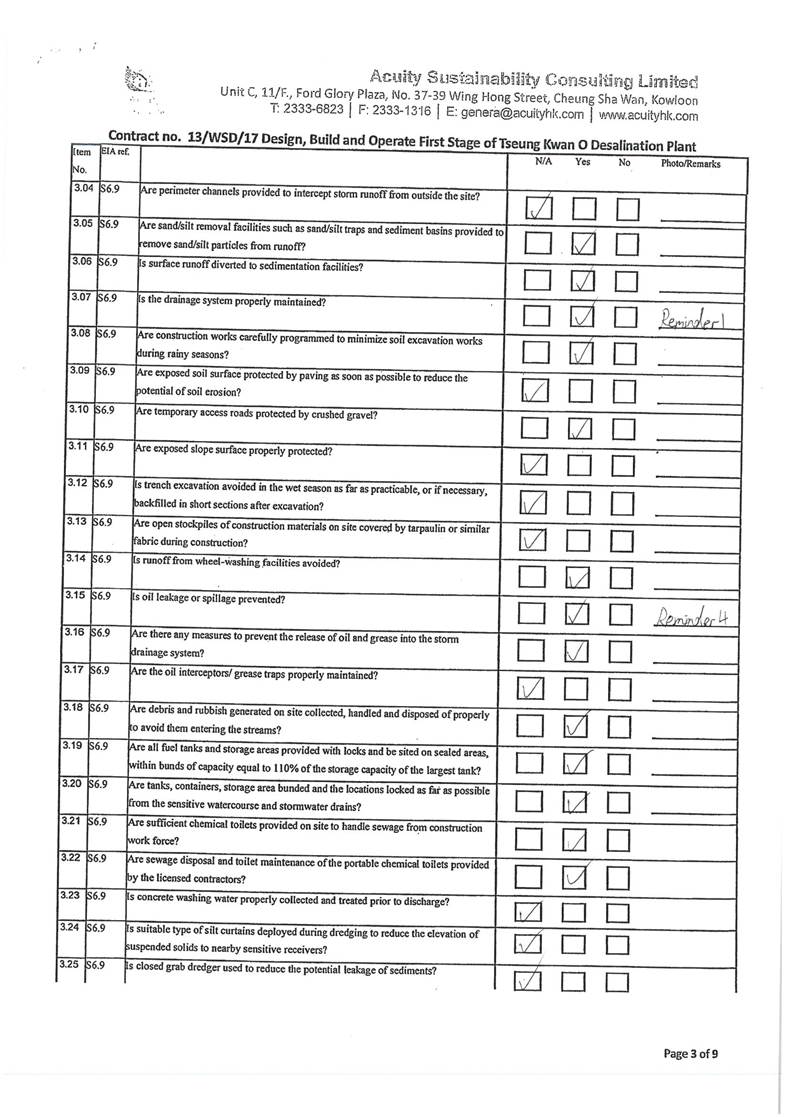

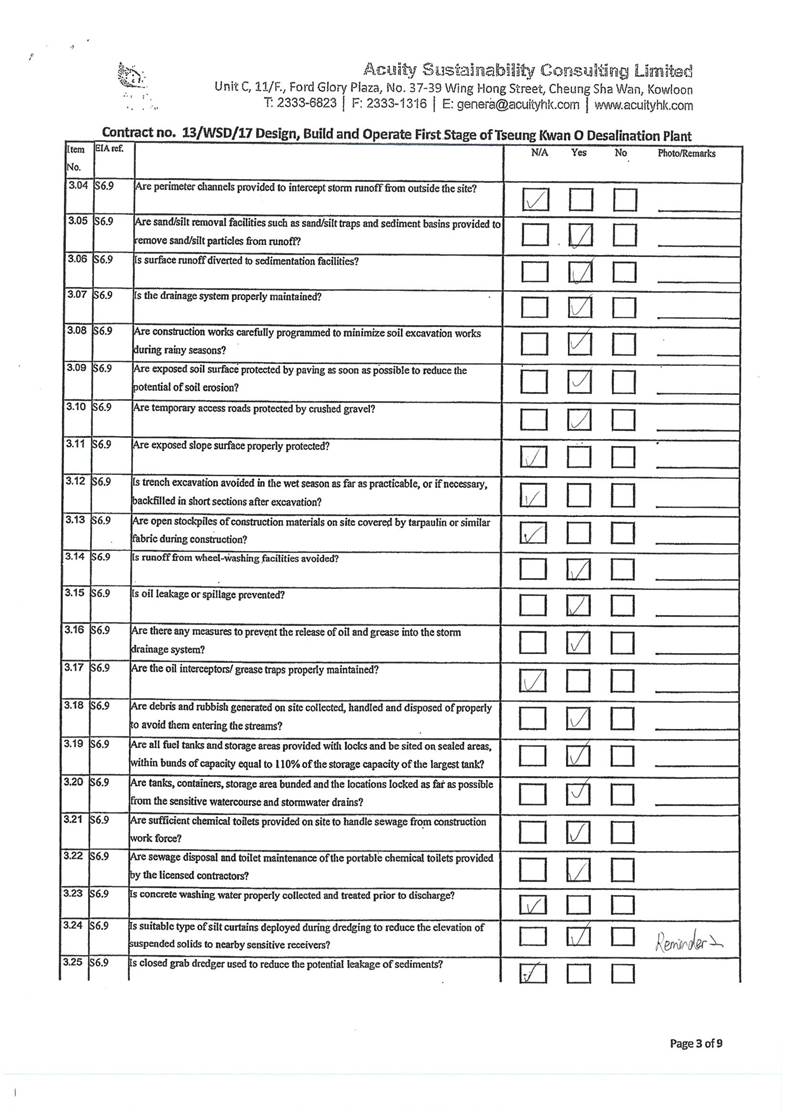

7.1. Site inspections were carried out on a weekly basis to monitor the implementation of proper environmental pollution control and mitigation measures under the Contract. In the reporting period, site inspections were carried out on 3, 10, 17, 24 and 31 May 2022 at the site portions listed in Table 7.1 below.
Table 7.1 Summaries of Site Inspection Record
Date |
Inspected Site Portion |
Time |
3 May 2022 |
TKO 137 |
14:30 - 16:30 |
10 May 2022 |
TKO 137 |
14:30 - 16:30 |
17 May 2022 |
TKO 137 |
14:35 - 15:35 |
24 May 2022 |
TKO 137 |
14:30 - 16:00 |
31 May 2022 |
TKO 137 |
09:10 - 10:30 |
7.2. Joint site inspections with IEC were carried out on 3, 10, 17, 24 and 31 May 2022.
7.3. Environmental deficiencies were observed during weekly site inspection. Key observations during the site inspections and during the reporting period are summarized in Table 7.2.
Table 7.2 Site Observations
Date |
Environmental Observations |
Follow-up Status |
3 May 2022 |
No major observations were recorded on the reporting day. |
Nil. |
10 May 2022 |
No major observations were recorded on the reporting day. |
Nil. |
17 May 2022 |
Observation: 1. Drip tray should be provided for chemical storage and provide label for the chemical. (RO Building) |
1. Chemical removed off-site. |
24 May 2022 |
Observation: 1. The Contractors are reminded to provide drip trays for the oil drums near the power generator near outfall. |
1. Drip tray provided. |
31 May 2022 |
No major observations were recorded on the reporting day. |
Nil. |
7.4. According to the EIA Study Report, Environmental Permit, contract documents and EM&A Manual, the mitigation measures detailed in the documents should be implemented as much as practical during the reporting period. An updated Implementation Status of Environmental Mitigation Measures (EMIS) is provided in Appendix C. Site inspection proforma of the reporting period is provided in Appendix I.
8.1. Works to be undertaken in the next reporting month are:
- Construction of 132kV adjacent to underground utilities;
- Construction of Reverse Osmosis (RO) Building - staircases and internal finishing;
- Construction of sludge thickener, Post Treatment Building (PTB);
- Construction of On-Site Chlorine Generation Building (OSCG Bldg) and CO2 Tank area;
- Internal finishing work at Product Water Storage Tank (PWST), Main Electrical & Central Chiller Plant Building;
- Manhole construction and Glass Reinforced Plastic (GRP) pipe installation;
- Construction of 2/F and 3/F walls and columns of Administration Building;
- Installation of curtain wall supports of Administration Building;
- Construction of footings and columns of FT‐5, FT‐6, FT‐7 and FT‐8 of inspection corridor;
- Construction of Stair Tower of inspection corridor;
- Construction of side tanks no.2, 3 and 4 of ActiDAFF;
- Construction of manholes no.15 and no.16 adjacent to ActiDAFF and RO;
- Construction of manhole no.2, no.3 and no.4 adjacent to ActiDAFF;
- Construction of manholes no.6 and no.7 Glass Reinforced Plastic (GRP) pipe installation;
- Outfall Shaft - Dewatering;
- Intake shaft - retrieval of DN2500 TBM under water;
- Intake shaft - General cleaning for finial inspection;
- Outfall Tunnel - Demobilize the pipe jacking system and grouting;
- Construction of combined shaft and pump room;
- Slope works - Scaffolding erection for rock mapping and tree survey;
- Open Channel - Trench Excavation and structure installation;
- E&M works - ActiDAFF - scaffolding, installation of E&M piping;
- E&M works - RO- installation of fire services, steel pipe, GRP pipe;
- E&M works - CO2 tank area - installation of vaporizers;
- E&M works - Chiller Building - installation of chillers, electrical system;
- E&M works - Product water Building - installation of pluming, air duct and electoral system.
8.2. The major environmental impacts brought by the above construction works will include:
- Construction dust and noise generation from pipe jacking works, excavation and construction works;
- Waste generation from construction activities
- Impact on water quality from marine construction works and inland construction works
8.3. The key environmental mitigation measures for the Project in the coming reporting period associated with the above construction works will include:
- Dust suppression by regular wetting and water spraying for construction works
- Reduction of noise from equipment and machinery on-site by regular checking of on-site plant/vehicle to ensure proper functioning
- Sorting and storage of general refuse and construction waste
- Deployment of temporary silt curtain in the area where marine construction works were conducted and deployment of water sedimentation tanks for treatment of wastewater at inland and marine areas before discharge
9.
CONCLUSIONS AND RECOMMENDATIONS
9.1. This is the 27th Monthly EM&A Report for the Project which summarizes the key findings of the EM&A programme during the reporting period from 1 May to 31 May 2022, in accordance with the EM&A Manual and the requirement under FEP-01/503/2015/A.
9.2. No noise monitoring was conducted in the reporting period due to the over distant monitoring station from the works location, in which construction activities were not undertaken within a radius of 300m from the monitoring locations.
9.3. The EM&A works for water quality were conducted during the reporting period in accordance with the EM&A Manual.
9.4.
Nineteen (19) of the general
water quality monitoring results of suspended solids (SS) obtained had exceeded
the Action Level. Six (6) of the general water quality monitoring results of SS
obtained during the reporting period had exceeded the Limit Level. Details of
the exceedance are presented in Appendix
O.
9.5. Investigation on the reason of exceedance has been carried out, where the exceedances of SS on 3, 5, 7, 12, 14, 21, 26, 28 and 31 May 2022 were concluded to be unrelated to the Contract as detailed in the Incident Reports on Action Level or Limit Level Non- compliance along with supporting materials in Appendix O.
9.6. It was concluded that all exceedances recorded in the reporting month were unrelated to the project.
9.7. In this reporting period, 44 times of landfill gas monitoring was conducted at Wan Po Road (Ch1+360 - Ch1+513).
9.8. No exceedance of action and limit levels for methane, oxygen and carbon dioxide was recorded in the reporting month.
9.9. Weekly environmental site inspection was conducted during the reporting period. No major deficiency was observed during site inspection. The environmental performance of the project was therefore considered satisfactory.
9.10. According to the environmental site inspections performed in the reporting month, the Contractor is reminded to pay attention on maintaining proper materials storage, site hygiene and dust suppression mitigation measures.
9.11. No environmental complaint was received in the reporting period.
9.12. No notification of summons or prosecution was received since commencement of the Contract.
9.13. The ET will keep track on the construction works to confirm compliance of environmental requirements and the proper implementation of all necessary mitigation measures.
Appendix A
Construction
Programme
Appendix B
Overview of Desalination Plant in Tseung Kwan O
Appendix C
Summary of Implementation Status
of Environmental Mitigation
EIA Reference |
Recommended Environmental
Protection Measures/ Mitigation Measures |
Objectives of
the recommended measures
& main concerns to address |
Implementation Agent |
Implementation Stage |
Implementation status |
Relevant Legislation & Guidelines |
||
D |
C |
O |
||||||
Air Quality |
|
|||||||
S4.8.1 |
Impervious dust screen or sheeting will be
provided to enclose scaffolding from the ground
floor level of building for construction of superstructure of the new buildings. |
Land site/ During Construction |
Contractor(s) |
|
ü |
|
Implemented |
Air Pollution Control
(Construction Dust) |
S4.8.1 |
Impervious sheet
will be provided for skip hoist
for material transport. |
Land site/
During Construction, particularly dry
season |
Contractor(s) |
|
ü |
|
NA |
|
S4.8.1 |
The area where dusty work takes place should be sprayed with water
or a dust suppression chemical immediately prior to, during and immediately after dusty activities
as far as practicable. |
Land site/
During Construction |
Contractor(s) |
|
ü |
|
Implemented |
|
S4.8.1 |
All dusty materials should be sprayed with water or a dust suppression
chemical immediately prior to any loading, unloading or transfer operation. |
Land site/ During
Construction |
Contractor(s) |
|
ü |
|
Implemented |
|
S4.8.1 |
Dropping heights for excavated materials should be controlled to a practical height to
minimize the fugitive dust arising from unloading. |
Land site/ During
Construction |
Contractor(s) |
|
ü |
|
Implemented |
|
S4.8.1 |
During transportation by truck, materials should not be loaded to a
level higher than the side and tail boards, and should be dampened or covered before transport. |
Land site/ During
Construction |
Contractor(s) |
|
ü |
|
Implemented |
|
S4.8.1 |
Wheel washing device
should be provided at the exits
of the work
sites. Immediately before leaving a
construction site, every vehicle shall
be washed to remove any dusty material from its body and wheels as far as practicable. |
Land site/ During
Construction |
Contractor(s) |
|
ü |
|
Implemented |
|
S4.8.1 |
Road sections between vehicle-wash areas and vehicular
entrance will be
paved. |
Land site/ During
Construction |
Contractor(s) |
|
ü |
|
Implemented |
|
S4.8.1 |
Hoarding of not less
than 2.4m high from ground
level will be provided
along the length of the Project Site boundary. |
Land site/
During construction |
Contractor(s) |
ü |
ü |
|
N/A |
|
S4.8.1 |
Haul roads will be kept clear of dusty materials and will be sprayed with water
so as to maintain the entire road surface wet at all times. |
Land site/ During
construction |
Contractor(s) |
|
ü |
|
Implemented |
|
EIA Reference |
Recommended Environmental
Protection Measures/ Mitigation Measures |
Objectives of
the recommended measures
& main concerns to address |
Implementation Agent |
Implementation Stage |
Implementation status |
Relevant Legislation & Guidelines |
||
D |
C |
O |
||||||
S4.8.1 |
Temporary stockpiles of dusty materials will be either covered entirely by impervious sheets or sprayed
with water to maintain the entire
surface wet all the time. |
Land site/
During construction |
Contractor(s) |
|
ü |
|
Implemented |
|
S4.8.1 |
Stockpiles of more
than 20 bags of cement,
dry pulverised fuel
ash and dusty construction
materials will be covered entirely by impervious
sheeting sheltered on top and 3-sides. |
Land site/
During construction |
Contractor(s) |
|
ü |
|
N/A |
|
S4.8.1 |
All exposed
areas will be kept wet always to minimise dust emission. |
Land site/ During
construction |
Contractor(s) |
|
ü |
|
Implemented |
|
S4.8.1 |
Ultra-low-sulphur diesel (ULSD) will be used for all construction plant on-site, as defined as diesel fuel
containing not more than 0.005%
sulphur by weight) as stipulated in Environment, Transport and Works Bureau Technical Circular (ETWB-TC(W)) No 19/2005 on Environmental Management on Construction Sites. |
Land site/ During construction/ During
Operation |
Contractor(s) |
|
ü |
ü |
Implemented |
Environment, Transport and Works Bureau Technical Circular (ETWB- TC(W)) No 19/2005 on Environmental Management on Construction Sites |
S4.8.1 |
The engine
of the construction equipment during idling
will be switched off. |
Land site/ During
construction |
Contractor(s) |
|
ü |
|
Implemented |
|
S4.8.1 |
Concrete batching plant
will be required on site. control measures recommended
in the Guidance Note on a Best Practicable Means for Cement Works
(Concrete Batching Plant)
(BPM 3/2 (93))
will be implemented. The
control measures recommended in the Guidance
Note on a Best Practicable Means for Cement Works (Concrete Batching Plant) (BPM 3/2 (93)) will be implemented. |
Land site/ During
construction |
Contractor(s) |
|
ü |
|
N/A |
|
S4.8.1 |
Regular maintenance of construction equipment deployed on-site will be conducted to prevent black smoke
emission. |
Land site/
During construction |
Contractor(s) |
|
ü |
|
Implemented |
|
S4.10 |
To ensure proper implementation of the recommended dust mitigation measures and good
construction site practices during the construction phase, environmental site audits on weekly basis
is recommended throughout the construction period. |
Land site/
During construction |
Contractor(s)/ Environmental Team
(ET) & Independent Environmental Checker
(IEC) |
|
ü |
|
Implemented |
|
Note: D - Design stage
C - Construction O - Operation
EIA Reference |
Recommended Environmental
Protection Measures/ Mitigation Measures |
Objectives of the recommended measures & main concerns to address |
Implementation Agent |
Implementation Stage |
Implementation status |
Relevant Legislation & Guidelines |
||
D |
C |
O |
||||||
Noise |
||||||||
S5.7 |
Only well-maintained plant will be operated on-site and plant will be
serviced regularly during the construction phase. |
All area/ During
construction |
Contractor(s) |
|
ü |
|
Implemented |
A Practical Guide
for the Reduction of Noise from Construction
Works |
S5.7 |
Silencers or mufflers on construction equipment will be utilised and will be properly maintained during the construction phase. |
Noise control/ During construction |
Contractor(s) |
|
ü |
|
N/A |
A Practical Guide
for the Reduction of Noise from Construction Works |
S5.7 |
Mobile plant, if any, will be sited as far away from NSRs as possible. |
Noise control/ During construction |
Contractor(s) |
|
ü |
|
N/A |
A Practical Guide for the Reduction of Noise from Construction
Works |
S5.7 |
Machines and plant (such as trucks) that may be in intermittent use will be shut down between work periods or will be throttled down to
a minimum. |
Noise control/ During
construction |
Contractor(s) |
|
ü |
|
Implemented |
A Practical Guide
for the Reduction of Noise from Construction
Works |
S5.7 |
Plants known to emit noise strongly in one direction will, wherever possible, be orientated so that the noise is directed away
from the nearby
NSRs. |
Noise control/ During
construction |
Contractor(s) |
|
ü |
|
N/A |
A Practical Guide
for the Reduction of Noise from Construction
Works |
S5.7 |
Material stockpiles and other structures will be
effectively utilised, wherever
practicable, in screening noise from on-site construction activities. |
Noise control/ During construction |
Contractor(s) |
|
ü |
|
N/A |
A Practical Guide
for the Reduction of Noise from Construction
Works |
S5.7 |
Use of Quite
Powered Mechanical Equipment (QPME). |
Noise control/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
A Practical Guide
for the Reduction of Noise from Construction
Works |
S5.7 |
Movable noise barriers of 3m in height with
skid footing should
be used and located within a
few metres of stationary plant and mobile plant
such that the line of sight to the NSR
is blocked by the barriers. The length of the barrier
should be at least five times greater
than its height. The noise barrier material should have a superficial surface density of at least 7 kg m-2 and have no o or gappeningss. |
Noise control/ During construction |
Contractor(s) |
|
ü |
|
N/A |
A Practical Guide
for the Reduction of Noise from Construction
Works |
S5.7 |
The noise insulating sheet
should be deployed such that there
would be no opening or gaps on the joints. |
Noise control/ During construction |
Contractor(s) |
|
ü |
|
N/A |
A Practical Guide for the Reduction of Noise from Construction
Works |
S5.7 |
Construction activities (e.g. excavation/shoring, reinstatement (asphalt), and pipe jacking) will be
planned and carried out in sequence, such that items
of PME proposed for these activities will not be operated
simultaneously. |
Noise control/ During
construction |
Contractor(s) |
ü |
ü |
|
Implemented |
A
Practical Guide for the Reduction of Noise from Construction
Works |
EIA Reference |
Recommended Environmental
Protection Measures/ Mitigation Measures |
Objectives of the recommended measures & main concerns to address |
Implementation Agent |
Implementation Stage |
Implementation status |
Relevant Legislation & Guidelines |
||
D |
C |
O |
||||||
S5.7 |
PMEs will not be used at the works areas near educational institutions with residual impact (ie
the ¡§influence area¡¨ within a radius
of 40m) during school hours in order to reduce impact to the educational institutions. |
Noise control / During construction |
Contractor(s) |
|
ü |
|
N/A |
A Practical Guide
for the Reduction of Noise from Construction
Works |
S5.7 |
Noise enclosures or acoustic sheds would be used to cover stationary PME such as generators. Portable/Movable
noise enclosure made of material with superficial
surface density of at least 7 kg m-2 may be used for screening the noise from operation of the saw/groover, concrete. |
Noise control/ Pre- construction/ During
construction |
Contractor(s) |
ü |
ü |
|
N/A |
|
S5.9 |
Sawcutting pavement, breaking up of pavement, excavation /shoring, pipe laying, backfilling, reinstatement (concrete) and pipe
jacking shall be scheduled outside the examination period. |
Noise control/ Pre- construction/ During construction |
Contractor(s) |
ü |
ü |
|
N/A |
|
S5.9 |
In view the duration of noise exceedance at Creative Secondary School,
PLK Laws Foundation College, TKO Kei Tak Primary
School and School
of Continuing and Professional Studies-CUHK is limited to 8 weeks, the construction work in the
influence areas near the four
schools shall be scheduled during long school holidays (eg summer holiday, Easter holiday or
Christmas holiday, etc) as far as practicable. Scheduling the construction work
for the four
schools. |
Noise control/ Pre- construction/ During
construction |
Contractor(s) |
ü |
ü |
|
N/A |
|
S5.10 |
A noise
monitoring programme shall
be implemented for the construction phase. |
Designated monitoring stations
as defined in EM&A Manual/During construction phase |
Environmental Team |
|
ü |
|
N/A |
|
S5.10 |
The effectiveness of on-site control
measures could also be evaluated through the regular site
audits. |
All facilities/ During
construction |
Contractor(s)/ ET & Independent Environmental Checker (IEC) |
|
ü |
|
Implemented |
- |
Note: D - Design stage
C - Construction O -
Operation
EIA Reference |
Recommended Environmental
Protection Measures/ Mitigation Measures |
Objectives of
the recommended measures
& main concerns to address |
Implementation Agent |
Implementation Stage |
Implementation status |
Relevant Legislation & Guidelines |
||
D |
C |
O |
||||||
Water Quality |
||||||||
S6.9 |
Dredged marine sediment will be disposed of in a gazetted marine
disposal area in accordance with marine dumping permit conditions of the Dumping at Sea
Ordinance (DASO). |
Marine Dredging/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
Dumping at Sea Ordinance (DASO) |
S6.9 |
Disposal vessels will be
fitted with tight bottom seals in order to
prevent leakage of material during transport. |
Marine Dredging/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S6.9 |
Barges will be filled to a level, which ensures that material does not spill over during transport to the disposal site
and that adequate freeboard is
maintained to ensure that the decks are not washed by wave action. |
Marine Dredging/ During
construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S6.9 |
After dredging, any excess materials will be cleaned from decks and exposed fittings before the vessel
is moved from
the dredging area. |
Marine Dredging/ During
construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S6.9 |
All vessels should be well maintained and inspected before
use to limit any potential discharges to the
marine environment. |
Marine Dredging/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S6.9 |
All vessels must
have a clean
ballast system. |
Marine Dredging/ During
construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S6.9 |
No discharge of sewage/grey wastewater should be allowed. Waste water from potentially
contaminated area on working vessels
should be minimized and collected. These
kinds of wastewater should be
brought back to port and discharged at appropriate
collection and treatment system. |
Marine Dredging/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S6.9 |
No soil waste
is allowed to be disposed overboard. |
Marine Dredging/ During
construction |
Contractor(s) |
|
ü |
|
N/A |
- |
S6.9 |
Silt removal facilities
such as silt traps or sedimentation facilities will be provided to remove silt
particles from runoff to meet the requirements of the TM standard under the WPCO. The design of silt removal facilities will be based on the guidelines
provided in ProPECC PN 1/94. All drainage facilities and erosion and sediment control structures will be inspected on
a regular basis and maintained to
confirm proper and efficient operation at all times and particularly during
rainstorms. Deposited silt
and grit will
be removed regularly. |
Land site & drainage/ During construction |
Contractor(s) |
|
ü |
|
Implemented, reminder issued |
ProPECC PN 1/94 TM Standard under the WPCO |
EIA Reference |
Recommended Environmental
Protection Measures/ Mitigation Measures |
Objectives of
the recommended measures
& main concerns to address |
Implementation Agent |
Implementation Stage |
Implementation status |
Relevant Legislation & Guidelines |
||
D |
C |
O |
||||||
S6.9 |
Earthworks to form the final surfaces will be followed up with surface
protection and drainage works to prevent erosion caused by rainstorms. |
Land site & drainage/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S6.9 |
Appropriate surface drainage will be designed and provided where necessary. |
Land site &
drainage/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S6.9 |
The precautions to be taken at
any time of year when rainstorms are
likely together with the
actions to be taken when
a rainstorm is imminent or
forecasted and actions to be taken during or after rainstorms are
summarised in Appendix A2 of ProPECC PN 1/94. |
Land site &
drainage/ During construction |
Contractor(s) |
ü |
ü |
|
Implemented |
ProPECC PN 1/94 |
S6.9 |
Oil interceptors will be provided in the drainage system where necessary and regularly emptied to prevent the release of oil
and grease into the storm
water drainage system after accidental spillages. |
Land site &
drainage/ During construction |
Contractor(s) |
|
ü |
|
N/A |
- |
S6.9 |
Temporary and
permanent drainage pipes and culverts provided to facilitate runoff discharge, if any, will be adequately designed
for the controlled release
of storm flows. |
Land site &
drainage/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S6.9 |
The temporary diverted drainage, if
any, will be reinstated to the original condition when the construction
work has finished or when the
temporary diversion is no longer required. |
Land site &
drainage/ During construction |
Contractor(s) |
|
ü |
|
N/A |
- |
S6.9 |
Appropriate
numbers of portable toilets shall be provided by a licensed contractor to serve the construction workers over the construction site to prevent direct
disposal of sewage into the water environment. |
Land site &
drainage/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S6.9 and S6.12 |
The sterilization water should be dechlorinated with total
residual chlorine (TRC) level below 1 mg/L before discharge to public sewer. In situ testing of TRC should
also be conducted for the discharge of chlorinated water for pipeline disinfection to ensure sufficient dechlorination before
discharge to public sewer. |
Sterilization of water mains prior to commissioning |
Contractor(s) |
|
ü |
ü |
N/A |
Technical Memorandum for Effluents Discharged into
Drainage and Sewerage Systems Inland and Coastal Waters |
EIA Reference |
Recommended Environmental
Protection Measures/ Mitigation Measures |
Objectives of
the recommended measures
& main concerns to address |
Implementation Agent |
Implementation Stage |
Implementation status |
Relevant Legislation & Guidelines |
||
D |
C |
O |
||||||
S6.9 |
The cleaning and flushing water should also be treated and desilted to the relevant discharge requirement stipulated in TM-DSS before discharging. |
Sterilization of water mains prior to commissioning |
Contractor(s) |
|
ü |
ü |
N/A |
Technical Memorandum for Effluents Discharged into Drainage
and Sewerage Systems Inland and
Coastal Waters |
S6.9 |
Site drainage should be well maintained and good construction practices should be observed to ensure that
oil, fuels, solvents and other
chemicals are managed, stored and handled
properly and do not enter
the nearby water
streams. |
Land site &
drainage/ During construction/ During operation |
Contractor(s) |
|
ü |
ü |
Implemented, reminder issued |
- |
S6.12 |
Regular site inspections will be carried out in order
to confirm that regulatory requirements are being met and that contractors are implementing the standard site
practice and mitigation measures as proposed
to reduce potential impacts to water quality. |
During construction |
Contractor(s)/ ET & IEC |
|
ü |
|
Implemented, reminder issued |
- |
Note: D - Design stage C - Construction O - Operation
EIA Reference |
Recommended Environmental Protection Measures/ Mitigation Measures |
Objectives
of the recommended measures & main concerns
to address |
Implementation Agent |
Implementation Stage |
Implementation Status |
Relevant Legislation &
Guidelines |
||
D |
C |
O |
||||||
Waste Management |
||||||||
S8.5 |
Nomination of approved personnel to be responsible for
standard site practices, arrangements for collection and effective disposal to an appropriate facility of all wastes generated at the site. |
Contract mobilization/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S8.5 |
Training of site personnel in proper waste
management and chemical handling
procedures. Training will be provided to workers on the concepts of site cleanliness and appropriate waste
management procedures, including waste reduction, reuse
and recycling at the beginning of the construction works. |
Contract mobilization/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S8.5 |
Provision of sufficient waste disposal points and
regular collection for disposal. |
All area/ During construction/ During operation |
Contractor(s) |
|
ü |
ü |
Implemented, reminder issued |
DEVB TC(W)
No. 8/2010, Enhanced Specification for Site Cleanliness and Tidiness. |
S8.5 |
Appropriate measures to reduce windblown litter and dust transportation of waste by either
covering trucks or by transporting
wastes in enclosed containers. |
All area/
During construction |
Contractor(s) |
|
ü |
|
Implemented |
DEVB TC(W)
No. 8/2010, Enhanced Specification for Site Cleanliness and Tidiness. |
S8.5 |
A waste management plan
(WMP) as stated in the ¡§ETWB TC(W) No. 19/2005, Environmental Management on Construction Sites¡¨ for the
amount of waste generated, recycled and disposed of (including the disposal sites) will be established and implemented during the construction phase as part of
the Environmental Management Plan
(EMP). The Contractor will be
required to prepare the EMP and submits it to the Architect/ Engineer under the Contract for approval prior
to implementation. |
All area/
During construction |
Contractor(s) |
|
ü |
|
Implemented |
ETWB TC(W)
No. 19/2005, Environmental Management on Construction Sites |
S8.5 |
Separation of chemical wastes for special handling and appropriate treatment at the Chemical Waste
Treatment Centre at Tsing Yi. |
All area/
During construction |
Contractor(s) |
|
ü |
|
Implemented |
Chapters 2 &
3 Code of Practice
on the Packaging, Labelling & Storage of Chemical Wastes published under the Waste Disposal Ordinance (Cap 354), Section 35 |
EIA Reference |
Recommended Environmental Protection Measures/ Mitigation Measures |
Objectives
of the recommended measures & main concerns
to address |
Implementation Agent |
Implementation Stage |
Implementation Status |
Relevant Legislation &
Guidelines |
||
D |
C |
O |
||||||
S8.5 |
Regular cleaning and maintenance programme for drainage systems, sumps and oil interceptors. |
Land site/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
Waste Disposal Ordinance (Cap 354) |
S8.5 |
A recording system
for the amount
of wastes generated/ recycled and disposal sites. The trip-
ticket system will
be included as one of the contractual requirements and
implemented by the contractor(s). |
Land site/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
DEVB TC(W) No. 6/2010, Trip Ticket
System for Disposal of Construction
& Demolition Materials |
S8.5 |
Segregation and storage of different types of waste in different containers, skips or stockpiles to
enhance reuse or recycling of material
and their proper disposal. |
Land site/ During construction/ During operation |
Contractor(s) |
|
ü |
|
Implemented |
WBTC 32/92, The Use of
Tropical Hard Wood on Construction Site |
S8.5 |
Encourage collection of aluminium cans and waste paper by individual collectors during
construction with separate labelled bins provided to segregate these
wastes from other
general refuse by the workforce. |
Land site/
During construction |
Contractor(s) |
|
ü |
|
Implemented |
ETWB TCW No. 33/2002, Management of Construction and Demolition Material Including Rock |
S8.5 |
Any unused chemicals and those with remaining functional capacity will be recycled as far as possible. |
Land site/ During construction |
Contractor(s) |
|
ü |
|
N/A |
- |
S8.5 |
Use of reusable non-timber formwork to reduce
the amount of C&D materials. |
All
areas/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
WBTC 32/92,
The Use of Tropical
Hard Wood on Construction Site |
S8.5 |
Prior to disposal of construction waste, wood, steel and other metals
will be separated to the extent
practical, for re-use
and/or recycling to reduce
the quantity of waste to be disposed of to
landfill. |
All
areas/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
DEVB TC(W)
No. 6/2010, Trip Ticket System
for Disposal of Construction
& Demolition Materials |
S8.5 |
Proper storage and site practices to reduce the potential for damage
or contamination of construction materials. |
All areas/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S8.5 |
Plan and stock construction materials carefully to reduce amount
of waste generated and avoid unnecessary generation of waste. |
All areas/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
EIA Reference |
Recommended Environmental Protection Measures/ Mitigation Measures |
Objectives
of the recommended measures & main concerns
to address |
Implementation Agent |
Implementation Stage |
Implementation Status |
Relevant Legislation &
Guidelines |
||
D |
C |
O |
||||||
S8.5 |
A Sediment Quality Report (SQR) for sampling and chemical testing
of the sediment will be prepared and submitted to the EPD for
approval. The approved detailed
sampling and chemical testing will
be carried out prior to the commencement of the dredging activities to confirm the sediment disposal method. |
Marine works/ During construction |
Contractor(s) |
|
ü |
|
N/A |
ETWB TC(W)
No. 34/2002 and Dumping
at Sea Ordinance (DASO) |
S8.5 |
The management of dredged/ excavated sediment management requirement
from ETWB TC(W) No. 34/2002 will be incorporated in the Specification of the Contract
Documents. |
Marine works/ During construction |
WSD/ Contractor(s) |
|
ü |
|
Implemented |
ETWB TC(W)
No. 34/2002 and Dumping at Sea Ordinance (DASO) |
S8.5 |
The contractor will
open a billing
account with EPD
in accordance with the Waste Disposal (Charges for
Disposal of Construction Waste)
Regulation for the payment of disposal charges. |
Contract mobilization/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
Cap 354N Waste Disposal (Charges for Disposal of Construction
Waste) Regulation |
S8.5 |
A trip-ticket system will be established in accordance
with DEVB TC(W) No. 6/2010 to monitor the reuse of surplus excavated materials off-site and disposal of
construction waste and general refuse
at transfer facilities/ landfills, and to control fly-tipping. |
Contract mobilization/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
DEVB TC(W)
No. 6/2010, Trip Ticket System
for Disposal of Construction
& Demolition Materials |
S8.5 |
The project proponent will
also conduct regular inspection of the waste management measures implemented on site as described in the
Waste Management Plan. |
All area/
During construction |
Contractor(s)/ Environmental Team (ET) & Independent Environmental Checker (IEC) |
|
ü |
|
Implemented |
ETWB TC(W)
No. 19/2005, Environmental Management on Construction Sites |
S8.5 |
A recording system
(similar to summary
table as shown
in Annex 5 and Annex
6 of Appendix G of ETWB TC(W)
No. 19/2005) for the amount of waste generated, recycled and
disposed of (including the disposal
sites) will be established during the construction phase. |
All area/ During construction |
Contractor(s) |
|
ü |
|
Implemented |
Annex 5 and
Annex 6 of Appendix G of ETWB TC(W) No. 19/2005 |
S8.5 |
Inert
C&D materials (public fill) will be
reused within the Project as far as
practicable. |
All area/
During construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S8.5 |
Public fill and construction waste shall be segregated and stored
in different containers or skips to facilitate reuse
or recycling of materials
and their proper disposal. |
All area/
During construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S8.5 |
Specific areas
of the work
site will be designated for such |
All area/
During construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
EIA Reference |
Recommended Environmental Protection Measures/ Mitigation Measures |
Objectives
of the recommended measures & main concerns
to address |
Implementation Agent |
Implementation Stage |
Implementation Status |
Relevant Legislation &
Guidelines |
||
D |
C |
O |
||||||
|
segregation and storage
if immediate use is not practicable. |
|
|
|
|
|
|
|
S8.5 |
To reduce the potential dust and water quality impacts of site formation works, C&D materials will
be wetted as quickly as possible to
the extent practice after filling. |
All area/ During
construction |
Contractor(s) |
|
ü |
|
Implemented |
Air Pollution
Control (Construction Dust) Regulation (Cap 311R); WPCO (Cap 358) |
S8.5 |
Open
stockpiles of excavated/ fill materials or construction wastes on-site should be covered with tarpaulin or similar fabric. |
Land site/
During Construction, particularly dry season |
Contractor(s) |
|
ü |
|
Implemented |
Air
Pollution Control (Construction
Dust) Regulation (Cap 311R) |
S8.5 |
Chemical waste
container shall be suitable for the substance they are holding,
resistant to
corrosion, maintained in a good condition, and securely closed. |
All area/
During construction/ During operation |
Contractor(s)/ WSD |
|
ü |
ü |
Implemented |
Waste Disposal (Chemical Waste) (General) Regulation; Code of Practice on the Packaging, Handling and Storage
of Chemical Wastes |
S8.5 |
Chemical
waste container shall have a capacity of less than 450 L unless the specifications have been
approved by the EPD. |
All area/ During construction/ During operation |
Contractor(s)/ WSD |
|
ü |
ü |
Implemented |
|
S8.5 |
A
label in English and Chinese shall be displayed on the chemical container in accordance with instructions prescribed in Schedule 2 of the Regulations. |
All area/ During construction/ During operation |
Contractor(s)/ WSD |
|
ü |
ü |
Implemented, rectified after observed
issued, |
|
S8.5 |
Storage areas for chemical
waste shall be enclosed on at least 3 sides. |
All area/ During construction/ During operation |
Contractor(s)/ WSD |
|
ü |
ü |
Implemented |
|
S8.5 |
Storage areas
for chemical waste
shall have an impermeable floor
and bunding, of capacity to accommodate 110% of the volume of the largest container or 20% by volume
of the chemical waste stored in
that area, whichever is the greatest. |
All area/ During construction/ During
operation |
Contractor(s)/ WSD |
|
ü |
ü |
Implemented |
|
S8.5 |
Storage areas for chemical waste
shall have adequate ventilation. |
All area/ During construction/ During operation |
Contractor(s)/ WSD |
|
ü |
ü |
Implemented |
|
S8.5 |
Storage areas
for chemical waste
shall be covered to prevent rainfall entering (water collected within the bund must be tested and disposed of as chemical waste, if necessary). |
All area/
During construction/ During operation |
Contractor(s)/ WSD |
|
ü |
ü |
Implemented |
|
S8.5 |
Storage areas
for chemical waste
shall be arranged so that incompatible materials are appropriately
separated. |
All area/ During construction/ During operation |
Contractor(s)/ WSD |
|
ü |
ü |
Implemented |
|
S8.5 |
General refuse
will be stored
in enclosed bins
or compaction units
separately from construction and chemical wastes. |
All area/ During construction/ During
operation |
Contractor(s)/ WSD |
|
ü |
ü |
Implemented, reminder issued. |
EIA Reference |
Recommended Environmental Protection Measures/ Mitigation Measures |
Objectives
of the recommended measures & main concerns
to address |
Implementation Agent |
Implementation Stage |
Implementation Status |
Relevant Legislation &
Guidelines |
||
D |
C |
O |
||||||
S8.5 |
Adequate
number of waste containers will be provided to avoid over-spillage of waste. |
All area/ During construction/ During
operation |
Contractor(s)/ WSD |
|
ü |
ü |
Implemented |
DEVB TC(W)
No. 8/2010 Enhanced Specification for Site Cleanliness and Tidiness. |
S8.5 |
A reputable waste
collector will be employed by the Contractor to remove general
refuse from the site, separately from construction and chemical wastes,
on a daily basis to minimise odour,
pest and litter
impacts. |
All area/ During construction/ During
operation |
Contractor(s)/ WSD |
|
ü |
ü |
Implemented |
- |
S8.5 |
Recycling bins
will be provided at strategic locations within the Site to facilitate recovery of recyclable materials (including aluminum can, waste paper,
glass bottles and plastic bottles) from the Site.
Materials recovered will be sold for recycling. |
All area/ During construction/ During
operation |
Contractor(s)/ WSD |
|
ü |
ü |
Implemented |
- |
S8.5 |
To avoid any odour and litter impact,
accurate number of portable toilets will be provided for workers
on-site. |
All area/
During construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S8.5 |
The burning of refuse on construction sites
is prohibited by law. |
All area/
During construction |
Contractor(s) |
|
ü |
|
Implemented |
Air Pollution Control Ordinance (Cap 311) |
S8.7 |
To facilitate monitoring and control over the contractors¡¦ performance on waste management, a waste inspection and audit programme will be implemented throughout the construction phase. |
All facilities/ During construction |
ET/ IEC |
|
ü |
|
Implemented |
- |
Note: D - Design
stage C - Construction O - Operation
EIA Reference |
Recommended Environmental Protection Measures/ Mitigation Measures |
Objectives
of the recommended measures & main concerns
to address |
Implementation Agent |
Implementation Stage |
Implementation Status |
Relevant Legislation &
Guidelines |
||
D |
C |
O |
||||||
Ecology |
||||||||
S9.7 |
For slope mitigation works within the Clear Water Bay Country
Park, to avoid
tree felling and damages to trees, the exact locations of the flexible barrier foundation plates,
soil nails and rock dowels
can be adjusted during
detailed design, and a setback distance from existing trees is recommended to be maintained as far as practical. A detailed specification describing the exact
locations of the flexible barrier
foundation plates, soil
nails and rock
dowels will be prepared to
illustrate how the setback distance
from existing trees would be
implemented for tree avoidance. |
Slope mitigation works
area/ During detailed
design/ During construction |
Contractor(s) |
ü |
ü |
|
N/A |
- |
S9.7 |
Pruning of tree canopies along the alignment of the flexible barriers shall be limited to a minimum. |
Slope mitigation works area/ During construction |
Contractor(s) |
|
ü |
|
N/A |
|
S9.7 |
The alignment of flexible barriers shall be optimized to preserve all species of conservation interest and minimize the impact to the existing vegetation as far as
practicable. All individuals of Marsdenia lachnostoma within the slope
mitigation areas shall
be retained in- situ, by positioning the alignment of flexible barrier
at a minimum 1.5m in a radius away
from these individuals. |
Slope mitigation works
area/ During detailed
design/ During construction |
Contractor(s) |
ü |
ü |
|
N/A |
- |
S9.7 and 9.10 |
At the detailed design stage prior to the commencement of the slope mitigation works, a vegetation survey shall be carried out at the slope mitigation areas within the Clear Water Bay Country Park to assess the condition and identify
the location of each individual of Marsdenia
lachnostoma and other
flora species of conservation
interest that may be directly affected by the construction works. |
Slope mitigation works
area/ During detailed
design/ During construction |
Contractor(s) |
ü |
|
|
Implemented |
- |
S9.7 |
Temporary fencing will be installed to fence off the concerned species either in groups of individually within
the works area and in the close proximity to prevent from being damaged and disturbed during construction. A sign identifying the site shall
be attached to the fence and flagging tape shall be attached to the individuals to visualize their locations. |
Slope mitigation works area/ During construction |
Contractor(s) |
|
ü |
|
N/A |
- |
S9.7 and S9.10 |
A specification for fencing and demarcating individuals of Marsdenai
lachnostoma (or other flora species of
conservation interest, if found)
adjacent to the proposed alignment
of the flexible barriers will be prepared to protect the species. |
Slope mitigation works area/ During construction |
Contractor(s) |
|
ü |
|
N/A |
- |
S9.7 |
Induction training shall also be provided to all site personnel in order to brief them on this flora of conservation interest including |
Slope mitigation works area/ |
Contractor(s) |
|
ü |
|
N/A |
- |
EIA Reference |
Recommended Environmental Protection Measures/ Mitigation Measures |
Objectives
of the recommended measures & main concerns
to address |
Implementation Agent |
Implementation Stage |
Implementation Status |
Relevant Legislation &
Guidelines |
||
D |
C |
O |
||||||
|
the locations and their importance. |
During construction |
|
|
|
|
|
|
S9.7 |
The resident site supervisory staff
will closely monitor
the conditions of concerned individuals during construction of flexible barriers in the close
proximity. |
Slope mitigation works area/ During construction |
Contractor(s) |
|
ü |
|
N/A |
- |
S9.7 |
Erect fences along
the boundary of the works
area before the commencement of works to prevent vehicle movements and encroachment of personnel onto adjacent areas. |
All area/
During construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S9.7 |
Regularly check
the work site
boundaries to ensure
that they are not
breached and that damage does not occur
to surrounding areas. |
All area/
During construction |
Contractor(s)/ ET |
|
ü |
|
Implemented. |
- |
S9.7 |
Avoid any damage and disturbance, particularly those caused by filling and
illegal dumping, to the surrounding
habitats through proper management
of waste disposal. |
All area/
During construction |
Contractor(s) |
|
ü |
|
Implemented |
- |
S9.7 |
Reinstate temporarily affected areas, particularly the habitats of plantation
and shrubland-grassland immediately after completion
of construction works, through
on-site tree/shrub planting. The tree/shrub species
will be chosen
with reference to those in the surrounding area. |
All area/
During construction |
Contractor(s) |
|
ü |
|
N/A |
- |
S9.7 |
Affected habitats within
the Clear Water
Bay Country Bay shall be reinstated
by hydro-seeding and planting of climbers and native shrub
seedlings where practical upon completion of the slope mitigation works. |
All area/
During construction |
Contractor(s) |
|
ü |
|
N/A |
- |
Note: D - Design
stage C - Construction O - Operation
EIA Reference |
Recommended Environmental Protection Measures/ Mitigation Measures |
Objectives of the
recommended measures &
main concerns to address |
Implementation Agent |
Implementation Stage |
Implementation Status |
Relevant Legislation & Guidelines |
||
D |
C |
O |
||||||
Landscape & Visual |
||||||||
S11.10 & 11.11 |
The construction area and area allowed for temporary structures, such as the contractor¡¦s office, will be minimized to a practical minimum. (MM1) |
All area/
Detailed design/ During construction/ During operation |
WSD/ Contractor(s) |
ü |
ü |
ü |
Implemented |
- |
S11.10 & 11.11 |
At the detailed design stage, the design team will seek to minimize
the landscape footprint of the Project and above ground facilities, while satisfying all other requirements. (MM2) |
All area/
Detailed design/ During construction/ During operation |
WSD/ Contractor(s) |
ü |
ü |
ü |
Implemented |
- |
S11.10 & 11.11 |
Design principles will be adopted to take into
account the surrounding area, particularly Clear Water
Bay Country Park behind
and the nearby
waterfront, with due consideration given
to: - green roofs where practical (i.e. without equipment on the roof); - roadside planting; - aesthetic treatment of all structures; - vertical greening; - screen planting along application site; and - landscape enhancement with amenity planting where practical including planting along the edge (site boundary) fence with native
shrubs where feasible, to reduce their
visual impact and blend them
into the surrounding landscape. (MM3) |
All area/ Detailed design/ During construction/ During operation |
WSD/ Contractor(s) |
ü |
ü |
ü |
Implemented |
- |
S11.10 & 11.11 |
All trees within
the Project Site
or the potential slope mitigation works area will be carefully protected during construction according to DEVB TCW
No. 10/2013 - Tree Preservation (MM4) |
All area/ Detailed design/ During construction/ During operation |
WSD/ Contractor(s) |
ü |
ü |
ü |
Implemented, reminder issued |
ETWB TCW No. 3/2006 - Tree Preservation. |
S11.10 & 11.11 |
No tree within the Country Park will be felled. Trees within the Site unavoidably affected by the works will be transplanted where necessary and practical. For trees that need to be felled, compensatory planting will be
provided to the satisfaction of relevant
Government departments. A compensatory tree planting proposal including locations of tree compensation will be submitted to seek relevant government department¡¦s approval, in accordance with DEVB TC(W) No. 10/2013. (MM5) |
All area/ Detailed design/ During construction/ During operation |
WSD/ Contractor(s) |
ü |
ü |
ü |
Implemented |
DEVB TC(W)
No. 10/2013 |
S11.10 & 11.11 |
Any slope mitigation works necessary to address natural terrain hazards,
will be minimized to minimize any potential
environmental impact to the Country
Park e.g. soil nailing and rock stabilization will aim to avoid existing trees e.g. should
any restoration of vegetation be necessary,
the best planting matrix with native
species will be established, with the aim of
resembling the existing vegetation. (MM6) |
All area/ Detailed design/ During construction/ During operation |
WSD/ Contractor(s) |
ü |
ü |
ü |
N/A |
|
EIA Reference |
Recommended Environmental Protection Measures/ Mitigation Measures |
Objectives of the
recommended measures &
main concerns to address |
Implementation Agent |
Implementation Stage |
Implementation Status |
Relevant Legislation & Guidelines |
||
D |
C |
O |
||||||
S11.10 & 11.11 |
Dredging works for the
installation of intake structures and outfall diffusers should be minimized to
avoid or reduce any potential environmental impacts to as
low as reasonably practicable (ALARP). The intake
and outfall structures (e.g. intake openings and diffuser heads) will be prefabricated and transferred to site
for installation. (MM7) |
All area/ Detailed design/ During construction/ During operation |
WSD/ Contractor(s) |
ü |
ü |
ü |
Implemented |
|
S11.10 & 11.11 |
All night-time lighting will be reduced
to a practical minimum both in terms of number of level and
will be hooded and directional. (MM8) units
and lux level
and will be hooded and directional. (MM8) |
All area/ Detailed design/ During construction/ During operation |
WSD/ Contractor(s) |
ü |
ü |
ü |
Implemented |
- |
Note: D - Design stage C
- Construction O - Operation
EIA Reference |
Recommended Environmental Protection Measures/ Mitigation Measures |
Objectives
of the recommended measures
& main concerns to address |
Implementation Agent |
Implementation Stage |
Implementation Status |
Relevant Legislation & Guidelines |
||
D |
C |
O |
||||||
Landfill Gas Hazard |
||||||||
S12.7 |
During all works,
safety procedures should
be implemented to minimise the risks of fires and explosions, asphyxiation of
workers and toxicity effects resulting from
contact with contaminated soil and groundwater. |
All area/ Detailed design/
During construction/ During operation |
Contractor(s) |
ü |
ü |
ü |
Implemented |
- |
S12.7 |
During trenching and excavation as well as creation of confined spaces
at near to or
below ground level, precautions should be clearly laid down and rigidly Gas detection equipment and appropriate
breathing apparatus should be available and
used when entering confined spaces or trenches deeper than 1 metre. |
All area/ Detailed design/
During construction/ During operation |
Contractor(s) |
ü |
ü |
ü |
Implemented |
|
S12.7 |
The Contractor should make the workers are aware of potential hazards
of working in confined spaces (any
chamber, manhole or culvert which is large
enough to permit
access to personnel). Such work in confined spaces
is controlled by the Factories and Industrial
Undertakings (Confined Spaces) Regulations of the Factories and Industrial Undertakings Ordinance. Following the Safety Guide to Working in Confined Spaces ensures
compliance with the above
regulations. |
All area/ Detailed design/
During construction/ During operation |
Contractor(s) |
ü |
ü |
ü |
Implemented |
|
S12.7 |
Safety officers, specifically trained with regard
to landfill gas and leachate related hazards and the appropriate actions to take in adverse circumstances, should
be present on the site
throughout the works, in particular, when works are undertaken below grade. |
All area/ Detailed design/
During construction/ During operation |
Contractor(s) |
ü |
ü |
ü |
Implemented |
|
S12.7 |
All personnel who work on site and all visitors to the site should be made aware
of the possibility of ignition of gas in the vicinity of the works,
the possible presence of
contaminated water and the need to avoid physical contact with it. |
All area/ Detailed design/
During construction/ During operation |
Contractor(s) |
ü |
ü |
ü |
Implemented |
|
S12.7 |
Monitoring for landfill gas should be undertaken in all excavations,
manholes, chambers (particularly during pipe jacking) and any confined spaces through the use
of an intrinsically safe portable instrument, appropriately calibrated and capable
of measuring the
concentrations of methane. carbon dioxide and
oxygen. |
All area/ Detailed design/
During construction/ During operation |
Contractor(s) |
ü |
ü |
ü |
Implemented |
|
S12.7 |
Monitoring frequency and areas to be monitored should be specified
prior to commencement of
groundwork, either by the Safety Officer, or by an appropriately qualified person. All measurements should be recorded and documented. |
All area/ Detailed design/
During construction/ During operation |
Contractor(s) |
ü |
ü |
ü |
Implemented |
|
S12.7 |
Proceed drilling with adequate care and precautions against the potential hazards which may be encountered. |
All area/ Detailed design/ During |
Contractor(s) |
ü |
ü |
ü |
Implemented |
|
EIA Reference |
Recommended Environmental Protection Measures/ Mitigation Measures |
Objectives of the
recommended measures & main concerns to address |
Implementation Agent |
Implementation Stage |
Implementation Status |
Relevant Legislation & Guidelines |
||
D |
C |
O |
||||||
|
|
construction/ During operation |
|
|
|
|
|
|
S12.7 |
Prior to the commencement of the site works, the drilling contractor
should devise a 'method-of-
working' statement covering all normal and emergency procedures (including but not limited to number of operatives,
experience and special skills
of operatives, normal
method of operations, emergency procedures, supervisors
responsibilities, storage and use of safety equipment, safety procedures and signs, barriers and
guarding). The site supervisor and
all operatives must be familiar
with this statement. |
All area/ During construction/ During operation |
Contractor(s) |
ü |
ü |
ü |
Implemented |
|
S12.7 |
Where below
ground service entries are necessary to the Incoming Switchgear Room, 132 kV Substation and Chlorine
Store (I) and (II), the entry point should
be sealed to prevent gas entry. In
addition, any below grade cable trenches entering
the Incoming Switchgear Room and 132 kV Substation can become the pathway for landfill gas and hence
grilled metal covers should be used. |
All area/ Detailed design/
During construction/ During operation |
Contractor(s) |
ü |
ü |
ü |
N/A |
|
S12.7 |
It is recommended regular landfill gas monitoring should be carried
out at the Incoming Switchgear
Room, 132 kV Substation and Chlorine Store (I) and (II). The monitoring frequency will be monthly
for the first year of operation. If the monitoring results
show no sign of landfill gas migration,
reduce the monitoring frequency to once every
six months. |
All area/ Detailed design/
During construction/ During operation |
Contractor(s) |
ü |
ü |
ü |
N/A |
|
S12.7 |
The manholes and utility pits within the Project Site and along the
fresh water mains. Each manhole/
utility pit should be monitored with two measurements (at mid depth
and base). Each
measurement should be monitored for
a minimum of 10 minutes. A steady reading and peak
reading should be recorded at each manhole/
utility pit and for each measurement. The
need for venting the manhole/ utility pit and further monitoring will be reviewed after
the initial monitoring. |
All area/ Detailed design/
During construction/ During operation |
Contractor(s) |
ü |
ü |
ü |
Implemented |
|
S12.7 |
All construction, operation and maintenance personnel working on-site
as well as visitors should be made
aware of the hazards of landfill gas and its possible presence on-site. This should be achieved through a
combination of posting warning signs
in prominent places
and also by access
to detailed information on landfill gas hazards and
the designs and procedural means
by which these hazards are being minimized on-site. |
All area/ Detailed design/
During construction/ During operation |
Contractor(s) |
ü |
ü |
ü |
Implemented |
|
Note: D - Design stage C
- Construction O - Operation
Appendix D
Impact Monitoring Schedule of the Reporting Month
Appendix E
Event / Action Plan for Noise Exceedance
Table E1 Event and Action Plan for Construction Noise Monitoring
Appendix F
Noise Monitoring Equipment Calibration Certificate (Blank)
(Blank)
Appendix G
Event / Action Plan for Water Quality Exceedance
Table G1 Event and Action Plan for Water Quality Monitoring
Appendix H
Waste Flow Table
Contract No. 13/WSD/17
Environmental Management Plan for Design, Build and Operate First Stage of Tseung Kwan O Desalination Plant
Appendix F - Monthly Summary Waste Flow Table
Name of Department: WSD Contract No.: 13/WSD/17
Monthly
Summary Waste Flow Table for 2022 (year)
Month Actual Quantities of Inert C&D Materials Generated Monthly Actual Quantities of C&D Wastes Generated Monthly Total Quantity Generated Hard Rock and Large Broken
Concrete Reused in the Contract Reused in other Projects Disposed as Public Fill Imported Fill Metals Paper/ cardboard packaging Plastics (see Note 3) Chemical Waste Others, e.g. general refuse (in '000kg) (in '000kg) (in '000kg) (in '000kg) (in '000kg) (in '000kg) (in '000 kg) (in '000kg) (in '000kg) (in '000kg) (in '000kg) Jan 233.850 0.000 0.000 0.000 233.850 0.000 0.000 0.069 0.005 0.000 109.020 Feb 175.850 0.000 0.000 0.000 175.850 0.000 0.000 0.000 0.000 0.296 94.830 Mar 68.790 0.000 0.000 0.000 68.790 0.000 0.000 0.000 0.000 0.000 54.140 Apr 29.050 0.000 0.000 0.000 29.050 0.000 0.001 0.165 0.004 0.000 113.780 May 6.300 0.000 0.000 0.000 6.300 0.000 0.000 0.000 0.000 0.000 71.350 Jun Sub-total 513.840 0.000 0.000 0.000 513.840 0.000 0.001 0.234 0.008 0.296 443.120 Jul Aug Sep Oct Nov Dec Total 513.840 0.000 0.000 0.000 513.840 0.000 0.001 0.234 0.008 0.296 443.120
w
Notes: (1) The performance targets
are given in Section 1.69 of Specification B
(2) The waste flow table shall also include C&D
materials that are specified in the Contract
to be imported for use at the Site.
(3) Plastics refer to plastic
bottles/containers, plastic sheets/
foam from packaging material
* The data will be reviewed
in next month.
Appendix I
Site Inspection Proforma
Appendix J
Complaint Log
Statistical Summary
of Environmental Complaints
Reporting Period |
Environmental Complaint Statistics |
||
Frequency |
Cumulative |
Complaint Nature |
|
1 - 31 May
2022 |
0 |
0 |
N/A |
Statistical Summary of Environmental Summons
Reporting Period |
Environmental Summons Statistics |
||
Frequency |
Cumulative |
Details |
|
1 - 31 May
2022 |
0 |
0 |
N/A |
Statistical Summary of Environmental Prosecution
Reporting Period |
Environmental Prosecution Statistics |
||
Frequency |
Cumulative |
Details |
|
1 - 31 May
2022 |
0 |
0 |
N/A |
Appendix K
Impact Monitoring Schedule of Next Reporting Month
Appendix L
Water Quality and Landfill Gas Monitoring Data
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
CE |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:35 |
9.3 |
8.2 |
33.3 |
25.2 |
3.4 |
3.0 |
CE |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:35 |
9.3 |
8.1 |
33.2 |
25.2 |
3.5 |
2.5 |
CE |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
11.0 |
10:34 |
9.2 |
8.1 |
33.2 |
25.4 |
3.1 |
3.0 |
CE |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
11.0 |
10:34 |
9.4 |
8.2 |
33.4 |
25.3 |
3.2 |
2.5 |
CE |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
21.0 |
10:33 |
9.4 |
8.1 |
33.4 |
25.2 |
3.1 |
2.5 |
CE |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
21.0 |
10:33 |
9.2 |
8.1 |
33.2 |
25.2 |
3.4 |
4.0 |
CF |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:02 |
9.1 |
8.1 |
33.3 |
25.4 |
3.9 |
4.0 |
CF |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:02 |
9.4 |
8.2 |
33.1 |
25.3 |
4.0 |
8.0 |
CF |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
9.5 |
8:01 |
9.3 |
8.1 |
33.3 |
25.4 |
4.3 |
7.0 |
CF |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
9.5 |
8:01 |
9.1 |
8.1 |
33.1 |
25.4 |
4.1 |
5.0 |
CF |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
18.0 |
8:00 |
9.2 |
8.1 |
33.2 |
25.3 |
4.2 |
3.0 |
CF |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
18.0 |
8:00 |
9.0 |
8.2 |
33.3 |
25.3 |
4.5 |
3.0 |
WSR01 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:25 |
9.2 |
8.2 |
33.4 |
25.4 |
2.6 |
2.5 |
WSR01 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:25 |
9.3 |
8.3 |
33.5 |
25.4 |
2.9 |
4.0 |
WSR01 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.7 |
8:24 |
9.2 |
8.3 |
33.5 |
25.4 |
2.8 |
7.0 |
WSR01 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.7 |
8:24 |
9.4 |
8.2 |
33.7 |
25.3 |
2.5 |
10.0 |
WSR01 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.3 |
8:23 |
9.4 |
8.3 |
33.7 |
25.4 |
2.3 |
3.0 |
WSR01 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.3 |
8:23 |
9.5 |
8.3 |
33.7 |
25.5 |
2.2 |
3.0 |
WSR02 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:42 |
8.7 |
8.2 |
32.6 |
25.3 |
2.2 |
2.5 |
WSR02 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:42 |
8.7 |
8.1 |
32.5 |
25.2 |
2.6 |
2.5 |
WSR02 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.9 |
8:41 |
8.4 |
8.0 |
32.7 |
25.3 |
2.3 |
2.5 |
WSR02 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.9 |
8:41 |
8.7 |
8.0 |
32.4 |
25.2 |
2.5 |
2.5 |
WSR02 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.7 |
8:40 |
8.4 |
8.1 |
32.7 |
25.4 |
2.2 |
3.0 |
WSR02 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.7 |
8:40 |
8.5 |
8.1 |
32.5 |
25.4 |
2.3 |
3.0 |
WSR03 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:55 |
8.4 |
8.1 |
33.3 |
25.7 |
2.1 |
2.5 |
WSR03 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:55 |
8.3 |
8.2 |
33.6 |
25.6 |
2.3 |
2.5 |
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||
WSR03 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.0 |
8:54 |
8.2 |
8.1 |
33.4 |
25.8 |
2.5 |
11.0 |
|
|||||
WSR03 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.0 |
8:54 |
8.3 |
8.1 |
33.6 |
25.7 |
2.5 |
15.0 |
|
|||||
WSR03 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.0 |
8:53 |
8.6 |
8.2 |
33.6 |
25.7 |
2.3 |
2.5 |
|
|||||
WSR03 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.0 |
8:53 |
8.3 |
8.2 |
33.6 |
25.6 |
2.5 |
2.5 |
|
|||||
WSR04 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:08 |
9.4 |
8.3 |
32.4 |
25.4 |
3.0 |
2.5 |
|
|||||
WSR04 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:08 |
9.5 |
8.3 |
32.4 |
25.2 |
2.6 |
3.0 |
|
|||||
WSR04 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.7 |
9:07 |
9.4 |
8.3 |
32.5 |
25.3 |
2.7 |
2.5 |
|
|||||
WSR04 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.7 |
9:07 |
9.4 |
8.3 |
32.5 |
25.2 |
2.7 |
2.5 |
|
|||||
WSR04 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.3 |
9:06 |
9.5 |
8.2 |
32.5 |
25.2 |
2.6 |
2.5 |
|
|||||
WSR04 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.3 |
9:06 |
9.4 |
8.3 |
32.7 |
25.2 |
2.3 |
3.0 |
|
|||||
WSR16 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:12 |
8.8 |
8.3 |
33.5 |
25.5 |
2.7 |
2.5 |
|
|||||
WSR16 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:12 |
9.0 |
8.2 |
33.5 |
25.5 |
2.8 |
2.5 |
|
|||||
WSR16 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
7.6 |
10:11 |
9.2 |
8.3 |
33.4 |
25.3 |
2.6 |
2.5 |
|
|||||
WSR16 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
7.6 |
10:11 |
8.9 |
8.3 |
33.6 |
25.3 |
2.3 |
2.5 |
|
|||||
WSR16 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
14.1 |
10:10 |
8.9 |
8.3 |
33.4 |
25.4 |
2.5 |
2.5 |
|
|||||
WSR16 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
14.1 |
10:10 |
8.9 |
8.2 |
33.6 |
25.3 |
2.6 |
3.0 |
|
|||||
WSR33 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:22 |
8.2 |
8.1 |
33.7 |
25.6 |
2.8 |
2.5 |
|
|||||
WSR33 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:22 |
8.2 |
8.1 |
33.6 |
25.6 |
3.1 |
2.5 |
|
|||||
WSR33 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
9:21 |
8.2 |
8.1 |
33.4 |
25.7 |
2.4 |
2.5 |
|
|||||
WSR33 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
9:21 |
8.2 |
8.1 |
33.6 |
25.7 |
2.6 |
2.5 |
|
|||||
WSR33 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.6 |
9:20 |
8.2 |
8.1 |
33.5 |
25.6 |
2.6 |
2.5 |
|
|||||
WSR33 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.6 |
9:20 |
8.3 |
8.1 |
33.3 |
25.7 |
2.3 |
2.5 |
|
|||||
WSR36 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:36 |
9.2 |
8.0 |
32.4 |
25.5 |
2.5 |
3.0 |
|
|||||
WSR36 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:36 |
9.3 |
8.1 |
32.6 |
25.4 |
2.8 |
2.5 |
|
|||||
WSR36 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.6 |
9:36 |
9.3 |
8.1 |
32.6 |
25.4 |
3.0 |
13.0 |
|
|||||
WSR36 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.6 |
9:36 |
9.1 |
8.0 |
32.5 |
25.5 |
2.7 |
13.0 |
|
|||||
|
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
WSR36 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.1 |
9:35 |
9.3 |
8.1 |
32.4 |
25.4 |
2.3 |
3.0 |
|
||||||||||||||
WSR36 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.1 |
9:35 |
9.3 |
8.1 |
32.4 |
25.5 |
2.2 |
2.5 |
|
||||||||||||||
WSR37 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:51 |
9.2 |
8.1 |
33.7 |
25.3 |
2.8 |
2.5 |
|
||||||||||||||
WSR37 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:51 |
9.3 |
8.1 |
33.6 |
25.1 |
2.8 |
4.0 |
|
||||||||||||||
WSR37 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.0 |
9:50 |
9.1 |
8.2 |
33.5 |
25.3 |
2.7 |
2.5 |
|
||||||||||||||
WSR37 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.0 |
9:50 |
9.1 |
8.2 |
33.5 |
25.2 |
2.5 |
2.5 |
|
||||||||||||||
WSR37 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.0 |
9:49 |
9.1 |
8.1 |
33.4 |
25.3 |
2.4 |
2.5 |
|
||||||||||||||
WSR37 |
20220503 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.0 |
9:49 |
9.2 |
8.2 |
33.5 |
25.4 |
2.4 |
2.5 |
|
||||||||||||||
CE |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:36 |
9.1 |
8.4 |
32.7 |
25.4 |
3.8 |
2.5 |
|
||||||||||||||
CE |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:36 |
9.3 |
8.4 |
32.6 |
25.4 |
4.1 |
2.5 |
|
||||||||||||||
CE |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
11.5 |
10:35 |
9.4 |
8.3 |
32.5 |
25.4 |
3.5 |
3.0 |
|
||||||||||||||
CE |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
11.5 |
10:35 |
9.3 |
8.4 |
32.5 |
25.5 |
3.8 |
3.0 |
|
||||||||||||||
CE |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
22.0 |
10:34 |
9.2 |
8.4 |
32.5 |
25.3 |
3.2 |
4.0 |
|
||||||||||||||
CE |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
22.0 |
10:34 |
9.3 |
8.3 |
32.5 |
25.5 |
3.4 |
3.0 |
|
||||||||||||||
CF |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:02 |
9.0 |
8.2 |
32.3 |
25.8 |
4.3 |
3.0 |
|
||||||||||||||
CF |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:02 |
9.2 |
8.2 |
32.3 |
25.8 |
4.1 |
4.0 |
|
||||||||||||||
CF |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
10.8 |
8:01 |
9.4 |
8.2 |
32.3 |
25.9 |
4.4 |
3.0 |
|
||||||||||||||
CF |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
10.8 |
8:01 |
9.3 |
8.2 |
32.3 |
25.8 |
4.3 |
2.5 |
|
||||||||||||||
CF |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
20.5 |
8:00 |
9.2 |
8.2 |
32.3 |
25.8 |
4.6 |
4.0 |
|
||||||||||||||
CF |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
20.5 |
8:00 |
9.4 |
8.1 |
32.5 |
25.9 |
4.4 |
2.5 |
|
||||||||||||||
WSR01 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:26 |
9.0 |
8.3 |
33.1 |
25.7 |
4.1 |
2.5 |
|
||||||||||||||
WSR01 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:26 |
9.1 |
8.3 |
32.9 |
25.6 |
4.0 |
2.5 |
|
||||||||||||||
WSR01 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.2 |
8:25 |
9.1 |
8.3 |
32.9 |
25.6 |
3.6 |
3.0 |
|
||||||||||||||
WSR01 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.2 |
8:25 |
9.0 |
8.4 |
33.0 |
25.6 |
3.4 |
4.0 |
|
||||||||||||||
WSR01 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
7.3 |
8:24 |
9.2 |
8.3 |
33.0 |
25.6 |
2.8 |
3.0 |
|
||||||||||||||
WSR01 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
7.3 |
8:24 |
9.1 |
8.4 |
33.0 |
25.6 |
2.9 |
3.0 |
|
||||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
|||||||||||
WSR02 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:43 |
9.7 |
8.2 |
33.1 |
25.5 |
2.3 |
3.0 |
|
||||||||||
WSR02 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:43 |
9.6 |
8.2 |
33.2 |
25.6 |
2.2 |
4.0 |
|
||||||||||
WSR02 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.9 |
8:42 |
9.9 |
8.2 |
33.2 |
25.5 |
2.6 |
3.0 |
|
||||||||||
WSR02 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.9 |
8:42 |
9.9 |
8.1 |
33.2 |
25.4 |
2.5 |
2.5 |
|
||||||||||
WSR02 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
8.8 |
8:41 |
9.8 |
8.1 |
33.2 |
25.5 |
2.1 |
4.0 |
|
||||||||||
WSR02 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
8.8 |
8:41 |
9.6 |
8.2 |
33.2 |
25.6 |
2.3 |
5.0 |
|
||||||||||
WSR03 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:57 |
9.4 |
8.2 |
33.4 |
25.3 |
4.3 |
4.0 |
|
||||||||||
WSR03 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:57 |
9.6 |
8.2 |
33.5 |
25.4 |
3.9 |
3.0 |
|
||||||||||
WSR03 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.2 |
8:56 |
9.3 |
8.2 |
33.5 |
25.4 |
3.8 |
2.5 |
|
||||||||||
WSR03 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.2 |
8:56 |
9.6 |
8.2 |
33.4 |
25.3 |
4.1 |
4.0 |
|
||||||||||
WSR03 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
7.3 |
8:55 |
9.3 |
8.2 |
33.3 |
25.3 |
3.9 |
2.5 |
|
||||||||||
WSR03 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
7.3 |
8:55 |
9.3 |
8.3 |
33.4 |
25.3 |
3.3 |
2.5 |
|
||||||||||
WSR04 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:10 |
8.8 |
8.2 |
32.9 |
25.4 |
3.3 |
6.0 |
|
||||||||||
WSR04 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:10 |
9.1 |
8.1 |
32.9 |
25.2 |
3.4 |
8.0 |
|
||||||||||
WSR04 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.9 |
9:09 |
8.8 |
8.2 |
33.1 |
25.3 |
3.4 |
4.0 |
|
||||||||||
WSR04 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.9 |
9:09 |
8.8 |
8.2 |
32.9 |
25.2 |
3.2 |
4.0 |
|
||||||||||
WSR04 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.8 |
9:08 |
8.9 |
8.2 |
33.0 |
25.4 |
3.1 |
5.0 |
|
||||||||||
WSR04 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.8 |
9:08 |
8.9 |
8.1 |
32.9 |
25.3 |
3.1 |
8.0 |
|
||||||||||
WSR16 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:14 |
9.9 |
8.1 |
32.5 |
25.4 |
4.2 |
3.0 |
|
||||||||||
WSR16 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:14 |
9.9 |
8.1 |
32.3 |
25.3 |
3.7 |
3.0 |
|
||||||||||
WSR16 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
8.5 |
10:13 |
9.8 |
8.1 |
32.4 |
25.4 |
3.6 |
7.0 |
|
||||||||||
WSR16 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
8.5 |
10:13 |
9.6 |
8.2 |
32.5 |
25.5 |
3.5 |
5.0 |
|
||||||||||
WSR16 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
16.0 |
10:12 |
9.9 |
8.1 |
32.4 |
25.4 |
3.7 |
2.5 |
|
||||||||||
WSR16 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
16.0 |
10:12 |
9.8 |
8.2 |
32.6 |
25.4 |
3.2 |
2.5 |
|
||||||||||
WSR33 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:24 |
9.3 |
8.3 |
33.1 |
25.7 |
4.0 |
2.5 |
|
||||||||||
WSR33 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:24 |
9.3 |
8.2 |
33.2 |
25.7 |
3.9 |
3.0 |
|
||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||
WSR33 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.6 |
9:23 |
9.0 |
8.2 |
33.2 |
25.7 |
3.7 |
3.0 |
|
|||||
WSR33 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.6 |
9:23 |
9.1 |
8.2 |
33.0 |
25.8 |
3.5 |
3.0 |
|
|||||
WSR33 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.2 |
9:22 |
9.0 |
8.2 |
32.9 |
25.8 |
3.1 |
3.0 |
|
|||||
WSR33 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.2 |
9:22 |
9.2 |
8.2 |
33.1 |
25.8 |
2.8 |
5.0 |
|
|||||
WSR36 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:37 |
9.0 |
8.1 |
32.8 |
25.4 |
3.8 |
4.0 |
|
|||||
WSR36 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:37 |
8.8 |
8.1 |
32.9 |
25.3 |
3.7 |
4.0 |
|
|||||
WSR36 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.5 |
9:37 |
9.2 |
8.2 |
32.7 |
25.4 |
3.7 |
3.0 |
|
|||||
WSR36 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.5 |
9:37 |
9.0 |
8.1 |
32.9 |
25.3 |
3.4 |
4.0 |
|
|||||
WSR36 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.0 |
9:36 |
8.9 |
8.2 |
32.9 |
25.3 |
3.1 |
4.0 |
|
|||||
WSR36 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.0 |
9:36 |
9.0 |
8.2 |
32.8 |
25.3 |
3.0 |
4.0 |
|
|||||
WSR37 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:52 |
9.7 |
8.1 |
33.0 |
25.3 |
3.1 |
4.0 |
|
|||||
WSR37 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:52 |
9.5 |
8.1 |
32.8 |
25.4 |
3.6 |
2.5 |
|
|||||
WSR37 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.1 |
9:51 |
9.7 |
8.2 |
32.9 |
25.3 |
3.4 |
4.0 |
|
|||||
WSR37 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.1 |
9:51 |
9.7 |
8.2 |
32.9 |
25.4 |
3.6 |
2.5 |
|
|||||
WSR37 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
7.1 |
9:50 |
9.7 |
8.1 |
32.7 |
25.5 |
2.6 |
3.0 |
|
|||||
WSR37 |
20220505 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
7.1 |
9:50 |
9.6 |
8.1 |
33.0 |
25.3 |
2.6 |
5.0 |
|
|||||
CE |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:46 |
8.7 |
8.1 |
32.4 |
24.1 |
3.3 |
3.0 |
|
|||||
CE |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:46 |
8.9 |
8.1 |
32.2 |
24.0 |
3.2 |
4.0 |
|
|||||
CE |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.0 |
10:45 |
8.6 |
8.1 |
32.5 |
24.1 |
3.5 |
4.0 |
|
|||||
CE |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.0 |
10:45 |
8.7 |
8.1 |
32.3 |
24.1 |
3.4 |
4.0 |
|
|||||
CE |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
19.0 |
10:44 |
8.7 |
8.2 |
32.3 |
24.0 |
3.7 |
4.0 |
|
|||||
CE |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
19.0 |
10:44 |
8.7 |
8.2 |
32.5 |
24.0 |
3.4 |
3.0 |
|
|||||
CF |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:02 |
9.1 |
8.2 |
33.3 |
24.5 |
3.9 |
4.0 |
|
|||||
CF |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:02 |
9.2 |
8.2 |
33.3 |
24.4 |
3.9 |
4.0 |
|
|||||
CF |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.6 |
8:01 |
9.1 |
8.2 |
33.4 |
24.4 |
4.1 |
4.0 |
|
|||||
CF |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.6 |
8:01 |
9.0 |
8.2 |
33.3 |
24.4 |
3.7 |
4.0 |
|
|||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||
CF |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
20.2 |
8:00 |
9.1 |
8.2 |
33.3 |
24.5 |
4.2 |
3.0 |
|
|||||||
CF |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
20.2 |
8:00 |
9.0 |
8.1 |
33.2 |
24.4 |
4.2 |
3.0 |
|
|||||||
WSR01 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:26 |
9.0 |
8.3 |
32.8 |
24.3 |
2.8 |
4.0 |
|
|||||||
WSR01 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:26 |
9.2 |
8.4 |
32.7 |
24.2 |
3.2 |
3.0 |
|
|||||||
WSR01 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.6 |
8:25 |
9.1 |
8.4 |
32.8 |
24.2 |
3.0 |
6.0 |
|
|||||||
WSR01 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.6 |
8:25 |
9.1 |
8.3 |
32.7 |
24.3 |
2.8 |
5.0 |
|
|||||||
WSR01 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.1 |
8:24 |
9.0 |
8.4 |
32.8 |
24.3 |
2.9 |
4.0 |
|
|||||||
WSR01 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.1 |
8:24 |
8.9 |
8.3 |
32.6 |
24.2 |
2.7 |
4.0 |
|
|||||||
WSR02 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:46 |
8.5 |
8.3 |
32.9 |
24.8 |
2.2 |
3.0 |
|
|||||||
WSR02 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:46 |
8.6 |
8.2 |
33.0 |
24.7 |
2.4 |
5.0 |
|
|||||||
WSR02 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.9 |
8:45 |
8.6 |
8.3 |
33.1 |
24.7 |
2.4 |
3.0 |
|
|||||||
WSR02 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.9 |
8:45 |
8.4 |
8.4 |
33.2 |
24.8 |
2.4 |
3.0 |
|
|||||||
WSR02 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.7 |
8:44 |
8.6 |
8.3 |
33.0 |
24.7 |
1.9 |
8.0 |
|
|||||||
WSR02 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.7 |
8:44 |
8.6 |
8.3 |
32.9 |
24.8 |
2.1 |
5.0 |
|
|||||||
WSR03 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:00 |
9.4 |
8.2 |
32.7 |
24.6 |
2.9 |
8.0 |
|
|||||||
WSR03 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:00 |
9.3 |
8.3 |
32.8 |
24.7 |
2.6 |
4.0 |
|
|||||||
WSR03 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.7 |
8:59 |
9.4 |
8.2 |
32.7 |
24.5 |
3.0 |
4.0 |
|
|||||||
WSR03 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.7 |
8:59 |
9.3 |
8.3 |
32.7 |
24.5 |
3.0 |
7.0 |
|
|||||||
WSR03 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.4 |
8:58 |
9.4 |
8.2 |
32.7 |
24.7 |
2.7 |
5.0 |
|
|||||||
WSR03 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.4 |
8:58 |
9.4 |
8.2 |
32.8 |
24.7 |
2.7 |
8.0 |
|
|||||||
WSR04 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:14 |
9.3 |
8.3 |
32.3 |
24.5 |
2.9 |
6.0 |
|
|||||||
WSR04 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:14 |
9.2 |
8.3 |
32.4 |
24.7 |
3.1 |
8.0 |
|
|||||||
WSR04 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.4 |
9:13 |
9.3 |
8.3 |
32.5 |
24.7 |
2.9 |
6.0 |
|
|||||||
WSR04 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.4 |
9:13 |
9.1 |
8.4 |
32.4 |
24.7 |
3.4 |
7.0 |
|
|||||||
WSR04 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
5.8 |
9:12 |
9.2 |
8.3 |
32.2 |
24.7 |
3.2 |
7.0 |
|
|||||||
WSR04 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
5.8 |
9:12 |
9.4 |
8.3 |
32.5 |
24.7 |
3.3 |
6.0 |
|
|||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
SR16 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:22 |
8.7 |
8.3 |
32.9 |
24.4 |
3.2 |
4.0 |
WSR16 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:22 |
8.6 |
8.3 |
33.0 |
24.5 |
3.1 |
5.0 |
WSR16 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
8.0 |
10:21 |
8.5 |
8.2 |
32.9 |
24.3 |
2.8 |
7.0 |
WSR16 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
8.0 |
10:21 |
8.6 |
8.2 |
33.1 |
24.5 |
2.5 |
4.0 |
WSR16 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
15.0 |
10:20 |
8.6 |
8.2 |
33.1 |
24.4 |
2.6 |
2.5 |
WSR16 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
15.0 |
10:20 |
8.6 |
8.3 |
33.0 |
24.4 |
2.9 |
2.5 |
WSR33 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:29 |
8.4 |
8.3 |
33.1 |
24.7 |
3.2 |
6.0 |
WSR33 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:29 |
8.2 |
8.3 |
33.2 |
24.8 |
3.0 |
5.0 |
WSR33 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.5 |
9:28 |
8.3 |
8.3 |
33.2 |
24.8 |
3.0 |
4.0 |
WSR33 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.5 |
9:28 |
8.1 |
8.2 |
33.2 |
24.7 |
3.2 |
2.5 |
WSR33 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.0 |
9:27 |
8.3 |
8.3 |
33.1 |
24.7 |
2.6 |
3.0 |
WSR33 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.0 |
9:27 |
8.4 |
8.3 |
33.1 |
24.7 |
2.4 |
2.5 |
WSR36 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:43 |
9.2 |
8.3 |
32.8 |
24.3 |
3.0 |
4.0 |
WSR36 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:43 |
9.3 |
8.3 |
32.5 |
24.4 |
2.8 |
2.5 |
WSR36 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.5 |
9:43 |
9.1 |
8.3 |
32.5 |
24.3 |
3.2 |
4.0 |
WSR36 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.5 |
9:43 |
9.3 |
8.3 |
32.8 |
24.3 |
3.0 |
6.0 |
WSR36 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
5.9 |
9:42 |
9.2 |
8.3 |
32.5 |
24.4 |
2.9 |
4.0 |
WSR36 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
5.9 |
9:42 |
9.2 |
8.3 |
32.6 |
24.2 |
2.4 |
4.0 |
WSR37 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:59 |
8.8 |
8.3 |
33.2 |
24.9 |
3.2 |
4.0 |
WSR37 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:59 |
8.7 |
8.4 |
33.3 |
24.7 |
3.2 |
4.0 |
WSR37 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.1 |
9:58 |
8.9 |
8.4 |
33.3 |
24.7 |
2.6 |
2.5 |
WSR37 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.1 |
9:58 |
8.6 |
8.4 |
33.5 |
24.7 |
2.2 |
4.0 |
WSR37 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.2 |
9:57 |
8.8 |
8.4 |
33.4 |
24.8 |
2.4 |
2.5 |
WSR37 |
20220507 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.2 |
9:57 |
8.9 |
8.4 |
33.4 |
24.8 |
2.5 |
2.5 |
CE |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:06 |
8.6 |
8.2 |
32.5 |
24.2 |
3.0 |
2.5 |
CE |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:06 |
8.6 |
8.2 |
32.6 |
24.4 |
2.8 |
2.5 |
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||
CE |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.3 |
14:05 |
8.7 |
8.2 |
32.5 |
24.4 |
2.6 |
2.5 |
|
|||||
CE |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.3 |
14:05 |
8.6 |
8.2 |
32.5 |
24.2 |
2.6 |
2.5 |
|
|||||
CE |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
19.5 |
14:04 |
8.6 |
8.2 |
32.5 |
24.4 |
2.9 |
2.5 |
|
|||||
CE |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
19.5 |
14:04 |
8.6 |
8.2 |
32.5 |
24.2 |
2.8 |
4.0 |
|
|||||
CF |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
11:29 |
8.2 |
8.3 |
33.0 |
23.9 |
3.6 |
2.5 |
|
|||||
CF |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
11:29 |
8.2 |
8.2 |
32.9 |
24.0 |
3.5 |
2.5 |
|
|||||
CF |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.5 |
11:28 |
8.3 |
8.2 |
33.0 |
24.0 |
3.5 |
4.0 |
|
|||||
CF |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.5 |
11:28 |
8.3 |
8.3 |
32.9 |
23.8 |
3.9 |
4.0 |
|
|||||
CF |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
19.9 |
11:27 |
8.3 |
8.3 |
32.9 |
24.0 |
3.7 |
2.5 |
|
|||||
CF |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
19.9 |
11:27 |
8.3 |
8.2 |
33.0 |
23.8 |
3.6 |
2.5 |
|
|||||
WSR01 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
11:52 |
8.6 |
8.3 |
33.0 |
24.0 |
3.0 |
2.5 |
|
|||||
WSR01 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
11:52 |
8.6 |
8.3 |
33.0 |
24.0 |
2.5 |
2.5 |
|
|||||
WSR01 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.6 |
11:51 |
8.7 |
8.4 |
33.0 |
24.0 |
2.6 |
2.5 |
|
|||||
WSR01 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.6 |
11:51 |
8.6 |
8.3 |
33.0 |
24.0 |
2.4 |
2.5 |
|
|||||
WSR01 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.1 |
11:50 |
8.6 |
8.3 |
33.0 |
23.9 |
2.4 |
3.0 |
|
|||||
WSR01 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.1 |
11:50 |
8.6 |
8.4 |
33.0 |
24.0 |
2.4 |
5.0 |
|
|||||
WSR02 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
12:11 |
9.0 |
8.3 |
32.8 |
24.4 |
2.3 |
2.5 |
|
|||||
WSR02 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
12:11 |
9.1 |
8.4 |
32.8 |
24.3 |
2.2 |
3.0 |
|
|||||
WSR02 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
5.0 |
12:10 |
9.0 |
8.4 |
32.8 |
24.4 |
2.1 |
4.0 |
|
|||||
WSR02 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
5.0 |
12:10 |
9.1 |
8.3 |
32.9 |
24.3 |
2.1 |
2.5 |
|
|||||
WSR02 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.9 |
12:09 |
9.1 |
8.3 |
32.8 |
24.5 |
2.0 |
6.0 |
|
|||||
WSR02 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.9 |
12:09 |
9.0 |
8.3 |
32.9 |
24.5 |
1.8 |
4.0 |
|
|||||
WSR03 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
12:24 |
8.7 |
8.2 |
32.5 |
24.5 |
2.3 |
3.0 |
|
|||||
WSR03 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
12:24 |
8.7 |
8.1 |
32.6 |
24.7 |
2.0 |
4.0 |
|
|||||
WSR03 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.9 |
12:23 |
8.7 |
8.2 |
32.6 |
24.4 |
2.0 |
3.0 |
|
|||||
WSR03 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.9 |
12:23 |
8.7 |
8.1 |
32.5 |
24.6 |
2.0 |
5.0 |
|
|||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
WSR03 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.7 |
12:22 |
8.7 |
8.1 |
32.6 |
24.6 |
1.8 |
2.5 |
WSR03 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.7 |
12:22 |
8.7 |
8.1 |
32.5 |
24.5 |
1.8 |
2.5 |
WSR04 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
12:37 |
8.9 |
8.3 |
32.2 |
24.4 |
2.4 |
7.0 |
WSR04 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
12:37 |
9.0 |
8.3 |
32.2 |
24.2 |
2.3 |
9.0 |
WSR04 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.5 |
12:36 |
8.9 |
8.3 |
32.2 |
24.3 |
1.9 |
2.5 |
WSR04 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.5 |
12:36 |
9.0 |
8.4 |
32.2 |
24.4 |
2.3 |
4.0 |
WSR04 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
5.9 |
12:35 |
8.9 |
8.3 |
32.2 |
24.4 |
2.1 |
2.5 |
WSR04 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
5.9 |
12:35 |
9.1 |
8.3 |
32.2 |
24.3 |
1.9 |
3.0 |
WSR16 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:43 |
8.2 |
8.1 |
33.2 |
24.6 |
2.3 |
2.5 |
WSR16 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:43 |
8.1 |
8.1 |
33.2 |
24.6 |
2.6 |
2.5 |
WSR16 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
7.8 |
13:42 |
8.1 |
8.1 |
33.2 |
24.5 |
2.8 |
2.5 |
WSR16 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
7.8 |
13:42 |
8.0 |
8.1 |
33.2 |
24.4 |
2.7 |
3.0 |
WSR16 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
14.5 |
13:41 |
8.0 |
8.1 |
33.2 |
24.5 |
2.2 |
4.0 |
WSR16 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
14.5 |
13:41 |
8.1 |
8.1 |
33.3 |
24.5 |
2.2 |
4.0 |
WSR33 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
12:52 |
8.7 |
8.4 |
32.7 |
24.5 |
2.5 |
4.0 |
WSR33 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
12:52 |
8.5 |
8.3 |
32.6 |
24.4 |
2.7 |
2.5 |
WSR33 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.7 |
12:51 |
8.7 |
8.4 |
32.6 |
24.5 |
2.5 |
3.0 |
WSR33 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.7 |
12:51 |
8.6 |
8.4 |
32.6 |
24.6 |
2.1 |
2.5 |
WSR33 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.3 |
12:50 |
8.5 |
8.4 |
32.6 |
24.4 |
2.4 |
2.5 |
WSR33 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.3 |
12:50 |
8.5 |
8.4 |
32.6 |
24.4 |
2.3 |
2.5 |
WSR36 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:06 |
8.9 |
8.4 |
32.3 |
24.4 |
2.8 |
3.0 |
WSR36 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:06 |
8.9 |
8.3 |
32.2 |
24.4 |
2.9 |
2.5 |
WSR36 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.7 |
13:06 |
8.9 |
8.4 |
32.2 |
24.6 |
2.4 |
4.0 |
WSR36 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.7 |
13:06 |
8.7 |
8.4 |
32.2 |
24.4 |
2.5 |
2.5 |
WSR36 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.3 |
13:05 |
8.7 |
8.4 |
32.3 |
24.5 |
1.8 |
3.0 |
WSR36 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.3 |
13:05 |
8.9 |
8.4 |
32.2 |
24.5 |
2.1 |
4.0 |
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||
WSR37 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:20 |
9.1 |
8.2 |
33.1 |
24.1 |
2.2 |
2.5 |
|
|||||
WSR37 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:20 |
9.2 |
8.2 |
33.1 |
24.2 |
2.2 |
2.5 |
|
|||||
WSR37 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.2 |
13:19 |
9.2 |
8.2 |
33.2 |
24.0 |
2.0 |
2.5 |
|
|||||
WSR37 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.2 |
13:19 |
9.2 |
8.2 |
33.2 |
24.2 |
2.2 |
3.0 |
|
|||||
WSR37 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.3 |
13:18 |
9.1 |
8.2 |
33.2 |
24.1 |
1.8 |
3.0 |
|
|||||
WSR37 |
20220510 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.3 |
13:18 |
9.1 |
8.2 |
33.2 |
24.1 |
1.9 |
3.0 |
|
|||||
CE |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:05 |
9.6 |
8.2 |
31.2 |
24.8 |
2.9 |
5.0 |
|
|||||
CE |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:05 |
9.4 |
8.2 |
31.3 |
24.7 |
2.8 |
7.0 |
|
|||||
CE |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
11.1 |
16:04 |
9.6 |
8.2 |
31.3 |
24.8 |
2.9 |
5.0 |
|
|||||
CE |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
11.1 |
16:04 |
9.3 |
8.2 |
31.3 |
24.9 |
3.0 |
7.0 |
|
|||||
CE |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
21.1 |
16:03 |
9.4 |
8.2 |
31.1 |
24.7 |
3.2 |
4.0 |
|
|||||
CE |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
21.1 |
16:03 |
9.6 |
8.2 |
31.2 |
24.7 |
3.1 |
2.5 |
|
|||||
CF |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:30 |
9.4 |
8.2 |
31.5 |
25.4 |
3.9 |
10.0 |
|
|||||
CF |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:30 |
9.6 |
8.2 |
31.4 |
25.4 |
4.0 |
14.0 |
|
|||||
CF |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.9 |
13:29 |
9.4 |
8.2 |
31.6 |
25.3 |
3.9 |
3.0 |
|
|||||
CF |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.9 |
13:29 |
9.7 |
8.2 |
31.6 |
25.5 |
3.9 |
3.0 |
|
|||||
CF |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
20.8 |
13:28 |
9.6 |
8.2 |
31.4 |
25.3 |
3.8 |
16.0 |
|
|||||
CF |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
20.8 |
13:28 |
9.6 |
8.2 |
31.6 |
25.4 |
3.9 |
14.0 |
|
|||||
WSR01 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:53 |
9.7 |
8.4 |
31.7 |
25.1 |
2.5 |
4.0 |
|
|||||
WSR01 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:53 |
9.5 |
8.3 |
31.8 |
25.2 |
2.7 |
5.0 |
|
|||||
WSR01 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.7 |
13:52 |
9.7 |
8.3 |
32.0 |
25.2 |
2.3 |
2.5 |
|
|||||
WSR01 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.7 |
13:52 |
9.6 |
8.3 |
32.0 |
25.1 |
2.0 |
2.5 |
|
|||||
WSR01 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.4 |
13:51 |
9.6 |
8.4 |
31.7 |
25.2 |
1.8 |
4.0 |
|
|||||
WSR01 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.4 |
13:51 |
9.4 |
8.4 |
31.7 |
25.1 |
2.1 |
4.0 |
|
|||||
WSR02 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:11 |
8.9 |
8.2 |
30.8 |
25.1 |
2.1 |
2.5 |
|
|||||
WSR02 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:11 |
9.0 |
8.2 |
30.5 |
25.3 |
2.3 |
3.0 |
|
|||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
WSR02 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.6 |
14:10 |
9.0 |
8.2 |
30.6 |
25.2 |
2.4 |
4.0 |
WSR02 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.6 |
14:10 |
9.1 |
8.2 |
30.6 |
25.1 |
2.1 |
5.0 |
WSR02 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.1 |
14:09 |
8.9 |
8.2 |
30.8 |
25.1 |
1.8 |
2.5 |
WSR02 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.1 |
14:09 |
9.1 |
8.2 |
30.8 |
25.2 |
2.1 |
3.0 |
WSR03 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:24 |
9.4 |
8.2 |
31.7 |
25.3 |
2.9 |
4.0 |
WSR03 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:24 |
9.5 |
8.2 |
31.9 |
25.2 |
3.0 |
5.0 |
WSR03 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.9 |
14:23 |
9.5 |
8.2 |
31.7 |
25.3 |
2.5 |
7.0 |
WSR03 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.9 |
14:23 |
9.5 |
8.2 |
31.6 |
25.3 |
2.1 |
5.0 |
WSR03 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.7 |
14:22 |
9.3 |
8.2 |
31.6 |
25.3 |
1.9 |
22.0 |
WSR03 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.7 |
14:22 |
9.4 |
8.2 |
31.8 |
25.2 |
2.1 |
24.0 |
WSR04 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:37 |
9.5 |
8.2 |
30.8 |
25.3 |
2.4 |
6.0 |
WSR04 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:37 |
9.4 |
8.2 |
31.0 |
25.1 |
2.8 |
6.0 |
WSR04 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
14:36 |
9.6 |
8.3 |
30.8 |
25.3 |
2.3 |
4.0 |
WSR04 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
14:36 |
9.6 |
8.3 |
31.0 |
25.3 |
2.5 |
2.5 |
WSR04 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.6 |
14:35 |
9.5 |
8.2 |
30.9 |
25.3 |
2.1 |
6.0 |
WSR04 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.6 |
14:35 |
9.5 |
8.3 |
31.0 |
25.2 |
2.0 |
9.0 |
WSR16 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:42 |
8.4 |
8.2 |
31.1 |
25.2 |
2.3 |
6.0 |
WSR16 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:42 |
8.7 |
8.2 |
31.1 |
25.0 |
2.7 |
6.0 |
WSR16 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
8.2 |
15:41 |
8.4 |
8.1 |
31.1 |
25.0 |
2.5 |
3.0 |
WSR16 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
8.2 |
15:41 |
8.3 |
8.2 |
31.3 |
25.2 |
2.6 |
4.0 |
WSR16 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
15.4 |
15:40 |
8.6 |
8.1 |
31.3 |
25.0 |
2.1 |
4.0 |
WSR16 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
15.4 |
15:40 |
8.5 |
8.1 |
31.3 |
25.1 |
2.2 |
5.0 |
WSR33 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:51 |
9.2 |
8.3 |
31.4 |
25.4 |
3.1 |
4.0 |
WSR33 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:51 |
9.5 |
8.3 |
31.4 |
25.2 |
2.7 |
4.0 |
WSR33 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
14:50 |
9.4 |
8.3 |
31.7 |
25.2 |
2.8 |
5.0 |
WSR33 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
14:50 |
9.3 |
8.4 |
31.5 |
25.3 |
2.9 |
5.0 |
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||
WSR33 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.6 |
14:49 |
9.3 |
8.3 |
31.4 |
25.2 |
2.2 |
2.5 |
|
|||||
WSR33 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.6 |
14:49 |
9.2 |
8.4 |
31.4 |
25.2 |
2.5 |
2.5 |
|
|||||
WSR36 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:04 |
9.4 |
8.1 |
31.2 |
24.9 |
2.9 |
3.0 |
|
|||||
WSR36 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:04 |
9.6 |
8.2 |
31.2 |
24.8 |
2.5 |
3.0 |
|
|||||
WSR36 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.4 |
15:04 |
9.6 |
8.1 |
31.3 |
24.7 |
2.2 |
4.0 |
|
|||||
WSR36 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.4 |
15:04 |
9.8 |
8.1 |
31.1 |
24.8 |
2.1 |
5.0 |
|
|||||
WSR36 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
5.8 |
15:03 |
9.6 |
8.2 |
31.3 |
24.9 |
2.2 |
8.0 |
|
|||||
WSR36 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
5.8 |
15:03 |
9.5 |
8.1 |
31.4 |
24.7 |
1.9 |
7.0 |
|
|||||
WSR37 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:19 |
8.9 |
8.3 |
31.1 |
25.1 |
2.5 |
4.0 |
|
|||||
WSR37 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:19 |
9.0 |
8.3 |
31.2 |
24.9 |
3.0 |
2.5 |
|
|||||
WSR37 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.3 |
15:18 |
9.0 |
8.4 |
31.2 |
25.1 |
2.3 |
2.5 |
|
|||||
WSR37 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.3 |
15:18 |
8.7 |
8.3 |
31.3 |
25.1 |
2.0 |
3.0 |
|
|||||
WSR37 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.5 |
15:17 |
8.8 |
8.3 |
31.1 |
24.9 |
2.3 |
2.5 |
|
|||||
WSR37 |
20220512 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.5 |
15:17 |
8.8 |
8.3 |
31.2 |
25.0 |
2.1 |
2.5 |
|
|||||
CE |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:11 |
8.6 |
8.1 |
33.3 |
26.0 |
3.2 |
2.5 |
|
|||||
CE |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:11 |
8.5 |
8.1 |
33.2 |
26.1 |
3.1 |
2.5 |
|
|||||
CE |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
11.4 |
18:10 |
8.7 |
8.1 |
33.2 |
26.1 |
3.7 |
12.0 |
|
|||||
CE |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
11.4 |
18:10 |
8.5 |
8.1 |
33.3 |
26.1 |
3.5 |
13.0 |
|
|||||
CE |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
21.8 |
18:09 |
8.6 |
8.1 |
33.2 |
26.0 |
3.7 |
6.0 |
|
|||||
CE |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
21.8 |
18:09 |
8.4 |
8.1 |
33.3 |
26.0 |
3.7 |
7.0 |
|
|||||
CF |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:34 |
8.7 |
8.3 |
33.2 |
25.2 |
3.7 |
5.0 |
|
|||||
CF |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:34 |
8.8 |
8.3 |
33.2 |
25.2 |
3.8 |
7.0 |
|
|||||
CF |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.1 |
15:33 |
8.7 |
8.2 |
33.1 |
25.3 |
4.3 |
2.5 |
|
|||||
CF |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.1 |
15:33 |
8.8 |
8.2 |
33.2 |
25.2 |
4.0 |
2.5 |
|
|||||
CF |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
19.1 |
15:32 |
8.7 |
8.2 |
33.1 |
25.3 |
4.4 |
8.0 |
|
|||||
CF |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
19.1 |
15:32 |
8.9 |
8.2 |
33.2 |
25.2 |
4.3 |
6.0 |
|
|||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||
WSR01 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:57 |
9.2 |
8.2 |
32.9 |
25.6 |
2.8 |
2.5 |
|
|||||||
WSR01 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:57 |
9.3 |
8.3 |
33.0 |
25.4 |
2.8 |
2.5 |
|
|||||||
WSR01 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.2 |
15:56 |
9.1 |
8.2 |
32.9 |
25.5 |
2.7 |
3.0 |
|
|||||||
WSR01 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.2 |
15:56 |
9.1 |
8.2 |
32.8 |
25.6 |
2.5 |
3.0 |
|
|||||||
WSR01 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.4 |
15:55 |
9.3 |
8.2 |
33.0 |
25.5 |
2.0 |
3.0 |
|
|||||||
WSR01 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.4 |
15:55 |
9.3 |
8.3 |
32.9 |
25.5 |
2.0 |
2.5 |
|
|||||||
WSR02 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:16 |
8.1 |
8.1 |
33.1 |
25.5 |
2.2 |
2.5 |
|
|||||||
WSR02 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:16 |
8.2 |
8.1 |
33.2 |
25.6 |
2.1 |
2.5 |
|
|||||||
WSR02 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.8 |
16:15 |
8.2 |
8.2 |
33.2 |
25.5 |
1.9 |
2.5 |
|
|||||||
WSR02 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.8 |
16:15 |
8.1 |
8.1 |
33.3 |
25.5 |
2.0 |
3.0 |
|
|||||||
WSR02 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.6 |
16:14 |
8.2 |
8.1 |
33.3 |
25.5 |
2.1 |
2.5 |
|
|||||||
WSR02 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.6 |
16:14 |
8.3 |
8.2 |
33.1 |
25.4 |
2.3 |
2.5 |
|
|||||||
WSR03 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:30 |
9.1 |
8.3 |
32.8 |
25.3 |
2.4 |
2.5 |
|
|||||||
WSR03 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:30 |
9.0 |
8.3 |
32.8 |
25.3 |
2.1 |
3.0 |
|
|||||||
WSR03 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.2 |
16:29 |
9.0 |
8.3 |
32.8 |
25.4 |
2.0 |
4.0 |
|
|||||||
WSR03 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.2 |
16:29 |
9.1 |
8.3 |
32.8 |
25.4 |
2.4 |
5.0 |
|
|||||||
WSR03 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.3 |
16:28 |
9.2 |
8.3 |
32.8 |
25.3 |
2.2 |
6.0 |
|
|||||||
WSR03 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.3 |
16:28 |
9.1 |
8.3 |
32.8 |
25.4 |
1.9 |
4.0 |
|
|||||||
WSR04 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:43 |
9.0 |
8.1 |
32.6 |
25.9 |
3.1 |
30.0 |
|
|||||||
WSR04 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:43 |
8.9 |
8.1 |
32.5 |
26.1 |
3.2 |
33.0 |
|
|||||||
WSR04 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.7 |
16:42 |
9.1 |
8.1 |
32.7 |
26.0 |
3.1 |
2.5 |
|
|||||||
WSR04 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.7 |
16:42 |
9.0 |
8.1 |
32.5 |
26.0 |
2.9 |
3.0 |
|
|||||||
WSR04 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.4 |
16:41 |
9.0 |
8.1 |
32.5 |
25.9 |
2.6 |
2.5 |
|
|||||||
WSR04 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.4 |
16:41 |
9.0 |
8.1 |
32.6 |
26.1 |
3.1 |
2.5 |
|
|||||||
WSR16 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:47 |
8.6 |
8.3 |
32.7 |
25.2 |
3.1 |
4.0 |
|
|||||||
WSR16 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:47 |
8.7 |
8.3 |
32.6 |
25.2 |
2.9 |
3.0 |
|
|||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
|||||||
WSR16 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
8.3 |
17:46 |
8.6 |
8.3 |
32.6 |
25.3 |
2.9 |
2.5 |
|
||||||
WSR16 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
8.3 |
17:46 |
8.7 |
8.2 |
32.7 |
25.2 |
3.1 |
3.0 |
|
||||||
WSR16 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
15.5 |
17:45 |
8.5 |
8.2 |
32.7 |
25.2 |
2.4 |
3.0 |
|
||||||
WSR16 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
15.5 |
17:45 |
8.6 |
8.3 |
32.7 |
25.3 |
2.2 |
3.0 |
|
||||||
WSR33 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:57 |
8.4 |
8.1 |
33.3 |
25.8 |
2.8 |
4.0 |
|
||||||
WSR33 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:57 |
8.5 |
8.1 |
33.3 |
25.8 |
2.5 |
3.0 |
|
||||||
WSR33 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.7 |
16:56 |
8.3 |
8.1 |
33.3 |
26.0 |
2.7 |
3.0 |
|
||||||
WSR33 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.7 |
16:56 |
8.4 |
8.1 |
33.3 |
25.9 |
2.6 |
3.0 |
|
||||||
WSR33 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.3 |
16:55 |
8.5 |
8.1 |
33.2 |
25.9 |
2.1 |
9.0 |
|
||||||
WSR33 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.3 |
16:55 |
8.5 |
8.1 |
33.2 |
25.9 |
2.3 |
10.0 |
|
||||||
WSR36 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:10 |
8.7 |
8.1 |
32.4 |
25.4 |
2.9 |
7.0 |
|
||||||
WSR36 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:10 |
8.8 |
8.1 |
32.5 |
25.4 |
3.0 |
6.0 |
|
||||||
WSR36 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.5 |
17:10 |
8.6 |
8.1 |
32.5 |
25.5 |
2.4 |
6.0 |
|
||||||
WSR36 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.5 |
17:10 |
8.7 |
8.1 |
32.5 |
25.5 |
2.4 |
3.0 |
|
||||||
WSR36 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.0 |
17:09 |
8.6 |
8.1 |
32.4 |
25.5 |
2.6 |
3.0 |
|
||||||
WSR36 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.0 |
17:09 |
8.8 |
8.1 |
32.4 |
25.6 |
2.3 |
4.0 |
|
||||||
WSR37 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:25 |
8.1 |
8.1 |
33.0 |
25.8 |
3.0 |
2.5 |
|
||||||
WSR37 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:25 |
8.3 |
8.1 |
33.1 |
25.7 |
3.0 |
4.0 |
|
||||||
WSR37 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.9 |
17:24 |
8.3 |
8.1 |
33.0 |
25.8 |
2.6 |
4.0 |
|
||||||
WSR37 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.9 |
17:24 |
8.2 |
8.1 |
33.0 |
25.8 |
3.0 |
3.0 |
|
||||||
WSR37 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.8 |
17:23 |
8.2 |
8.1 |
33.1 |
25.8 |
2.5 |
2.5 |
|
||||||
WSR37 |
20220514 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.8 |
17:23 |
8.1 |
8.2 |
33.0 |
25.7 |
2.9 |
3.0 |
|
||||||
CE |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:58 |
9.8 |
8.3 |
33.4 |
26.0 |
3.8 |
3.0 |
|
||||||
CE |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:58 |
9.8 |
8.3 |
33.5 |
26.1 |
4.0 |
4.0 |
|
||||||
CE |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
11.2 |
18:57 |
10.0 |
8.3 |
33.4 |
26.1 |
4.0 |
4.0 |
|
||||||
CE |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
11.2 |
18:57 |
10.0 |
8.2 |
33.3 |
26.1 |
3.9 |
6.0 |
|
||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
|||||||||||
CE |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
21.4 |
18:56 |
10.0 |
8.3 |
33.4 |
26.1 |
4.3 |
5.0 |
|
||||||||||
CE |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
21.4 |
18:56 |
10.1 |
8.3 |
33.4 |
26.0 |
4.2 |
4.0 |
|
||||||||||
CF |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:44 |
9.3 |
8.3 |
32.8 |
26.5 |
4.5 |
3.0 |
|
||||||||||
CF |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:44 |
8.9 |
8.3 |
32.9 |
26.5 |
4.7 |
6.0 |
|
||||||||||
CF |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
10.9 |
16:43 |
9.2 |
8.3 |
32.8 |
26.4 |
4.8 |
5.0 |
|
||||||||||
CF |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
10.9 |
16:43 |
9.2 |
8.2 |
32.8 |
26.4 |
5.0 |
4.0 |
|
||||||||||
CF |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
20.8 |
16:42 |
9.2 |
8.3 |
32.9 |
26.5 |
4.8 |
4.0 |
|
||||||||||
CF |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
20.8 |
16:42 |
9.3 |
8.3 |
32.9 |
26.5 |
5.0 |
2.5 |
|
||||||||||
WSR01 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:04 |
8.9 |
8.3 |
33.2 |
26.4 |
3.5 |
2.5 |
|
||||||||||
WSR01 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:04 |
8.7 |
8.3 |
33.2 |
26.5 |
3.4 |
2.5 |
|
||||||||||
WSR01 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.4 |
17:03 |
9.0 |
8.3 |
33.2 |
26.5 |
3.1 |
2.5 |
|
||||||||||
WSR01 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.4 |
17:03 |
8.8 |
8.3 |
33.3 |
26.5 |
2.6 |
2.5 |
|
||||||||||
WSR01 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
7.7 |
17:02 |
8.8 |
8.3 |
33.3 |
26.4 |
2.9 |
3.0 |
|
||||||||||
WSR01 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
7.7 |
17:02 |
8.8 |
8.2 |
33.3 |
26.5 |
2.6 |
2.5 |
|
||||||||||
WSR02 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:19 |
9.1 |
8.1 |
32.5 |
26.6 |
3.4 |
2.5 |
|
||||||||||
WSR02 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:19 |
9.2 |
8.2 |
32.5 |
26.6 |
2.9 |
2.5 |
|
||||||||||
WSR02 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.6 |
17:18 |
9.3 |
8.1 |
32.6 |
26.7 |
3.2 |
2.5 |
|
||||||||||
WSR02 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.6 |
17:18 |
9.3 |
8.2 |
32.6 |
26.7 |
3.2 |
2.5 |
|
||||||||||
WSR02 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
8.2 |
17:17 |
9.3 |
8.1 |
32.6 |
26.7 |
2.1 |
2.5 |
|
||||||||||
WSR02 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
8.2 |
17:17 |
9.3 |
8.2 |
32.5 |
26.6 |
2.5 |
3.0 |
|
||||||||||
WSR03 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:29 |
8.7 |
8.2 |
32.8 |
25.9 |
4.3 |
2.5 |
|
||||||||||
WSR03 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:29 |
8.6 |
8.3 |
32.8 |
26.0 |
4.0 |
2.5 |
|
||||||||||
WSR03 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.0 |
17:28 |
8.8 |
8.3 |
32.8 |
26.0 |
3.9 |
3.0 |
|
||||||||||
WSR03 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.0 |
17:28 |
8.6 |
8.3 |
32.7 |
25.9 |
3.6 |
2.5 |
|
||||||||||
WSR03 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
7.0 |
17:27 |
8.8 |
8.3 |
32.7 |
25.9 |
3.3 |
2.5 |
|
||||||||||
WSR03 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
7.0 |
17:27 |
8.7 |
8.3 |
32.7 |
25.9 |
3.2 |
3.0 |
|
||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
|||||||||||
WSR04 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:40 |
9.1 |
8.2 |
32.3 |
26.2 |
4.2 |
4.0 |
|
||||||||||
WSR04 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:40 |
9.2 |
8.2 |
32.4 |
26.2 |
4.0 |
2.5 |
|
||||||||||
WSR04 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.8 |
17:39 |
9.2 |
8.2 |
32.5 |
26.1 |
3.8 |
3.0 |
|
||||||||||
WSR04 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.8 |
17:39 |
9.4 |
8.2 |
32.4 |
26.1 |
3.5 |
2.5 |
|
||||||||||
WSR04 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.6 |
17:38 |
9.3 |
8.2 |
32.5 |
26.1 |
3.0 |
2.5 |
|
||||||||||
WSR04 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.6 |
17:38 |
9.3 |
8.2 |
32.5 |
26.2 |
3.2 |
3.0 |
|
||||||||||
WSR16 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:36 |
9.7 |
8.3 |
33.3 |
26.7 |
3.5 |
3.0 |
|
||||||||||
WSR16 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:36 |
9.6 |
8.2 |
33.2 |
26.8 |
3.9 |
2.5 |
|
||||||||||
WSR16 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
7.6 |
18:35 |
9.7 |
8.2 |
33.2 |
26.6 |
3.3 |
2.5 |
|
||||||||||
WSR16 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
7.6 |
18:35 |
9.6 |
8.2 |
33.2 |
26.7 |
3.3 |
3.0 |
|
||||||||||
WSR16 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
14.2 |
18:34 |
9.8 |
8.2 |
33.3 |
26.7 |
3.4 |
2.5 |
|
||||||||||
WSR16 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
14.2 |
18:34 |
9.6 |
8.3 |
33.3 |
26.7 |
3.2 |
2.5 |
|
||||||||||
WSR33 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:53 |
9.2 |
8.2 |
32.8 |
26.5 |
3.7 |
3.0 |
|
||||||||||
WSR33 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:53 |
9.1 |
8.2 |
32.9 |
26.4 |
3.5 |
2.5 |
|
||||||||||
WSR33 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.8 |
17:52 |
9.2 |
8.2 |
32.9 |
26.5 |
3.4 |
2.5 |
|
||||||||||
WSR33 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.8 |
17:52 |
9.2 |
8.1 |
32.8 |
26.5 |
3.4 |
4.0 |
|
||||||||||
WSR33 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.5 |
17:51 |
9.0 |
8.1 |
32.9 |
26.4 |
3.1 |
6.0 |
|
||||||||||
WSR33 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.5 |
17:51 |
9.2 |
8.2 |
32.8 |
26.6 |
3.6 |
6.0 |
|
||||||||||
WSR36 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:05 |
9.8 |
8.2 |
32.5 |
26.2 |
3.5 |
7.0 |
|
||||||||||
WSR36 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:05 |
9.8 |
8.2 |
32.5 |
26.4 |
3.7 |
5.0 |
|
||||||||||
WSR36 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.6 |
18:05 |
9.8 |
8.1 |
32.4 |
26.2 |
3.1 |
4.0 |
|
||||||||||
WSR36 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.6 |
18:05 |
9.8 |
8.2 |
32.4 |
26.4 |
3.5 |
3.0 |
|
||||||||||
WSR36 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.2 |
18:04 |
9.7 |
8.2 |
32.5 |
26.3 |
2.7 |
5.0 |
|
||||||||||
WSR36 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.2 |
18:04 |
9.8 |
8.2 |
32.5 |
26.2 |
2.7 |
5.0 |
|
||||||||||
WSR37 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:19 |
9.6 |
8.1 |
33.5 |
26.3 |
4.2 |
3.0 |
|
||||||||||
WSR37 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:19 |
9.4 |
8.2 |
33.6 |
26.5 |
4.3 |
3.0 |
|
||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
|||||||||||
WSR37 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.8 |
18:18 |
9.7 |
8.2 |
33.5 |
26.4 |
3.3 |
2.5 |
|
||||||||||
WSR37 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.8 |
18:18 |
9.6 |
8.2 |
33.6 |
26.3 |
3.7 |
2.5 |
|
||||||||||
WSR37 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.6 |
18:17 |
9.7 |
8.2 |
33.4 |
26.3 |
3.5 |
2.5 |
|
||||||||||
WSR37 |
20220517 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.6 |
18:17 |
9.7 |
8.2 |
33.4 |
26.4 |
3.1 |
4.0 |
|
||||||||||
CE |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:38 |
8.6 |
8.0 |
31.1 |
25.6 |
3.1 |
2.5 |
|
||||||||||
CE |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:38 |
8.6 |
7.9 |
31.1 |
25.6 |
2.8 |
3.0 |
|
||||||||||
CE |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
11.6 |
10:37 |
8.7 |
8.0 |
31.1 |
25.6 |
2.9 |
2.5 |
|
||||||||||
CE |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
11.6 |
10:37 |
8.6 |
8.0 |
31.1 |
25.8 |
2.9 |
2.5 |
|
||||||||||
CE |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
22.1 |
10:36 |
8.6 |
8.0 |
31.1 |
25.7 |
3.1 |
2.5 |
|
||||||||||
CE |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
22.1 |
10:36 |
8.7 |
8.1 |
31.1 |
25.6 |
3.3 |
2.5 |
|
||||||||||
CF |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:02 |
9.4 |
8.1 |
31.2 |
26.0 |
3.5 |
2.5 |
|
||||||||||
CF |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:02 |
9.4 |
8.2 |
31.3 |
25.9 |
3.5 |
2.5 |
|
||||||||||
CF |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
9.5 |
8:01 |
9.4 |
8.2 |
31.4 |
26.0 |
3.6 |
2.5 |
|
||||||||||
CF |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
9.5 |
8:01 |
9.5 |
8.1 |
31.4 |
26.0 |
3.8 |
2.5 |
|
||||||||||
CF |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
18.0 |
8:00 |
9.4 |
8.1 |
31.2 |
25.9 |
3.9 |
2.5 |
|
||||||||||
CF |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
18.0 |
8:00 |
9.4 |
8.1 |
31.3 |
26.0 |
3.8 |
4.0 |
|
||||||||||
WSR01 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:25 |
8.9 |
7.9 |
30.4 |
25.7 |
2.9 |
2.5 |
|
||||||||||
WSR01 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:25 |
9.2 |
7.9 |
30.4 |
25.8 |
2.6 |
2.5 |
|
||||||||||
WSR01 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.5 |
8:24 |
9.0 |
8.0 |
30.6 |
25.8 |
2.5 |
2.5 |
|
||||||||||
WSR01 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.5 |
8:24 |
9.0 |
7.9 |
30.6 |
25.8 |
2.5 |
3.0 |
|
||||||||||
WSR01 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
8.0 |
8:23 |
9.1 |
7.9 |
30.5 |
25.7 |
2.1 |
2.5 |
|
||||||||||
WSR01 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
8.0 |
8:23 |
9.0 |
8.0 |
30.5 |
25.7 |
2.3 |
3.0 |
|
||||||||||
WSR02 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:43 |
9.6 |
8.2 |
30.5 |
26.1 |
2.1 |
2.5 |
|
||||||||||
WSR02 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:43 |
9.6 |
8.2 |
30.4 |
26.0 |
1.8 |
2.5 |
|
||||||||||
WSR02 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.8 |
8:42 |
9.5 |
8.2 |
30.3 |
26.0 |
2.0 |
5.0 |
|
||||||||||
WSR02 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.8 |
8:42 |
9.4 |
8.2 |
30.3 |
26.0 |
2.0 |
3.0 |
|
||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
|||||||||||
WSR02 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
8.6 |
8:41 |
9.4 |
8.2 |
30.4 |
26.1 |
2.1 |
4.0 |
|
||||||||||
WSR02 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
8.6 |
8:41 |
9.3 |
8.2 |
30.3 |
26.1 |
2.2 |
6.0 |
|
||||||||||
WSR03 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:55 |
8.8 |
8.1 |
30.7 |
25.9 |
2.2 |
3.0 |
|
||||||||||
WSR03 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:55 |
8.7 |
8.2 |
31.0 |
25.9 |
2.1 |
5.0 |
|
||||||||||
WSR03 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.2 |
8:54 |
8.6 |
8.1 |
30.8 |
25.8 |
2.2 |
3.0 |
|
||||||||||
WSR03 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.2 |
8:54 |
8.8 |
8.1 |
31.0 |
25.8 |
2.4 |
5.0 |
|
||||||||||
WSR03 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
7.4 |
8:53 |
8.6 |
8.0 |
30.8 |
25.8 |
2.3 |
4.0 |
|
||||||||||
WSR03 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
7.4 |
8:53 |
8.9 |
8.1 |
30.9 |
25.9 |
2.2 |
3.0 |
|
||||||||||
WSR04 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:08 |
9.2 |
8.2 |
31.5 |
26.1 |
2.6 |
2.5 |
|
||||||||||
WSR04 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:08 |
9.1 |
8.1 |
31.3 |
26.0 |
2.3 |
4.0 |
|
||||||||||
WSR04 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.7 |
9:07 |
9.1 |
8.1 |
31.3 |
26.0 |
2.7 |
3.0 |
|
||||||||||
WSR04 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.7 |
9:07 |
9.2 |
8.2 |
31.4 |
25.9 |
2.5 |
3.0 |
|
||||||||||
WSR04 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.3 |
9:06 |
9.2 |
8.2 |
31.4 |
26.0 |
2.5 |
3.0 |
|
||||||||||
WSR04 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.3 |
9:06 |
9.2 |
8.2 |
31.4 |
25.9 |
2.2 |
4.0 |
|
||||||||||
WSR16 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:13 |
8.7 |
8.1 |
31.5 |
26.2 |
3.3 |
3.0 |
|
||||||||||
WSR16 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:13 |
8.6 |
8.1 |
31.4 |
26.3 |
3.4 |
5.0 |
|
||||||||||
WSR16 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
7.8 |
10:12 |
8.7 |
8.1 |
31.5 |
26.4 |
2.6 |
2.5 |
|
||||||||||
WSR16 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
7.8 |
10:12 |
8.6 |
8.1 |
31.4 |
26.4 |
2.5 |
3.0 |
|
||||||||||
WSR16 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
14.5 |
10:11 |
8.7 |
8.2 |
31.4 |
26.3 |
3.0 |
4.0 |
|
||||||||||
WSR16 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
14.5 |
10:11 |
8.7 |
8.2 |
31.6 |
26.4 |
2.7 |
6.0 |
|
||||||||||
WSR33 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:22 |
8.8 |
8.0 |
30.8 |
26.3 |
2.7 |
5.0 |
|
||||||||||
WSR33 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:22 |
8.7 |
8.0 |
30.7 |
26.4 |
2.7 |
5.0 |
|
||||||||||
WSR33 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.7 |
9:21 |
8.8 |
8.0 |
30.7 |
26.3 |
2.5 |
4.0 |
|
||||||||||
WSR33 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.7 |
9:21 |
8.8 |
8.0 |
30.9 |
26.4 |
2.3 |
5.0 |
|
||||||||||
WSR33 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.3 |
9:20 |
8.8 |
8.0 |
30.8 |
26.4 |
2.3 |
5.0 |
|
||||||||||
WSR33 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
6.3 |
9:20 |
8.7 |
8.0 |
30.7 |
26.3 |
2.3 |
5.0 |
|
||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||
WSR36 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:35 |
8.7 |
8.1 |
31.3 |
25.9 |
2.9 |
6.0 |
|
|||||
WSR36 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:35 |
8.9 |
8.1 |
31.1 |
25.7 |
3.2 |
6.0 |
|
|||||
WSR36 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.5 |
9:35 |
8.7 |
8.1 |
31.1 |
25.9 |
2.3 |
5.0 |
|
|||||
WSR36 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
3.5 |
9:35 |
8.9 |
8.1 |
31.3 |
25.7 |
2.4 |
4.0 |
|
|||||
WSR36 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
5.9 |
9:34 |
8.7 |
8.1 |
31.1 |
25.7 |
2.4 |
4.0 |
|
|||||
WSR36 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
5.9 |
9:34 |
8.6 |
8.1 |
31.2 |
25.8 |
2.2 |
3.0 |
|
|||||
WSR37 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:50 |
8.8 |
8.1 |
30.7 |
25.8 |
2.7 |
3.0 |
|
|||||
WSR37 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:50 |
8.8 |
8.2 |
30.7 |
25.8 |
3.0 |
6.0 |
|
|||||
WSR37 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.0 |
9:49 |
8.8 |
8.2 |
30.6 |
25.6 |
2.5 |
8.0 |
|
|||||
WSR37 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Middle |
4.0 |
9:49 |
8.8 |
8.2 |
30.7 |
25.8 |
2.7 |
5.0 |
|
|||||
WSR37 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
7.0 |
9:48 |
8.9 |
8.2 |
30.7 |
25.7 |
2.0 |
3.0 |
|
|||||
WSR37 |
20220519 |
Sunny |
Moderate |
Mid-Flood |
Bottom |
7.0 |
9:48 |
8.9 |
8.2 |
30.7 |
25.7 |
2.1 |
5.0 |
|
|||||
CE |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:46 |
8.4 |
8.1 |
33.6 |
25.3 |
3.3 |
2.5 |
|
|||||
CE |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:46 |
8.7 |
8.1 |
33.4 |
25.2 |
3.3 |
2.5 |
|
|||||
CE |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
12.4 |
10:45 |
8.5 |
8.0 |
33.6 |
25.2 |
3.1 |
2.5 |
|
|||||
CE |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
12.4 |
10:45 |
8.5 |
8.1 |
33.7 |
25.4 |
3.1 |
2.5 |
|
|||||
CE |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
23.7 |
10:44 |
8.6 |
8.1 |
33.4 |
25.2 |
3.4 |
3.0 |
|
|||||
CE |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
23.7 |
10:44 |
8.4 |
8.1 |
33.5 |
25.1 |
3.3 |
3.0 |
|
|||||
CF |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:02 |
8.8 |
8.2 |
33.0 |
25.4 |
4.1 |
3.0 |
|
|||||
CF |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:02 |
9.0 |
8.2 |
32.9 |
25.6 |
4.2 |
3.0 |
|
|||||
CF |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.3 |
8:01 |
8.9 |
8.2 |
32.8 |
25.4 |
3.9 |
3.0 |
|
|||||
CF |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.3 |
8:01 |
9.0 |
8.2 |
32.9 |
25.7 |
3.8 |
4.0 |
|
|||||
CF |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
19.6 |
8:00 |
8.9 |
8.2 |
32.7 |
25.5 |
4.4 |
2.5 |
|
|||||
CF |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
19.6 |
8:00 |
8.8 |
8.2 |
32.8 |
25.7 |
4.3 |
4.0 |
|
|||||
WSR01 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:26 |
9.5 |
8.1 |
33.4 |
25.2 |
2.7 |
2.5 |
|
|||||
WSR01 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:26 |
9.5 |
8.1 |
33.7 |
25.3 |
3.1 |
2.5 |
|
|||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||
WSR01 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.8 |
8:25 |
9.4 |
8.0 |
33.7 |
25.0 |
2.8 |
3.0 |
|
|||||||
WSR01 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.8 |
8:25 |
9.4 |
8.0 |
33.5 |
25.3 |
3.2 |
5.0 |
|
|||||||
WSR01 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.5 |
8:24 |
9.4 |
8.1 |
33.7 |
25.3 |
2.6 |
3.0 |
|
|||||||
WSR01 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.5 |
8:24 |
9.4 |
8.1 |
33.8 |
25.0 |
2.4 |
3.0 |
|
|||||||
WSR02 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:45 |
8.9 |
8.2 |
33.2 |
25.0 |
3.5 |
3.0 |
|
|||||||
WSR02 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:45 |
9.0 |
8.2 |
33.3 |
25.1 |
3.6 |
2.5 |
|
|||||||
WSR02 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.9 |
8:44 |
8.9 |
8.2 |
33.3 |
25.0 |
3.3 |
3.0 |
|
|||||||
WSR02 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.9 |
8:44 |
8.9 |
8.2 |
33.4 |
25.0 |
3.6 |
2.5 |
|
|||||||
WSR02 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.7 |
8:43 |
8.9 |
8.2 |
33.6 |
24.9 |
3.3 |
2.5 |
|
|||||||
WSR02 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.7 |
8:43 |
9.0 |
8.2 |
33.5 |
25.1 |
3.3 |
2.5 |
|
|||||||
WSR03 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:59 |
8.8 |
8.1 |
32.5 |
25.5 |
3.9 |
3.0 |
|
|||||||
WSR03 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
8:59 |
8.8 |
8.1 |
32.5 |
25.5 |
3.6 |
3.0 |
|
|||||||
WSR03 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.9 |
8:58 |
8.8 |
8.1 |
32.6 |
25.5 |
3.0 |
3.0 |
|
|||||||
WSR03 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.9 |
8:58 |
8.9 |
8.1 |
32.7 |
25.4 |
3.6 |
3.0 |
|
|||||||
WSR03 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.7 |
8:57 |
8.8 |
8.1 |
32.4 |
25.5 |
3.4 |
3.0 |
|
|||||||
WSR03 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.7 |
8:57 |
9.0 |
8.1 |
32.6 |
25.5 |
3.0 |
3.0 |
|
|||||||
WSR04 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:15 |
9.0 |
8.1 |
33.6 |
25.2 |
3.6 |
3.0 |
|
|||||||
WSR04 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:15 |
9.1 |
8.1 |
33.6 |
25.4 |
3.4 |
2.5 |
|
|||||||
WSR04 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.4 |
9:14 |
9.1 |
8.1 |
33.6 |
25.2 |
3.5 |
3.0 |
|
|||||||
WSR04 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.4 |
9:14 |
8.9 |
8.1 |
33.5 |
25.3 |
3.0 |
2.5 |
|
|||||||
WSR04 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
5.7 |
9:13 |
9.0 |
8.1 |
33.6 |
25.2 |
3.4 |
4.0 |
|
|||||||
WSR04 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
5.7 |
9:13 |
9.0 |
8.1 |
33.7 |
25.3 |
2.9 |
3.0 |
|
|||||||
WSR16 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:22 |
8.4 |
8.2 |
33.6 |
25.5 |
3.3 |
4.0 |
|
|||||||
WSR16 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
10:22 |
8.5 |
8.2 |
33.5 |
25.7 |
3.6 |
2.5 |
|
|||||||
WSR16 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
8.6 |
10:21 |
8.4 |
8.2 |
33.6 |
25.5 |
3.7 |
3.0 |
|
|||||||
WSR16 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
8.6 |
10:21 |
8.6 |
8.1 |
33.5 |
25.7 |
3.4 |
2.5 |
|
|||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||
WSR16 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
16.2 |
10:20 |
8.6 |
8.2 |
33.5 |
25.5 |
2.9 |
3.0 |
|
|||||
WSR16 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
16.2 |
10:20 |
8.4 |
8.2 |
33.4 |
25.6 |
2.8 |
4.0 |
|
|||||
WSR33 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:29 |
8.6 |
8.0 |
32.8 |
25.6 |
3.0 |
3.0 |
|
|||||
WSR33 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:29 |
8.4 |
8.0 |
32.7 |
25.6 |
3.3 |
4.0 |
|
|||||
WSR33 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.9 |
9:28 |
8.4 |
8.0 |
32.7 |
25.5 |
2.5 |
6.0 |
|
|||||
WSR33 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.9 |
9:28 |
8.6 |
8.0 |
32.9 |
25.4 |
2.4 |
6.0 |
|
|||||
WSR33 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.7 |
9:27 |
8.5 |
8.0 |
32.8 |
25.5 |
2.8 |
7.0 |
|
|||||
WSR33 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.7 |
9:27 |
8.4 |
8.0 |
32.8 |
25.4 |
2.8 |
5.0 |
|
|||||
WSR36 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:42 |
8.6 |
8.1 |
33.1 |
25.1 |
2.8 |
6.0 |
|
|||||
WSR36 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:42 |
8.6 |
8.1 |
33.1 |
25.0 |
3.0 |
4.0 |
|
|||||
WSR36 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
9:42 |
8.6 |
8.1 |
33.1 |
25.1 |
3.0 |
7.0 |
|
|||||
WSR36 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
9:42 |
8.4 |
8.1 |
33.0 |
25.2 |
2.8 |
6.0 |
|
|||||
WSR36 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.5 |
9:41 |
8.7 |
8.1 |
33.2 |
25.2 |
2.6 |
4.0 |
|
|||||
WSR36 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.5 |
9:41 |
8.6 |
8.1 |
33.0 |
25.1 |
3.1 |
5.0 |
|
|||||
WSR37 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:59 |
9.3 |
8.1 |
32.8 |
25.3 |
3.7 |
7.0 |
|
|||||
WSR37 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
9:59 |
9.4 |
8.1 |
32.9 |
25.4 |
3.6 |
7.0 |
|
|||||
WSR37 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.2 |
9:58 |
9.4 |
8.1 |
32.9 |
25.3 |
3.6 |
4.0 |
|
|||||
WSR37 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.2 |
9:58 |
9.1 |
8.0 |
33.0 |
25.3 |
3.3 |
2.5 |
|
|||||
WSR37 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.4 |
9:57 |
9.2 |
8.0 |
33.0 |
25.4 |
3.1 |
2.5 |
|
|||||
WSR37 |
20220521 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.4 |
9:57 |
9.3 |
8.1 |
33.0 |
25.2 |
2.9 |
2.5 |
|
|||||
CE |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:02 |
9.0 |
8.2 |
32.4 |
25.2 |
3.1 |
2.5 |
|
|||||
CE |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:02 |
9.2 |
8.1 |
32.4 |
25.2 |
2.8 |
2.5 |
|
|||||
CE |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
11.6 |
14:01 |
9.0 |
8.1 |
32.6 |
24.9 |
2.9 |
2.5 |
|
|||||
CE |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
11.6 |
14:01 |
9.0 |
8.1 |
32.7 |
25.1 |
2.8 |
3.0 |
|
|||||
CE |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
22.1 |
14:00 |
9.1 |
8.2 |
32.5 |
25.1 |
2.9 |
2.5 |
|
|||||
CE |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
22.1 |
14:00 |
9.1 |
8.2 |
32.4 |
25.1 |
3.2 |
2.5 |
|
|||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||
CF |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
11:26 |
8.9 |
8.1 |
32.4 |
24.9 |
3.4 |
2.5 |
|
|||||
CF |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
11:26 |
8.9 |
8.1 |
32.6 |
24.9 |
3.5 |
2.5 |
|
|||||
CF |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.8 |
11:25 |
9.1 |
8.2 |
32.7 |
25.0 |
3.8 |
2.5 |
|
|||||
CF |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.8 |
11:25 |
9.2 |
8.2 |
32.7 |
25.1 |
3.6 |
2.5 |
|
|||||
CF |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
20.6 |
11:24 |
8.8 |
8.1 |
32.5 |
25.1 |
4.0 |
2.5 |
|
|||||
CF |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
20.6 |
11:24 |
9.0 |
8.1 |
32.6 |
24.8 |
3.9 |
4.0 |
|
|||||
WSR01 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
11:50 |
9.3 |
8.2 |
32.4 |
25.6 |
2.9 |
2.5 |
|
|||||
WSR01 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
11:50 |
9.2 |
8.2 |
32.2 |
25.6 |
2.9 |
2.5 |
|
|||||
WSR01 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.7 |
11:49 |
9.1 |
8.2 |
32.3 |
25.5 |
2.4 |
3.0 |
|
|||||
WSR01 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.7 |
11:49 |
9.2 |
8.2 |
32.3 |
25.5 |
2.7 |
4.0 |
|
|||||
WSR01 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.3 |
11:48 |
9.3 |
8.3 |
32.4 |
25.5 |
2.1 |
3.0 |
|
|||||
WSR01 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.3 |
11:48 |
9.5 |
8.2 |
32.2 |
25.4 |
2.1 |
2.5 |
|
|||||
WSR02 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
12:08 |
9.3 |
8.2 |
32.5 |
25.4 |
3.1 |
4.0 |
|
|||||
WSR02 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
12:08 |
9.4 |
8.2 |
32.8 |
25.5 |
3.1 |
3.0 |
|
|||||
WSR02 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.9 |
12:07 |
9.3 |
8.2 |
32.7 |
25.5 |
2.9 |
3.0 |
|
|||||
WSR02 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.9 |
12:07 |
9.4 |
8.3 |
32.8 |
25.5 |
2.9 |
2.5 |
|
|||||
WSR02 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.8 |
12:06 |
9.5 |
8.2 |
32.5 |
25.4 |
2.1 |
3.0 |
|
|||||
WSR02 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.8 |
12:06 |
9.3 |
8.2 |
32.7 |
25.3 |
2.3 |
3.0 |
|
|||||
WSR03 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
12:21 |
9.7 |
8.3 |
32.2 |
25.0 |
2.7 |
3.0 |
|
|||||
WSR03 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
12:21 |
9.4 |
8.2 |
32.4 |
25.1 |
2.5 |
3.0 |
|
|||||
WSR03 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.2 |
12:20 |
9.7 |
8.3 |
32.2 |
25.2 |
1.9 |
3.0 |
|
|||||
WSR03 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.2 |
12:20 |
9.7 |
8.2 |
32.1 |
25.2 |
2.2 |
5.0 |
|
|||||
WSR03 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.4 |
12:19 |
9.4 |
8.3 |
32.5 |
25.0 |
2.3 |
2.5 |
|
|||||
WSR03 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.4 |
12:19 |
9.8 |
8.3 |
32.5 |
25.2 |
2.2 |
3.0 |
|
|||||
WSR04 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
12:35 |
8.7 |
8.2 |
32.9 |
25.0 |
2.6 |
3.0 |
|
|||||
WSR04 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
12:35 |
8.7 |
8.1 |
32.9 |
25.1 |
2.5 |
4.0 |
|
|||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||
WSR04 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.5 |
12:34 |
8.9 |
8.1 |
33.1 |
25.0 |
2.3 |
2.5 |
|
|||||
WSR04 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.5 |
12:34 |
8.7 |
8.2 |
33.2 |
25.0 |
2.2 |
3.0 |
|
|||||
WSR04 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.0 |
12:33 |
8.8 |
8.1 |
32.9 |
25.0 |
2.1 |
2.5 |
|
|||||
WSR04 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.0 |
12:33 |
8.9 |
8.1 |
33.2 |
25.0 |
2.0 |
2.5 |
|
|||||
WSR16 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:39 |
9.9 |
8.1 |
32.4 |
25.1 |
2.3 |
3.0 |
|
|||||
WSR16 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:39 |
9.6 |
8.1 |
32.3 |
25.1 |
2.7 |
2.5 |
|
|||||
WSR16 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
8.0 |
13:38 |
9.7 |
8.2 |
32.2 |
25.0 |
2.5 |
2.5 |
|
|||||
WSR16 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
8.0 |
13:38 |
9.9 |
8.1 |
32.3 |
25.0 |
2.5 |
3.0 |
|
|||||
WSR16 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
14.9 |
13:37 |
9.7 |
8.2 |
32.3 |
24.9 |
2.3 |
4.0 |
|
|||||
WSR16 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
14.9 |
13:37 |
9.6 |
8.1 |
32.4 |
24.8 |
2.3 |
2.5 |
|
|||||
WSR33 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
12:49 |
9.8 |
8.2 |
32.3 |
25.5 |
2.4 |
2.5 |
|
|||||
WSR33 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
12:49 |
9.5 |
8.1 |
32.5 |
25.8 |
2.6 |
2.5 |
|
|||||
WSR33 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
12:48 |
9.8 |
8.1 |
32.4 |
25.7 |
2.1 |
2.5 |
|
|||||
WSR33 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
12:48 |
9.7 |
8.2 |
32.2 |
25.8 |
2.5 |
3.0 |
|
|||||
WSR33 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.6 |
12:47 |
9.8 |
8.1 |
32.3 |
25.8 |
2.0 |
2.5 |
|
|||||
WSR33 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.6 |
12:47 |
9.7 |
8.2 |
32.2 |
25.5 |
2.3 |
2.5 |
|
|||||
WSR36 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:02 |
9.4 |
8.1 |
32.3 |
24.8 |
3.0 |
2.5 |
|
|||||
WSR36 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:02 |
9.6 |
8.2 |
32.1 |
25.0 |
2.8 |
4.0 |
|
|||||
WSR36 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.6 |
13:02 |
9.5 |
8.1 |
32.1 |
24.8 |
2.7 |
2.5 |
|
|||||
WSR36 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.6 |
13:02 |
9.3 |
8.2 |
32.2 |
25.0 |
2.3 |
2.5 |
|
|||||
WSR36 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.1 |
13:01 |
9.6 |
8.2 |
32.1 |
25.0 |
2.5 |
3.0 |
|
|||||
WSR36 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.1 |
13:01 |
9.5 |
8.2 |
32.1 |
24.9 |
2.3 |
4.0 |
|
|||||
WSR37 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:17 |
9.1 |
8.3 |
32.2 |
25.0 |
2.9 |
2.5 |
|
|||||
WSR37 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:17 |
8.9 |
8.3 |
32.4 |
25.0 |
3.2 |
4.0 |
|
|||||
WSR37 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.0 |
13:16 |
9.0 |
8.2 |
32.4 |
25.0 |
3.0 |
2.5 |
|
|||||
WSR37 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.0 |
13:16 |
9.1 |
8.3 |
32.3 |
25.0 |
2.8 |
2.5 |
|
|||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||
WSR37 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.9 |
13:15 |
8.9 |
8.2 |
32.1 |
25.0 |
2.7 |
2.5 |
|
|||||
WSR37 |
20220524 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.9 |
13:15 |
8.8 |
8.3 |
32.1 |
24.7 |
3.0 |
2.5 |
|
|||||
CE |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:37 |
9.1 |
8.4 |
33.0 |
25.6 |
3.4 |
2.5 |
|
|||||
CE |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:37 |
9.1 |
8.3 |
33.0 |
25.7 |
3.3 |
2.5 |
|
|||||
CE |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
11.9 |
16:36 |
9.0 |
8.3 |
33.0 |
25.7 |
3.5 |
3.0 |
|
|||||
CE |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
11.9 |
16:36 |
9.0 |
8.4 |
32.9 |
25.6 |
3.5 |
3.0 |
|
|||||
CE |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
22.8 |
16:35 |
9.0 |
8.4 |
33.2 |
25.5 |
3.8 |
3.0 |
|
|||||
CE |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
22.8 |
16:35 |
9.0 |
8.3 |
33.0 |
25.7 |
3.7 |
3.0 |
|
|||||
CF |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:59 |
9.0 |
8.3 |
32.9 |
25.7 |
3.8 |
3.0 |
|
|||||
CF |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
13:59 |
9.0 |
8.3 |
32.8 |
25.6 |
3.9 |
3.0 |
|
|||||
CF |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.5 |
13:58 |
9.0 |
8.3 |
32.9 |
25.4 |
3.9 |
4.0 |
|
|||||
CF |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.5 |
13:58 |
9.1 |
8.3 |
33.0 |
25.5 |
3.9 |
3.0 |
|
|||||
CF |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
19.9 |
13:57 |
9.2 |
8.3 |
32.7 |
25.4 |
4.2 |
5.0 |
|
|||||
CF |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
19.9 |
13:57 |
9.0 |
8.3 |
32.8 |
25.5 |
4.1 |
5.0 |
|
|||||
WSR01 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:23 |
8.2 |
8.4 |
32.5 |
25.7 |
2.6 |
3.0 |
|
|||||
WSR01 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:23 |
8.3 |
8.3 |
32.6 |
25.7 |
2.9 |
4.0 |
|
|||||
WSR01 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.5 |
14:22 |
8.4 |
8.4 |
32.4 |
26.0 |
2.5 |
5.0 |
|
|||||
WSR01 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.5 |
14:22 |
8.3 |
8.3 |
32.6 |
25.9 |
2.2 |
5.0 |
|
|||||
WSR01 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.0 |
14:21 |
8.4 |
8.3 |
32.4 |
25.7 |
2.2 |
4.0 |
|
|||||
WSR01 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.0 |
14:21 |
8.4 |
8.3 |
32.6 |
25.9 |
2.3 |
4.0 |
|
|||||
WSR02 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:41 |
9.2 |
8.2 |
33.0 |
25.7 |
2.2 |
4.0 |
|
|||||
WSR02 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:41 |
9.1 |
8.2 |
32.9 |
25.9 |
1.9 |
6.0 |
|
|||||
WSR02 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
5.0 |
14:40 |
9.2 |
8.3 |
32.9 |
25.8 |
1.9 |
2.5 |
|
|||||
WSR02 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
5.0 |
14:40 |
9.0 |
8.3 |
33.0 |
25.9 |
2.0 |
2.5 |
|
|||||
WSR02 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.9 |
14:39 |
9.1 |
8.2 |
32.9 |
25.9 |
2.4 |
2.5 |
|
|||||
WSR02 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.9 |
14:39 |
9.0 |
8.2 |
32.8 |
25.9 |
2.2 |
3.0 |
|
|||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
R03 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:54 |
8.8 |
8.2 |
33.0 |
26.0 |
3.6 |
3.0 |
WSR03 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
14:54 |
8.8 |
8.2 |
33.0 |
26.0 |
3.4 |
3.0 |
WSR03 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.7 |
14:53 |
9.0 |
8.2 |
33.0 |
25.9 |
3.1 |
2.5 |
WSR03 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.7 |
14:53 |
8.9 |
8.2 |
33.0 |
25.9 |
2.6 |
3.0 |
WSR03 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.4 |
14:52 |
8.8 |
8.2 |
33.0 |
25.8 |
2.3 |
2.5 |
WSR03 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.4 |
14:52 |
8.8 |
8.2 |
33.0 |
25.7 |
2.4 |
2.5 |
WSR04 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:07 |
8.7 |
8.2 |
33.0 |
25.8 |
3.4 |
2.5 |
WSR04 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:07 |
8.6 |
8.3 |
33.2 |
25.8 |
3.0 |
2.5 |
WSR04 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.6 |
15:06 |
8.7 |
8.3 |
33.0 |
25.6 |
2.7 |
2.5 |
WSR04 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.6 |
15:06 |
8.6 |
8.3 |
33.2 |
25.8 |
2.8 |
2.5 |
WSR04 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.2 |
15:05 |
8.7 |
8.3 |
33.0 |
25.8 |
3.2 |
2.5 |
WSR04 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.2 |
15:05 |
8.8 |
8.3 |
33.1 |
25.7 |
2.8 |
3.0 |
WSR16 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:13 |
8.2 |
8.3 |
32.7 |
25.6 |
3.0 |
3.0 |
WSR16 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:13 |
8.4 |
8.2 |
33.0 |
25.4 |
3.1 |
2.5 |
WSR16 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
7.7 |
16:12 |
8.3 |
8.2 |
32.9 |
25.5 |
2.8 |
2.5 |
WSR16 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
7.7 |
16:12 |
8.3 |
8.2 |
32.7 |
25.5 |
2.6 |
3.0 |
WSR16 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
14.3 |
16:11 |
8.3 |
8.2 |
32.7 |
25.5 |
2.3 |
4.0 |
WSR16 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
14.3 |
16:11 |
8.4 |
8.2 |
32.8 |
25.6 |
2.3 |
4.0 |
WSR33 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:21 |
8.6 |
8.3 |
32.3 |
26.0 |
2.6 |
2.5 |
WSR33 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:21 |
8.6 |
8.3 |
32.5 |
26.0 |
2.6 |
4.0 |
WSR33 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.5 |
15:20 |
8.7 |
8.3 |
32.3 |
26.2 |
2.5 |
2.5 |
WSR33 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.5 |
15:20 |
8.7 |
8.3 |
32.4 |
26.0 |
2.5 |
3.0 |
WSR33 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.0 |
15:19 |
8.6 |
8.2 |
32.4 |
26.2 |
2.6 |
3.0 |
WSR33 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.0 |
15:19 |
8.5 |
8.3 |
32.5 |
26.2 |
2.4 |
2.5 |
WSR36 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:34 |
9.2 |
8.4 |
32.6 |
25.8 |
3.2 |
2.5 |
WSR36 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:34 |
9.2 |
8.3 |
32.6 |
25.8 |
3.3 |
3.0 |
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||
WSR36 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
15:34 |
9.0 |
8.4 |
32.5 |
25.9 |
2.6 |
4.0 |
|
|||||
WSR36 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
15:34 |
9.1 |
8.3 |
32.5 |
25.7 |
2.5 |
4.0 |
|
|||||
WSR36 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.6 |
15:33 |
9.0 |
8.3 |
32.3 |
25.7 |
2.5 |
2.5 |
|
|||||
WSR36 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.6 |
15:33 |
9.1 |
8.4 |
32.4 |
25.8 |
2.6 |
4.0 |
|
|||||
WSR37 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:50 |
8.5 |
8.2 |
32.7 |
26.0 |
2.5 |
3.0 |
|
|||||
WSR37 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:50 |
8.5 |
8.2 |
32.9 |
25.8 |
2.3 |
4.0 |
|
|||||
WSR37 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.2 |
15:49 |
8.6 |
8.3 |
32.8 |
26.0 |
2.2 |
4.0 |
|
|||||
WSR37 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.2 |
15:49 |
8.5 |
8.2 |
32.8 |
25.9 |
2.3 |
4.0 |
|
|||||
WSR37 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.4 |
15:48 |
8.5 |
8.3 |
32.9 |
26.0 |
1.9 |
4.0 |
|
|||||
WSR37 |
20220526 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.4 |
15:48 |
8.5 |
8.3 |
32.7 |
26.0 |
2.2 |
2.5 |
|
|||||
CE |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:26 |
8.8 |
8.4 |
33.0 |
26.2 |
3.1 |
2.5 |
|
|||||
CE |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:26 |
8.9 |
8.3 |
33.0 |
26.1 |
3.1 |
3.0 |
|
|||||
CE |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.1 |
18:25 |
8.8 |
8.4 |
32.9 |
26.1 |
3.2 |
3.0 |
|
|||||
CE |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.1 |
18:25 |
8.9 |
8.3 |
33.1 |
26.3 |
3.1 |
4.0 |
|
|||||
CE |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
19.2 |
18:24 |
8.8 |
8.4 |
33.0 |
26.2 |
3.3 |
2.5 |
|
|||||
CE |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
19.2 |
18:24 |
8.8 |
8.3 |
32.9 |
26.1 |
3.4 |
2.5 |
|
|||||
CF |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:54 |
8.1 |
8.4 |
33.0 |
25.6 |
3.8 |
3.0 |
|
|||||
CF |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
15:54 |
8.2 |
8.3 |
32.9 |
25.6 |
3.9 |
3.0 |
|
|||||
CF |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.5 |
15:53 |
8.0 |
8.3 |
33.1 |
25.7 |
4.1 |
2.5 |
|
|||||
CF |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.5 |
15:53 |
8.1 |
8.3 |
33.0 |
25.6 |
4.0 |
3.0 |
|
|||||
CF |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
19.9 |
15:52 |
8.0 |
8.3 |
33.1 |
25.6 |
4.1 |
6.0 |
|
|||||
CF |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
19.9 |
15:52 |
8.1 |
8.4 |
32.9 |
25.7 |
4.3 |
6.0 |
|
|||||
WSR01 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:16 |
8.0 |
8.2 |
33.2 |
26.2 |
3.8 |
3.0 |
|
|||||
WSR01 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:16 |
8.1 |
8.2 |
33.1 |
26.2 |
3.8 |
3.0 |
|
|||||
WSR01 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.6 |
16:15 |
8.1 |
8.1 |
33.4 |
26.3 |
3.5 |
3.0 |
|
|||||
WSR01 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.6 |
16:15 |
8.1 |
8.2 |
33.2 |
26.2 |
3.4 |
6.0 |
|
|||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||
WSR01 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.2 |
16:14 |
8.1 |
8.2 |
33.1 |
26.1 |
3.5 |
2.5 |
|
|||||
WSR01 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.2 |
16:14 |
8.1 |
8.1 |
33.1 |
26.2 |
3.3 |
3.0 |
|
|||||
WSR02 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:33 |
8.8 |
8.3 |
32.8 |
25.8 |
2.1 |
2.5 |
|
|||||
WSR02 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:33 |
8.8 |
8.4 |
32.6 |
25.7 |
2.0 |
3.0 |
|
|||||
WSR02 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.9 |
16:32 |
8.8 |
8.4 |
32.7 |
25.7 |
2.4 |
3.0 |
|
|||||
WSR02 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.9 |
16:32 |
8.8 |
8.4 |
32.7 |
25.8 |
2.3 |
4.0 |
|
|||||
WSR02 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.8 |
16:31 |
8.8 |
8.4 |
32.7 |
25.8 |
2.3 |
4.0 |
|
|||||
WSR02 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.8 |
16:31 |
8.8 |
8.4 |
32.8 |
25.8 |
2.6 |
3.0 |
|
|||||
WSR03 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:45 |
9.1 |
8.2 |
33.1 |
25.6 |
2.7 |
3.0 |
|
|||||
WSR03 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:45 |
9.0 |
8.3 |
33.2 |
25.6 |
2.7 |
3.0 |
|
|||||
WSR03 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
16:44 |
9.1 |
8.2 |
33.2 |
25.6 |
2.6 |
3.0 |
|
|||||
WSR03 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
16:44 |
9.0 |
8.3 |
33.1 |
25.6 |
2.8 |
4.0 |
|
|||||
WSR03 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.6 |
16:43 |
9.1 |
8.3 |
33.1 |
25.7 |
2.3 |
4.0 |
|
|||||
WSR03 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.6 |
16:43 |
9.0 |
8.3 |
33.1 |
25.6 |
2.0 |
3.0 |
|
|||||
WSR04 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:59 |
8.5 |
8.2 |
32.4 |
26.2 |
2.9 |
5.0 |
|
|||||
WSR04 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:59 |
8.4 |
8.2 |
32.6 |
26.1 |
2.7 |
4.0 |
|
|||||
WSR04 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.5 |
16:58 |
8.3 |
8.3 |
32.5 |
26.2 |
2.3 |
3.0 |
|
|||||
WSR04 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.5 |
16:58 |
8.5 |
8.2 |
32.6 |
26.2 |
2.7 |
3.0 |
|
|||||
WSR04 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
5.9 |
16:57 |
8.4 |
8.2 |
32.5 |
26.3 |
2.2 |
2.5 |
|
|||||
WSR04 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
5.9 |
16:57 |
8.5 |
8.2 |
32.6 |
26.3 |
2.0 |
4.0 |
|
|||||
WSR16 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:03 |
8.8 |
8.2 |
32.6 |
26.2 |
3.6 |
4.0 |
|
|||||
WSR16 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:03 |
8.8 |
8.2 |
32.5 |
26.1 |
3.7 |
3.0 |
|
|||||
WSR16 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
7.6 |
18:02 |
8.7 |
8.2 |
32.6 |
26.2 |
3.4 |
3.0 |
|
|||||
WSR16 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
7.6 |
18:02 |
8.8 |
8.2 |
32.4 |
26.2 |
3.2 |
4.0 |
|
|||||
WSR16 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
14.2 |
18:01 |
8.8 |
8.2 |
32.6 |
26.1 |
2.5 |
3.0 |
|
|||||
WSR16 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
14.2 |
18:01 |
8.8 |
8.1 |
32.6 |
26.3 |
2.5 |
2.5 |
|
|||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||
WSR33 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:13 |
8.9 |
8.2 |
32.9 |
25.7 |
3.2 |
2.5 |
|
|||||
WSR33 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:13 |
8.9 |
8.2 |
33.0 |
25.8 |
3.6 |
3.0 |
|
|||||
WSR33 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.6 |
17:12 |
8.9 |
8.3 |
32.9 |
25.8 |
3.6 |
5.0 |
|
|||||
WSR33 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.6 |
17:12 |
8.8 |
8.3 |
33.1 |
25.8 |
3.5 |
3.0 |
|
|||||
WSR33 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.2 |
17:11 |
8.8 |
8.2 |
32.9 |
25.8 |
3.1 |
3.0 |
|
|||||
WSR33 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.2 |
17:11 |
8.7 |
8.2 |
32.9 |
25.8 |
3.1 |
3.0 |
|
|||||
WSR36 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:26 |
8.9 |
8.2 |
33.1 |
25.9 |
3.5 |
3.0 |
|
|||||
WSR36 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:26 |
8.8 |
8.2 |
32.9 |
25.9 |
3.6 |
3.0 |
|
|||||
WSR36 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.2 |
17:26 |
8.9 |
8.2 |
32.9 |
26.0 |
3.6 |
4.0 |
|
|||||
WSR36 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.2 |
17:26 |
8.8 |
8.1 |
32.9 |
26.0 |
3.2 |
5.0 |
|
|||||
WSR36 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
5.3 |
17:25 |
8.9 |
8.1 |
32.8 |
26.0 |
3.1 |
3.0 |
|
|||||
WSR36 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
5.3 |
17:25 |
8.8 |
8.1 |
33.1 |
26.0 |
3.3 |
4.0 |
|
|||||
WSR37 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:41 |
8.5 |
8.3 |
33.4 |
26.1 |
2.9 |
4.0 |
|
|||||
WSR37 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:41 |
8.6 |
8.3 |
33.3 |
26.1 |
3.0 |
5.0 |
|
|||||
WSR37 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.1 |
17:40 |
8.6 |
8.3 |
33.2 |
26.1 |
2.9 |
5.0 |
|
|||||
WSR37 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.1 |
17:40 |
8.6 |
8.3 |
33.2 |
26.1 |
2.6 |
5.0 |
|
|||||
WSR37 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.1 |
17:39 |
8.5 |
8.3 |
33.2 |
26.1 |
2.3 |
3.0 |
|
|||||
WSR37 |
20220528 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.1 |
17:39 |
8.5 |
8.2 |
33.3 |
26.1 |
2.3 |
4.0 |
|
|||||
CE |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
19:23 |
8.1 |
8.4 |
33.2 |
26.0 |
3.2 |
7.0 |
|
|||||
CE |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
19:23 |
8.2 |
8.4 |
33.1 |
25.9 |
3.6 |
7.0 |
|
|||||
CE |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
12.0 |
19:22 |
8.2 |
8.3 |
33.1 |
26.1 |
3.7 |
8.0 |
|
|||||
CE |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
12.0 |
19:22 |
8.1 |
8.3 |
33.1 |
26.1 |
3.8 |
8.0 |
|
|||||
CE |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
22.9 |
19:21 |
8.2 |
8.3 |
33.0 |
25.9 |
3.9 |
10.0 |
|
|||||
CE |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
22.9 |
19:21 |
8.1 |
8.4 |
33.1 |
26.1 |
4.1 |
11.0 |
|
|||||
CF |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:45 |
8.6 |
8.2 |
32.4 |
25.9 |
3.5 |
9.0 |
|
|||||
CF |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
16:45 |
8.5 |
8.2 |
32.5 |
25.8 |
3.9 |
8.0 |
|
|||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||
CF |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.6 |
16:44 |
8.5 |
8.2 |
32.6 |
25.8 |
3.9 |
9.0 |
|
|||||
CF |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
10.6 |
16:44 |
8.5 |
8.2 |
32.5 |
25.9 |
4.3 |
7.0 |
|
|||||
CF |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
20.2 |
16:43 |
8.4 |
8.2 |
32.6 |
26.0 |
4.5 |
13.0 |
|
|||||
CF |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
20.2 |
16:43 |
8.6 |
8.3 |
32.4 |
25.9 |
4.5 |
11.0 |
|
|||||
WSR01 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:08 |
8.9 |
8.5 |
33.4 |
25.9 |
2.5 |
14.0 |
|
|||||
WSR01 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:08 |
8.9 |
8.3 |
33.3 |
26.0 |
2.8 |
14.0 |
|
|||||
WSR01 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.5 |
17:07 |
8.8 |
8.4 |
33.4 |
25.9 |
2.2 |
12.0 |
|
|||||
WSR01 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.5 |
17:07 |
8.9 |
8.4 |
33.2 |
26.0 |
2.2 |
12.0 |
|
|||||
WSR01 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.0 |
17:06 |
8.9 |
8.3 |
33.2 |
25.9 |
2.1 |
8.0 |
|
|||||
WSR01 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.0 |
17:06 |
8.9 |
8.4 |
33.4 |
26.0 |
2.3 |
6.0 |
|
|||||
WSR02 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:27 |
8.6 |
8.1 |
32.4 |
25.9 |
2.5 |
9.0 |
|
|||||
WSR02 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:27 |
8.5 |
8.1 |
32.6 |
25.9 |
2.7 |
9.0 |
|
|||||
WSR02 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.5 |
17:26 |
8.5 |
8.2 |
32.4 |
25.9 |
2.4 |
7.0 |
|
|||||
WSR02 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.5 |
17:26 |
8.4 |
8.2 |
32.6 |
26.0 |
2.8 |
7.0 |
|
|||||
WSR02 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.0 |
17:25 |
8.5 |
8.1 |
32.5 |
25.8 |
2.5 |
10.0 |
|
|||||
WSR02 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
8.0 |
17:25 |
8.4 |
8.1 |
32.6 |
25.8 |
2.7 |
11.0 |
|
|||||
WSR03 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:41 |
8.1 |
8.4 |
32.8 |
26.3 |
2.9 |
9.0 |
|
|||||
WSR03 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:41 |
8.1 |
8.3 |
32.7 |
26.3 |
2.5 |
10.0 |
|
|||||
WSR03 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
17:40 |
8.1 |
8.3 |
32.7 |
26.2 |
2.3 |
8.0 |
|
|||||
WSR03 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
17:40 |
8.2 |
8.3 |
32.7 |
26.3 |
2.2 |
8.0 |
|
|||||
WSR03 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.6 |
17:39 |
8.1 |
8.4 |
32.9 |
26.3 |
2.5 |
10.0 |
|
|||||
WSR03 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.6 |
17:39 |
8.1 |
8.3 |
32.9 |
26.2 |
2.5 |
10.0 |
|
|||||
WSR04 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:55 |
8.4 |
8.3 |
33.2 |
26.2 |
3.2 |
9.0 |
|
|||||
WSR04 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
17:55 |
8.4 |
8.4 |
33.3 |
26.1 |
3.6 |
7.0 |
|
|||||
WSR04 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.9 |
17:54 |
8.4 |
8.4 |
33.3 |
26.2 |
3.1 |
12.0 |
|
|||||
WSR04 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.9 |
17:54 |
8.3 |
8.3 |
33.4 |
26.1 |
3.0 |
10.0 |
|
|||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||
WSR04 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.8 |
17:53 |
8.3 |
8.3 |
33.3 |
26.0 |
2.7 |
9.0 |
|
|||||
WSR04 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.8 |
17:53 |
8.4 |
8.3 |
33.3 |
26.1 |
2.5 |
8.0 |
|
|||||
WSR16 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
19:00 |
9.0 |
8.1 |
33.5 |
26.4 |
3.3 |
8.0 |
|
|||||
WSR16 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
19:00 |
8.9 |
8.2 |
33.4 |
26.4 |
3.5 |
7.0 |
|
|||||
WSR16 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
7.9 |
18:59 |
8.9 |
8.1 |
33.5 |
26.4 |
3.0 |
11.0 |
|
|||||
WSR16 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
7.9 |
18:59 |
9.0 |
8.1 |
33.4 |
26.4 |
2.6 |
11.0 |
|
|||||
WSR16 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
14.8 |
18:58 |
9.0 |
8.1 |
33.4 |
26.4 |
3.1 |
11.0 |
|
|||||
WSR16 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
14.8 |
18:58 |
8.9 |
8.1 |
33.3 |
26.3 |
2.6 |
12.0 |
|
|||||
WSR33 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:09 |
8.3 |
8.2 |
33.1 |
26.4 |
3.1 |
11.0 |
|
|||||
WSR33 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:09 |
8.3 |
8.1 |
33.1 |
26.4 |
3.0 |
9.0 |
|
|||||
WSR33 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.7 |
18:08 |
8.2 |
8.2 |
33.2 |
26.4 |
3.2 |
11.0 |
|
|||||
WSR33 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.7 |
18:08 |
8.2 |
8.1 |
33.1 |
26.5 |
3.1 |
12.0 |
|
|||||
WSR33 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.3 |
18:07 |
8.2 |
8.1 |
33.1 |
26.4 |
2.9 |
11.0 |
|
|||||
WSR33 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.3 |
18:07 |
8.2 |
8.2 |
33.1 |
26.5 |
2.9 |
12.0 |
|
|||||
WSR36 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:22 |
8.4 |
8.3 |
33.0 |
26.3 |
3.1 |
12.0 |
|
|||||
WSR36 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:22 |
8.5 |
8.3 |
32.9 |
26.2 |
2.7 |
12.0 |
|
|||||
WSR36 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
18:22 |
8.4 |
8.2 |
32.9 |
26.2 |
2.7 |
12.0 |
|
|||||
WSR36 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
3.8 |
18:22 |
8.4 |
8.2 |
32.8 |
26.3 |
2.8 |
11.0 |
|
|||||
WSR36 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.5 |
18:21 |
8.4 |
8.2 |
33.0 |
26.2 |
2.4 |
8.0 |
|
|||||
WSR36 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
6.5 |
18:21 |
8.4 |
8.2 |
33.1 |
26.3 |
2.4 |
10.0 |
|
|||||
WSR37 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:38 |
8.6 |
8.2 |
33.4 |
26.4 |
3.2 |
12.0 |
|
|||||
WSR37 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Surface |
1.0 |
18:38 |
8.6 |
8.2 |
33.1 |
26.5 |
3.2 |
11.0 |
|
|||||
WSR37 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.0 |
18:37 |
8.7 |
8.2 |
33.2 |
26.4 |
3.2 |
11.0 |
|
|||||
WSR37 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Middle |
4.0 |
18:37 |
8.6 |
8.3 |
33.2 |
26.5 |
3.1 |
13.0 |
|
|||||
WSR37 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.0 |
18:36 |
8.7 |
8.3 |
33.3 |
26.5 |
2.5 |
13.0 |
|
|||||
WSR37 |
20220531 |
Cloudy |
Moderate |
Mid-Flood |
Bottom |
7.0 |
18:36 |
8.6 |
8.2 |
33.2 |
26.4 |
2.4 |
14.0 |
|
|||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
CE |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:00 |
8.7 |
8.1 |
33.0 |
26.0 |
4.2 |
2.5 |
CE |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:00 |
8.7 |
8.2 |
33.1 |
26.0 |
4.2 |
3.0 |
CE |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
11.5 |
11:59 |
8.7 |
8.2 |
33.3 |
25.8 |
4.0 |
2.5 |
CE |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
11.5 |
11:59 |
8.6 |
8.2 |
33.4 |
25.8 |
4.1 |
2.5 |
CE |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
21.9 |
11:58 |
8.6 |
8.2 |
32.9 |
25.9 |
4.2 |
2.5 |
CE |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
21.9 |
11:58 |
8.8 |
8.1 |
33.1 |
26.0 |
4.3 |
2.5 |
CF |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:34 |
8.9 |
8.4 |
32.4 |
25.5 |
3.5 |
2.5 |
CF |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:34 |
9.1 |
8.4 |
32.2 |
25.4 |
3.3 |
2.5 |
CF |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.7 |
14:33 |
9.1 |
8.3 |
32.4 |
25.5 |
3.3 |
2.5 |
CF |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.7 |
14:33 |
9.0 |
8.4 |
32.3 |
25.4 |
3.3 |
2.5 |
CF |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
20.3 |
14:32 |
9.1 |
8.4 |
32.2 |
25.4 |
3.1 |
4.0 |
CF |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
20.3 |
14:32 |
9.0 |
8.4 |
32.1 |
25.3 |
3.1 |
8.0 |
WSR01 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:11 |
8.3 |
8.4 |
32.7 |
25.3 |
2.6 |
3.0 |
WSR01 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:11 |
8.4 |
8.3 |
32.9 |
25.3 |
2.2 |
5.0 |
WSR01 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.2 |
14:10 |
8.5 |
8.4 |
32.8 |
25.5 |
2.4 |
3.0 |
WSR01 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.2 |
14:10 |
8.4 |
8.4 |
32.5 |
25.5 |
2.1 |
3.0 |
WSR01 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.3 |
14:09 |
8.3 |
8.3 |
32.5 |
25.3 |
1.8 |
4.0 |
WSR01 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.3 |
14:09 |
8.3 |
8.4 |
32.7 |
25.4 |
2.1 |
2.5 |
WSR02 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:52 |
8.7 |
8.2 |
32.6 |
25.5 |
2.3 |
2.5 |
WSR02 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:52 |
8.8 |
8.3 |
32.7 |
25.6 |
2.6 |
2.5 |
WSR02 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.6 |
13:51 |
8.7 |
8.2 |
32.8 |
25.7 |
2.6 |
2.5 |
WSR02 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.6 |
13:51 |
8.8 |
8.3 |
32.8 |
25.5 |
2.5 |
2.5 |
WSR02 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.1 |
13:50 |
8.7 |
8.2 |
32.7 |
25.5 |
2.0 |
3.0 |
WSR02 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.1 |
13:50 |
8.7 |
8.3 |
32.8 |
25.5 |
2.1 |
2.5 |
WSR03 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:37 |
8.9 |
8.4 |
32.7 |
25.4 |
2.1 |
3.0 |
WSR03 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:37 |
8.8 |
8.4 |
32.6 |
25.3 |
2.1 |
3.0 |
WSR03 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
13:36 |
8.9 |
8.4 |
32.3 |
25.3 |
2.3 |
2.5 |
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR03 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
13:36 |
8.7 |
8.4 |
32.7 |
25.2 |
2.0 |
3.0 |
|
||||||||||||
|
WSR03 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.5 |
13:35 |
9.0 |
8.3 |
32.4 |
25.4 |
2.1 |
2.5 |
|
||||||||||||
|
WSR03 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.5 |
13:35 |
8.9 |
8.4 |
32.6 |
25.3 |
1.8 |
2.5 |
|
||||||||||||
|
WSR04 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:25 |
9.3 |
8.4 |
33.0 |
25.6 |
2.4 |
3.0 |
|
||||||||||||
|
WSR04 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:25 |
9.3 |
8.4 |
33.0 |
25.6 |
2.6 |
3.0 |
|
||||||||||||
|
WSR04 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.7 |
13:24 |
9.2 |
8.3 |
33.3 |
25.7 |
2.2 |
2.5 |
|
||||||||||||
|
WSR04 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.7 |
13:24 |
9.3 |
8.3 |
33.0 |
25.6 |
2.4 |
3.0 |
|
||||||||||||
|
WSR04 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.4 |
13:23 |
9.2 |
8.4 |
33.0 |
25.5 |
2.0 |
3.0 |
|
||||||||||||
|
WSR04 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.4 |
13:23 |
9.1 |
8.4 |
33.1 |
25.7 |
2.2 |
3.0 |
|
||||||||||||
|
WSR16 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:22 |
8.4 |
8.3 |
32.3 |
25.8 |
2.7 |
2.5 |
|
||||||||||||
|
WSR16 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:22 |
8.4 |
8.4 |
32.4 |
25.7 |
2.6 |
3.0 |
|
||||||||||||
|
WSR16 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
8.1 |
12:21 |
8.4 |
8.3 |
32.3 |
25.6 |
2.4 |
2.5 |
|
||||||||||||
|
WSR16 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
8.1 |
12:21 |
8.4 |
8.4 |
32.2 |
25.7 |
2.1 |
2.5 |
|
||||||||||||
|
WSR16 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
15.2 |
12:20 |
8.4 |
8.3 |
32.4 |
25.8 |
2.0 |
6.0 |
|
||||||||||||
|
WSR16 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
15.2 |
12:20 |
8.2 |
8.4 |
32.3 |
25.6 |
2.0 |
7.0 |
|
||||||||||||
|
WSR33 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:11 |
8.8 |
8.4 |
32.4 |
25.7 |
2.4 |
3.0 |
|
||||||||||||
|
WSR33 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:11 |
8.8 |
8.3 |
32.3 |
25.6 |
2.3 |
2.5 |
|
||||||||||||
|
WSR33 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
13:10 |
9.1 |
8.2 |
32.0 |
25.9 |
2.1 |
3.0 |
|
||||||||||||
|
WSR33 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
13:10 |
8.9 |
8.2 |
32.0 |
25.9 |
2.2 |
3.0 |
|
||||||||||||
|
WSR33 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.5 |
13:09 |
8.9 |
8.3 |
32.2 |
25.7 |
2.1 |
2.5 |
|
||||||||||||
|
WSR33 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.5 |
13:09 |
9.0 |
8.3 |
32.1 |
25.8 |
2.0 |
2.5 |
|
||||||||||||
|
WSR36 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:56 |
9.2 |
8.3 |
32.7 |
25.6 |
3.2 |
4.0 |
|
||||||||||||
|
WSR36 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:56 |
9.0 |
8.2 |
32.7 |
25.4 |
2.9 |
2.5 |
|
||||||||||||
|
WSR36 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.5 |
12:56 |
9.0 |
8.2 |
32.7 |
25.4 |
2.2 |
6.0 |
|
||||||||||||
|
WSR36 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.5 |
12:56 |
9.2 |
8.3 |
32.6 |
25.7 |
2.3 |
4.0 |
|
||||||||||||
|
WSR36 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.0 |
12:55 |
9.1 |
8.3 |
32.7 |
25.7 |
2.1 |
2.5 |
|
||||||||||||
|
WSR36 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.0 |
12:55 |
9.0 |
8.3 |
32.6 |
25.5 |
2.4 |
3.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR37 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:43 |
8.5 |
8.2 |
32.4 |
25.6 |
2.8 |
10.0 |
|
||||||||||||
|
WSR37 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:43 |
8.5 |
8.3 |
32.3 |
25.5 |
2.5 |
11.0 |
|
||||||||||||
|
WSR37 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.3 |
12:42 |
8.5 |
8.2 |
32.3 |
25.4 |
2.5 |
2.5 |
|
||||||||||||
|
WSR37 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.3 |
12:42 |
8.6 |
8.2 |
32.0 |
25.4 |
2.7 |
2.5 |
|
||||||||||||
|
WSR37 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.6 |
12:41 |
8.5 |
8.2 |
32.1 |
25.5 |
2.6 |
2.5 |
|
||||||||||||
|
WSR37 |
20220503 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.6 |
12:41 |
8.5 |
8.2 |
32.1 |
25.5 |
2.8 |
2.5 |
|
||||||||||||
|
CE |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:37 |
9.2 |
8.0 |
33.3 |
25.4 |
4.4 |
3.0 |
|
||||||||||||
|
CE |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:37 |
9.1 |
8.1 |
33.4 |
25.6 |
4.5 |
3.0 |
|
||||||||||||
|
CE |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
12.1 |
12:36 |
9.2 |
8.1 |
33.3 |
25.6 |
4.8 |
4.0 |
|
||||||||||||
|
CE |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
12.1 |
12:36 |
9.2 |
8.1 |
33.4 |
25.5 |
4.7 |
3.0 |
|
||||||||||||
|
CE |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
23.1 |
12:35 |
9.1 |
8.1 |
33.4 |
25.5 |
4.8 |
4.0 |
|
||||||||||||
|
CE |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
23.1 |
12:35 |
9.3 |
8.0 |
33.4 |
25.5 |
4.5 |
4.0 |
|
||||||||||||
|
CF |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:10 |
8.9 |
8.1 |
33.9 |
25.9 |
3.1 |
4.0 |
|
||||||||||||
|
CF |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:10 |
9.0 |
8.0 |
34.0 |
26.0 |
2.9 |
5.0 |
|
||||||||||||
|
CF |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
10.2 |
15:09 |
9.0 |
8.0 |
34.0 |
26.1 |
3.5 |
5.0 |
|
||||||||||||
|
CF |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
10.2 |
15:09 |
8.9 |
8.0 |
34.0 |
26.1 |
3.1 |
5.0 |
|
||||||||||||
|
CF |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
19.4 |
15:08 |
9.1 |
8.1 |
34.1 |
25.9 |
3.7 |
5.0 |
|
||||||||||||
|
CF |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
19.4 |
15:08 |
9.1 |
8.1 |
33.9 |
26.1 |
3.7 |
6.0 |
|
||||||||||||
|
WSR01 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:47 |
8.8 |
8.1 |
33.1 |
25.6 |
3.4 |
5.0 |
|
||||||||||||
|
WSR01 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:47 |
8.7 |
8.2 |
33.2 |
25.8 |
3.3 |
5.0 |
|
||||||||||||
|
WSR01 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.3 |
14:46 |
8.8 |
8.2 |
33.1 |
25.8 |
3.2 |
2.5 |
|
||||||||||||
|
WSR01 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.3 |
14:46 |
8.6 |
8.1 |
33.2 |
25.7 |
3.0 |
3.0 |
|
||||||||||||
|
WSR01 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
7.5 |
14:45 |
8.7 |
8.1 |
33.1 |
25.6 |
2.9 |
5.0 |
|
||||||||||||
|
WSR01 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
7.5 |
14:45 |
8.8 |
8.2 |
33.0 |
25.6 |
2.9 |
4.0 |
|
||||||||||||
|
WSR02 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:29 |
9.3 |
8.3 |
34.3 |
25.9 |
2.5 |
3.0 |
|
||||||||||||
|
WSR02 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:29 |
9.2 |
8.3 |
34.2 |
25.9 |
2.6 |
4.0 |
|
||||||||||||
|
WSR02 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.9 |
14:28 |
9.3 |
8.2 |
34.2 |
26.0 |
2.5 |
8.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR02 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.9 |
14:28 |
9.1 |
8.3 |
34.3 |
25.8 |
2.3 |
9.0 |
|
||||||||||||
|
WSR02 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
8.8 |
14:27 |
9.2 |
8.2 |
34.3 |
26.0 |
2.4 |
4.0 |
|
||||||||||||
|
WSR02 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
8.8 |
14:27 |
9.2 |
8.3 |
34.1 |
25.9 |
2.5 |
4.0 |
|
||||||||||||
|
WSR03 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:14 |
8.8 |
8.3 |
33.8 |
25.9 |
3.7 |
6.0 |
|
||||||||||||
|
WSR03 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:14 |
8.9 |
8.2 |
33.7 |
26.1 |
3.7 |
7.0 |
|
||||||||||||
|
WSR03 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.3 |
14:13 |
8.8 |
8.3 |
33.7 |
26.0 |
3.5 |
10.0 |
|
||||||||||||
|
WSR03 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.3 |
14:13 |
9.0 |
8.2 |
33.8 |
26.0 |
3.0 |
7.0 |
|
||||||||||||
|
WSR03 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
7.5 |
14:12 |
9.1 |
8.2 |
33.6 |
26.0 |
2.9 |
7.0 |
|
||||||||||||
|
WSR03 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
7.5 |
14:12 |
8.8 |
8.3 |
33.8 |
26.0 |
3.1 |
10.0 |
|
||||||||||||
|
WSR04 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:02 |
8.6 |
8.2 |
33.8 |
25.7 |
3.9 |
3.0 |
|
||||||||||||
|
WSR04 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:02 |
8.5 |
8.3 |
33.7 |
25.8 |
4.0 |
4.0 |
|
||||||||||||
|
WSR04 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.5 |
14:01 |
8.6 |
8.2 |
33.7 |
25.8 |
3.7 |
5.0 |
|
||||||||||||
|
WSR04 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.5 |
14:01 |
8.4 |
8.3 |
33.9 |
25.6 |
3.2 |
3.0 |
|
||||||||||||
|
WSR04 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
5.9 |
14:00 |
8.7 |
8.3 |
33.9 |
25.7 |
3.5 |
5.0 |
|
||||||||||||
|
WSR04 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
5.9 |
14:00 |
8.5 |
8.2 |
33.8 |
25.7 |
3.3 |
3.0 |
|
||||||||||||
|
WSR16 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:00 |
8.6 |
8.2 |
34.3 |
25.5 |
3.6 |
5.0 |
|
||||||||||||
|
WSR16 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:00 |
8.8 |
8.2 |
34.2 |
25.7 |
3.3 |
3.0 |
|
||||||||||||
|
WSR16 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
7.8 |
12:59 |
8.6 |
8.2 |
34.2 |
25.7 |
3.4 |
3.0 |
|
||||||||||||
|
WSR16 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
7.8 |
12:59 |
8.6 |
8.2 |
34.2 |
25.7 |
3.4 |
4.0 |
|
||||||||||||
|
WSR16 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
14.5 |
12:58 |
8.6 |
8.2 |
34.2 |
25.4 |
2.5 |
2.5 |
|
||||||||||||
|
WSR16 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
14.5 |
12:58 |
8.6 |
8.2 |
34.2 |
25.5 |
2.7 |
2.5 |
|
||||||||||||
|
WSR33 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:49 |
8.6 |
8.1 |
33.6 |
25.9 |
4.0 |
3.0 |
|
||||||||||||
|
WSR33 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:49 |
8.6 |
8.2 |
33.5 |
26.1 |
3.6 |
4.0 |
|
||||||||||||
|
WSR33 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.7 |
13:48 |
8.4 |
8.2 |
33.6 |
25.9 |
3.6 |
5.0 |
|
||||||||||||
|
WSR33 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.7 |
13:48 |
8.5 |
8.1 |
33.7 |
25.9 |
3.5 |
4.0 |
|
||||||||||||
|
WSR33 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
6.4 |
13:47 |
8.5 |
8.1 |
33.6 |
26.1 |
3.1 |
3.0 |
|
||||||||||||
|
WSR33 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
6.4 |
13:47 |
8.5 |
8.1 |
33.6 |
26.0 |
3.6 |
4.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR36 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:35 |
8.0 |
8.0 |
34.2 |
25.4 |
3.5 |
2.5 |
|
||||||||||||
|
WSR36 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:35 |
8.1 |
8.1 |
34.2 |
25.5 |
3.8 |
3.0 |
|
||||||||||||
|
WSR36 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.9 |
13:35 |
8.2 |
8.0 |
34.2 |
25.4 |
3.1 |
2.5 |
|
||||||||||||
|
WSR36 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.9 |
13:35 |
8.1 |
8.1 |
34.1 |
25.4 |
3.6 |
4.0 |
|
||||||||||||
|
WSR36 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
6.7 |
13:34 |
8.2 |
8.1 |
34.2 |
25.4 |
3.6 |
4.0 |
|
||||||||||||
|
WSR36 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
6.7 |
13:34 |
8.1 |
8.1 |
34.2 |
25.5 |
3.4 |
4.0 |
|
||||||||||||
|
WSR37 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:22 |
8.1 |
8.2 |
33.8 |
25.9 |
2.9 |
4.0 |
|
||||||||||||
|
WSR37 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:22 |
8.3 |
8.3 |
33.7 |
26.0 |
2.9 |
3.0 |
|
||||||||||||
|
WSR37 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.1 |
13:21 |
8.2 |
8.2 |
33.8 |
26.0 |
3.2 |
2.5 |
|
||||||||||||
|
WSR37 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.1 |
13:21 |
8.2 |
8.3 |
33.7 |
26.0 |
3.5 |
3.0 |
|
||||||||||||
|
WSR37 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
7.1 |
13:20 |
8.2 |
8.2 |
33.6 |
25.9 |
3.0 |
8.0 |
|
||||||||||||
|
WSR37 |
20220505 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
7.1 |
13:20 |
8.2 |
8.3 |
33.7 |
26.0 |
2.8 |
5.0 |
|
||||||||||||
|
CE |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:09 |
8.2 |
8.3 |
33.2 |
24.4 |
3.0 |
5.0 |
|
||||||||||||
|
CE |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:09 |
8.3 |
8.2 |
33.0 |
24.3 |
3.1 |
5.0 |
|
||||||||||||
|
CE |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.6 |
14:08 |
8.4 |
8.3 |
33.1 |
24.1 |
3.1 |
6.0 |
|
||||||||||||
|
CE |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.6 |
14:08 |
8.3 |
8.2 |
33.2 |
24.3 |
3.2 |
5.0 |
|
||||||||||||
|
CE |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
20.2 |
14:07 |
8.3 |
8.3 |
33.0 |
24.3 |
3.2 |
4.0 |
|
||||||||||||
|
CE |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
20.2 |
14:07 |
8.3 |
8.2 |
32.9 |
24.1 |
3.3 |
8.0 |
|
||||||||||||
|
CF |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:51 |
8.4 |
8.3 |
32.4 |
24.7 |
2.7 |
6.0 |
|
||||||||||||
|
CF |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:51 |
8.6 |
8.2 |
32.5 |
24.7 |
2.5 |
9.0 |
|
||||||||||||
|
CF |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.0 |
16:50 |
8.4 |
8.3 |
32.4 |
24.6 |
3.0 |
4.0 |
|
||||||||||||
|
CF |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.0 |
16:50 |
8.5 |
8.2 |
32.5 |
24.7 |
2.7 |
5.0 |
|
||||||||||||
|
CF |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
19.0 |
16:49 |
8.4 |
8.3 |
32.4 |
24.6 |
3.0 |
6.0 |
|
||||||||||||
|
CF |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
19.0 |
16:49 |
8.3 |
8.3 |
32.5 |
24.9 |
2.9 |
3.0 |
|
||||||||||||
|
WSR01 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:27 |
9.0 |
8.4 |
33.0 |
24.8 |
2.6 |
7.0 |
|
||||||||||||
|
WSR01 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:27 |
9.2 |
8.4 |
33.2 |
25.0 |
3.0 |
4.0 |
|
||||||||||||
|
WSR01 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.5 |
16:26 |
9.2 |
8.3 |
33.2 |
24.8 |
2.6 |
4.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR01 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.5 |
16:26 |
9.2 |
8.3 |
33.3 |
24.8 |
2.6 |
6.0 |
|
||||||||||||
|
WSR01 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.9 |
16:25 |
9.2 |
8.4 |
33.1 |
24.8 |
2.5 |
4.0 |
|
||||||||||||
|
WSR01 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.9 |
16:25 |
9.2 |
8.4 |
33.1 |
24.7 |
2.7 |
3.0 |
|
||||||||||||
|
WSR02 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:08 |
8.6 |
8.3 |
33.0 |
25.0 |
2.1 |
4.0 |
|
||||||||||||
|
WSR02 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:08 |
8.7 |
8.2 |
33.3 |
25.1 |
2.2 |
2.5 |
|
||||||||||||
|
WSR02 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.6 |
16:07 |
8.7 |
8.2 |
33.1 |
24.9 |
2.4 |
3.0 |
|
||||||||||||
|
WSR02 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.6 |
16:07 |
8.8 |
8.3 |
33.1 |
25.1 |
2.4 |
3.0 |
|
||||||||||||
|
WSR02 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.1 |
16:06 |
8.8 |
8.2 |
33.0 |
24.9 |
2.3 |
2.5 |
|
||||||||||||
|
WSR02 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.1 |
16:06 |
8.5 |
8.3 |
33.1 |
25.0 |
2.4 |
3.0 |
|
||||||||||||
|
WSR03 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:52 |
8.6 |
8.1 |
33.0 |
24.4 |
3.0 |
5.0 |
|
||||||||||||
|
WSR03 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:52 |
8.7 |
8.0 |
33.1 |
24.5 |
3.2 |
5.0 |
|
||||||||||||
|
WSR03 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.9 |
15:51 |
8.7 |
8.0 |
33.0 |
24.5 |
2.5 |
4.0 |
|
||||||||||||
|
WSR03 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.9 |
15:51 |
8.6 |
8.1 |
33.1 |
24.3 |
2.5 |
4.0 |
|
||||||||||||
|
WSR03 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.8 |
15:50 |
8.5 |
8.1 |
33.2 |
24.4 |
2.1 |
5.0 |
|
||||||||||||
|
WSR03 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.8 |
15:50 |
8.6 |
8.1 |
33.0 |
24.3 |
2.1 |
7.0 |
|
||||||||||||
|
WSR04 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:39 |
8.9 |
8.1 |
32.5 |
25.1 |
2.9 |
4.0 |
|
||||||||||||
|
WSR04 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:39 |
8.9 |
8.3 |
32.6 |
24.8 |
3.0 |
2.5 |
|
||||||||||||
|
WSR04 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.6 |
15:38 |
9.0 |
8.2 |
32.5 |
25.0 |
3.0 |
4.0 |
|
||||||||||||
|
WSR04 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.6 |
15:38 |
8.9 |
8.2 |
32.7 |
25.1 |
2.6 |
5.0 |
|
||||||||||||
|
WSR04 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.1 |
15:37 |
8.9 |
8.2 |
32.7 |
25.0 |
2.5 |
4.0 |
|
||||||||||||
|
WSR04 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.1 |
15:37 |
9.0 |
8.2 |
32.7 |
24.9 |
2.8 |
8.0 |
|
||||||||||||
|
WSR16 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:32 |
8.6 |
8.3 |
32.7 |
24.2 |
2.9 |
6.0 |
|
||||||||||||
|
WSR16 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:32 |
8.6 |
8.2 |
33.0 |
24.2 |
2.9 |
5.0 |
|
||||||||||||
|
WSR16 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
8.3 |
14:31 |
8.8 |
8.3 |
32.9 |
24.3 |
2.7 |
4.0 |
|
||||||||||||
|
WSR16 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
8.3 |
14:31 |
8.6 |
8.2 |
32.7 |
24.3 |
3.0 |
6.0 |
|
||||||||||||
|
WSR16 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
15.5 |
14:30 |
8.8 |
8.2 |
32.8 |
24.2 |
2.4 |
4.0 |
|
||||||||||||
|
WSR16 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
15.5 |
14:30 |
8.7 |
8.2 |
32.9 |
24.3 |
2.5 |
4.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR33 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:23 |
8.3 |
8.3 |
32.6 |
24.3 |
2.4 |
4.0 |
|
||||||||||||
|
WSR33 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:23 |
8.3 |
8.2 |
32.6 |
24.5 |
2.8 |
3.0 |
|
||||||||||||
|
WSR33 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.5 |
15:22 |
8.2 |
8.2 |
32.4 |
24.6 |
2.4 |
2.5 |
|
||||||||||||
|
WSR33 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.5 |
15:22 |
8.2 |
8.2 |
32.5 |
24.5 |
2.6 |
4.0 |
|
||||||||||||
|
WSR33 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.0 |
15:21 |
8.4 |
8.3 |
32.5 |
24.5 |
2.4 |
4.0 |
|
||||||||||||
|
WSR33 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.0 |
15:21 |
8.4 |
8.3 |
32.6 |
24.4 |
2.4 |
5.0 |
|
||||||||||||
|
WSR36 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:08 |
8.6 |
8.1 |
32.4 |
24.6 |
2.8 |
4.0 |
|
||||||||||||
|
WSR36 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:08 |
8.7 |
8.1 |
32.4 |
24.8 |
3.1 |
2.5 |
|
||||||||||||
|
WSR36 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.6 |
15:08 |
8.8 |
8.0 |
32.3 |
24.6 |
2.3 |
5.0 |
|
||||||||||||
|
WSR36 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.6 |
15:08 |
8.8 |
8.0 |
32.4 |
24.7 |
2.5 |
3.0 |
|
||||||||||||
|
WSR36 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.1 |
15:07 |
8.8 |
8.1 |
32.4 |
24.7 |
2.2 |
4.0 |
|
||||||||||||
|
WSR36 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.1 |
15:07 |
8.8 |
8.1 |
32.4 |
24.8 |
2.2 |
5.0 |
|
||||||||||||
|
WSR37 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:54 |
8.5 |
8.2 |
32.1 |
24.3 |
2.6 |
3.0 |
|
||||||||||||
|
WSR37 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:54 |
8.7 |
8.2 |
32.1 |
24.3 |
2.8 |
4.0 |
|
||||||||||||
|
WSR37 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.2 |
14:53 |
8.5 |
8.3 |
32.0 |
24.2 |
2.1 |
4.0 |
|
||||||||||||
|
WSR37 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.2 |
14:53 |
8.5 |
8.2 |
32.2 |
24.3 |
2.4 |
3.0 |
|
||||||||||||
|
WSR37 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.3 |
14:52 |
8.5 |
8.2 |
32.1 |
24.3 |
2.1 |
3.0 |
|
||||||||||||
|
WSR37 |
20220507 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.3 |
14:52 |
8.7 |
8.3 |
32.2 |
24.4 |
2.2 |
3.0 |
|
||||||||||||
|
CE |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:11 |
8.3 |
8.1 |
32.4 |
24.5 |
3.5 |
4.0 |
|
||||||||||||
|
CE |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:11 |
8.3 |
8.1 |
32.2 |
24.3 |
3.3 |
2.5 |
|
||||||||||||
|
CE |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
11.1 |
16:10 |
8.2 |
8.1 |
32.2 |
24.6 |
3.4 |
3.0 |
|
||||||||||||
|
CE |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
11.1 |
16:10 |
8.2 |
8.1 |
32.2 |
24.4 |
3.5 |
2.5 |
|
||||||||||||
|
CE |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
21.1 |
16:09 |
8.3 |
8.1 |
32.2 |
24.5 |
3.8 |
4.0 |
|
||||||||||||
|
CE |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
21.1 |
16:09 |
8.3 |
8.1 |
32.4 |
24.5 |
3.7 |
6.0 |
|
||||||||||||
|
CF |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
18:47 |
8.9 |
8.2 |
32.5 |
24.4 |
3.0 |
2.5 |
|
||||||||||||
|
CF |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
18:47 |
8.9 |
8.3 |
32.4 |
24.5 |
3.0 |
2.5 |
|
||||||||||||
|
CF |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.1 |
18:46 |
8.8 |
8.2 |
32.7 |
24.5 |
2.9 |
3.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
CF |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.1 |
18:46 |
8.8 |
8.3 |
32.7 |
24.5 |
2.9 |
6.0 |
|
||||||||||||
|
CF |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
19.1 |
18:45 |
8.8 |
8.3 |
32.6 |
24.3 |
2.9 |
6.0 |
|
||||||||||||
|
CF |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
19.1 |
18:45 |
8.9 |
8.3 |
32.5 |
24.4 |
3.0 |
3.0 |
|
||||||||||||
|
WSR01 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
18:23 |
8.5 |
8.3 |
32.6 |
23.9 |
2.4 |
2.5 |
|
||||||||||||
|
WSR01 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
18:23 |
8.6 |
8.2 |
32.6 |
24.0 |
2.5 |
2.5 |
|
||||||||||||
|
WSR01 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.5 |
18:22 |
8.7 |
8.3 |
32.6 |
24.0 |
2.0 |
3.0 |
|
||||||||||||
|
WSR01 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.5 |
18:22 |
8.7 |
8.2 |
32.8 |
23.9 |
1.9 |
3.0 |
|
||||||||||||
|
WSR01 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.9 |
18:21 |
8.7 |
8.3 |
32.5 |
23.9 |
2.4 |
3.0 |
|
||||||||||||
|
WSR01 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.9 |
18:21 |
8.7 |
8.3 |
32.5 |
24.2 |
2.1 |
5.0 |
|
||||||||||||
|
WSR02 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
18:05 |
8.1 |
8.1 |
32.1 |
24.8 |
2.2 |
3.0 |
|
||||||||||||
|
WSR02 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
18:05 |
8.0 |
8.1 |
32.2 |
24.6 |
2.3 |
2.5 |
|
||||||||||||
|
WSR02 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
5.0 |
18:04 |
7.9 |
8.1 |
32.3 |
24.9 |
2.1 |
2.5 |
|
||||||||||||
|
WSR02 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
5.0 |
18:04 |
8.0 |
8.1 |
32.3 |
24.9 |
2.0 |
2.5 |
|
||||||||||||
|
WSR02 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.9 |
18:03 |
8.1 |
8.1 |
32.1 |
24.8 |
2.1 |
4.0 |
|
||||||||||||
|
WSR02 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.9 |
18:03 |
8.0 |
8.1 |
32.2 |
24.7 |
2.1 |
3.0 |
|
||||||||||||
|
WSR03 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:50 |
8.2 |
8.3 |
32.1 |
24.0 |
2.6 |
4.0 |
|
||||||||||||
|
WSR03 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:50 |
8.2 |
8.2 |
32.1 |
23.8 |
2.4 |
4.0 |
|
||||||||||||
|
WSR03 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.0 |
17:49 |
8.2 |
8.2 |
32.3 |
23.9 |
2.0 |
3.0 |
|
||||||||||||
|
WSR03 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.0 |
17:49 |
8.3 |
8.3 |
32.3 |
24.1 |
2.2 |
3.0 |
|
||||||||||||
|
WSR03 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.0 |
17:48 |
8.1 |
8.3 |
32.1 |
23.9 |
2.0 |
2.5 |
|
||||||||||||
|
WSR03 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.0 |
17:48 |
8.3 |
8.3 |
32.1 |
24.1 |
2.0 |
3.0 |
|
||||||||||||
|
WSR04 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:38 |
8.4 |
8.3 |
32.8 |
24.4 |
2.3 |
2.5 |
|
||||||||||||
|
WSR04 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:38 |
8.4 |
8.3 |
32.8 |
24.5 |
2.2 |
4.0 |
|
||||||||||||
|
WSR04 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.4 |
17:37 |
8.4 |
8.2 |
33.0 |
24.5 |
2.3 |
4.0 |
|
||||||||||||
|
WSR04 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.4 |
17:37 |
8.4 |
8.3 |
32.9 |
24.4 |
2.3 |
7.0 |
|
||||||||||||
|
WSR04 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
5.8 |
17:36 |
8.5 |
8.3 |
33.0 |
24.6 |
2.3 |
3.0 |
|
||||||||||||
|
WSR04 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
5.8 |
17:36 |
8.6 |
8.3 |
33.0 |
24.6 |
2.0 |
3.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR16 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:34 |
8.0 |
8.3 |
32.6 |
24.7 |
2.9 |
3.0 |
|
||||||||||||
|
WSR16 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:34 |
8.2 |
8.2 |
32.7 |
24.5 |
2.9 |
4.0 |
|
||||||||||||
|
WSR16 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
8.3 |
16:33 |
8.2 |
8.2 |
32.8 |
24.7 |
2.2 |
4.0 |
|
||||||||||||
|
WSR16 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
8.3 |
16:33 |
8.0 |
8.3 |
32.6 |
24.7 |
2.0 |
2.5 |
|
||||||||||||
|
WSR16 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
15.5 |
16:32 |
8.1 |
8.2 |
32.5 |
24.5 |
2.3 |
3.0 |
|
||||||||||||
|
WSR16 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
15.5 |
16:32 |
8.2 |
8.3 |
32.7 |
24.5 |
2.5 |
2.5 |
|
||||||||||||
|
WSR33 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:24 |
8.7 |
8.2 |
32.4 |
24.1 |
3.0 |
2.5 |
|
||||||||||||
|
WSR33 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:24 |
8.8 |
8.3 |
32.1 |
23.9 |
2.9 |
3.0 |
|
||||||||||||
|
WSR33 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.7 |
17:23 |
8.7 |
8.3 |
32.1 |
23.9 |
2.7 |
5.0 |
|
||||||||||||
|
WSR33 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.7 |
17:23 |
8.6 |
8.3 |
32.1 |
24.1 |
2.5 |
3.0 |
|
||||||||||||
|
WSR33 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.4 |
17:22 |
8.8 |
8.3 |
32.2 |
24.1 |
2.4 |
3.0 |
|
||||||||||||
|
WSR33 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.4 |
17:22 |
8.8 |
8.3 |
32.4 |
24.1 |
2.3 |
3.0 |
|
||||||||||||
|
WSR36 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:10 |
8.7 |
8.3 |
32.2 |
24.5 |
2.7 |
4.0 |
|
||||||||||||
|
WSR36 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:10 |
8.6 |
8.3 |
32.4 |
24.5 |
2.8 |
5.0 |
|
||||||||||||
|
WSR36 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.5 |
17:10 |
8.7 |
8.3 |
32.3 |
24.4 |
2.4 |
2.5 |
|
||||||||||||
|
WSR36 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.5 |
17:10 |
8.6 |
8.3 |
32.4 |
24.4 |
2.3 |
2.5 |
|
||||||||||||
|
WSR36 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.0 |
17:09 |
8.5 |
8.3 |
32.3 |
24.5 |
2.0 |
2.5 |
|
||||||||||||
|
WSR36 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.0 |
17:09 |
8.6 |
8.3 |
32.2 |
24.7 |
2.2 |
3.0 |
|
||||||||||||
|
WSR37 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:34 |
8.1 |
8.3 |
32.7 |
24.6 |
2.8 |
5.0 |
|
||||||||||||
|
WSR37 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:34 |
8.1 |
8.3 |
32.8 |
24.7 |
2.3 |
3.0 |
|
||||||||||||
|
WSR37 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.0 |
16:33 |
8.0 |
8.3 |
32.7 |
24.6 |
2.6 |
2.5 |
|
||||||||||||
|
WSR37 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.0 |
16:33 |
8.1 |
8.3 |
32.5 |
24.6 |
2.9 |
2.5 |
|
||||||||||||
|
WSR37 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.9 |
16:32 |
8.1 |
8.3 |
32.5 |
24.7 |
1.9 |
3.0 |
|
||||||||||||
|
WSR37 |
20220510 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.9 |
16:32 |
8.0 |
8.3 |
32.5 |
24.5 |
1.9 |
5.0 |
|
||||||||||||
|
CE |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
8:06 |
9.2 |
8.2 |
31.5 |
25.1 |
3.8 |
4.0 |
|
||||||||||||
|
CE |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
8:06 |
9.1 |
8.2 |
31.5 |
25.1 |
3.8 |
6.0 |
|
||||||||||||
|
CE |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.5 |
8:05 |
9.2 |
8.1 |
31.4 |
25.2 |
3.8 |
2.5 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
CE |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.5 |
8:05 |
9.2 |
8.1 |
31.5 |
25.0 |
3.9 |
3.0 |
|
||||||||||||
|
CE |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
19.9 |
8:04 |
9.1 |
8.3 |
31.5 |
25.0 |
4.3 |
2.5 |
|
||||||||||||
|
CE |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
19.9 |
8:04 |
9.0 |
8.1 |
31.3 |
24.9 |
4.0 |
2.5 |
|
||||||||||||
|
CF |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:42 |
9.8 |
8.3 |
31.0 |
24.7 |
3.2 |
9.0 |
|
||||||||||||
|
CF |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:42 |
9.7 |
8.3 |
31.0 |
24.5 |
3.0 |
9.0 |
|
||||||||||||
|
CF |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.3 |
10:41 |
9.7 |
8.3 |
31.2 |
24.6 |
3.3 |
6.0 |
|
||||||||||||
|
CF |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.3 |
10:41 |
9.7 |
8.3 |
31.2 |
24.7 |
3.0 |
5.0 |
|
||||||||||||
|
CF |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
19.6 |
10:40 |
9.9 |
8.2 |
31.2 |
24.6 |
3.0 |
8.0 |
|
||||||||||||
|
CF |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
19.6 |
10:40 |
9.8 |
8.2 |
31.0 |
24.8 |
3.2 |
7.0 |
|
||||||||||||
|
WSR01 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:20 |
9.2 |
8.4 |
31.0 |
24.8 |
3.4 |
4.0 |
|
||||||||||||
|
WSR01 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:20 |
9.2 |
8.4 |
31.1 |
24.8 |
3.1 |
4.0 |
|
||||||||||||
|
WSR01 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.5 |
10:19 |
9.3 |
8.4 |
31.1 |
24.7 |
2.7 |
2.5 |
|
||||||||||||
|
WSR01 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.5 |
10:19 |
9.2 |
8.3 |
31.0 |
24.9 |
3.1 |
2.5 |
|
||||||||||||
|
WSR01 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.9 |
10:18 |
9.4 |
8.3 |
30.9 |
24.7 |
3.1 |
3.0 |
|
||||||||||||
|
WSR01 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.9 |
10:18 |
9.2 |
8.3 |
31.1 |
24.7 |
3.0 |
5.0 |
|
||||||||||||
|
WSR02 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:02 |
9.2 |
8.2 |
30.9 |
25.3 |
2.1 |
2.5 |
|
||||||||||||
|
WSR02 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:02 |
9.0 |
8.2 |
30.8 |
25.4 |
2.2 |
4.0 |
|
||||||||||||
|
WSR02 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.6 |
10:01 |
9.0 |
8.2 |
31.1 |
25.2 |
2.0 |
3.0 |
|
||||||||||||
|
WSR02 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.6 |
10:01 |
9.1 |
8.3 |
31.0 |
25.4 |
2.2 |
4.0 |
|
||||||||||||
|
WSR02 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.2 |
10:00 |
9.0 |
8.2 |
31.0 |
25.2 |
2.3 |
7.0 |
|
||||||||||||
|
WSR02 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.2 |
10:00 |
9.1 |
8.3 |
31.0 |
25.1 |
2.3 |
8.0 |
|
||||||||||||
|
WSR03 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:46 |
9.7 |
8.2 |
31.5 |
25.2 |
1.9 |
3.0 |
|
||||||||||||
|
WSR03 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:46 |
9.4 |
8.2 |
31.6 |
25.2 |
1.6 |
5.0 |
|
||||||||||||
|
WSR03 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.2 |
9:45 |
9.7 |
8.2 |
31.6 |
25.1 |
1.8 |
7.0 |
|
||||||||||||
|
WSR03 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.2 |
9:45 |
9.8 |
8.1 |
31.6 |
25.1 |
1.9 |
8.0 |
|
||||||||||||
|
WSR03 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.4 |
9:44 |
9.7 |
8.1 |
31.6 |
25.1 |
1.6 |
5.0 |
|
||||||||||||
|
WSR03 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.4 |
9:44 |
9.7 |
8.2 |
31.5 |
25.2 |
1.9 |
4.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR04 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:33 |
9.7 |
8.3 |
30.9 |
25.3 |
2.2 |
2.5 |
|
||||||||||||
|
WSR04 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:33 |
9.6 |
8.3 |
31.0 |
25.1 |
2.5 |
2.5 |
|
||||||||||||
|
WSR04 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
9:32 |
9.6 |
8.4 |
30.9 |
25.2 |
1.9 |
5.0 |
|
||||||||||||
|
WSR04 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
9:32 |
9.9 |
8.3 |
31.2 |
25.2 |
2.1 |
5.0 |
|
||||||||||||
|
WSR04 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.6 |
9:31 |
9.6 |
8.4 |
31.0 |
25.1 |
1.9 |
8.0 |
|
||||||||||||
|
WSR04 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.6 |
9:31 |
9.7 |
8.3 |
31.0 |
25.0 |
2.2 |
9.0 |
|
||||||||||||
|
WSR16 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
8:29 |
9.0 |
8.2 |
32.0 |
24.6 |
2.3 |
10.0 |
|
||||||||||||
|
WSR16 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
8:29 |
9.3 |
8.2 |
31.9 |
24.8 |
2.1 |
11.0 |
|
||||||||||||
|
WSR16 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
7.9 |
8:28 |
9.0 |
8.1 |
32.2 |
24.7 |
2.2 |
7.0 |
|
||||||||||||
|
WSR16 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
7.9 |
8:28 |
9.0 |
8.1 |
32.1 |
24.6 |
2.1 |
9.0 |
|
||||||||||||
|
WSR16 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
14.7 |
8:27 |
9.2 |
8.1 |
32.0 |
24.6 |
2.1 |
3.0 |
|
||||||||||||
|
WSR16 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
14.7 |
8:27 |
9.0 |
8.2 |
32.1 |
24.7 |
2.1 |
2.5 |
|
||||||||||||
|
WSR33 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:19 |
9.4 |
8.3 |
32.1 |
24.8 |
1.8 |
6.0 |
|
||||||||||||
|
WSR33 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:19 |
9.5 |
8.4 |
32.1 |
25.0 |
2.1 |
5.0 |
|
||||||||||||
|
WSR33 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.6 |
9:18 |
9.4 |
8.4 |
32.0 |
24.8 |
2.4 |
2.5 |
|
||||||||||||
|
WSR33 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.6 |
9:18 |
9.4 |
8.4 |
32.0 |
25.0 |
2.2 |
2.5 |
|
||||||||||||
|
WSR33 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.2 |
9:17 |
9.6 |
8.3 |
31.9 |
24.8 |
1.8 |
30.0 |
|
||||||||||||
|
WSR33 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.2 |
9:17 |
9.3 |
8.4 |
32.1 |
25.0 |
2.1 |
27.0 |
|
||||||||||||
|
WSR36 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:03 |
9.4 |
8.2 |
31.7 |
24.7 |
2.3 |
8.0 |
|
||||||||||||
|
WSR36 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:03 |
9.1 |
8.3 |
31.9 |
24.5 |
2.3 |
8.0 |
|
||||||||||||
|
WSR36 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.5 |
9:03 |
9.3 |
8.3 |
31.9 |
24.7 |
1.9 |
2.5 |
|
||||||||||||
|
WSR36 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.5 |
9:03 |
9.1 |
8.3 |
31.8 |
24.5 |
1.7 |
2.5 |
|
||||||||||||
|
WSR36 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.0 |
9:02 |
9.4 |
8.3 |
31.8 |
24.8 |
2.0 |
2.5 |
|
||||||||||||
|
WSR36 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.0 |
9:02 |
9.3 |
8.3 |
31.8 |
24.7 |
1.9 |
2.5 |
|
||||||||||||
|
WSR37 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
8:50 |
9.2 |
8.1 |
31.2 |
25.5 |
2.9 |
5.0 |
|
||||||||||||
|
WSR37 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
8:50 |
9.5 |
8.1 |
31.2 |
25.3 |
2.8 |
9.0 |
|
||||||||||||
|
WSR37 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.9 |
8:49 |
9.2 |
8.2 |
31.3 |
25.4 |
2.4 |
4.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR37 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.9 |
8:49 |
9.3 |
8.1 |
31.2 |
25.2 |
2.4 |
3.0 |
|
||||||||||||
|
WSR37 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.7 |
8:48 |
9.5 |
8.2 |
31.3 |
25.3 |
2.0 |
8.0 |
|
||||||||||||
|
WSR37 |
20220512 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.7 |
8:48 |
9.4 |
8.1 |
31.3 |
25.5 |
2.2 |
5.0 |
|
||||||||||||
|
CE |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:15 |
8.8 |
8.1 |
32.9 |
25.4 |
3.5 |
3.0 |
|
||||||||||||
|
CE |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:15 |
8.7 |
8.1 |
32.9 |
25.4 |
3.6 |
4.0 |
|
||||||||||||
|
CE |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
11.8 |
9:14 |
8.7 |
8.2 |
33.0 |
25.5 |
4.1 |
2.5 |
|
||||||||||||
|
CE |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
11.8 |
9:14 |
8.8 |
8.1 |
32.8 |
25.5 |
4.3 |
2.5 |
|
||||||||||||
|
CE |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
22.5 |
9:13 |
8.8 |
8.2 |
32.9 |
25.5 |
3.7 |
2.5 |
|
||||||||||||
|
CE |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
22.5 |
9:13 |
8.8 |
8.1 |
32.8 |
25.6 |
3.8 |
2.5 |
|
||||||||||||
|
CF |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:52 |
8.3 |
8.3 |
33.7 |
25.5 |
3.2 |
2.5 |
|
||||||||||||
|
CF |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:52 |
8.4 |
8.2 |
33.8 |
25.4 |
3.3 |
2.5 |
|
||||||||||||
|
CF |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
9.7 |
11:51 |
8.4 |
8.2 |
33.8 |
25.4 |
3.5 |
2.5 |
|
||||||||||||
|
CF |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
9.7 |
11:51 |
8.3 |
8.2 |
33.7 |
25.4 |
3.5 |
2.5 |
|
||||||||||||
|
CF |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
18.3 |
11:50 |
8.4 |
8.2 |
33.6 |
25.3 |
3.3 |
2.5 |
|
||||||||||||
|
CF |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
18.3 |
11:50 |
8.3 |
8.3 |
33.8 |
25.4 |
3.3 |
2.5 |
|
||||||||||||
|
WSR01 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:29 |
8.5 |
8.3 |
33.0 |
25.7 |
2.7 |
3.0 |
|
||||||||||||
|
WSR01 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:29 |
8.6 |
8.2 |
33.1 |
25.7 |
2.7 |
4.0 |
|
||||||||||||
|
WSR01 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.5 |
11:28 |
8.7 |
8.2 |
32.9 |
25.6 |
2.3 |
2.5 |
|
||||||||||||
|
WSR01 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.5 |
11:28 |
8.6 |
8.3 |
33.1 |
25.6 |
2.0 |
4.0 |
|
||||||||||||
|
WSR01 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.0 |
11:27 |
8.6 |
8.2 |
33.1 |
25.8 |
2.2 |
2.5 |
|
||||||||||||
|
WSR01 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.0 |
11:27 |
8.6 |
8.2 |
32.9 |
25.6 |
2.0 |
2.5 |
|
||||||||||||
|
WSR02 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:10 |
9.0 |
8.1 |
33.1 |
25.3 |
2.2 |
2.5 |
|
||||||||||||
|
WSR02 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:10 |
9.0 |
8.1 |
33.2 |
25.4 |
1.9 |
3.0 |
|
||||||||||||
|
WSR02 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.5 |
11:09 |
9.0 |
8.1 |
33.2 |
25.4 |
2.2 |
2.5 |
|
||||||||||||
|
WSR02 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.5 |
11:09 |
9.0 |
8.1 |
33.2 |
25.3 |
1.9 |
2.5 |
|
||||||||||||
|
WSR02 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.0 |
11:08 |
9.0 |
8.1 |
33.2 |
25.4 |
1.9 |
2.5 |
|
||||||||||||
|
WSR02 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.0 |
11:08 |
9.0 |
8.1 |
33.1 |
25.5 |
1.9 |
2.5 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR03 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:55 |
9.2 |
8.1 |
33.3 |
25.9 |
2.2 |
2.5 |
|
||||||||||||
|
WSR03 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:55 |
9.1 |
8.0 |
33.2 |
25.9 |
2.1 |
2.5 |
|
||||||||||||
|
WSR03 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
10:54 |
9.1 |
8.1 |
33.2 |
25.8 |
2.1 |
2.5 |
|
||||||||||||
|
WSR03 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
10:54 |
9.2 |
8.0 |
33.3 |
25.8 |
2.4 |
3.0 |
|
||||||||||||
|
WSR03 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.5 |
10:53 |
9.1 |
8.0 |
33.3 |
25.8 |
2.1 |
2.5 |
|
||||||||||||
|
WSR03 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.5 |
10:53 |
9.0 |
8.1 |
33.3 |
25.8 |
1.9 |
2.5 |
|
||||||||||||
|
WSR04 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:42 |
9.1 |
8.2 |
32.7 |
25.6 |
3.1 |
2.5 |
|
||||||||||||
|
WSR04 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:42 |
9.0 |
8.1 |
32.7 |
25.7 |
2.8 |
2.5 |
|
||||||||||||
|
WSR04 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
10:41 |
9.0 |
8.2 |
32.6 |
25.7 |
2.4 |
2.5 |
|
||||||||||||
|
WSR04 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
10:41 |
9.0 |
8.2 |
32.7 |
25.7 |
2.8 |
2.5 |
|
||||||||||||
|
WSR04 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.6 |
10:40 |
9.0 |
8.1 |
32.6 |
25.6 |
2.0 |
2.5 |
|
||||||||||||
|
WSR04 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.6 |
10:40 |
8.9 |
8.1 |
32.8 |
25.7 |
2.0 |
3.0 |
|
||||||||||||
|
WSR16 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:37 |
8.4 |
8.3 |
33.4 |
25.2 |
3.0 |
2.5 |
|
||||||||||||
|
WSR16 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:37 |
8.3 |
8.2 |
33.4 |
25.3 |
2.6 |
2.5 |
|
||||||||||||
|
WSR16 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
8.2 |
9:36 |
8.3 |
8.3 |
33.4 |
25.2 |
2.5 |
3.0 |
|
||||||||||||
|
WSR16 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
8.2 |
9:36 |
8.3 |
8.2 |
33.4 |
25.2 |
2.5 |
3.0 |
|
||||||||||||
|
WSR16 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
15.3 |
9:35 |
8.4 |
8.2 |
33.3 |
25.2 |
2.3 |
3.0 |
|
||||||||||||
|
WSR16 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
15.3 |
9:35 |
8.4 |
8.2 |
33.3 |
25.2 |
2.5 |
4.0 |
|
||||||||||||
|
WSR33 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:27 |
8.2 |
8.0 |
33.3 |
25.9 |
2.5 |
2.5 |
|
||||||||||||
|
WSR33 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:27 |
8.2 |
8.1 |
33.2 |
25.8 |
2.4 |
2.5 |
|
||||||||||||
|
WSR33 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.9 |
10:26 |
8.2 |
8.1 |
33.2 |
25.8 |
2.6 |
3.0 |
|
||||||||||||
|
WSR33 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.9 |
10:26 |
8.2 |
8.1 |
33.4 |
25.8 |
2.4 |
2.5 |
|
||||||||||||
|
WSR33 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.7 |
10:25 |
8.3 |
8.0 |
33.3 |
25.8 |
2.0 |
2.5 |
|
||||||||||||
|
WSR33 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.7 |
10:25 |
8.3 |
8.1 |
33.2 |
25.9 |
2.2 |
2.5 |
|
||||||||||||
|
WSR36 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:13 |
8.8 |
8.1 |
33.7 |
25.4 |
3.0 |
2.5 |
|
||||||||||||
|
WSR36 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:13 |
8.6 |
8.1 |
33.7 |
25.3 |
2.9 |
3.0 |
|
||||||||||||
|
WSR36 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.9 |
10:13 |
8.8 |
8.1 |
33.7 |
25.5 |
2.5 |
3.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
|||||||||||||||
|
WSR36 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.9 |
10:13 |
8.7 |
8.0 |
33.8 |
25.5 |
2.6 |
3.0 |
|
|||||||||||||
|
WSR36 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.7 |
10:12 |
8.7 |
8.0 |
33.8 |
25.3 |
2.5 |
2.5 |
|
|||||||||||||
|
WSR36 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.7 |
10:12 |
8.6 |
8.0 |
33.7 |
25.4 |
2.5 |
2.5 |
|
|||||||||||||
|
WSR37 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:59 |
8.2 |
8.1 |
33.4 |
25.6 |
2.9 |
2.5 |
|
|||||||||||||
|
WSR37 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:59 |
8.2 |
8.1 |
33.4 |
25.6 |
2.9 |
3.0 |
|
|||||||||||||
|
WSR37 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.2 |
9:58 |
8.0 |
8.1 |
33.4 |
25.4 |
3.1 |
2.5 |
|
|||||||||||||
|
WSR37 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.2 |
9:58 |
8.0 |
8.0 |
33.4 |
25.6 |
3.3 |
4.0 |
|
|||||||||||||
|
WSR37 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.3 |
9:57 |
8.0 |
8.1 |
33.5 |
25.6 |
3.1 |
2.5 |
|
|||||||||||||
|
WSR37 |
20220514 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.3 |
9:57 |
8.2 |
8.1 |
33.4 |
25.4 |
2.8 |
3.0 |
|
|||||||||||||
|
CE |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:15 |
9.1 |
8.2 |
33.0 |
26.3 |
4.6 |
4.0 |
|
|||||||||||||
|
CE |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:15 |
9.1 |
8.1 |
33.2 |
26.3 |
4.4 |
4.0 |
|
|||||||||||||
|
CE |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
11.5 |
11:14 |
9.1 |
8.1 |
33.2 |
26.3 |
4.7 |
3.0 |
|
|||||||||||||
|
CE |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
11.5 |
11:14 |
9.1 |
8.2 |
33.2 |
26.1 |
4.7 |
4.0 |
|
|||||||||||||
|
CE |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
21.9 |
11:13 |
9.1 |
8.2 |
33.1 |
26.1 |
5.0 |
3.0 |
|
|||||||||||||
|
CE |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
21.9 |
11:13 |
9.2 |
8.1 |
33.2 |
26.2 |
4.9 |
2.5 |
|
|||||||||||||
|
CF |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:50 |
9.9 |
8.2 |
32.3 |
25.9 |
3.7 |
3.0 |
|
|||||||||||||
|
CF |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:50 |
9.9 |
8.3 |
32.2 |
25.9 |
3.6 |
3.0 |
|
|||||||||||||
|
CF |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
10.7 |
13:49 |
9.9 |
8.2 |
32.3 |
25.9 |
3.8 |
5.0 |
|
|||||||||||||
|
CF |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
10.7 |
13:49 |
10.0 |
8.2 |
32.2 |
26.0 |
3.7 |
5.0 |
|
|||||||||||||
|
CF |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
20.3 |
13:48 |
9.9 |
8.2 |
32.2 |
25.8 |
4.1 |
5.0 |
|
|||||||||||||
|
CF |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
20.3 |
13:48 |
9.8 |
8.3 |
32.3 |
25.8 |
3.9 |
3.0 |
|
|||||||||||||
|
WSR01 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:27 |
9.7 |
8.2 |
32.7 |
26.5 |
4.0 |
5.0 |
|
|||||||||||||
|
WSR01 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:27 |
9.6 |
8.2 |
32.5 |
26.5 |
4.1 |
3.0 |
|
|||||||||||||
|
WSR01 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.5 |
13:26 |
9.6 |
8.2 |
32.7 |
26.4 |
3.2 |
3.0 |
|
|||||||||||||
|
WSR01 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.5 |
13:26 |
9.7 |
8.3 |
32.7 |
26.3 |
3.5 |
3.0 |
|
|||||||||||||
|
WSR01 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
8.0 |
13:25 |
9.7 |
8.2 |
32.7 |
26.5 |
2.7 |
3.0 |
|
|||||||||||||
|
WSR01 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
8.0 |
13:25 |
9.6 |
8.2 |
32.6 |
26.4 |
3.0 |
2.5 |
|
|||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR02 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:08 |
9.4 |
8.2 |
33.1 |
25.9 |
3.7 |
4.0 |
|
||||||||||||
|
WSR02 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:08 |
9.3 |
8.3 |
33.3 |
26.1 |
3.9 |
2.5 |
|
||||||||||||
|
WSR02 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
5.0 |
13:07 |
9.5 |
8.2 |
33.1 |
26.0 |
3.9 |
2.5 |
|
||||||||||||
|
WSR02 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
5.0 |
13:07 |
9.4 |
8.3 |
33.1 |
25.9 |
3.4 |
2.5 |
|
||||||||||||
|
WSR02 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
8.9 |
13:06 |
9.3 |
8.3 |
33.2 |
26.0 |
3.1 |
3.0 |
|
||||||||||||
|
WSR02 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
8.9 |
13:06 |
9.3 |
8.2 |
33.2 |
26.0 |
3.0 |
3.0 |
|
||||||||||||
|
WSR03 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:53 |
9.2 |
8.1 |
32.2 |
26.1 |
3.7 |
2.5 |
|
||||||||||||
|
WSR03 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:53 |
9.3 |
8.2 |
32.2 |
26.0 |
4.0 |
4.0 |
|
||||||||||||
|
WSR03 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.1 |
12:52 |
9.3 |
8.3 |
32.2 |
26.0 |
3.6 |
5.0 |
|
||||||||||||
|
WSR03 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.1 |
12:52 |
9.2 |
8.2 |
32.4 |
26.1 |
3.4 |
3.0 |
|
||||||||||||
|
WSR03 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
7.1 |
12:51 |
9.1 |
8.2 |
32.3 |
26.1 |
2.9 |
2.5 |
|
||||||||||||
|
WSR03 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
7.1 |
12:51 |
9.3 |
8.2 |
32.3 |
26.1 |
3.2 |
2.5 |
|
||||||||||||
|
WSR04 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:41 |
9.3 |
8.2 |
33.2 |
26.0 |
3.9 |
2.5 |
|
||||||||||||
|
WSR04 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:41 |
9.4 |
8.2 |
33.2 |
25.9 |
3.8 |
3.0 |
|
||||||||||||
|
WSR04 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.7 |
12:40 |
9.4 |
8.2 |
33.3 |
25.9 |
3.7 |
4.0 |
|
||||||||||||
|
WSR04 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.7 |
12:40 |
9.3 |
8.3 |
33.3 |
25.8 |
3.7 |
2.5 |
|
||||||||||||
|
WSR04 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
6.4 |
12:39 |
9.3 |
8.2 |
33.4 |
26.0 |
3.2 |
3.0 |
|
||||||||||||
|
WSR04 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
6.4 |
12:39 |
9.4 |
8.2 |
33.2 |
26.0 |
3.1 |
2.5 |
|
||||||||||||
|
WSR16 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:37 |
9.3 |
8.3 |
33.2 |
26.2 |
3.6 |
5.0 |
|
||||||||||||
|
WSR16 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:37 |
9.5 |
8.2 |
33.1 |
26.2 |
3.4 |
4.0 |
|
||||||||||||
|
WSR16 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
8.0 |
11:36 |
9.4 |
8.2 |
33.2 |
26.2 |
3.2 |
3.0 |
|
||||||||||||
|
WSR16 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
8.0 |
11:36 |
9.5 |
8.3 |
33.1 |
26.2 |
3.6 |
2.5 |
|
||||||||||||
|
WSR16 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
14.9 |
11:35 |
9.4 |
8.3 |
33.0 |
26.1 |
3.2 |
2.5 |
|
||||||||||||
|
WSR16 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
14.9 |
11:35 |
9.5 |
8.3 |
33.2 |
26.1 |
3.2 |
3.0 |
|
||||||||||||
|
WSR33 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:27 |
8.9 |
8.1 |
32.9 |
26.3 |
3.1 |
4.0 |
|
||||||||||||
|
WSR33 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:27 |
8.9 |
8.1 |
32.8 |
26.4 |
3.4 |
4.0 |
|
||||||||||||
|
WSR33 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.8 |
12:26 |
8.8 |
8.2 |
32.8 |
26.3 |
3.2 |
3.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR33 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.8 |
12:26 |
8.8 |
8.1 |
32.9 |
26.4 |
2.9 |
5.0 |
|
||||||||||||
|
WSR33 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
6.6 |
12:25 |
8.7 |
8.2 |
32.9 |
26.4 |
3.0 |
5.0 |
|
||||||||||||
|
WSR33 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
6.6 |
12:25 |
8.7 |
8.2 |
32.8 |
26.4 |
2.6 |
8.0 |
|
||||||||||||
|
WSR36 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:13 |
8.6 |
8.2 |
32.6 |
26.4 |
3.0 |
4.0 |
|
||||||||||||
|
WSR36 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:13 |
8.6 |
8.2 |
32.7 |
26.4 |
3.4 |
4.0 |
|
||||||||||||
|
WSR36 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.7 |
12:13 |
8.5 |
8.3 |
32.7 |
26.5 |
3.0 |
3.0 |
|
||||||||||||
|
WSR36 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.7 |
12:13 |
8.6 |
8.1 |
32.5 |
26.5 |
3.2 |
5.0 |
|
||||||||||||
|
WSR36 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
6.3 |
12:12 |
8.6 |
8.2 |
32.7 |
26.3 |
2.8 |
3.0 |
|
||||||||||||
|
WSR36 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
6.3 |
12:12 |
8.5 |
8.3 |
32.7 |
26.4 |
3.0 |
5.0 |
|
||||||||||||
|
WSR37 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:59 |
8.9 |
8.2 |
32.2 |
26.2 |
3.3 |
4.0 |
|
||||||||||||
|
WSR37 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:59 |
9.0 |
8.3 |
32.2 |
26.2 |
3.0 |
3.0 |
|
||||||||||||
|
WSR37 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.3 |
11:58 |
9.0 |
8.2 |
32.3 |
26.2 |
2.5 |
5.0 |
|
||||||||||||
|
WSR37 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.3 |
11:58 |
8.9 |
8.3 |
32.3 |
26.3 |
2.6 |
6.0 |
|
||||||||||||
|
WSR37 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
7.5 |
11:57 |
9.0 |
8.3 |
32.3 |
26.2 |
2.5 |
6.0 |
|
||||||||||||
|
WSR37 |
20220517 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
7.5 |
11:57 |
9.0 |
8.2 |
32.3 |
26.3 |
2.1 |
5.0 |
|
||||||||||||
|
CE |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:49 |
9.6 |
8.2 |
30.8 |
26.0 |
3.6 |
4.0 |
|
||||||||||||
|
CE |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:49 |
9.3 |
8.2 |
30.6 |
25.9 |
3.8 |
2.5 |
|
||||||||||||
|
CE |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
10.5 |
12:48 |
9.5 |
8.2 |
30.7 |
26.1 |
3.8 |
5.0 |
|
||||||||||||
|
CE |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
10.5 |
12:48 |
9.3 |
8.2 |
30.8 |
25.9 |
3.7 |
4.0 |
|
||||||||||||
|
CE |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
20.0 |
12:47 |
9.3 |
8.2 |
30.7 |
25.9 |
4.2 |
8.0 |
|
||||||||||||
|
CE |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
20.0 |
12:47 |
9.3 |
8.2 |
30.6 |
26.0 |
4.1 |
7.0 |
|
||||||||||||
|
CF |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:29 |
8.9 |
8.2 |
30.8 |
26.5 |
3.1 |
6.0 |
|
||||||||||||
|
CF |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:29 |
8.9 |
8.2 |
30.8 |
26.5 |
2.9 |
9.0 |
|
||||||||||||
|
CF |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
9.9 |
15:28 |
9.0 |
8.2 |
30.9 |
26.5 |
3.4 |
9.0 |
|
||||||||||||
|
CF |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
9.9 |
15:28 |
9.0 |
8.2 |
30.9 |
26.6 |
3.1 |
8.0 |
|
||||||||||||
|
CF |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
18.7 |
15:27 |
8.9 |
8.3 |
31.1 |
26.6 |
3.1 |
7.0 |
|
||||||||||||
|
CF |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
18.7 |
15:27 |
9.0 |
8.2 |
30.9 |
26.5 |
3.1 |
6.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
|||||||||||||||
|
WSR01 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:06 |
9.1 |
8.1 |
30.5 |
26.2 |
2.5 |
4.0 |
|
|||||||||||||
|
WSR01 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:06 |
9.0 |
8.0 |
30.6 |
26.3 |
2.8 |
4.0 |
|
|||||||||||||
|
WSR01 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.7 |
15:05 |
9.2 |
8.1 |
30.4 |
26.2 |
2.5 |
6.0 |
|
|||||||||||||
|
WSR01 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.7 |
15:05 |
9.1 |
8.1 |
30.4 |
26.3 |
2.4 |
7.0 |
|
|||||||||||||
|
WSR01 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
8.4 |
15:04 |
9.1 |
8.1 |
30.4 |
26.2 |
2.2 |
7.0 |
|
|||||||||||||
|
WSR01 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
8.4 |
15:04 |
9.2 |
8.1 |
30.4 |
26.2 |
2.3 |
6.0 |
|
|||||||||||||
|
WSR02 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:47 |
8.8 |
8.1 |
31.1 |
26.2 |
2.2 |
5.0 |
|
|||||||||||||
|
WSR02 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:47 |
8.8 |
8.1 |
30.8 |
26.2 |
2.0 |
6.0 |
|
|||||||||||||
|
WSR02 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.6 |
14:46 |
8.6 |
8.1 |
31.0 |
26.2 |
1.9 |
4.0 |
|
|||||||||||||
|
WSR02 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
4.6 |
14:46 |
8.6 |
8.1 |
31.0 |
26.1 |
2.0 |
3.0 |
|
|||||||||||||
|
WSR02 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
8.2 |
14:45 |
8.7 |
8.1 |
30.9 |
26.2 |
2.2 |
3.0 |
|
|||||||||||||
|
WSR02 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
8.2 |
14:45 |
8.7 |
8.1 |
30.8 |
26.1 |
2.0 |
4.0 |
|
|||||||||||||
|
WSR03 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:30 |
8.7 |
8.2 |
30.9 |
26.4 |
3.3 |
3.0 |
|
|||||||||||||
|
WSR03 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:30 |
8.7 |
8.2 |
30.9 |
26.3 |
3.0 |
2.5 |
|
|||||||||||||
|
WSR03 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.8 |
14:29 |
8.8 |
8.1 |
30.6 |
26.3 |
3.0 |
2.5 |
|
|||||||||||||
|
WSR03 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.8 |
14:29 |
8.9 |
8.2 |
30.6 |
26.3 |
3.1 |
3.0 |
|
|||||||||||||
|
WSR03 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
6.6 |
14:28 |
8.9 |
8.2 |
30.7 |
26.4 |
2.9 |
2.5 |
|
|||||||||||||
|
WSR03 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
6.6 |
14:28 |
8.8 |
8.1 |
30.6 |
26.3 |
2.4 |
2.5 |
|
|||||||||||||
|
WSR04 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:17 |
8.4 |
8.0 |
30.5 |
26.4 |
3.1 |
3.0 |
|
|||||||||||||
|
WSR04 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:17 |
8.6 |
8.0 |
30.8 |
26.3 |
2.7 |
4.0 |
|
|||||||||||||
|
WSR04 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.4 |
14:16 |
8.6 |
8.0 |
30.8 |
26.4 |
2.7 |
4.0 |
|
|||||||||||||
|
WSR04 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.4 |
14:16 |
8.6 |
8.0 |
30.7 |
26.3 |
2.5 |
3.0 |
|
|||||||||||||
|
WSR04 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
5.8 |
14:15 |
8.5 |
8.0 |
30.8 |
26.4 |
2.3 |
2.5 |
|
|||||||||||||
|
WSR04 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
5.8 |
14:15 |
8.4 |
8.1 |
30.7 |
26.4 |
2.3 |
4.0 |
|
|||||||||||||
|
WSR16 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:12 |
9.2 |
8.0 |
30.6 |
26.0 |
2.7 |
4.0 |
|
|||||||||||||
|
WSR16 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:12 |
9.4 |
8.1 |
30.8 |
25.9 |
2.3 |
6.0 |
|
|||||||||||||
|
WSR16 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
8.0 |
13:11 |
9.3 |
8.0 |
30.7 |
26.0 |
2.6 |
4.0 |
|
|||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR16 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
8.0 |
13:11 |
9.3 |
8.1 |
30.7 |
26.0 |
2.4 |
6.0 |
|
||||||||||||
|
WSR16 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
15.0 |
13:10 |
9.2 |
8.0 |
30.5 |
25.9 |
2.4 |
3.0 |
|
||||||||||||
|
WSR16 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
15.0 |
13:10 |
9.3 |
8.1 |
30.7 |
25.9 |
2.4 |
4.0 |
|
||||||||||||
|
WSR33 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:02 |
8.5 |
8.0 |
30.9 |
26.6 |
3.2 |
3.0 |
|
||||||||||||
|
WSR33 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
14:02 |
8.4 |
8.0 |
31.0 |
26.6 |
3.4 |
2.5 |
|
||||||||||||
|
WSR33 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.9 |
14:01 |
8.6 |
8.0 |
30.9 |
26.6 |
2.8 |
2.5 |
|
||||||||||||
|
WSR33 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.9 |
14:01 |
8.6 |
8.0 |
30.9 |
26.5 |
3.1 |
3.0 |
|
||||||||||||
|
WSR33 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
6.7 |
14:00 |
8.4 |
8.0 |
30.8 |
26.6 |
2.6 |
2.5 |
|
||||||||||||
|
WSR33 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
6.7 |
14:00 |
8.4 |
8.0 |
31.0 |
26.6 |
3.0 |
3.0 |
|
||||||||||||
|
WSR36 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:46 |
9.1 |
8.0 |
30.4 |
26.6 |
2.3 |
3.0 |
|
||||||||||||
|
WSR36 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:46 |
8.9 |
8.0 |
30.2 |
26.6 |
2.6 |
4.0 |
|
||||||||||||
|
WSR36 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.2 |
13:46 |
8.9 |
8.0 |
30.4 |
26.6 |
2.7 |
3.0 |
|
||||||||||||
|
WSR36 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.2 |
13:46 |
9.0 |
8.0 |
30.3 |
26.5 |
2.9 |
4.0 |
|
||||||||||||
|
WSR36 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
5.4 |
13:45 |
8.8 |
8.0 |
30.5 |
26.5 |
2.3 |
3.0 |
|
||||||||||||
|
WSR36 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
5.4 |
13:45 |
8.8 |
8.0 |
30.4 |
26.7 |
2.4 |
4.0 |
|
||||||||||||
|
WSR37 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:34 |
9.5 |
8.3 |
30.8 |
26.0 |
2.8 |
3.0 |
|
||||||||||||
|
WSR37 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:34 |
9.4 |
8.2 |
30.6 |
25.9 |
3.0 |
2.5 |
|
||||||||||||
|
WSR37 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.9 |
13:33 |
9.3 |
8.3 |
30.6 |
25.9 |
2.6 |
4.0 |
|
||||||||||||
|
WSR37 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Middle |
3.9 |
13:33 |
9.6 |
8.3 |
30.9 |
25.9 |
2.6 |
3.0 |
|
||||||||||||
|
WSR37 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
6.8 |
13:32 |
9.5 |
8.3 |
30.9 |
25.9 |
2.4 |
2.5 |
|
||||||||||||
|
WSR37 |
20220519 |
Sunny |
Moderate |
Mid-Ebb |
Bottom |
6.8 |
13:32 |
9.4 |
8.3 |
30.8 |
26.0 |
2.4 |
3.0 |
|
||||||||||||
|
CE |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:02 |
8.8 |
8.1 |
33.1 |
24.6 |
3.8 |
4.0 |
|
||||||||||||
|
CE |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:02 |
8.8 |
8.2 |
33.2 |
25.2 |
3.8 |
3.0 |
|
||||||||||||
|
CE |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
11.2 |
15:01 |
8.9 |
8.2 |
32.9 |
24.8 |
4.0 |
3.0 |
|
||||||||||||
|
CE |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
11.2 |
15:01 |
9.1 |
8.2 |
33.0 |
25.0 |
3.9 |
3.0 |
|
||||||||||||
|
CE |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
21.4 |
15:00 |
8.9 |
8.2 |
33.2 |
24.6 |
4.2 |
2.5 |
|
||||||||||||
|
CE |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
21.4 |
15:00 |
9.1 |
8.2 |
32.9 |
25.5 |
4.1 |
3.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
CF |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:35 |
9.0 |
8.2 |
33.4 |
25.7 |
3.3 |
3.0 |
|
||||||||||||
|
CF |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:35 |
8.8 |
8.2 |
33.5 |
25.3 |
3.7 |
3.0 |
|
||||||||||||
|
CF |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
9.8 |
17:34 |
8.8 |
8.2 |
33.4 |
25.6 |
3.6 |
4.0 |
|
||||||||||||
|
CF |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
9.8 |
17:34 |
8.8 |
8.3 |
33.4 |
25.8 |
3.7 |
4.0 |
|
||||||||||||
|
CF |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
18.6 |
17:33 |
8.9 |
8.2 |
33.4 |
24.8 |
3.6 |
2.5 |
|
||||||||||||
|
CF |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
18.6 |
17:33 |
8.9 |
8.2 |
33.6 |
24.5 |
3.4 |
2.5 |
|
||||||||||||
|
WSR01 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:12 |
9.2 |
8.0 |
33.5 |
24.9 |
2.9 |
3.0 |
|
||||||||||||
|
WSR01 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:12 |
9.3 |
8.0 |
33.6 |
25.5 |
2.6 |
3.0 |
|
||||||||||||
|
WSR01 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.4 |
17:11 |
9.3 |
8.0 |
33.5 |
25.6 |
3.1 |
2.5 |
|
||||||||||||
|
WSR01 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.4 |
17:11 |
9.1 |
8.1 |
33.5 |
25.9 |
2.6 |
2.5 |
|
||||||||||||
|
WSR01 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.7 |
17:10 |
9.3 |
8.1 |
33.4 |
24.7 |
3.0 |
5.0 |
|
||||||||||||
|
WSR01 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.7 |
17:10 |
9.4 |
8.1 |
33.6 |
25.2 |
2.6 |
5.0 |
|
||||||||||||
|
WSR02 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:53 |
8.9 |
8.0 |
32.7 |
25.2 |
2.1 |
6.0 |
|
||||||||||||
|
WSR02 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:53 |
8.8 |
8.1 |
32.7 |
25.1 |
2.3 |
6.0 |
|
||||||||||||
|
WSR02 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.7 |
16:52 |
8.7 |
8.0 |
32.9 |
25.2 |
2.1 |
3.0 |
|
||||||||||||
|
WSR02 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.7 |
16:52 |
8.8 |
8.0 |
32.9 |
25.8 |
2.2 |
3.0 |
|
||||||||||||
|
WSR02 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.3 |
16:51 |
8.7 |
8.0 |
32.7 |
25.6 |
2.5 |
2.5 |
|
||||||||||||
|
WSR02 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.3 |
16:51 |
8.7 |
8.0 |
32.9 |
25.6 |
2.2 |
4.0 |
|
||||||||||||
|
WSR03 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:39 |
9.1 |
8.2 |
33.4 |
25.4 |
2.7 |
2.5 |
|
||||||||||||
|
WSR03 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:39 |
8.8 |
8.2 |
33.5 |
24.6 |
2.5 |
2.5 |
|
||||||||||||
|
WSR03 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.0 |
16:38 |
9.0 |
8.2 |
33.5 |
25.3 |
2.5 |
2.5 |
|
||||||||||||
|
WSR03 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.0 |
16:38 |
8.8 |
8.2 |
33.4 |
25.2 |
2.4 |
2.5 |
|
||||||||||||
|
WSR03 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.0 |
16:37 |
9.0 |
8.2 |
33.3 |
25.5 |
2.3 |
2.5 |
|
||||||||||||
|
WSR03 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.0 |
16:37 |
8.8 |
8.2 |
33.4 |
24.6 |
2.5 |
2.5 |
|
||||||||||||
|
WSR04 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:28 |
9.5 |
8.2 |
33.1 |
24.6 |
3.3 |
3.0 |
|
||||||||||||
|
WSR04 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:28 |
9.4 |
8.2 |
33.0 |
25.4 |
2.9 |
2.5 |
|
||||||||||||
|
WSR04 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.9 |
16:27 |
9.3 |
8.2 |
33.0 |
25.2 |
2.9 |
3.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR04 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.9 |
16:27 |
9.6 |
8.2 |
32.9 |
24.7 |
3.1 |
3.0 |
|
||||||||||||
|
WSR04 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.8 |
16:26 |
9.3 |
8.2 |
33.2 |
25.4 |
2.5 |
5.0 |
|
||||||||||||
|
WSR04 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.8 |
16:26 |
9.5 |
8.2 |
33.0 |
25.8 |
2.6 |
3.0 |
|
||||||||||||
|
WSR16 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:24 |
8.7 |
8.1 |
33.7 |
25.1 |
2.9 |
3.0 |
|
||||||||||||
|
WSR16 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:24 |
8.9 |
8.0 |
33.6 |
24.8 |
2.9 |
3.0 |
|
||||||||||||
|
WSR16 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
7.9 |
15:23 |
9.0 |
8.0 |
33.6 |
25.6 |
2.7 |
3.0 |
|
||||||||||||
|
WSR16 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
7.9 |
15:23 |
9.0 |
8.0 |
33.7 |
25.8 |
2.9 |
4.0 |
|
||||||||||||
|
WSR16 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
14.7 |
15:22 |
8.9 |
8.0 |
33.6 |
25.9 |
2.9 |
3.0 |
|
||||||||||||
|
WSR16 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
14.7 |
15:22 |
8.9 |
8.1 |
33.8 |
25.4 |
2.5 |
2.5 |
|
||||||||||||
|
WSR33 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:14 |
9.3 |
8.2 |
33.3 |
25.0 |
3.1 |
2.5 |
|
||||||||||||
|
WSR33 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:14 |
9.3 |
8.1 |
33.2 |
25.1 |
2.8 |
3.0 |
|
||||||||||||
|
WSR33 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
16:13 |
9.4 |
8.2 |
33.2 |
24.9 |
3.3 |
2.5 |
|
||||||||||||
|
WSR33 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
16:13 |
9.2 |
8.1 |
33.3 |
25.6 |
2.8 |
3.0 |
|
||||||||||||
|
WSR33 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.5 |
16:12 |
9.3 |
8.2 |
33.0 |
25.2 |
2.7 |
2.5 |
|
||||||||||||
|
WSR33 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.5 |
16:12 |
9.3 |
8.1 |
33.3 |
25.4 |
2.8 |
2.5 |
|
||||||||||||
|
WSR36 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:59 |
9.3 |
8.2 |
32.7 |
25.5 |
3.5 |
2.5 |
|
||||||||||||
|
WSR36 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:59 |
9.2 |
8.2 |
32.6 |
25.8 |
3.8 |
2.5 |
|
||||||||||||
|
WSR36 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.2 |
15:59 |
9.1 |
8.2 |
32.7 |
25.1 |
3.4 |
2.5 |
|
||||||||||||
|
WSR36 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.2 |
15:59 |
9.2 |
8.2 |
32.5 |
24.7 |
2.9 |
3.0 |
|
||||||||||||
|
WSR36 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
5.3 |
15:58 |
9.1 |
8.3 |
32.7 |
25.7 |
3.1 |
3.0 |
|
||||||||||||
|
WSR36 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
5.3 |
15:58 |
9.1 |
8.2 |
32.5 |
25.2 |
3.0 |
3.0 |
|
||||||||||||
|
WSR37 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:45 |
9.4 |
8.1 |
33.1 |
24.9 |
3.0 |
3.0 |
|
||||||||||||
|
WSR37 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
15:45 |
9.3 |
8.1 |
33.1 |
25.5 |
3.3 |
3.0 |
|
||||||||||||
|
WSR37 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.3 |
15:44 |
9.3 |
8.2 |
33.2 |
24.7 |
2.7 |
2.5 |
|
||||||||||||
|
WSR37 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.3 |
15:44 |
9.2 |
8.2 |
33.3 |
24.7 |
3.2 |
2.5 |
|
||||||||||||
|
WSR37 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.6 |
15:43 |
9.4 |
8.2 |
33.1 |
25.1 |
2.7 |
2.5 |
|
||||||||||||
|
WSR37 |
20220521 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.6 |
15:43 |
9.4 |
8.1 |
33.0 |
25.2 |
3.2 |
3.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
|||||||||||||||
|
CE |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:56 |
8.9 |
8.1 |
33.2 |
25.1 |
3.5 |
3.0 |
|
|||||||||||||
|
CE |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
16:56 |
9.2 |
8.1 |
33.0 |
24.8 |
3.3 |
4.0 |
|
|||||||||||||
|
CE |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
12.1 |
16:55 |
9.2 |
8.2 |
33.1 |
24.8 |
3.7 |
4.0 |
|
|||||||||||||
|
CE |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
12.1 |
16:55 |
9.0 |
8.1 |
33.0 |
25.0 |
3.6 |
5.0 |
|
|||||||||||||
|
CE |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
23.1 |
16:54 |
8.9 |
8.2 |
33.2 |
24.8 |
3.9 |
4.0 |
|
|||||||||||||
|
CE |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
23.1 |
16:54 |
8.8 |
8.1 |
33.0 |
25.0 |
3.7 |
2.5 |
|
|||||||||||||
|
CF |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
19:35 |
9.9 |
8.3 |
32.5 |
25.1 |
2.7 |
3.0 |
|
|||||||||||||
|
CF |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
19:35 |
10.1 |
8.3 |
32.5 |
25.0 |
3.1 |
4.0 |
|
|||||||||||||
|
CF |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.0 |
19:34 |
10.1 |
8.3 |
32.6 |
25.0 |
3.0 |
2.5 |
|
|||||||||||||
|
CF |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.0 |
19:34 |
9.8 |
8.3 |
32.6 |
24.9 |
2.9 |
4.0 |
|
|||||||||||||
|
CF |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
18.9 |
19:33 |
9.8 |
8.3 |
32.6 |
24.9 |
3.1 |
6.0 |
|
|||||||||||||
|
CF |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
18.9 |
19:33 |
9.9 |
8.2 |
32.6 |
24.9 |
3.0 |
5.0 |
|
|||||||||||||
|
WSR01 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
19:11 |
9.7 |
8.1 |
32.3 |
25.0 |
2.9 |
6.0 |
|
|||||||||||||
|
WSR01 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
19:11 |
9.9 |
8.2 |
32.4 |
24.9 |
2.5 |
4.0 |
|
|||||||||||||
|
WSR01 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.2 |
19:10 |
9.9 |
8.1 |
32.3 |
25.2 |
2.3 |
4.0 |
|
|||||||||||||
|
WSR01 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.2 |
19:10 |
9.8 |
8.1 |
32.3 |
25.2 |
2.4 |
4.0 |
|
|||||||||||||
|
WSR01 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.4 |
19:09 |
9.7 |
8.1 |
32.2 |
25.0 |
2.3 |
5.0 |
|
|||||||||||||
|
WSR01 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.4 |
19:09 |
9.8 |
8.1 |
32.3 |
25.2 |
2.5 |
3.0 |
|
|||||||||||||
|
WSR02 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
18:52 |
9.1 |
8.2 |
32.8 |
24.7 |
2.6 |
6.0 |
|
|||||||||||||
|
WSR02 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
18:52 |
9.2 |
8.2 |
33.0 |
24.8 |
2.5 |
5.0 |
|
|||||||||||||
|
WSR02 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.6 |
18:51 |
9.1 |
8.2 |
32.8 |
24.8 |
3.0 |
4.0 |
|
|||||||||||||
|
WSR02 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.6 |
18:51 |
9.2 |
8.2 |
32.8 |
24.9 |
2.5 |
2.5 |
|
|||||||||||||
|
WSR02 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.1 |
18:50 |
8.9 |
8.2 |
32.8 |
24.8 |
2.3 |
3.0 |
|
|||||||||||||
|
WSR02 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.1 |
18:50 |
9.1 |
8.2 |
32.8 |
24.9 |
2.6 |
2.5 |
|
|||||||||||||
|
WSR03 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
18:36 |
9.4 |
8.1 |
32.8 |
25.4 |
2.8 |
3.0 |
|
|||||||||||||
|
WSR03 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
18:36 |
9.2 |
8.1 |
32.8 |
25.3 |
2.5 |
4.0 |
|
|||||||||||||
|
WSR03 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.1 |
18:35 |
9.3 |
8.2 |
32.7 |
25.3 |
2.3 |
2.5 |
|
|||||||||||||
|
WSR03 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.1 |
18:35 |
9.3 |
8.2 |
32.7 |
25.1 |
2.6 |
3.0 |
|
|||||||||||||
|
WSR03 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.1 |
18:34 |
9.4 |
8.1 |
32.7 |
25.3 |
2.2 |
2.5 |
|
|||||||||||||
|
WSR03 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.1 |
18:34 |
9.3 |
8.1 |
32.7 |
25.4 |
2.3 |
4.0 |
|
|||||||||||||
|
WSR04 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
18:24 |
9.7 |
8.2 |
32.3 |
25.5 |
2.4 |
2.5 |
|
|||||||||||||
|
WSR04 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
18:24 |
9.6 |
8.2 |
32.3 |
25.4 |
2.6 |
3.0 |
|
|||||||||||||
|
WSR04 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.4 |
18:23 |
9.8 |
8.1 |
32.4 |
25.4 |
2.4 |
5.0 |
|
|||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
|||||||||||||||
|
WSR04 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.4 |
18:23 |
10.0 |
8.1 |
32.5 |
25.4 |
2.4 |
3.0 |
|
|||||||||||||
|
WSR04 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
5.7 |
18:22 |
9.8 |
8.2 |
32.4 |
25.6 |
2.3 |
4.0 |
|
|||||||||||||
|
WSR04 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
5.7 |
18:22 |
9.8 |
8.1 |
32.4 |
25.5 |
2.5 |
2.5 |
|
|||||||||||||
|
WSR16 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:18 |
9.6 |
8.1 |
32.5 |
25.1 |
3.1 |
2.5 |
|
|||||||||||||
|
WSR16 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:18 |
9.8 |
8.1 |
32.4 |
25.2 |
3.0 |
4.0 |
|
|||||||||||||
|
WSR16 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
7.9 |
17:17 |
9.6 |
8.1 |
32.5 |
25.3 |
2.6 |
4.0 |
|
|||||||||||||
|
WSR16 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
7.9 |
17:17 |
9.8 |
8.2 |
32.5 |
25.2 |
3.0 |
3.0 |
|
|||||||||||||
|
WSR16 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
14.7 |
17:16 |
9.6 |
8.1 |
32.4 |
25.4 |
2.7 |
3.0 |
|
|||||||||||||
|
WSR16 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
14.7 |
17:16 |
9.9 |
8.1 |
32.4 |
25.4 |
2.6 |
3.0 |
|
|||||||||||||
|
WSR33 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
18:09 |
9.6 |
8.1 |
32.2 |
24.9 |
2.7 |
3.0 |
|
|||||||||||||
|
WSR33 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
18:09 |
9.7 |
8.1 |
32.2 |
24.9 |
2.7 |
4.0 |
|
|||||||||||||
|
WSR33 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.5 |
18:08 |
9.5 |
8.2 |
32.1 |
24.9 |
2.3 |
3.0 |
|
|||||||||||||
|
WSR33 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.5 |
18:08 |
9.5 |
8.2 |
32.1 |
25.2 |
2.5 |
3.0 |
|
|||||||||||||
|
WSR33 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.0 |
18:07 |
9.4 |
8.2 |
32.0 |
25.1 |
2.2 |
3.0 |
|
|||||||||||||
|
WSR33 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.0 |
18:07 |
9.5 |
8.1 |
32.2 |
25.0 |
2.4 |
3.0 |
|
|||||||||||||
|
WSR36 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:54 |
9.5 |
8.1 |
33.2 |
25.3 |
3.0 |
4.0 |
|
|||||||||||||
|
WSR36 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:54 |
9.4 |
8.2 |
33.2 |
25.3 |
2.8 |
4.0 |
|
|||||||||||||
|
WSR36 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.7 |
17:54 |
9.2 |
8.1 |
33.2 |
25.2 |
3.2 |
6.0 |
|
|||||||||||||
|
WSR36 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.7 |
17:54 |
9.1 |
8.1 |
33.0 |
25.4 |
2.8 |
3.0 |
|
|||||||||||||
|
WSR36 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.3 |
17:53 |
9.2 |
8.2 |
33.2 |
25.4 |
2.4 |
6.0 |
|
|||||||||||||
|
WSR36 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.3 |
17:53 |
9.5 |
8.1 |
33.0 |
25.5 |
2.4 |
4.0 |
|
|||||||||||||
|
WSR37 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:40 |
9.7 |
8.2 |
32.8 |
25.4 |
2.5 |
5.0 |
|
|||||||||||||
|
WSR37 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
17:40 |
9.8 |
8.1 |
33.0 |
25.5 |
2.8 |
4.0 |
|
|||||||||||||
|
WSR37 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
17:39 |
9.5 |
8.2 |
33.0 |
25.4 |
2.6 |
7.0 |
|
|||||||||||||
|
WSR37 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
17:39 |
9.4 |
8.1 |
32.9 |
25.6 |
2.3 |
5.0 |
|
|||||||||||||
|
WSR37 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.6 |
17:38 |
9.7 |
8.1 |
33.0 |
25.6 |
2.7 |
2.5 |
|
|||||||||||||
|
WSR37 |
20220524 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.6 |
17:38 |
9.5 |
8.1 |
32.9 |
25.6 |
2.6 |
4.0 |
|
|||||||||||||
|
CE |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
8:12 |
8.3 |
8.3 |
32.2 |
25.2 |
4.2 |
5.0 |
|
|||||||||||||
|
CE |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
8:12 |
8.4 |
8.3 |
32.2 |
25.2 |
4.0 |
7.0 |
|
|||||||||||||
|
CE |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.3 |
8:11 |
8.3 |
8.3 |
32.1 |
25.3 |
4.4 |
4.0 |
|
|||||||||||||
|
CE |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.3 |
8:11 |
8.2 |
8.3 |
32.1 |
25.2 |
4.4 |
3.0 |
|
|||||||||||||
|
CE |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
19.6 |
8:10 |
8.3 |
8.3 |
32.2 |
25.1 |
4.7 |
5.0 |
|
|||||||||||||
|
CE |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
19.6 |
8:10 |
8.3 |
8.3 |
32.2 |
25.2 |
4.5 |
6.0 |
|
|||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
CF |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:47 |
8.9 |
8.3 |
32.8 |
25.3 |
3.2 |
5.0 |
|
||||||||||||
|
CF |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:47 |
8.7 |
8.2 |
32.9 |
25.4 |
3.2 |
6.0 |
|
||||||||||||
|
CF |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.6 |
10:46 |
8.7 |
8.3 |
32.9 |
25.3 |
3.6 |
7.0 |
|
||||||||||||
|
CF |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.6 |
10:46 |
9.0 |
8.2 |
32.8 |
25.3 |
3.5 |
10.0 |
|
||||||||||||
|
CF |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
20.2 |
10:45 |
8.8 |
8.2 |
33.0 |
25.1 |
3.8 |
8.0 |
|
||||||||||||
|
CF |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
20.2 |
10:45 |
8.8 |
8.2 |
32.9 |
25.1 |
3.8 |
8.0 |
|
||||||||||||
|
WSR01 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:24 |
8.7 |
8.3 |
32.8 |
25.2 |
3.3 |
7.0 |
|
||||||||||||
|
WSR01 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:24 |
8.7 |
8.3 |
32.9 |
25.2 |
3.1 |
7.0 |
|
||||||||||||
|
WSR01 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.7 |
10:23 |
8.7 |
8.3 |
32.9 |
25.3 |
3.1 |
7.0 |
|
||||||||||||
|
WSR01 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.7 |
10:23 |
8.9 |
8.3 |
32.8 |
25.2 |
2.7 |
9.0 |
|
||||||||||||
|
WSR01 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.4 |
10:22 |
8.9 |
8.3 |
33.0 |
25.3 |
2.7 |
7.0 |
|
||||||||||||
|
WSR01 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.4 |
10:22 |
8.7 |
8.3 |
32.9 |
25.3 |
2.6 |
8.0 |
|
||||||||||||
|
WSR02 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:06 |
8.5 |
8.2 |
32.5 |
25.4 |
2.5 |
8.0 |
|
||||||||||||
|
WSR02 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:06 |
8.5 |
8.2 |
32.5 |
25.3 |
2.6 |
8.0 |
|
||||||||||||
|
WSR02 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.9 |
10:05 |
8.4 |
8.2 |
32.5 |
25.5 |
2.4 |
4.0 |
|
||||||||||||
|
WSR02 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.9 |
10:05 |
8.6 |
8.2 |
32.6 |
25.4 |
2.3 |
4.0 |
|
||||||||||||
|
WSR02 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.8 |
10:04 |
8.5 |
8.2 |
32.5 |
25.6 |
2.3 |
3.0 |
|
||||||||||||
|
WSR02 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.8 |
10:04 |
8.4 |
8.2 |
32.4 |
25.5 |
2.3 |
2.5 |
|
||||||||||||
|
WSR03 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:51 |
8.5 |
8.3 |
32.7 |
25.4 |
2.9 |
4.0 |
|
||||||||||||
|
WSR03 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:51 |
8.3 |
8.3 |
32.8 |
25.5 |
2.9 |
5.0 |
|
||||||||||||
|
WSR03 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
9:50 |
8.2 |
8.3 |
32.8 |
25.4 |
3.0 |
5.0 |
|
||||||||||||
|
WSR03 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
9:50 |
8.4 |
8.3 |
32.8 |
25.5 |
3.3 |
3.0 |
|
||||||||||||
|
WSR03 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.5 |
9:49 |
8.4 |
8.3 |
32.7 |
25.5 |
2.7 |
3.0 |
|
||||||||||||
|
WSR03 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.5 |
9:49 |
8.4 |
8.3 |
32.6 |
25.4 |
2.9 |
4.0 |
|
||||||||||||
|
WSR04 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:39 |
8.5 |
8.3 |
32.2 |
25.8 |
3.0 |
4.0 |
|
||||||||||||
|
WSR04 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:39 |
8.5 |
8.2 |
32.2 |
26.0 |
3.4 |
4.0 |
|
||||||||||||
|
WSR04 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.7 |
9:38 |
8.6 |
8.3 |
32.2 |
26.0 |
3.2 |
2.5 |
|
||||||||||||
|
WSR04 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.7 |
9:38 |
8.6 |
8.2 |
32.1 |
25.9 |
3.0 |
3.0 |
|
||||||||||||
|
WSR04 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.4 |
9:37 |
8.6 |
8.3 |
32.1 |
26.0 |
2.8 |
3.0 |
|
||||||||||||
|
WSR04 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.4 |
9:37 |
8.6 |
8.3 |
32.0 |
26.0 |
2.8 |
4.0 |
|
||||||||||||
|
WSR16 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
8:35 |
8.3 |
8.3 |
32.2 |
25.5 |
3.2 |
4.0 |
|
||||||||||||
|
WSR16 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
8:35 |
8.4 |
8.3 |
32.1 |
25.6 |
3.2 |
5.0 |
|
||||||||||||
|
WSR16 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
8.1 |
8:34 |
8.3 |
8.3 |
32.1 |
25.4 |
2.7 |
4.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR16 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
8.1 |
8:34 |
8.2 |
8.3 |
32.3 |
25.4 |
3.0 |
4.0 |
|
||||||||||||
|
WSR16 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
15.1 |
8:33 |
8.3 |
8.3 |
32.2 |
25.5 |
2.2 |
2.5 |
|
||||||||||||
|
WSR16 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
15.1 |
8:33 |
8.1 |
8.3 |
32.1 |
25.6 |
2.2 |
2.5 |
|
||||||||||||
|
WSR33 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:24 |
8.6 |
8.3 |
32.4 |
25.9 |
3.2 |
2.5 |
|
||||||||||||
|
WSR33 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:24 |
8.5 |
8.3 |
32.5 |
25.8 |
3.1 |
4.0 |
|
||||||||||||
|
WSR33 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
9:23 |
8.5 |
8.3 |
32.6 |
25.9 |
3.0 |
2.5 |
|
||||||||||||
|
WSR33 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
9:23 |
8.6 |
8.3 |
32.3 |
25.7 |
2.7 |
3.0 |
|
||||||||||||
|
WSR33 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.6 |
9:22 |
8.6 |
8.2 |
32.3 |
25.9 |
2.3 |
2.5 |
|
||||||||||||
|
WSR33 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.6 |
9:22 |
8.6 |
8.3 |
32.6 |
25.8 |
2.3 |
2.5 |
|
||||||||||||
|
WSR36 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:09 |
9.4 |
8.2 |
32.2 |
25.4 |
3.4 |
3.0 |
|
||||||||||||
|
WSR36 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:09 |
9.3 |
8.2 |
32.3 |
25.2 |
3.3 |
4.0 |
|
||||||||||||
|
WSR36 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.2 |
9:09 |
9.2 |
8.2 |
32.2 |
25.4 |
2.9 |
3.0 |
|
||||||||||||
|
WSR36 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.2 |
9:09 |
9.2 |
8.2 |
32.1 |
25.3 |
2.4 |
3.0 |
|
||||||||||||
|
WSR36 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
5.4 |
9:08 |
9.2 |
8.2 |
32.1 |
25.2 |
2.6 |
3.0 |
|
||||||||||||
|
WSR36 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
5.4 |
9:08 |
9.3 |
8.2 |
32.2 |
25.3 |
2.7 |
3.0 |
|
||||||||||||
|
WSR37 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
8:56 |
8.7 |
8.3 |
32.4 |
25.4 |
2.6 |
8.0 |
|
||||||||||||
|
WSR37 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
8:56 |
8.6 |
8.2 |
32.4 |
25.4 |
2.9 |
9.0 |
|
||||||||||||
|
WSR37 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.3 |
8:55 |
8.7 |
8.3 |
32.3 |
25.4 |
2.9 |
6.0 |
|
||||||||||||
|
WSR37 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.3 |
8:55 |
8.7 |
8.2 |
32.5 |
25.5 |
3.2 |
4.0 |
|
||||||||||||
|
WSR37 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.5 |
8:54 |
8.5 |
8.2 |
32.3 |
25.5 |
2.6 |
4.0 |
|
||||||||||||
|
WSR37 |
20220526 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.5 |
8:54 |
8.7 |
8.3 |
32.4 |
25.3 |
2.4 |
3.0 |
|
||||||||||||
|
CE |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:29 |
9.0 |
8.3 |
32.8 |
25.6 |
3.9 |
7.0 |
|
||||||||||||
|
CE |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:29 |
8.9 |
8.3 |
32.8 |
25.6 |
4.0 |
7.0 |
|
||||||||||||
|
CE |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.2 |
9:28 |
8.9 |
8.3 |
32.6 |
25.6 |
4.2 |
4.0 |
|
||||||||||||
|
CE |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.2 |
9:28 |
9.0 |
8.2 |
32.7 |
25.5 |
4.2 |
5.0 |
|
||||||||||||
|
CE |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
19.4 |
9:27 |
8.9 |
8.2 |
32.6 |
25.6 |
4.5 |
6.0 |
|
||||||||||||
|
CE |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
19.4 |
9:27 |
9.0 |
8.3 |
32.6 |
25.6 |
4.4 |
7.0 |
|
||||||||||||
|
CF |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:59 |
9.0 |
8.1 |
33.2 |
25.8 |
3.5 |
7.0 |
|
||||||||||||
|
CF |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:59 |
9.1 |
8.1 |
33.0 |
25.8 |
3.5 |
4.0 |
|
||||||||||||
|
CF |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
9.8 |
11:58 |
9.1 |
8.1 |
33.2 |
25.9 |
3.9 |
2.5 |
|
||||||||||||
|
CF |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
9.8 |
11:58 |
9.0 |
8.0 |
33.2 |
25.7 |
3.7 |
3.0 |
|
||||||||||||
|
CF |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
18.6 |
11:57 |
9.0 |
8.1 |
33.0 |
25.9 |
3.9 |
5.0 |
|
||||||||||||
|
CF |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
18.6 |
11:57 |
9.1 |
8.2 |
33.0 |
25.8 |
4.0 |
4.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR01 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:36 |
8.3 |
8.3 |
32.8 |
25.2 |
4.0 |
3.0 |
|
||||||||||||
|
WSR01 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:36 |
8.3 |
8.4 |
33.0 |
25.2 |
3.4 |
4.0 |
|
||||||||||||
|
WSR01 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.3 |
11:35 |
8.3 |
8.3 |
32.9 |
25.2 |
3.3 |
4.0 |
|
||||||||||||
|
WSR01 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.3 |
11:35 |
8.3 |
8.3 |
32.9 |
25.4 |
3.4 |
6.0 |
|
||||||||||||
|
WSR01 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.6 |
11:34 |
8.4 |
8.3 |
32.9 |
25.3 |
3.0 |
4.0 |
|
||||||||||||
|
WSR01 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.6 |
11:34 |
8.4 |
8.3 |
32.8 |
25.2 |
3.5 |
3.0 |
|
||||||||||||
|
WSR02 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:18 |
8.3 |
8.1 |
32.5 |
25.6 |
2.0 |
2.5 |
|
||||||||||||
|
WSR02 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:18 |
8.2 |
8.1 |
32.8 |
25.7 |
2.1 |
3.0 |
|
||||||||||||
|
WSR02 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.7 |
11:17 |
8.3 |
8.2 |
32.6 |
25.5 |
2.2 |
3.0 |
|
||||||||||||
|
WSR02 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.7 |
11:17 |
8.2 |
8.1 |
32.7 |
25.5 |
1.9 |
4.0 |
|
||||||||||||
|
WSR02 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.4 |
11:16 |
8.2 |
8.1 |
32.6 |
25.6 |
2.5 |
4.0 |
|
||||||||||||
|
WSR02 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.4 |
11:16 |
8.3 |
8.1 |
32.6 |
25.5 |
2.3 |
3.0 |
|
||||||||||||
|
WSR03 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:04 |
8.7 |
8.2 |
32.1 |
25.4 |
3.8 |
6.0 |
|
||||||||||||
|
WSR03 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:04 |
8.8 |
8.1 |
32.2 |
25.4 |
3.5 |
7.0 |
|
||||||||||||
|
WSR03 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.2 |
11:03 |
8.8 |
8.1 |
32.1 |
25.4 |
3.1 |
4.0 |
|
||||||||||||
|
WSR03 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.2 |
11:03 |
8.8 |
8.1 |
32.2 |
25.4 |
2.9 |
6.0 |
|
||||||||||||
|
WSR03 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.4 |
11:02 |
8.8 |
8.1 |
32.2 |
25.5 |
3.7 |
5.0 |
|
||||||||||||
|
WSR03 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.4 |
11:02 |
8.8 |
8.2 |
32.0 |
25.5 |
3.2 |
4.0 |
|
||||||||||||
|
WSR04 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:52 |
8.7 |
8.2 |
32.2 |
25.3 |
3.5 |
6.0 |
|
||||||||||||
|
WSR04 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:52 |
8.7 |
8.3 |
32.1 |
25.3 |
3.5 |
8.0 |
|
||||||||||||
|
WSR04 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.6 |
10:51 |
8.7 |
8.2 |
32.1 |
25.3 |
3.2 |
8.0 |
|
||||||||||||
|
WSR04 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.6 |
10:51 |
8.7 |
8.2 |
32.2 |
25.3 |
3.2 |
6.0 |
|
||||||||||||
|
WSR04 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.1 |
10:50 |
8.6 |
8.2 |
32.0 |
25.3 |
2.5 |
5.0 |
|
||||||||||||
|
WSR04 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.1 |
10:50 |
8.7 |
8.3 |
32.2 |
25.3 |
2.7 |
7.0 |
|
||||||||||||
|
WSR16 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:51 |
8.7 |
8.3 |
32.5 |
25.8 |
3.8 |
5.0 |
|
||||||||||||
|
WSR16 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
9:51 |
8.8 |
8.4 |
32.6 |
25.9 |
3.8 |
4.0 |
|
||||||||||||
|
WSR16 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
8.3 |
9:50 |
8.8 |
8.4 |
32.3 |
26.0 |
3.8 |
6.0 |
|
||||||||||||
|
WSR16 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
8.3 |
9:50 |
8.8 |
8.3 |
32.4 |
26.0 |
3.6 |
8.0 |
|
||||||||||||
|
WSR16 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
15.5 |
9:49 |
8.7 |
8.4 |
32.4 |
25.8 |
3.6 |
8.0 |
|
||||||||||||
|
WSR16 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
15.5 |
9:49 |
8.8 |
8.4 |
32.4 |
25.9 |
3.7 |
5.0 |
|
||||||||||||
|
WSR33 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:38 |
8.1 |
8.3 |
32.3 |
25.5 |
2.4 |
4.0 |
|
||||||||||||
|
WSR33 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:38 |
8.1 |
8.4 |
32.2 |
25.3 |
2.7 |
5.0 |
|
||||||||||||
|
WSR33 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.5 |
10:37 |
8.2 |
8.4 |
32.1 |
25.5 |
2.7 |
6.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR33 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.5 |
10:37 |
8.2 |
8.3 |
32.3 |
25.4 |
2.3 |
5.0 |
|
||||||||||||
|
WSR33 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.0 |
10:36 |
8.1 |
8.3 |
32.4 |
25.5 |
2.5 |
4.0 |
|
||||||||||||
|
WSR33 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.0 |
10:36 |
8.0 |
8.3 |
32.3 |
25.5 |
2.5 |
7.0 |
|
||||||||||||
|
WSR36 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:25 |
8.7 |
8.4 |
32.3 |
25.9 |
3.1 |
6.0 |
|
||||||||||||
|
WSR36 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:25 |
8.7 |
8.3 |
32.6 |
25.7 |
2.9 |
6.0 |
|
||||||||||||
|
WSR36 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
10:25 |
8.8 |
8.4 |
32.5 |
25.7 |
2.1 |
7.0 |
|
||||||||||||
|
WSR36 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.8 |
10:25 |
8.7 |
8.3 |
32.3 |
25.7 |
2.4 |
9.0 |
|
||||||||||||
|
WSR36 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.6 |
10:24 |
8.7 |
8.4 |
32.6 |
25.7 |
2.6 |
7.0 |
|
||||||||||||
|
WSR36 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.6 |
10:24 |
8.7 |
8.3 |
32.2 |
25.9 |
2.4 |
9.0 |
|
||||||||||||
|
WSR37 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:12 |
9.1 |
8.2 |
32.8 |
25.3 |
3.1 |
7.0 |
|
||||||||||||
|
WSR37 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
10:12 |
9.1 |
8.2 |
33.0 |
25.3 |
3.1 |
4.0 |
|
||||||||||||
|
WSR37 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.5 |
10:11 |
9.0 |
8.2 |
33.0 |
25.4 |
3.1 |
4.0 |
|
||||||||||||
|
WSR37 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.5 |
10:11 |
9.1 |
8.1 |
33.0 |
25.3 |
3.5 |
4.0 |
|
||||||||||||
|
WSR37 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.9 |
10:10 |
9.1 |
8.2 |
33.1 |
25.4 |
2.9 |
7.0 |
|
||||||||||||
|
WSR37 |
20220528 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.9 |
10:10 |
9.1 |
8.2 |
33.0 |
25.3 |
3.2 |
6.0 |
|
||||||||||||
|
CE |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:10 |
8.2 |
8.2 |
32.6 |
26.3 |
4.3 |
12.0 |
|
||||||||||||
|
CE |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:10 |
8.2 |
8.2 |
32.5 |
26.3 |
4.2 |
13.0 |
|
||||||||||||
|
CE |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.4 |
11:09 |
8.2 |
8.3 |
32.4 |
26.3 |
4.5 |
11.0 |
|
||||||||||||
|
CE |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.4 |
11:09 |
8.2 |
8.2 |
32.6 |
26.2 |
4.5 |
14.0 |
|
||||||||||||
|
CE |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
19.7 |
11:08 |
8.4 |
8.2 |
32.5 |
26.3 |
5.0 |
10.0 |
|
||||||||||||
|
CE |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
19.7 |
11:08 |
8.2 |
8.2 |
32.6 |
26.3 |
4.8 |
10.0 |
|
||||||||||||
|
CF |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:47 |
8.2 |
8.2 |
32.5 |
26.2 |
4.0 |
12.0 |
|
||||||||||||
|
CF |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:47 |
8.3 |
8.2 |
32.6 |
26.0 |
3.9 |
12.0 |
|
||||||||||||
|
CF |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.5 |
13:46 |
8.3 |
8.3 |
32.5 |
26.2 |
4.1 |
17.0 |
|
||||||||||||
|
CF |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
10.5 |
13:46 |
8.3 |
8.2 |
32.6 |
26.0 |
4.3 |
16.0 |
|
||||||||||||
|
CF |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
19.9 |
13:45 |
8.3 |
8.2 |
32.4 |
26.2 |
4.5 |
11.0 |
|
||||||||||||
|
CF |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
19.9 |
13:45 |
8.3 |
8.2 |
32.5 |
26.0 |
4.3 |
12.0 |
|
||||||||||||
|
WSR01 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:23 |
8.2 |
8.2 |
32.6 |
26.2 |
3.8 |
14.0 |
|
||||||||||||
|
WSR01 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:23 |
8.3 |
8.3 |
32.5 |
26.0 |
4.4 |
12.0 |
|
||||||||||||
|
WSR01 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.2 |
13:22 |
8.3 |
8.3 |
32.5 |
26.1 |
4.1 |
12.0 |
|
||||||||||||
|
WSR01 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.2 |
13:22 |
8.4 |
8.3 |
32.5 |
26.1 |
4.1 |
13.0 |
|
||||||||||||
|
WSR01 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.4 |
13:21 |
8.3 |
8.3 |
32.4 |
26.1 |
3.5 |
10.0 |
|
||||||||||||
|
WSR01 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.4 |
13:21 |
8.3 |
8.3 |
32.6 |
26.0 |
3.8 |
7.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR02 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:04 |
8.2 |
8.2 |
32.5 |
26.2 |
2.1 |
9.0 |
|
||||||||||||
|
WSR02 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
13:04 |
8.4 |
8.2 |
32.6 |
26.1 |
2.0 |
10.0 |
|
||||||||||||
|
WSR02 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.9 |
13:03 |
8.4 |
8.3 |
32.5 |
26.0 |
2.3 |
9.0 |
|
||||||||||||
|
WSR02 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.9 |
13:03 |
8.2 |
8.2 |
32.4 |
26.2 |
2.2 |
11.0 |
|
||||||||||||
|
WSR02 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.7 |
13:02 |
8.3 |
8.2 |
32.4 |
26.1 |
2.7 |
17.0 |
|
||||||||||||
|
WSR02 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
8.7 |
13:02 |
8.4 |
8.2 |
32.6 |
26.2 |
2.5 |
14.0 |
|
||||||||||||
|
WSR03 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:48 |
8.3 |
8.2 |
32.5 |
26.0 |
3.9 |
15.0 |
|
||||||||||||
|
WSR03 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:48 |
8.2 |
8.2 |
32.6 |
26.0 |
4.0 |
16.0 |
|
||||||||||||
|
WSR03 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.0 |
12:47 |
8.2 |
8.3 |
32.5 |
26.0 |
3.5 |
14.0 |
|
||||||||||||
|
WSR03 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.0 |
12:47 |
8.2 |
8.2 |
32.6 |
26.2 |
3.4 |
15.0 |
|
||||||||||||
|
WSR03 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.0 |
12:46 |
8.3 |
8.3 |
32.4 |
26.0 |
3.4 |
14.0 |
|
||||||||||||
|
WSR03 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.0 |
12:46 |
8.3 |
8.3 |
32.5 |
26.2 |
3.6 |
14.0 |
|
||||||||||||
|
WSR04 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:35 |
8.3 |
8.3 |
32.4 |
25.8 |
3.5 |
13.0 |
|
||||||||||||
|
WSR04 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:35 |
8.3 |
8.2 |
32.6 |
26.0 |
3.4 |
14.0 |
|
||||||||||||
|
WSR04 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.5 |
12:34 |
8.3 |
8.2 |
32.4 |
26.0 |
3.3 |
11.0 |
|
||||||||||||
|
WSR04 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.5 |
12:34 |
8.3 |
8.2 |
32.6 |
26.0 |
3.2 |
8.0 |
|
||||||||||||
|
WSR04 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
5.9 |
12:33 |
8.2 |
8.2 |
32.4 |
25.8 |
2.7 |
11.0 |
|
||||||||||||
|
WSR04 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
5.9 |
12:33 |
8.2 |
8.2 |
32.5 |
25.8 |
2.8 |
11.0 |
|
||||||||||||
|
WSR16 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:32 |
8.2 |
8.2 |
32.6 |
26.1 |
3.6 |
9.0 |
|
||||||||||||
|
WSR16 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:32 |
8.3 |
8.3 |
32.6 |
26.0 |
3.3 |
10.0 |
|
||||||||||||
|
WSR16 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
8.2 |
11:31 |
8.2 |
8.2 |
32.5 |
26.1 |
3.2 |
9.0 |
|
||||||||||||
|
WSR16 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
8.2 |
11:31 |
8.3 |
8.2 |
32.6 |
26.0 |
3.1 |
8.0 |
|
||||||||||||
|
WSR16 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
15.4 |
11:30 |
8.3 |
8.3 |
32.5 |
26.1 |
2.9 |
9.0 |
|
||||||||||||
|
WSR16 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
15.4 |
11:30 |
8.2 |
8.2 |
32.4 |
26.1 |
3.1 |
11.0 |
|
||||||||||||
|
WSR33 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:21 |
8.3 |
8.2 |
32.5 |
26.0 |
4.1 |
11.0 |
|
||||||||||||
|
WSR33 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:21 |
8.3 |
8.2 |
32.5 |
26.2 |
3.9 |
15.0 |
|
||||||||||||
|
WSR33 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.7 |
12:20 |
8.3 |
8.2 |
32.6 |
26.2 |
3.5 |
12.0 |
|
||||||||||||
|
WSR33 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.7 |
12:20 |
8.3 |
8.2 |
32.5 |
26.1 |
3.9 |
12.0 |
|
||||||||||||
|
WSR33 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.4 |
12:19 |
8.2 |
8.3 |
32.4 |
26.0 |
3.6 |
11.0 |
|
||||||||||||
|
WSR33 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
6.4 |
12:19 |
8.3 |
8.2 |
32.5 |
26.1 |
3.2 |
14.0 |
|
||||||||||||
|
WSR36 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:06 |
8.3 |
8.2 |
32.6 |
26.0 |
3.8 |
12.0 |
|
||||||||||||
|
WSR36 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
12:06 |
8.2 |
8.2 |
32.6 |
26.1 |
3.8 |
12.0 |
|
||||||||||||
|
WSR36 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.4 |
12:06 |
8.4 |
8.2 |
32.4 |
26.1 |
3.4 |
8.0 |
|
||||||||||||
Location |
Date |
Weather |
Sea Condition |
Tidal |
Water Level |
Depth (m) |
Time |
DO (mg/L) |
pH |
Sal (ppt) |
Temp (oC) |
Turbidty
(NTU) |
SS (mg/L) |
||||||||||||||
|
WSR36 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
3.4 |
12:06 |
8.2 |
8.2 |
32.4 |
26.0 |
3.6 |
9.0 |
|
||||||||||||
|
WSR36 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
5.8 |
12:05 |
8.3 |
8.2 |
32.5 |
26.1 |
3.6 |
10.0 |
|
||||||||||||
|
WSR36 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
5.8 |
12:05 |
8.3 |
8.2 |
32.5 |
26.1 |
3.2 |
8.0 |
|
||||||||||||
|
WSR37 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:53 |
8.3 |
8.2 |
32.6 |
25.8 |
3.2 |
10.0 |
|
||||||||||||
|
WSR37 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Surface |
1.0 |
11:53 |
8.3 |
8.2 |
32.4 |
25.9 |
3.7 |
11.0 |
|
||||||||||||
|
WSR37 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.3 |
11:52 |
8.4 |
8.2 |
32.6 |
25.9 |
3.1 |
9.0 |
|
||||||||||||
|
WSR37 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Middle |
4.3 |
11:52 |
8.3 |
8.2 |
32.5 |
25.8 |
3.1 |
9.0 |
|
||||||||||||
|
WSR37 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.6 |
11:51 |
8.3 |
8.1 |
32.4 |
25.8 |
2.9 |
10.0 |
|
||||||||||||
|
WSR37 |
20220531 |
Cloudy |
Moderate |
Mid-Ebb |
Bottom |
7.6 |
11:51 |
8.2 |
8.2 |
32.4 |
25.9 |
2.8 |
9.0 |
|
||||||||||||
Appendix M
HOKLAS Laboratory Certificate
Appendix N
Water Quality and Landfill Gas
Equipment
Calibration Certificate
Appendix
O
Exceedance Report
(s)
Incident Report
on Action Level or Limit Level Non-Compliance
Project |
Design, Build
and Operate First
Stage of Tseung
Kwan O Desalination Plant |
|||
Date |
3 May 2022 (Lab
result received on 11
May 2022) |
|||
Time |
08:00-10:06 (Mid-Flood) and 11:58-15:28 (Mid-Ebb) |
|||
Mid-Flood |
||||
Monitoring Location |
WSR36 |
|||
Parameter |
Suspended Solid
(SS) |
|||
Action &
Limit Levels |
Action Level |
Limit Level |
||
> 6.0 mg/L |
> 6.5 mg/L |
|||
Measurement Level |
Impact Station(s) of Exceedance |
Control Stations |
Impact Station(s) without Exceedance |
|
6.2 mg/L (WSR 36) |
2.9 mg/L
(CE) 5.0 mg/L (CF) |
4.9 mg/L (WSR 1) 2.7 mg/L (WSR 2) 6.0 mg/L (WSR 3) 2.7 mg/L (WSR 4) 2.6 mg/L (WSR 16) 2.5 mg/L (WSR 33) 2.8 mg/L (WSR 37) |
||
Possible reason for Action
or Limit Level Non-compliance |
Outfall Shaft
Area: marine construction activities, namely 1) dewatering pump operation
inside the outfall caisson Intake Shaft
Area: marine construction activities, namely 1) Derrick barge assisted the
trial of rockfill retrieval by suction pipe inside the Intake Shaft
on-and-off while adjusting the pipeline fixings. Marine construction activities with contact with water: 1) Derrick barge
assisted the trial of rockfill retrieval by suction
pipe inside the Intake Shaft on-and-off while adjusting the pipeline fixings. Marine vessels
on 3 May 2022: -
Derrick barge x1 (Intake Shaft) -
N/A (Outfall Shaft) Dominating sea current direction was found to be from Southeast to Northwest at waters
to the west side of Tit Cham Chau; and from Northeast to Southwest at waters
to the east side of Tit Cham Chau. |
|||
|
According to the
information provided by the Contactor, marine construction activity with
contact with water was conducted at Intake Shaft (WSR36) on 3 May 2022, SS
exceedance was observed at monitoring station WSR36 (5.2 mg/L). During the
construction activities, the Intake Shaft was enclosed by silt curtains.
Considering that the water quality mitigation measure was
properly implemented during
the construction
activities, the SS exceedances at WSR36 may be resulted from natural factors. According to the
field observation by sampling team during sampling event, no silt plume was
observed at the Contract site on 3 May 2022. Conditions of the protective silt curtain at the inland
water outfall was satisfactory on 3 May 2022. |
|||
Mid-Ebb |
||||
Monitoring Location |
WSR37 |
|||
Parameter |
Suspended Solid
(SS) |
|||
Action &
Limit Levels |
Action Level |
Limit Level |
||
> 5.0 mg/L |
> 6.0 mg/L |
|||
Measurement Level |
Impact Station(s) of Exceedance |
Control Stations |
Impact Station(s) without Exceedance |
|
5.2 mg/L (WSR 37) |
2.6 mg/L
(CE) 3.7 mg/L (CF) |
3.4 mg/L (WSR 1) 2.6 mg/L (WSR 2) 2.8 mg/L
(WSR 3) 2.9 mg/L
(WSR 4) 3.9 mg/L (WSR 16) 2.8 mg/L (WSR 33) 3.7 mg/L (WSR 36) |
||
Possible reason for Action
or Limit Level Non-compliance |
Outfall Shaft
Area: marine construction activities, namely 1) dewatering pump operation
inside the outfall caisson Intake Shaft
Area: marine construction activities, namely 1) Derrick barge assisted the
trial of rockfill retrieval by suction pipe inside the Intake Shaft
on-and-off while adjusting the pipeline fixings. Marine construction activities with contact with water: 1) Derrick barge
assisted the trial of rockfill retrieval by suction
pipe inside the Intake Shaft on-and-off while adjusting the pipeline fixings. |
|||
|
Marine vessels
on 3 May 2022: -
Derrick barge x1 (Intake Shaft) -
N/A (Outfall Shaft) Dominating sea current direction was found to be from Northwest to Southeast at waters
to the west side of Tit Cham Chau; and from Northwest to Southeast at waters
to the east side of Tit Cham Chau. According to the
information provided by the Contactor, marine construction activity with
contact with water was conducted at Intake Shaft (WSR36) on 3 May 2022.
However, no SS exceedance was observed at monitoring station WSR36 (3.7
mg/L). Hence, the SS exceedances at WSR37 may be resulted from natural
factors. According to the
field observation by sampling team during sampling event, no silt plume was
observed at the Contract site on 3 May 2022. Conditions of the
protective silt curtain at the inland
water outfall was satisfactory on 3 May 2022. |
Remarks |
Current direction during mid-flood sampling on 3 May 2022: Current direction during
mid-ebb sampling on 3 May 2022: |
Incident Report
on Action Level or Limit Level Non-Compliance
Project |
Design, Build
and Operate First
Stage of Tseung
Kwan O Desalination Plant |
|||
Date |
5 May 2022 (Lab
result received on 13
May 2022) |
|||
Time |
08:00-09:41 (Mid-Flood) and 12:35-16:05 (Mid-Ebb) |
|||
Mid-Flood |
||||
Monitoring Location |
WSR4 |
|||
Parameter |
Suspended Solid
(SS) |
|||
Action &
Limit Levels |
Action Level |
Limit Level |
||
> 5.0 mg/L |
> 6.0 mg/L |
|||
Measurement Level |
Impact Station(s) of Exceedance |
Control Stations |
Impact Station(s) without Exceedance |
|
5.8 mg/L (WSR 4) |
3.0 mg/L
(CE) 3.2 mg/L (CF) |
3.0 mg/L (WSR 1) 3.6 mg/L (WSR 2) 3.1 mg/L (WSR 3) 3.8 mg/L (WSR 16) 3.3 mg/L (WSR 33) 3.8 mg/L (WSR 36) 3.5 mg/L (WSR 37) |
||
Possible reason for Action or Limit Level Non-compliance |
Outfall Shaft Area:
marine construction activities, namely 1) dewatering pump operation inside the outfall caisson Intake Shaft Area: marine construction
activities, namely 1) Derrick barge assisted the rockfill retrieval by
suction pipe inside the Intake Shaft Marine construction activities with
contact with water: 1) Derrick
barge assisted the rockfill
retrieval by suction pipe inside the Intake Shaft Marine vessels on 5 May
2022: -
Derrick barge x1 (Intake Shaft) -
N/A (Outfall Shaft) Dominating sea current direction was found to be from
Southeast to Northwest at waters to the
west side of Tit Cham Chau; and from Northeast to Southwest at waters to the
east side of Tit Cham Chau. |
|||
|
Station WSR4
was located distant
from the construction site and the possibility of being
affected by marine construction activities was considered limited. SS
exceedance was however observed at WSR4 (5.8 mg/L). According to the
information provided by the Contactor, marine construction activity with contact with water was conducted at Intake
Shaft (WSR36) on 5 May 2022. However, no SS exceedance was observed at WSR36
(3.8 mg/L) Hence, the SS exceedance at WSR4 may be resulted from natural
factors. According to the
field observation by sampling team during sampling event, no silt plume was
observed at the Contract site on 5 May 2022. Conditions of the protective silt curtain at the inland
water outfall was satisfactory on 5 May 2022. |
|||
Mid-Ebb |
||||
Monitoring Location |
WSR2, WSR3 |
|||
Parameter |
Suspended Solid
(SS) |
|||
Action &
Limit Levels |
Action Level |
Limit Level |
||
> 5.0 mg/L |
> 6.0 mg/L |
|||
Measurement Level |
Impact Station(s) of Exceedance |
Control Stations |
Impact Station(s) without Exceedance |
|
5.3 mg/L (WSR 2) 7.8 mg/L (WSR
3) |
3.5 mg/L
(CE) 5.0 mg/L (CF) |
4.1 mg/L (WSR 1) 3.8 mg/L (WSR 4) 3.3 mg/L (WSR 16) 3.8 mg/L (WSR 33) 3.3 mg/L (WSR 36) 4.3 mg/L (WSR 37) |
||
Possible reason for Action
or Limit Level Non-compliance |
Outfall Shaft Area: marine
construction activities, namely
1) dewatering pump operation inside the outfall
caisson Intake Shaft Area: marine construction
activities, namely 1) Derrick barge assisted the rockfill retrieval by
suction pipe inside the Intake Shaft Marine construction activities with contact
with water: 1) Derrick barge assisted the rockfill
retrieval by suction pipe inside the Intake Shaft Marine vessels
on 5 May 2022: -
Derrick barge x1 (Intake Shaft) -
N/A (Outfall Shaft) |
|||
|
Dominating sea current direction was found to be from
Northwest to Southeast at waters to the
west side of Tit Cham Chau; and from East to West at waters to the east side
of Tit Cham Chau. Stations WSR2 and
WSR3 were located distant from the construction site and the possibility of
being affected by marine construction activities was considered limited. SS
exceedances were however observed at WSR2 (5.3 mg/L) and WSR3 (7.8mg/L).
According to the information provided by the Contactor, marine construction
activity with contact with water was conducted at Intake Shaft (WSR36) on 5
May 2022. However, no SS exceedance was observed at WSR36 (3.3mg/L). Hence,
the SS exceedance at WSR2 and WSR3 may be resulted from natural factors. According to the
field observation by sampling team during sampling event, no silt plume was
observed at the Contract site on 5 May 2022. Conditions of the protective silt curtain at the inland
water outfall was satisfactory on 5 May 2022. |
Remarks |
Current direction during mid-ebb
sampling on 5 May 2022: Current direction during
mid-flood sampling on 5 May
2022: |
Incident Report
on Action Level or Limit Level Non-Compliance
Project |
Design, Build
and Operate First
Stage of Tseung
Kwan O Desalination Plant |
|||
Date |
7 May 2022 (Lab
result received on 16 May 2022) |
|||
Time |
08:00-10:37 (Mid-Flood) and 14:07-17:37 (Mid-Ebb) |
|||
Mid-Flood |
||||
Monitoring Location |
WSR3, WSR4 |
|||
Parameter |
Suspended Solid
(SS) |
|||
Action &
Limit Levels |
Action Level |
Limit Level |
||
> 5.0 mg/L |
> 6.0 mg/L |
|||
Measurement Level |
Impact Station(s) of Exceedance |
Control Stations |
Impact Station(s) without Exceedance |
|
6.0 mg/L (WSR 3) 6.7 mg/L (WSR 4) |
3.7 mg/L
(CE) 3.7 mg/L (CF) |
4.3 mg/L (WSR 1) 4.5 mg/L (WSR 2) 4.2 mg/L (WSR 16) 3.8 mg/L (WSR 33) 4.1 mg/L (WSR 36) 3.3 mg/L (WSR 37) |
||
Possible reason for Action
or Limit Level Non-compliance |
Outfall Shaft
Area: marine construction activities, namely 1) dewatering pump operation
inside the outfall caisson Intake Shaft
Area: marine construction activities, namely 1) Derrick barge assisted the
rockfill retrieval by suction pipe inside the Intake Shaft Marine
construction activities with contact with water: 1) Derrick barge assisted
the rockfill retrieval by suction pipe inside the Intake Shaft Marine vessels
on 7 May 2022: -
Derrick barge x1 (Intake Shaft) -
N/A (Outfall Shaft) Dominating sea current direction was found to be from
Southwest to Northeast at waters to the
west side of Tit Cham Chau; and from Northeast to Southwest at waters to the
east side of Tit Cham Chau. Stations WSR3 and WSR4
were located distant
from the construction site and the possibility of being affected by marine construction activities was considered limited. |
|||
|
SS exceedances
were however observed at WSR3 (6.0 mg/L) and WSR4 (6.7 mg/L). According to
the information provided by the Contactor, marine construction activity with
contact with water was conducted at Intake Shaft (WSR36) on 7 May 2022.
However, no SS exceedance was observed at WSR36 (4.1 mg/L) Hence, the SS
exceedances at WSR3 and WSR4 may be resulted from natural factors. According to the
field observation by sampling team during sampling event, no silt plume was
observed at the Contract site on 7 May 2022. Conditions of the protective silt curtain at the inland
water outfall was satisfactory on 7 May 2022. |
Remarks |
Current direction during mid-flood sampling on 7 May 2022: (Sourced from http://current.hydro.gov.hk/en/map.html) |
Incident Report on Action Level or Limit Level Non-Compliance
Project |
Design, Build
and Operate First
Stage of Tseung
Kwan O Desalination Plant |
|||
Date |
12 May 2022 (Lab
result received on 20
May 2022) |
|||
Time |
13:28-16:58 (Mid-Flood) and 08:04-11:34 (Mid-Ebb) |
|||
Mid-Ebb |
||||
Monitoring Location |
WSR3, WSR4,
WSR16, WSR33, WSR37 |
|||
Parameter |
Suspended Solid
(SS) |
|||
Action &
Limit Levels |
Action Level |
Limit Level |
||
> 5.0 mg/L |
> 6.0 mg/L |
|||
Measurement Level |
Impact Station(s) of Exceedance |
Control Stations |
Impact Station(s) without Exceedance |
|
5.3 mg/L (WSR 3) 5.3 mg/L (WSR 4) 7.1 mg/L (WSR 16) 12.2 mg/L
(WSR 33) 5.7 mg/L (WSR 37) |
3.4 mg/L
(CE) 7.3 mg/L (CF) |
3.5 mg/L (WSR 1) 4.8 mg/L (WSR 2) 4.3 mg/L (WSR 36) |
||
Possible reason for Action or Limit Level Non-compliance |
Outfall Shaft Area:
marine construction activities, namely 1) dewatering pump operation inside
the outfall caisson Intake Shaft
Area: marine construction activities, namely 1) Derrick barge assisted the
rockfill retrieval by suction pipe inside the Intake Shaft Marine
construction activities with contact with water: 1) Derrick barge assisted
the rockfill retrieval by suction pipe inside the Intake Shaft Marine vessels
on 12 May 2022: -
Derrick barge x1 (Intake Shaft) -
N/A (Outfall Shaft) Dominating sea current direction was found to be from
Northwest to Southeast at waters to the
west side of Tit Cham Chau; and from West to East at waters to the east side
of Tit Cham Chau. Stations WSR3,
WSR4 and WSR16
were located distant from the construction site and the possibility of being affected by marine construction activities was considered limited. SS exceedances were however observed at WSR3 (5.3 mg/L), WSR4 (5.3mg/L) |
|||
|
and WSR16
(7.1mg/L). According to the information provided by the Contactor, marine construction activity with
contact with water was conducted at Intake Shaft (WSR36) on 12 May 2022.
However, no SS exceedance was observed at WSR36 (4.3 mg/L) Hence, the SS exceedances at WSR3, WSR4,
WSR16, WSR33, WSR37
may be resulted from natural factors. According to the field
observation by sampling team during sampling event, no silt plume was
observed at the Contract site on 12 May 2022. Conditions of the
protective silt curtain at the inland water outfall was satisfactory on 12
May 2022. |
Remarks |
Current direction during mid-ebb
sampling on 12 May 2022: (Sourced from http://current.hydro.gov.hk/en/map.html) |
Incident Report on Action Level or Limit Level Non-Compliance
Project |
Design, Build
and Operate First
Stage of Tseung
Kwan O Desalination Plant |
|||
Date |
14 May 2022 (Lab
result received on 20
May 2022) |
|||
Time |
15:32-19:00 (Mid-Flood) and 09:13-12:43 (Mid-Ebb) |
|||
Mid-Flood |
||||
Monitoring Location |
WSR4 |
|||
Parameter |
Suspended Solid
(SS) |
|||
Action &
Limit Levels |
Action Level |
Limit Level |
||
> 5.0 mg/L |
> 6.0 mg/L |
|||
Measurement Level |
Impact Station(s) of Exceedance |
Control Stations |
Impact Station(s) without Exceedance |
|
12.3 mg/L
(WSR 4) |
7.2 mg/L
(CE) 5.2 mg/L (CF) |
2.8mg/L (WSR
1) 2.6 mg/L (WSR 2) 4.1 mg/L (WSR 3) 3.1 mg/L (WSR 16) 5.3 mg/L (WSR 33) 4.8 mg/L (WSR 36) 3.2 mg/L (WSR
37) |
||
Possible reason for Action or Limit Level Non-compliance |
Outfall Shaft Area:
marine construction activities, namely 1) dewatering pump operation inside the outfall caisson Intake Shaft Area: marine construction
activities, namely 1) Derrick barge assisted the rockfill retrieval by suction
pipe inside the Intake Shaft Marine construction activities with
contact with water: 1) Derrick
barge assisted the rockfill
retrieval by suction pipe inside the Intake Shaft Marine vessels on 14 May 2022: -
Derrick barge x1 (Intake Shaft) -
N/A (Outfall Shaft) Dominating sea current direction was found to be from
Southeast to Northwest at waters to the
west side of Tit Cham Chau; and from Northeast to Southwest at waters to the
east side of Tit Cham Chau. |
|||
|
Station WSR4
was located distant
from the construction site and the possibility of being
affected by marine construction activities was considered limited. SS
exceedance was however observed at WSR4 (12.3
mg/L). According to the information provided by the Contactor, marine construction activity with contact with
water was conducted at Intake Shaft (WSR36) on 14 May
2022. However, no SS exceedance was observed at WSR36
(4.8 mg/L) Hence, the SS exceedance at WSR4 may be resulted from natural
factors. According to the
field observation by sampling team during sampling event, no silt plume was
observed at the Contract site on 14 May 2022. Conditions of the protective silt
curtain at the inland water outfall was satisfactory on 14 May 2022. |
Remarks |
Current direction during mid-flood sampling on 14 May 2022: (Sourced from http://current.hydro.gov.hk/en/map.html) |
Incident Report on Action Level or Limit Level Non-Compliance
Project |
Design, Build
and Operate First
Stage of Tseung
Kwan O Desalination Plant |
|||
Date |
21 May 2022 (Lab
result received on 27 May 2022) |
|||
Time |
08:00-10:45 (Mid-Flood) and 15:00-18:30 (Mid-Ebb) |
|||
Mid-Flood |
||||
Monitoring Location |
WSR33, WSR36 |
|||
Parameter |
Suspended Solid
(SS) |
|||
Action &
Limit Levels |
Action Level |
Limit Level |
||
> 5.0 mg/L |
> 6.0 mg/L |
|||
Measurement Level |
Impact Station(s) of Exceedance |
Control Stations |
Impact Station(s) without Exceedance |
|
5.2 mg/L
(WSR 33) 5.3 mg/L
(WSR 36) |
2.7 mg/L
(CE) 3.3 mg/L (CF) |
3.2 mg/L (WSR 1) 2.7 mg/L (WSR 2) 3.0 mg/L (WSR 3) 3.0 mg/L (WSR 4) 3.2 mg/L (WSR 16) 4.3 mg/L (WSR 37) |
||
Possible reason for Action
or Limit Level Non-compliance |
Outfall Shaft
Area: marine construction activities, namely 1) dewatering pump operation
inside the outfall caisson Intake Shaft
Area: marine construction activities, namely 1) Derrick barge assisted the rockfill retrieval by suction pipe inside the Intake
Shaft 2) Material delivery Marine
construction activities with contact with water: 1) Derrick barge assisted
the rockfill retrieval by suction pipe inside the Intake Shaft Marine vessels
on 21 May 2022: -
Derrick barge x2 (Intake Shaft) -
N/A (Outfall Shaft) Dominating sea current direction was found to be from
Southeast to Northwest at waters to the
west side of Tit Cham Chau; and from Northeast to Southwest at waters to the
east side of Tit Cham Chau. |
|||
|
According to the
information provided by the Contactor, marine construction activity with
contact with water was conducted at Intake Shaft (WSR36) on 21 May 2022. SS
exceedances were observed at monitoring station WSR33 (5.2mg/L) and WSR36
(5.3mg/L). During the marine
construction activities, the Intake
Shaft was enclosed by silt
curtains. WSR33 was located upstream of WSR36 during mid-flood tide and SS
exceedance was also
observed at WSR33.
Considering that the water quality mitigation measures were properly implemented during the
marine construction activities and
the SS level at WSR36 may
be affected by the upstream monitoring station WSR33,
so the SS exceedances at
WSR33 and WSR36 were considered non-project related. According to the
field observation by sampling team during sampling event, no silt plume was
observed at the Contract site on 21 May 2022. Conditions of the protective silt
curtain at the inland water outfall was satisfactory on 21 May 2022. |
Remarks |
Current direction during mid-flood sampling on 21 May 2022: (Sourced from http://current.hydro.gov.hk/en/map.html) |
Incident Report
on Action Level or Limit Level Non-Compliance
Project |
Design, Build
and Operate First
Stage of Tseung
Kwan O Desalination Plant |
|||
Date |
26 May
2022 (Lab result received on 2 June
2022) |
|||
Time |
13:57-17:57 (Mid-Flood) and 08:10-11:40 (Mid-Ebb) |
|||
Mid-Ebb |
||||
Monitoring Location |
WSR1 |
|||
Parameter |
Suspended Solid
(SS) |
|||
Action &
Limit Levels |
Action Level |
Limit Level |
||
> 6.0 mg/L |
> 6.5 mg/L |
|||
Measurement Level |
Impact Station(s) of Exceedance |
Control Stations |
Impact Station(s) without Exceedance |
|
7.5 mg/L
(WSR1) |
5.0 mg/L
(CE) 7.3 mg/L (CF) |
4.9 mg/L
(WSR2) 4.0 mg/L
(WSR3) 3.4 mg/L
(WSR4) 3.7 mg/L
(WSR16) 2.8 mg/L
(WSR33) 3.2 mg/L
(WSR36) 5.7 mg/L (WSR37) |
||
Possible reason for Action or Limit Level Non-compliance |
Outfall Shaft Area:
marine construction activities, namely 1) dewatering pump operation inside the outfall caisson Intake Shaft
Area: marine construction activities, namely
1) Derrick barge working for the rockfill retrieval by suction
pipe inside the Intake Shaft Marine
construction activities with
contact with water:
1) Derrick barge
working for the rockfill retrieval by suction pipe
inside the Intake Shaft Marine vessels on 26 May 2022: -
Derrick barge x1 (Intake Shaft) -
N/A (Outfall Shaft) Dominating sea current direction was found to be from
Northwest to Southeast at waters to the
west side of Tit Cham Chau; and from Southwest to Northeast at waters to the
east side of Tit Cham Chau. |
|||
|
Station WSR1
was located distant
from the construction site and the possibility of being
affected by marine construction activities was considered limited. SS exceedance
was however observed at WSR1 (7.5 mg/L). According to the information
provided by the Contactor, marine construction activity with contact with water was conducted at Intake
Shaft (WSR36) on 26 May
2022. However, no SS exceedance was observed at WSR36
(3.2 mg/L). Hence, the SS exceedance at WSR1 may be resulted from natural
factors. According to the
field observation by sampling team during sampling event, no silt plume was
observed at the Contract site on 26 May 2022. Conditions of the protective silt
curtain at the inland water outfall was satisfactory on 26 May 2022. |
Remarks |
Current direction during mid-ebb
sampling on 26 May 2022: (Sourced from http://current.hydro.gov.hk/en/map.html) |
Incident Report
on Action Level or Limit Level Non-Compliance
Project |
Design, Build
and Operate First
Stage of Tseung
Kwan O Desalination Plant |
|||
Date |
28 May
2022 (Lab result received on 2 June
2022) |
|||
Time |
15:52-19:00 (Mid-Flood) and 09:27-12:57 (Mid-Ebb) |
|||
Mid-Ebb |
||||
Monitoring Location |
WSR36 |
|||
Parameter |
Suspended Solid
(SS) |
|||
Action &
Limit Levels |
Action Level |
Limit Level |
||
> 7.2 mg/L |
> 7.8 mg/L |
|||
Measurement Level |
Impact Station(s) of Exceedance |
Control Stations |
Impact Station(s) without Exceedance |
|
7.3 mg/L
(WSR36) |
6.0 mg/L
(CE) 4.3 mg/L (CF) |
4.0 mg/L
(WSR1) 3.3 mg/L
(WSR2) 5.3 mg/L
(WSR3) 6.7 mg/L
(WSR4) 6.0 mg/L
(WSR16) 5.2 mg/L
(WSR33) 5.3
mg/L (WSR37) |
||
Possible reason for Action
or Limit Level Non-compliance |
Outfall Shaft
Area: marine construction activities, namely 1) dewatering pump operation
inside the outfall caisson Intake Shaft Area: marine construction activities, namely 1) Derrick barge working for the rockfill retrieval by suction pipe inside the Intake
Shaft Marine construction activities with contact with water: 1) Derrick barge
working for the rockfill retrieval by suction pipe
inside the Intake Shaft Marine vessels
on 28 May 2022: -
Derrick barge x1 (Intake Shaft) -
N/A (Outfall Shaft) Dominating sea current direction was found to be from Northwest to Southeast at waters
to the west side of Tit Cham Chau; and from Southwest to Northeast at waters
to the east side of Tit Cham Chau. According to the information provided
by the Contactor, marine construction activity with contact with water was conducted at Intake Shaft (WSR36) on 28 May 2022, SS |
|||
|
exceedance was
observed at monitoring station WSR36 (7.3 mg/L). During
the marine construction
activities, the Intake Shaft was enclosed by silt curtains. According to the
Hong Kong Observatory Daily Rainfall record on 28 May 2022, rainfall was
recorded at Tseung Kwan O, the rainfall may lead to release of SS content
form the soil of the nearby lands (e.g.
Country park, fill
bank). Considering that
the water quality mitigation measures were properly implemented during the
marine construction activities, the SS exceedance at WSR36 may be resulted
from natural factors. According to the
field observation by sampling team during sampling event, no silt plume was
observed at the Contract site on 28 May 2022. Conditions of the
protective silt curtain at the inland water outfall was satisfactory on 28
May 2022. |
Remarks |
Current direction during mid-ebb
sampling on 28 May 2022: (Sourced from http://current.hydro.gov.hk/en/map.html) |
Incident Report
on Action Level or Limit Level Non-Compliance
Project |
Design, Build
and Operate First
Stage of Tseung
Kwan O Desalination Plant |
|||
Date |
31 May
2022 (Lab result received on 7 June
2022) |
|||
Time |
16:43-19:00 (Mid-Flood) and 11:08-14:48 (Mid-Ebb) |
|||
Mid-Flood |
||||
Monitoring Location |
WSR37 |
|||
Parameter |
Suspended Solid
(SS) |
|||
Action &
Limit Levels |
Action Level |
Limit Level |
||
> 11.4 mg/L |
> 12.4 mg/L |
|||
Measurement Level |
Impact Station(s) of Exceedance |
Control Stations |
Impact Station(s) without Exceedance |
|
12.3 mg/L
(WSR 37) |
8.5 mg/L
(CE) 9.5 mg/L (CF) |
11.0 mg/L
(WSR 1) 8.8 mg/L (WSR 2) 9.2 mg/L (WSR 3) 9.2 mg/L (WSR 4) 10.0 mg/L
(WSR 16) 11.0 mg/L
(WSR 33) 10.8 mg/L (WSR
36) |
||
Possible reason for Action or Limit Level Non-compliance |
Outfall Shaft Area:
marine construction activities, namely 1) dewatering pump operation inside the outfall caisson Intake Shaft Area:
marine construction
activities, namely 1) Derrick barge working for the rockfill retrieval by suction pipe inside the Intake
Shaft Marine
construction activities with
contact with water:
1) Derrick barge
working for the rockfill retrieval by suction pipe
inside the Intake Shaft Marine vessels on 31 May 2022: -
Derrick barge x1 (Intake Shaft) -
N/A (Outfall Shaft) Dominating sea current direction was found to be from Southeast to Northwest at waters
to the west side of Tit Cham Chau; and from Northeast to Southwest at waters
to the east side of Tit Cham Chau. |
|||
|
According to the
information provided by the Contactor, marine construction activity with
contact with water was conducted at Intake Shaft (WSR36) and no marine
construction activity with contact with water was conducted at Outfall Shaft
(WSR37) on 31 May 2022. SS exceedance was
observed at WSR37
(12.3mg/L). However, no SS
exceedance was observed at WSR36 (11.0
mg/L) Hence, the SS exceedance at WSR37 may be
resulted from natural factors. According to the
field observation by sampling team during sampling event, no silt plume was
observed at the Contract site on 31 May 2022. Conditions of the protective silt
curtain at the inland water outfall was satisfactory on 31 May 2022. |
|||
Mid-Ebb |
||||
Monitoring Location |
WSR3 |
|||
Parameter |
Suspended Solid
(SS) |
|||
Action &
Limit Levels |
Action Level |
Limit Level |
||
> 14.0 mg/L |
> 15.2 mg/L |
|||
Measurement Level |
Impact Station(s) of Exceedance |
Control Stations |
Impact Station(s) without Exceedance |
|
14.7 mg/L
(WSR 3) |
11.7 mg/L
(CE) 13.3 mg/L (CF) |
11.3 mg/L
(WSR 1) 11.7 mg/L
(WSR 2) 11.3 mg/L
(WSR 4) 9.3 mg/L (WSR 16) 12.5 mg/L
(WSR 33) 9.8 mg/L (WSR 36) 9.7 mg/L (WSR 37) |
||
Possible reason for Action
or Limit Level Non-compliance |
Outfall Shaft Area: marine
construction activities, namely
1) dewatering pump operation inside the outfall
caisson Intake Shaft Area:
marine construction activities, namely 1) Derrick barge working for the rockfill retrieval by suction pipe inside the Intake
Shaft Marine construction activities with contact with
water: 1) Derrick
barge working for
the rockfill retrieval by suction pipe inside the Intake Shaft Marine vessels
on 31 May 2022: -
Derrick barge x1 (Intake Shaft) -
N/A (Outfall Shaft) |
|||
|
Dominating sea current direction was found to be from
Northwest to Southeast at waters to the
west side of Tit Cham Chau; and from West to East at waters to the east side
of Tit Cham Chau. Station WSR3 was located distant from the
construction site and the possibility of being affected
by marine construction activities was considered limited. SS exceedance was
however observed at WSR3 (14.7
mg/L). According to the information provided by the Contactor, marine construction activity with contact with
water was conducted at Intake Shaft (WSR36)
on 31 May
2022. However, no SS exceedance was observed at WSR36
(9.8 mg/L) Hence, the SS exceedance at WSR3 may be resulted from natural
factors. According to the
field observation by sampling team during sampling event, no silt plume was
observed at the Contract site on 31 May 2022. Conditions of the
protective silt curtain at the inland water outfall was satisfactory on 31
May 2022. |
Remarks |
Current direction during mid-flood sampling on 31 May 2022: |
